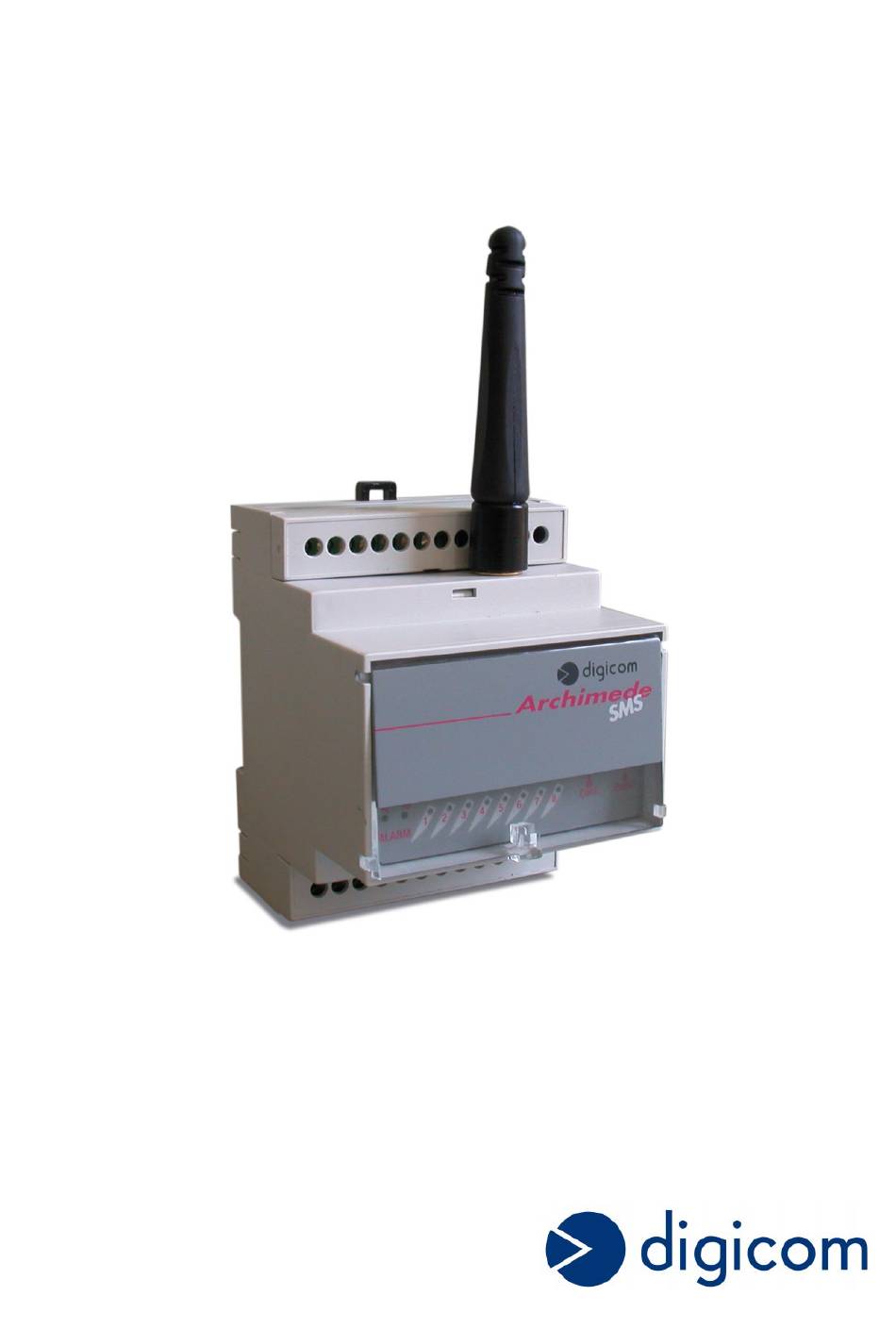

- Page 1 Archimede SMS Remote Alarm System Operational Handbook Rev 1.1 02/2003...
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION ……………………………………………………………………… 4 1.1 TECHNICAL CHARACTERISTICS ……………………………………………… .4 FORWARD…………………………………………………………………………………5 1.2 IMPORTANT………………………………………………………………………… 6 2. INSTALLATION ……………………………………………………………………… 7 2.1 HARDWARE INSTALLATION …………………………………………………… 7 2.2 LED INDICATORS ………………………………………………………………….10 3. SOFTWARE CONFIGURATION…………………………………………………….11 3.1 CONFIGURATION MESSAGES…………………………………………………..11 3.2 VERIFICATION and ACTIVATION MESSAGES………………………………...19 4. ALARM MESSAGES…………………………………………………………………21 4.1 ALARM INPUT MESSAGES………………………………………………………..21... -
Page 3: Introduction
The unit has been designed to operate over most GSM networks utilizing a normal SIM readily available from local operators. The Archimede SMS Alarm Unit conforms to class 4 (900 Mhz) and Class 1 (1800 Mhz) 1.1 TECHNICAL CHARACTERISTICS Power 12V DC ±... -
Page 4: Important
Installers and operators are advised to take all steps to avoid or minimize this interference. Declaration of Conformance We Digicom SpA via Volta 39 21010 Cardano al Campo (Varese Italy) declare that under our responsibility the product: Name Archimede SMS Type Modem Dual-Band EGSM 900/1800Mhz satisfies the following Directive. - Page 5 (Airbags and Safety belts etc). Use in Aircraft Ensure that the Archimede SMS is turn off before boarding any aircraft. (It is illegal in most countries to use a GSM or any other radio device on board an aircraft) Use in Medical Environments Archimede SMS in common with other radio devices can cause malfunction of medical equipment and cardio pace makers when used in close proximity to these devices.
-
Page 6: Installation
2 Installation The installation of the Archimede is extremely easy and fast. The configuration is made by sending SMS messages from a normal GSM phone. 2.1 Before configuration of the unit it is necessary to install it and connect the power as well as the inputs to be monitored and the output to be controlled. - Page 7 In the event that the Archimede is installed in an enclosure or panel which affects operation the use of a external antenna is recommended. Digicom Part no 8D4272 3.2 Metre External Antenna or 8E4150 0.8 Metre External Antenna can be supplied on request.
-
Page 8: Led Indicators
2.1.4 Power Requirements The Archimede SMS can be powered by any DC or AC supply providing a range of 9.6 to 14.4 Volt is maintained. Attention: In no circumstances must the power exceed 14.4 volts as serious damage will occur to the unit and void all warranty. -
Page 9: Software Configuration
3.Software Configuration The programming of the Archimedes is carried out by sending SMS messages from a normal cellular phone to the number of the SIM inserted in the unit. In this way the Archimedes SMS stores the telephone numbers of the cellular phones to be informed in the event of an alarm as well as the message to be sent for each alarm. - Page 10 The former can be used to monitor door opening and closing for example whilst the latter can be used for photoelectric alarm systems etc. Firstly before carrying out this programming ensure that none of the inputs are in the alarm condition.
- Page 11 LED’s stay on check the SMS message for any Syntax errors. 3.1.3 Alarm Configuration for Interuption of Power In the event of power failure the Archimede SMS uses its internal battery to send a message in order to inform users that a power failure has occurred.
- Page 12 SMS message for any Syntax errors. 3.1.4 Configuring the Output Relay The Archimede SMS has the capability of controlling an external device via an internal relay whose contact outputs are on pins 19 and 20. This contact is normally open and can be closed when the correct SMS message is received by the unit.
- Page 13 Caller Identify enabled. 3.1.5 Conguration in Standby Mode As previously stated the Archimede SMs must be powered in order to operate. However there are instances where it is necessary to inhibit sending of SMS messages automatically (for instance where the unit is used in an intrusion alarm system and the unit must be activated/deactivated via a hidden switch or a timer).
- Page 14 message Delimit Character No Tel 5 First Tel Number allowed to send control 20 Max message Delimit Character No Tel 6 First Tel Number allowed to send control 20 Max message Delimit Character • Note * The telephone number must always be inserted with its international code ie +44 for UK, +49 for Germany , +33 for France etc •...
- Page 15 #99# will cancel all configuration and restore factory defaults #9# will cancel Pwr configuration 3.1.7 Verifying the Configuration. To check the configuration in the Archimede SMS it is sufficient to send the following message from an authorised cellular telephone. #CONFIG#...
- Page 16 POOR it is advisable to move the position of the unit or substitute antenna for a higher gain one. (Contact Digicom). In the event that the Archimede SMS is operated out of the SIM suppliers area it may go into roaming in which case the message would indicate for example I VODAFONE ROAMING.
- Page 17 CLI enabled. 4. Signalling of Alarms The Archimede SMS recognises a change of state on any of its alarm inputs and sends a prewritten SMS message to any authorised cellular telephone in its configuration. It also lights the corresponding LED associated with the specific input.
-
Page 18: Alarm Input Messages
4.1.4 Alarm for power supply restored ARCHIMEDE HOME 9) POWER SUPPLY ON BATTEY CHARGED 4.1.5 Alarm for battery discharged ARCHIMEDE HOME BATTERY: DISCHARGED For further information consult your local Digicom reseller or send an e-mail to support@digicom.it...
