Installation, cont'd

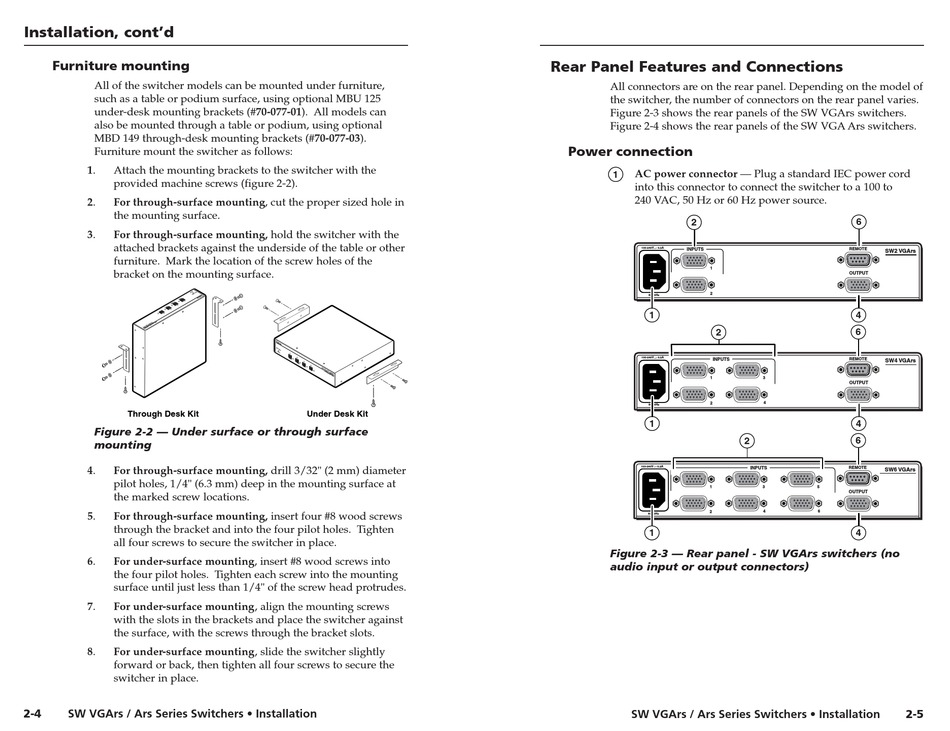

Furniture mounting

All of the switcher models can be mounted under furniture,
such as a table or podium surface, using optional MBU 125
under-desk mounting brackets (#70-077-01). All models can
also be mounted through a table or podium, using optional
MBD 149 through-desk mounting brackets (#70-077-03).
Furniture mount the switcher as follows:
1. Attach the mounting brackets to the switcher with the
provided machine screws (figure 2-2).
2. For through-surface mounting, cut the proper sized hole in
the mounting surface.
3. For through-surface mounting, hold the switcher with the
attached brackets against the underside of the table or other
furniture. Mark the location of the screw holes of the
bracket on the mounting surface.
Through Desk Kit
Figure 2-2 — Under surface or through surface
mounting
4. For through-surface mounting, drill 3/32" (2 mm) diameter
pilot holes, 1/4" (6.3 mm) deep in the mounting surface at
the marked screw locations.
5. For through-surface mounting, insert four #8 wood screws
through the bracket and into the four pilot holes. Tighten
all four screws to secure the switcher in place.
6. For under-surface mounting, insert #8 wood screws into
the four pilot holes. Tighten each screw into the mounting
surface until just less than 1/4" of the screw head protrudes.
7. For under-surface mounting, align the mounting screws
with the slots in the brackets and place the switcher against
the surface, with the screws through the bracket slots.
8. For under-surface mounting, slide the switcher slightly
forward or back, then tighten all four screws to secure the
switcher in place.
2-4
SW VGArs / Ars Series Switchers • Installation
AU TO
SW
ICH
AC
TIV
E 1
2
MO
DE
3
NO RM
AL
4
AU
TO SW
VG
A /A
VG rs
A/A SE
UD IO R IE
SW S
ITC
HE R
Under Desk Kit

Rear Panel Features and Connections

All connectors are on the rear panel. Depending on the model of
the switcher, the number of connectors on the rear panel varies.
Figure 2-3 shows the rear panels of the SW VGArs switchers.
Figure 2-4 shows the rear panels of the SW VGA Ars switchers.

Power connection

AC power connector — Plug a standard IEC power cord
1
into this connector to connect the switcher to a 100 to
240 VAC, 50 Hz or 60 Hz power source.
2
100-240V 0.2A
INPUTS
1
2
50-60Hz
1
2
100-240V 0.2A
INPUTS
1
2
50-60Hz
1
100-240V 0.2A
1
2
50-60Hz
1
Figure 2-3 — Rear panel - SW VGArs switchers (no
audio input or output connectors)
SW VGArs / Ars Series Switchers • Installation
6
REMOTE
SW6 VGA Ars SW2 VGArs
OUTPUT
4
6
REMOTE
SW6 VGA Ars SW4 VGArs
3
OUTPUT
4
4
6
2
REMOTE
INPUTS
SW6 VGA Ars SW6 VGArs
3
5
OUTPUT
4 6
4
2-5
