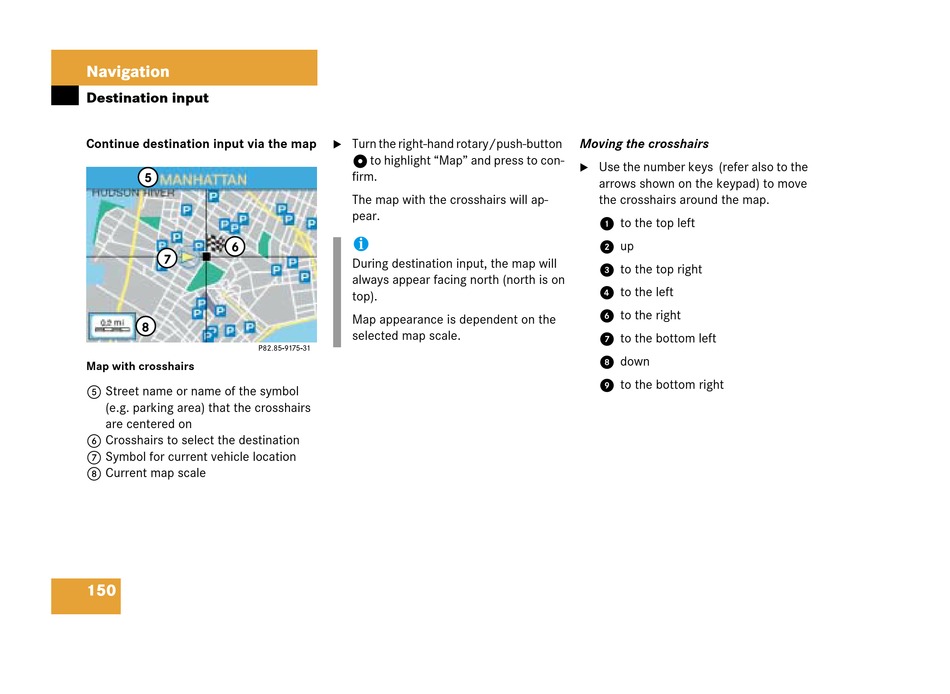

Mercedes-Benz Comand Operator's Manual page 159

Navigation
Destination input
Continue destination input via the map
Map with crosshairs
5 Street name or name of the symbol
(e.g. parking area) that the crosshairs
are centered on
6 Crosshairs to select the destination
7 Symbol for current vehicle location
8 Current map scale
150
Turn the right-hand rotary/push-button
v to highlight "Map" and press to con-
firm.
The map with the crosshairs will ap-
pear.
i
During destination input, the map will
always appear facing north (north is on
top).
Map appearance is dependent on the
selected map scale.
Moving the crosshairs
Use the number keys (refer also to the
arrows shown on the keypad) to move
the crosshairs around the map.
1 to the top left
2 up
3 to the top right
4 to the left
6 to the right
7 to the bottom left
8 down
9 to the bottom right
