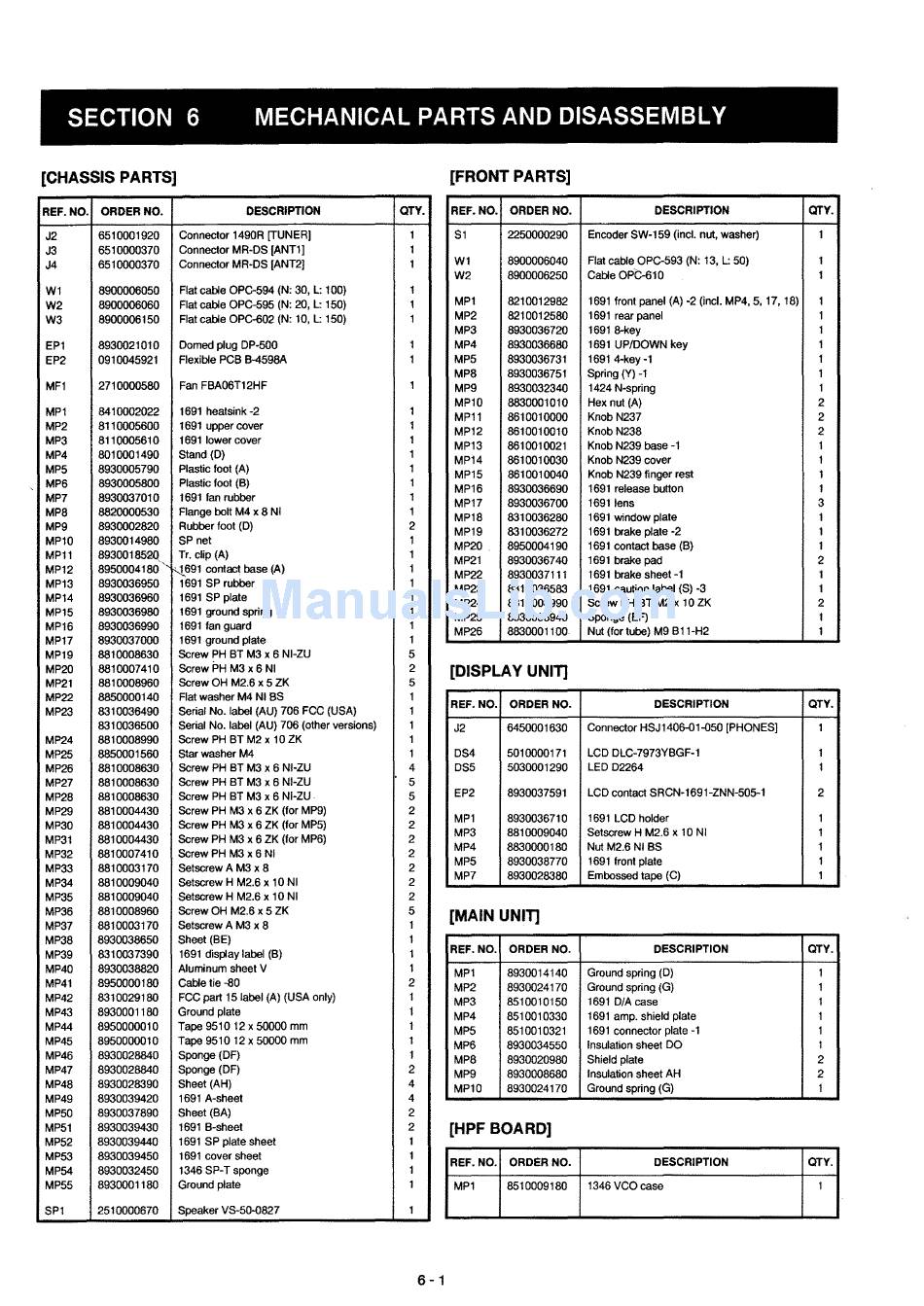

SECTION 6 MECHANICAL PARTS AND DISASSEMBLV
[CHASSIS PARTS]
REF. NO. ORDER NO.
DESCRIPTION QTY.
J2 6510001920
Connector 1490R [TUNER] 1
J3 6510000370
Connector MR-DS (ANT1] 1
J4
6510000370 Connector MR-DS [ANT2] 1
Wl 8900006050
Flat cable OPC-594 (N: 30, L: 100) 1
W2
8900006060
Flat cable OPC-595 (N: 20, L: 150) 1
W3 8900006150
Flat cable OPC-602 (N: 10, L: 150) 1
EPl
8930021010 Domed plug DP-500 1
EP2
0910045921 Flexible PCB B-4598A 1
MFl 2710000580 Fan FBA06T12HF
1
MPl 8410002022
1691 heatsink-2 1
MP2
8110005600 1691 upper cover 1
MP3 8110005610 1691 lower cover 1
MP4 8010001490
Stand (D) 1
MP5 8930005790
Plastic foot (A) 1
MP6
8930005800 Plastic foot (B) 1
MP7 8930037010 1691 fan rubber
1
MP8 8820000530
Flange bolt M4 x 8 NI 1
MP9
8930002820 Rubber foot (D) 2
MP10 8930014980 SPnet 1
MPll 8930018520
Tr. clip (A) 1
MP12
8950004180' r-t691 contact base (A) 1
MP13
8930036950 1691 SP rubber
1
MP14 8930036960
1691 SP plate 1
MP15 8930036980
1691 ground spring
1
MP16 8930036990
1691 fan guard 1
MP17
8930037000 1691 ground plate 1
MP19
8810008630 Screw PH BT M3 x 6 NI-ZU 5
MP20 8810007410
Screw PH M3 x 6 NI 2
MP21
8810008960 Screw OH M2.6 x 5 ZK 5
MP22 8850000140
Flat washer M4 NI BS 1
MP23
8310036490 Serial No. label (AU) 706 FCC (USA) 1
8310036500 Serial No. label (AU) 706 (other versions) 1
MP24 8810008990
Screw PH BT M2 x 10 ZK 1
MP25
8850001560 Star washer M4 1
MP26 8810008630
Screw PH BT M3 x 6 Nl-ZU 4
MP27 8810008630
Screw PH BT M3 x 6 NI-ZU 5
MP28
8810008630
Screw PH BT M3 x 6 NI-ZU
5
MP29 8810004430
Screw PH M3 x 6 ZK (for MP9) 2
MP30 8810004430
Screw PH M3 x 6 ZK (for MP5) 2
MP31
8810004430 Screw PH M3 x 6 ZK (for MP6)
2
MP32 8810007410
Screw PH M3 x 6 NI 2
MP33 8810003170
Setscrew A M3 x 8 2
MP34
8810009040 Setscrew H M2.6 x 10 NI 2
MP35
8810009040
Setscrew H M2.6 x 10 NI 2
MP36 8810008960
Screw OH M2.6 x 5 ZK 5
MP37 8810003170
Setscrew A M3 x 8 1
MP38
8930038650 Sheet (BE) 1
MP39
8310037390
1691 display label (B) 1
MP40 8930038820
Aluminum sheet V 1
MP41 8950000180 Cable tie -80
2
MP42 8310029180
FCC part 15 label (A) (USA only) 1
MP43
8930001180 Ground plate 1
MP44
8950000010 Tape 951012 x 50000 mm
1
MP45 8950000010 Tape 9510 12 x 50000 mm 1
MP46 8930028840 Sponge(DF)
1
MP47 8930028840
Sponge (DF) 2
MP48 8930028390
Sheet (AH) 4
MP49
8930039420 1691 A-sheet 4
MP50 8930037890 Sheet (BA) 2
MP51 8930039430 1691 B-sheet
2
MP52 8930039440
1691 SP plate sheet 1
MP53 8930039450
1691 cover sheet 1
MP54
8930032450 1346 SpoT sponge 1
MP55 8930001180 Ground plate
1
SPl
2510000670 Speaker VS-5D-0827 1
[FRONT PARTS]
REF. NO. ORDER NO. DESCRIPTION QTY.
Sl 2250000290 Encoder SW-159 (incl. nut, washer) 1
Wl 8900006040
Flat cable OPC-593 (N: 13, L: 50) 1
W2 8900006250
Cable OPC-610 1
MPl 8210012982 1691 front panel (A) -2 (incl. MP4, 5.17,18) 1
MP2 8210012580 1691 rear panel 1
MP3 8930036720 16918-key 1
MP4 8930036680 1691 UPIOOWN key 1
MP5 8930036731
1691 4-key-l 1
MP8
8930036751 Spring (Y)-l 1
MP9 8930032340 1424 N-spring 1
MP10 8830001010 Hex nut (A) 2
MP11 8610010000 KnobN237 2
MP12 8610010010 KnobN238 2
MP13
8610010021
Knob N239 base-l 1
MP14 8610010030 Knob N239 cover 1
MP15 8610010040 Knob N239 finger rest 1
MP16 8930036690
1691 release buIlon 1
MP17 8930036700 1691 lens 3
MP18 8310036280 1691 window plate 1
MP19 8310036272 1691 brake plate -2 1
MP20 8950004190
1691 contact base (B) 1
MP21 8930036740 1691 brake pad 2
MP22 8930037111 1691 brake sheet-l 1
MP23 8310036583
1691 caution label (S) -3 1
MP24 8810008990 Screw PH BT M2 x 10 ZK 2
MP25 8930038940
Sponge (EF)
1
MP26
8830001100- Nut (fortube) M9 B11-H2 1
[DISPLAY UNIT]
REF. NO. ORDER NO. DESCRIPTION QTY.
J2
6450001630 Connector HSJ1406-D1-D50 [PHONES] 1
DS4
5010000171 LCD DLC-7973YBGF-l 1
DS5 5030001290 LED D2264 1
EP2 8930037591 LCD contact SRCN-1691-ZNN-505-1 2
MPl 8930036710 1691 LCD holder 1
MP3 8810009040 Setscrew H M2.6 x 10 NI 1
MP4 8830000180 Nut M2.6 Nl BS 1
MP5 8930038770
1691 front plate 1
MP7 8930028380 Embossed tape (C) 1
[MAIN UNIT]
REF. NO. ORDER NO.
DESCRIPTION
QTY.
MP1 8930014140 Ground spring (D) 1
MP2 8930024170 Ground spring (G) 1
MP3 8510010150
1691 D/A
case
1
MP4
8510010330
1691 amp. shield plate 1
MP5 8510010321
1691 connector plate-l 1
MP6 8930034550
Insulation sheet DO 1
MP8
8930020980 Shield plale 2
MP9 8930008680 Insulation sheet AH 2
MP10 8930024170
Ground spring (G) 1
[HPF BOARD]
REF. NO.
ORDER NO. DESCRIPTION QTY.
MPl 8510009180 1346 VCO case 1
6 -1
