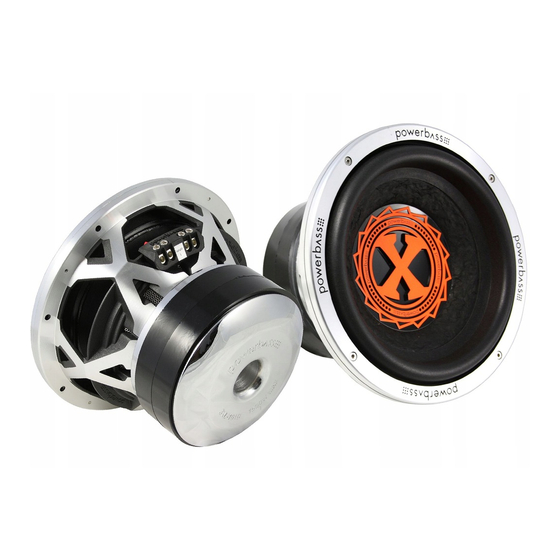

Summary of Contents for PowerBass 3XL-101D
-

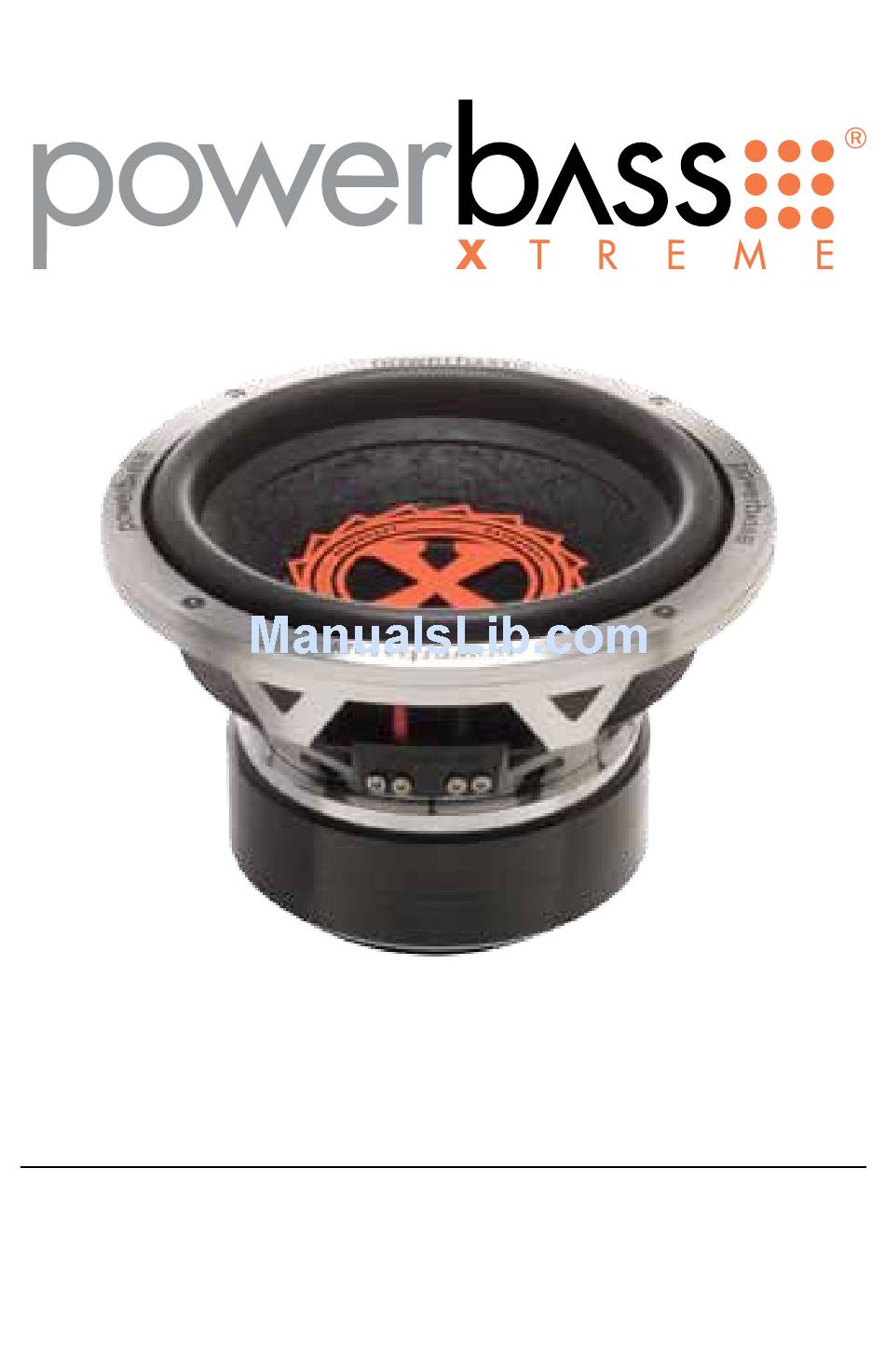

Page 1: Application Guide
3XL-101D 3XL-121D 3XL-151D 3XL SUBWOOFER SERIES Application Guide... - Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result...
- Page 4 To prevent damage to your speakers, please observe the following caution: Your PowerBass Xtreme Super Sub is made with the highest quality materials designed for years of trouble free performance. However, damage to the speaker can occur when the amplifier, regardless of output power, is made to play at levels higher then it was intended.
- Page 5 POWERBASS XTREME 3XL WOOFER FEATURES Proprietary Non-pressed Raw Paper Kraft Cone: This rugged cone material provides structural integrity that will handle the abuse a Class D amplifier will deliver to a woofer while delivering maximum cone area and ground pounding SPL. The rough surface helps to break up standing waves.
-
Page 6: Wiring Guidelines
All PowerBass Xtreme subwoofers use dual voice coils. The use of dual voice coils offers you more versatility in system configuration. It is important to know the limits of your amplifier to optimize its performance. It is always better to use your subwoofer in a mono / bridged mode if your amplifier has the capabilities. - Page 7 COMPETITION WIRING DIAGRAM Since the 3XL Super Sub was designed with a Dual 1-ohm voice coil, an ideal competition set-up would be to run a single 1-ohm stable Class D amplifier to each coil (as shown below). While this will give your woofer maximum SPL, it shoud only be attempted by a Certified Installer.
- Page 8 Installation of PowerBass Xtreme Speakers requires experience with a variety of mechanical and electrical procedures. This manual provides only general installation and operation instructions. If you have any reser- vations about your installation skills or lack of the proper tools, please contact your local PowerBass Xtreme dealer for assistance.
- Page 9 • BANDPASS ENCLOSURE: The most common bandpass enclosure is a combination of a sealed and a vented enclosure working together (4th order or single reflex bandpass system). The rear of the speaker goes into the sealed chamber while the front of the speaker goes into the vented chamber. Because the vent produces all the sound generated from this type of enclosure, sound quality may not be as good as a well-designed ported or sealed design.
- Page 10 TIPS TO GET THE MOST OUT OF YOUR 3XL WOOFER Your PowerBass Xtreme subwoofer has been meticulously engineered and designed to handle high power musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are improperly used.
- Page 11 SUBWOOFER CROSSOVER SETTING Your PowerBass Xtreme Super Sub will perform best if it is used in conjunction with a subwoofer crossover of some kind. Using a crossover will remove unwanted high frequencies and allow them to concentrate only on bass.
-
Page 12: Installation Precautions
PREPARING FOR INSTALLATION NOTE: The tools listed below may be required for basic installation. • An electric drill with bits • Saber, circular and jig saw • Phillips-head and standard screwdrivers • Wire strippers • Crimping tool and needle-nose pliers •... -
Page 13: Power Recommendations
PARAMETERS FOR POWERBASS 3XL SERIES SUBWOOFER (Due to Constant Improvements, Specifications and Parameters are subject to change without notice.) 3XL-101D 3XL-121D 3XL-151D VC Impedance (ohms) 1Ω + 1Ω 1Ω + 1Ω 1Ω + 1Ω Test Impedance (ohms) 1.92 2.07 2.26 Fs (Hz) 35.35... -
Page 14: Recommended Enclosures
First multiple these number by themselves and then divide this sum by 1728. (W x H x D) / 1728. Please contact your authorized PowerBass Autsound dealer for other designs and specifications. 3XL-101D Optimum Ported Vol. English... - Page 15 3XL-151D Optimum Ported Vol. English Metric Gross Vb Internal 5.0 cu.ft 141.58 Liters Circular Port (Dia. x Length) 5.0" x 7.83" 127 mm x 198.9 mm Fb (Box Tuning) 28 Hz 28 Hz F3 (-3dB Cutoff) 30 Hz 30 Hz Pe (Watts-Rms) 250-1000 Watts 250-1000 Watts...
- Page 16 The PowerBass Xtreme “Super Subs” are very heavy and therefore require special packaging to assure their unblemished arrival. Should you need to transporrt your PowerBass Xtreme Super Sub, you must use both the color gift box and the brown shipping carton to ensure safe arrival. This special, original packag- ing must accompany the PowerBass Xtreme Super Sub in the event of product failure.
- Page 17 WE WANT YOU LISTENING FOR A LIFETIME Dear Customer, Selecting fine audio equipment such as the speakers you’ve just purchased is only the start of your musi- cal enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers.
- Page 19 PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms: PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period of one (1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized PowerBass Xtreme Dealer completes the installation.
- Page 20 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
