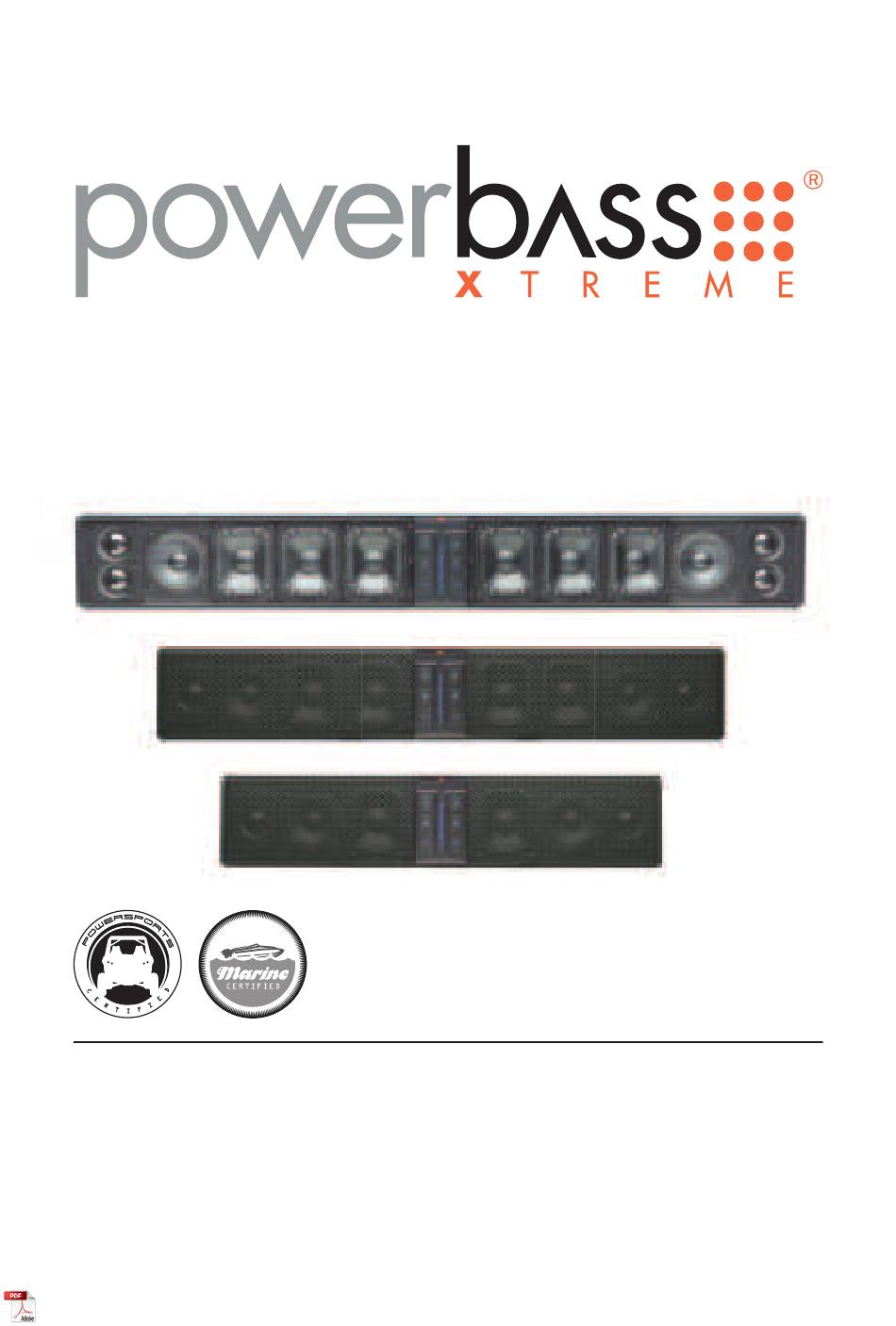

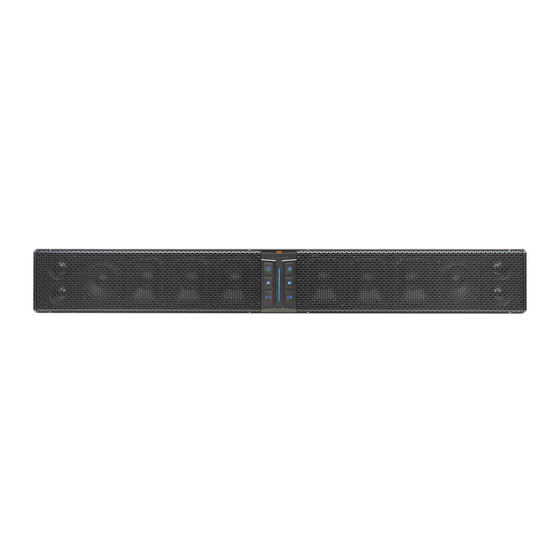

- Page 1 XL-1250 XL-850 XL-650 AMPLIFIED BLUETOOTH SOUNDBAR Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme Powersports Soundbar ever require service, you will need to have the original dated receipt.
- Page 2 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or...
-
Page 3: Technical Features
(XL-SBCLAMP2, XL-SBSCLAMP, XL-SBTCLAMP Sold Separately). Optional Wireless Remote (XL-SBCONRF Sold Separately). To have wireless control of your soundbar. XL-1250: 3.5” x 6 Premium Marine Grade Woofers 3” x 2 Full Range Premium Marine Grade Speakers 1” x 4 Premium Marine Grade Mylar Dome Tweeters 500 Watt RMS Quad Bridged Mosfet Power Amplifier... - Page 4 SPECIFICATIONS FOR XTREME AMPLIFIED SOUNDBARS (Due to continuing improvements these specifications are subject to change without any notice. Do not attempt to fix or repair this unit. Unauthorized repairs will void the manufacturer’s warranty..) Model XL-1250 XL-850 XL-650 RMS Power (watts)
-
Page 5: General Installation Tips
GENERAL INSTALLATION TIPS Your PowerBass XL Bluetooth Soundbars were specially designed for providing high-fidelity sound in any terrain while being able to withstand the harshest of environments with their splash proof design and military grade aluminum chassis. Possible damage to your speakers may occur if improperly used by overdriving the system causing the sound to distort causing permanent damage to the speakers. -
Page 6: Preparing For Installation
(stainless steel) mounting hardware. INSTALLATION PRECAUTIONS NOTE: Proceed only if you are a qualified installer, otherwise; see your Authorized PowerBass Dealer to professionally install this amplifier. Always wear protective eyewear when using tools. •... -
Page 7: Mounting The Soundbar
MOUNTING THE SOUNDBAR L-brackets (Also compatible with XL-SBT/SBS CLAMPS providing additional mounting options) Use the supplied hardware to mount the L bracket to the sound bar at the desired mounting angle. Securely tighten all hardware. The diameter of the hole in the L- bracket is .25 inches. NOTE: we do not supply the hardware to mount the sound bar to the vehicle when using the supplied L Brackets Fig.1 C-clamp bracket (optional not included) -
Page 8: Mounting Location
MOUNTING LOCATION Find an unobstructed location that where the soundbar will be easily heard and out of the way so no harm will come to any individual in or around the vehicle. A prime location to mount the soundbar in an off-road vehicle would be on the roll bar preferably in the front of the cockpit. -
Page 9: Aux Input
Fig.4 Recommended Power & Ground Connection for UTV’s, RV’s, Motorcycles and Boats AUX INPUT Connect the external audio input wire to your soundbar. Turn the soundbar on by holding the power button for 3-5 seconds, an audible beep will confirm that the soundbar is powered on. Now you can use the main controller on the soundbar to adjust volume up, down and mute. -
Page 10: Controller Layout
CONTROLLER LAYOUT Fig.6... -
Page 11: Controller Operation
CONTROLLER OPERATION 1) POWER/MUTE/PAUSE BUTTON Press and hold the button down for 3 to 5 seconds to power unit on/off. Press the button momentarily to pause the music in Bluetooth mode and once again to un-pause. Press the button momentarily once to mute the music in AUX mode and once again to un-mute. 2) BLUETOOTH/AUX MODE BUTTON Press Bluetooth/Aux button momentarily to switch between Bluetooth and auxiliary input. - Page 12 BLUETOOTH PAIRING AND OPERATION 1) Turn sound bar on by holding power button for 3-5 seconds, there will be an audible beep to confirm the soundbar is on. 2) Press the Bluetooth button momentarily and you will hear an audible sequence of tones to confirm soundbar is now ready to pair with your device along with flashing back lights.
- Page 13 PERSONAL NOTES: Name: ______________________________________________________________ Date Purchased: ______________________________________________________ Dealer: _____________________________________________________________ Installed By: _________________________________________________________ Model: _____________________________________________________________ Serial Number: ______________________________________________________ Miscellaneous: ______________________________________________________...
-
Page 14: Troubleshooting Tips
PowerBass Importer/Distributor in your country. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2020 PowerBass USA, Inc. - Page 15 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
- Page 16 PowerBass Xtreme – A division of PowerBass USA, Inc. 2133 S. Green Privado, Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
