Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your
PowerBass Xtreme Powersports Soundbar ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading

Related Manuals for PowerBass XL-1200

Summary of Contents for PowerBass XL-1200

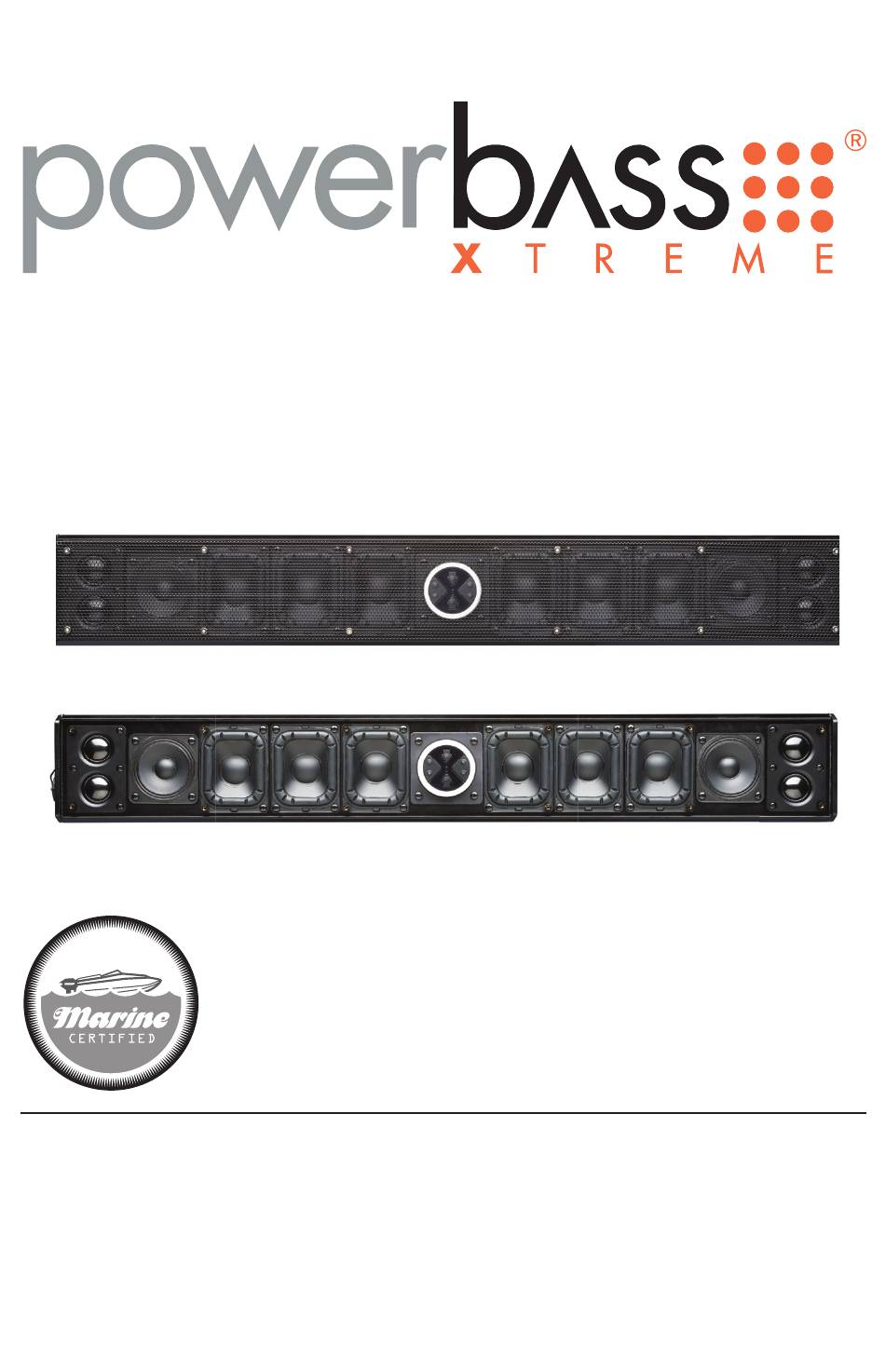

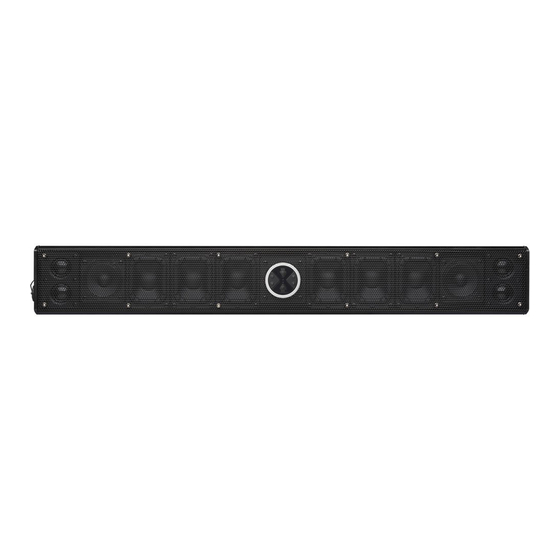

  • Page 1 XL-1200 AMPLIFIED SOUNDBAR Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme Powersports Soundbar ever require service, you will need to have the original dated receipt.
  • Page 2 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or...

  • Page 3: Technical Features

    Optional Wired Remote Dash Mount Controller (XL-SBCON Sold Separately). To have fingertip control of your soundbar. XL-1200: 3.5” x 6 Premium Marine Grade Woofers 3” x 2 Full Range Premium Marine Grade Speakers 1” x 4 Premium Marine Grade Mylar Dome Tweeters...
  • Page 4 SPECIFICATIONS FOR XTREME AMPLIFIED SOUNDBARS (Due to continuing improvements these specifications are subject to change without any notice. Do not attempt to fix or repair this unit. Unauthorized repairs will void the manufacturer’s warranty..) Model XL-1200 RMS Power (watts) Peak Power (watts) 1000...

  • Page 5: General Installation Tips

    GENERAL INSTALLATION TIPS Your PowerBass XL Bluetooth Soundbars were specially designed for providing high-fidelity sound in any ter- rain while being able to withstand the harshest of environments with their splash proof design and military grade aluminum chassis. Possible damage to your speakers may occur if improperly used by overdriving the system causing the sound to distort causing permanent damage to the speakers.

  • Page 6: Preparing For Installation

    (stainless steel) mounting hardware. INSTALLATION PRECAUTIONS NOTE: Proceed only if you are a qualified installer, otherwise; see your Authorized PowerBass Dealer to professionally install this amplifier. Always wear protective eyewear when using tools. •...

  • Page 7: Mounting The Soundbar

    MOUNTING THE SOUNDBAR L-brackets Use the supplied hardware to mount the L bracket to the sound bar at the desired mounting angle. Securely tighten all hardware. The diameter of the hole in the L- bracket is .25 inches. NOTE: we do not supply the hardware to mount the sound bar to the vehicle when using the supplied L Brackets Fig.1 C-clamp bracket (optional not included) There is a set screw in the middle of the C-clamp that will lock it into the sound bar once the clamps are in...

  • Page 8: Mounting Location

    FUSE REQUIREMENTS While the wiring harness of your PowerBass amplified soundbar incorporates a fuse, this does nothing to protect the vehicle from a dangerous short circuit. It is absolutely vital that the main power lead to the amplified soundbar in the system be fused within 18-inches (45cm) of the connection to the vehicle battery.

  • Page 9: Aux Input

    Bolt Ring Connector Ground Wire Fig.4 Recommended Ground Connection for Car & Trucks Star Washer Note: Remove any paint below ring connector Fig.5 Recommended Ground Connection for UTV’s, RV’s, Motorcycles and Boats AUX INPUT Connect the external audio input wire to your soundbar. Turn the soundbar on by holding the power button for 3-5 seconds, an audible beep will confirm that the soundbar is powered on.

  • Page 10: Controller Layout

    CONTROLLER LAYOUT Fig.6 SOUNDBAR CONNECTION PORTS Main Connector Port External Controller Port for optional XL-SBCON...

  • Page 11: Controller Operation

    CONTROLLER OPERATION 1) POWER/MUTE/PAUSE BUTTON Press and hold the button down for 3 to 5 seconds to power unit on/off. Press the button momentarily to pause the music in Bluetooth mode and once again to un-pause. Press the button momentarily once to mute the music in AUX mode and once again to un-mute. 2) VOLUME UP BUTTON Press the volume up button momentarily to raise the volume.
  • Page 12 3) Go into the Bluetooth settings of your device and search for the XL-1200 signal to pair. Once paired, there will be an audible beep to confirm that the soundbar and your Bluetooth device has paired successfully.
  • Page 13 PERSONAL NOTES: Name: ______________________________________________________________ Date Purchased: ______________________________________________________ Dealer: _____________________________________________________________ Installed By: _________________________________________________________ Model: _____________________________________________________________ Serial Number: ______________________________________________________ Miscellaneous: ______________________________________________________...

  • Page 14: Troubleshooting Tips

    PowerBass Importer/Distributor in your country. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2017 PowerBass USA, Inc.
  • Page 15 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 16 PowerBass Xtreme – A division of PowerBass USA, Inc. 2133 S. Green Privado, Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
