Y9420H Sundial RF ² Pack 2
INSTALLATION INSTRUCTIONS
Application
This pack provides a wireless control solution for adding a wireless room
thermostat to an existing Sundial system with wired cylinder thermostat.
Pack contents & Product Descriptions
1 x ST9420C1008
Wireless enabled 7 day programmer with 2 output
control relays for switching boilers, pumps and zone
valves in heating systems. It requires permanent
mains 230Vac power.
1 x DTS92E1020
Wireless digital room thermostat with energy
saving ECO function. It operates on 2xAA alkaline
batteries, giving a battery life of at least 2 years
under typical operating conditions.
1 x table stand for DT92E (optional)
Other Honeywell products may be required for a complete installation.
See Schematic System Layouts (below) or refer to www.honeywelluk.com
for full details.

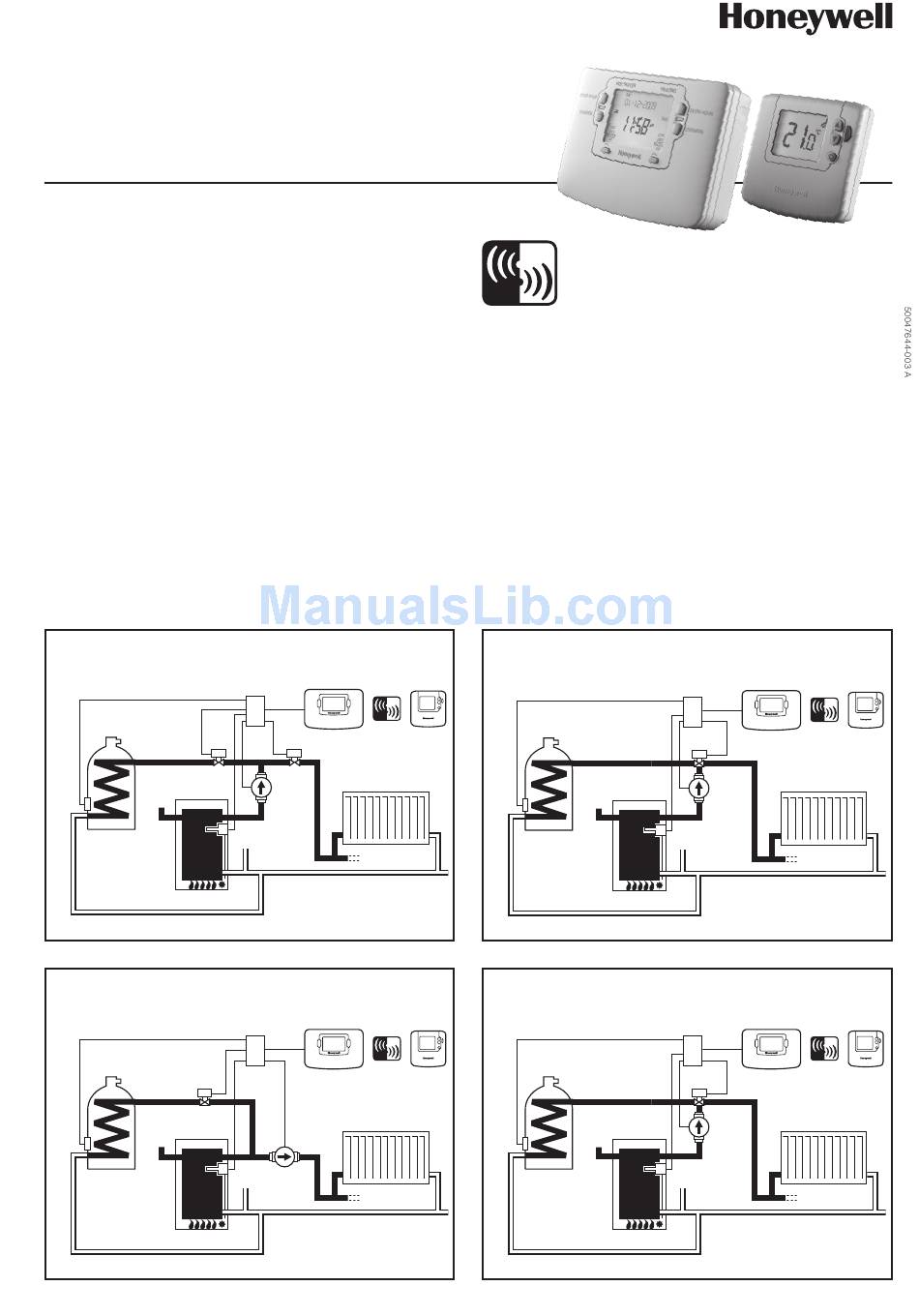

Schematic System Layouts
S-plan - Best practice, expandable
V4043H
Vent
L641A
Cylinder
Boiler
C-plan - Not for new installations
V4043H
Vent
L641A
Cylinder
Boiler
Junction
ST9420C
Box
V4043H
Pump
Cold
Radiator(s)
Feed
Junction
ST9420C
Box
Pump
Cold
Radiator(s)
Feed
Honeywell
2-way wireless
Sundial RF ² is a registered trademark of Honeywell Inc.
communication
System Operation
DT92E and ST9420C both use 2-way communication on an 868MHz
radio frequency (RF) band to control the heating and stored hot water
system.
ST9420C operates as the control hub of the system, and DT92E is free to
be positioned anywhere in the living space.
This functionality is ideal for upgrading existing systems without a room
thermostat to ensure compliance with Building Regulations. It is also
ideal for new or refurbished systems, where running mains cable from
the programmer to the thermostat and back to the boiler is difficult or
impractical.
Y-plan - OK for new installations
DT92E
Vent
L641A
Cylinder
W-plan - Not for new installations
DT92E
Vent
L641A
Cylinder
1
Junction
ST9420C
Box
V4073H
Pump
Cold
Feed
Boiler
Junction
ST9420C
Box
V4044C
Pump
Cold
Feed
Boiler
DT92E
Radiator(s)
DT92E
Radiator(s)
