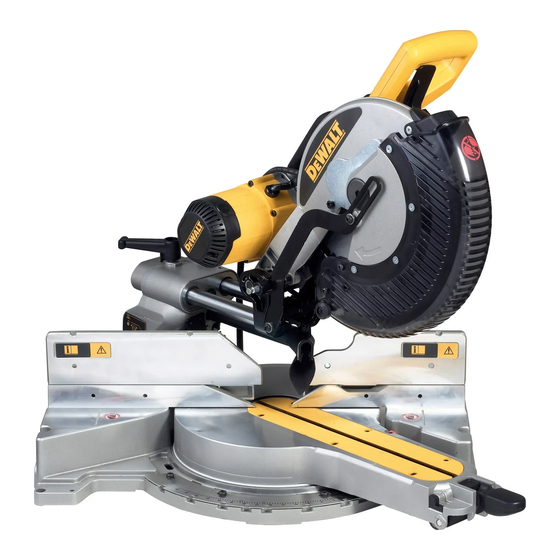

DeWalt DW718 Operator's Manual

Mitre saw
Hide thumbs Also See for DW718:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , User Manual
®
DW718
1

Advertisement

Table of Contents
loading

Related Manuals for DeWalt DW718

Summary of Contents for DeWalt DW718

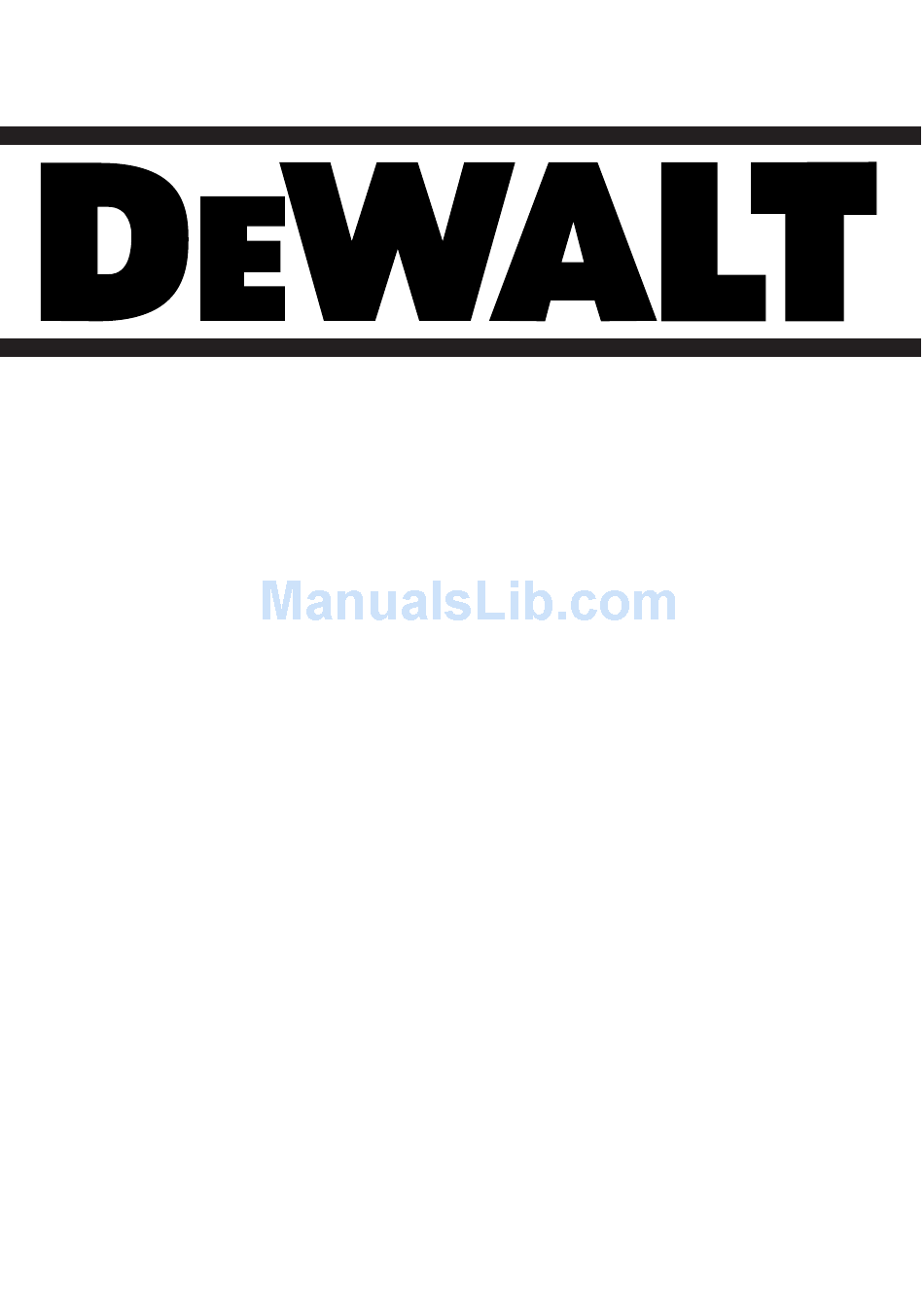

  • Page 1 ® DW718...
  • Page 4 40 41...
  • Page 5 47 46 51 50...
  • Page 6 50 15 50 56 55...

  • Page 8: Technical Data

    E N G L I S H MITRE SAW DW718 Congratulations! EC-Declaration of conformity You have chosen a D WALT tool. Years of experience, thorough product development and innovation make D WALT one of the most reliable partners for professional power tool users.

  • Page 9: Safety Instructions

    E N G L I S H Safety instructions Ensure that the tool will operate properly and perform its intended When using stationary power tools, always observe the safety function. Do not use the tool if any part is damaged or defective. regulations applicable in your country to reduce the risk of fire, Do not use the tool if the switch does not turn it on and off.

  • Page 10: Package Contents

    Description (fig A1 - A7) • The cable wire colours, or a letter, will be marked at the connection Your DW718 mitre saw has been designed for professional cutting of wood, points of most good quality plugs. Attach the wires to their respective wood products, aluminium and plastics.

  • Page 11: Using An Extension Cable

    E N G L I S H The wires are coloured according to the following code: Bench mounting (fig. C) live = brown • Holes (25) are provided in all four feet to facilitate bench mounting. neutral = blue Two different sized holes are provided to accommodate different sizes of bolts.
  • Page 12 E N G L I S H The guide grooves (54) can become clogged with sawdust. • Pull down the head until the blade just enters the saw kerf (43). Use a stick or some low pressure air to clear the guide grooves. •...

  • Page 13: Basic Saw Cuts

    E N G L I S H Do not cut ferrous (iron and steel) materials, fibre cement or masonry Bevel cuts (fig. A1, A2 & P) with this saw! Bevel angles can be set from 48° left to 48° right and can be cut with the •...
  • Page 14 E N G L I S H Cutting picture frames, shadow boxes & other four sided projects (fig. Q1 & Q2) SQUARE BOX Trim moulding and other frames Try a few simple projects using scrap wood until you develop a “feel” for your saw.

  • Page 15: Maintenance

    E N G L I S H - Right side Optional accessories • Bottom of the moulding against the fence. Consult your dealer for further information on the appropriate accessories. • Mitre left. • Save the left side of the cut. Transporting (fig.
  • Page 16 E N G L I S H GUARANTEE • 30 DAY NO RISK SATISFACTION GUARANTEE • If you are not completely satisfied with the performance of your WALT machine, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.
