Control panel —

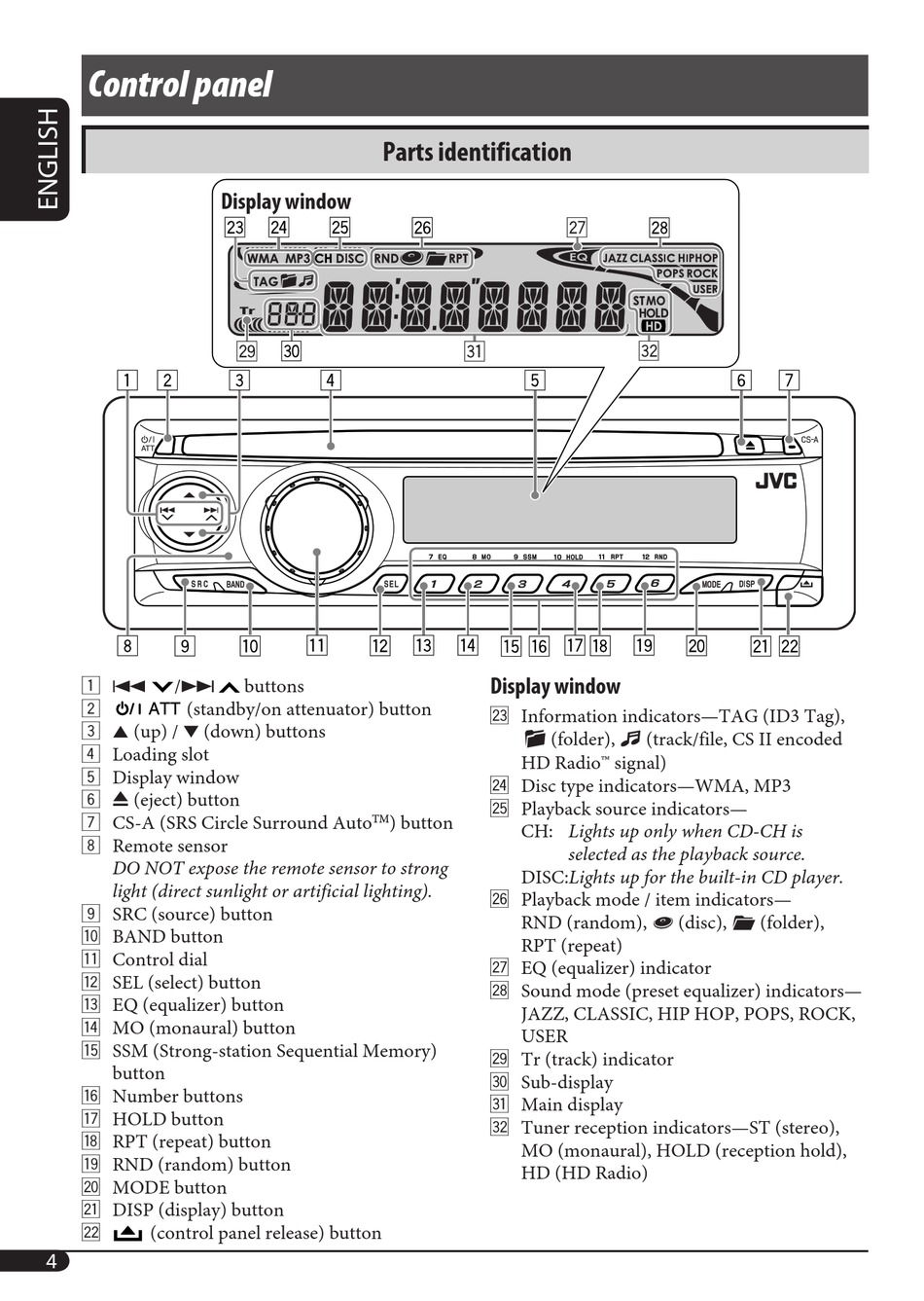

Control panel

1 4
/¢
2
(standby/on attenuator) button
3 5 (up) / ∞ (down) buttons
4 Loading slot
5 Display window
6 0 (eject) button
7 CS-A (SRS Circle Surround Auto
8 Remote sensor
DO NOT expose the remote sensor to strong
light (direct sunlight or artificial lighting).
9 SRC (source) button
p BAND button
q Control dial
w SEL (select) button
e EQ (equalizer) button
r MO (monaural) button
t SSM (Strong-station Sequential Memory)
button
y Number buttons
u HOLD button
i RPT (repeat) button
o RND (random) button
; MODE button
a DISP (display) button
s
(control panel release) button
4
KD-G612/KD-G611/KD-G511
Parts identification
Display window
buttons
TM ) button
Display window
d Information indicators—TAG (ID3 Tag),
(folder), (track/file, CS II encoded
HD Radio™ signal)
f Disc type indicators—WMA, MP3
g Playback source indicators—
CH: Lights up only when CD-CH is
selected as the playback source.
DISC:Lights up for the built-in CD player.
h Playback mode / item indicators—
RND (random),
RPT (repeat)
j EQ (equalizer) indicator
k Sound mode (preset equalizer) indicators—
JAZZ, CLASSIC, HIP HOP, POPS, ROCK,
USER
l Tr (track) indicator
/ Sub-display
z Main display
x Tuner reception indicators—ST (stereo),
MO (monaural), HOLD (reception hold),
HD (HD Radio)
(disc), (folder),
