Related Manuals for Uniden XDECT 8115 Series
Summary of Contents for Uniden XDECT 8115 Series

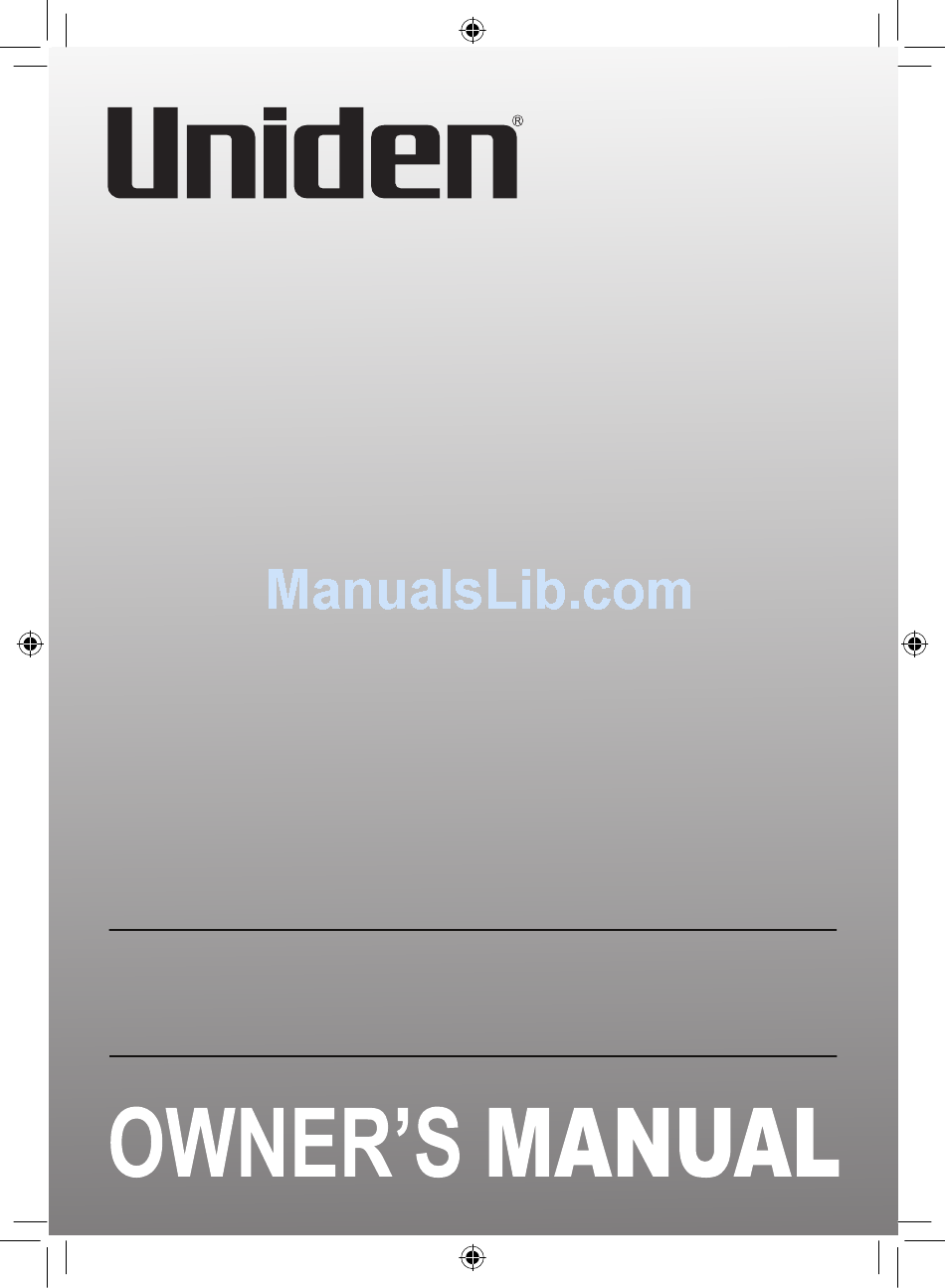

- Page 1 XDECT 8115 Series For more exciting new products please visit our website: Australia: www.uniden.com.au New Zealand: www.uniden.co.nz...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • This unit is NOT waterproof. DO NOT expose this unit to moisture. • DO NOT expose this unit to rain. - Page 3 3 of each • Battery cover • If any item is missing or damaged, contact your place of purchase immediately. Never use damaged products! • Need help? Get answers at our website: www.uniden.com.au for Australian model www.uniden.co.nz for New Zealand model.
-
Page 4: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........2 INSTALLING YOUR PHONE ..............6 Charge the Battery ......................6 Connect the Telephone Cord ..................7 Mounting the base unit on a wall .................8 SETTING UP THE MObILELINk bLUETOOTH™ CONNECTION ....9 GETTING TO kNOW YOUR PHONE .......... - Page 5 FEATURES OF THE XDECT 8115 SERIES Great features of this cordless phone include: • 1.8GHz Extended DECT Technology • Bluetooth MobileLink - Connection for up to 4 Mobile phones - USB port to charge single Mobile phone - Phonebook download (up to 1500 entries per Mobile) •...
-
Page 6: Installing Your Phone
INSTALLING YOUR PHONE Charge the Battery 1) Unpack all handsets, battery packs, and battery covers. If any battery cover is already on the handset, press in on the notch and slide the cover down and off. 2) Line up the red and black wires on the battery pack with the label inside the handset. -
Page 7: Connect The Telephone Cord
8) Place a handset in the base and any accessory handset(s) in the charger(s) with the display(s) facing forward. The CHARGE light on the handset(s) should turn on. If... Try... the CHARGE light - reseating the handset does not turn on - checking the AC adaptor connection - seeing if the outlet is controlled by a wall switch... -
Page 8: Mounting The Base Unit On A Wall
Installing the Belt Clip Line up the holes on each side of the handset. To attach the belt clip, insert into the holes on each side of the handset. Press down until it clicks. To remove the belt clips, pull either side of the belt clip to release the tabs from the holes. -
Page 9: Setting Up The Mobilelink Bluetooth™ Connection
SETTING UP THE MOBILELINk BLUETOOTH™ CONNECTION The XDECT 8115 with MobileLink technology can connect with mobile phones that support the Bluetooth V2.1 handsfree profile. Visit our website on the front cover or contact customer service for a detailed list of tested mobile phones. • If you are not certain of the profiles supported by your Bluetooth phone or if you have difficulty pairing your phone to the XDECT 8115, see the manual that came with your phone. - Page 10 6) When your phone accepts the Bluetooth connection, the XDECT 8115 sounds a confirmation tone. The Bluetooth device number LED on the base and device number icon on the handset display light up. # Most mobile phones automatically transfer the audio to a Bluetooth device as soon as it pairs;...
-
Page 11: Getting To Know Your Phone
GETTING TO kNOW YOUR PHONE Parts of the Base FIND HS Bluetooth Device Number USB Charging Port Charging Contacts key (Icon) What it does FIND In standby: page all handsets. Bluetooth The number indicates the Bluetooth device number Device linked to the XDECT 8115. Number Standard size USB port for charging devices. -
Page 12: Parts Of The Handset
Parts of the Handset CLEAR CLEAR/END MENU/SELECT PHONEBOOK HOME MOBILE HOME/FLASH MOBILE FLASH DOWN 12-key dial pad #/DND LOCK REDIAL/PAUSE SPEAKER REDIAL Microphone MESSAGE/MUTE... - Page 13 key Icon What it does • In standby: open the menu. MENU/SELECT • In the menu or any list: select the highlighted item. • In standby: start a telephone call on your land line HOME/FLASH (get a dial tone). • During a call: switch to a waiting call. • During a call: hang up.
-
Page 14: Reading The Handset Display
Reading the Handset Display The table shows the possible status icons and what they mean. Since the icons appear based on what the phone is doing, you won’t see all the icons at the same time. Icon What it means The signal from the base is 1) weak through 4) strong. -
Page 15: Using The Handset Menus
USING THE HANDSET MENUS Press MENU/SELECT open the menu. Press MENU/SELECT to choose the current option. Press and hold to exit the menu. Press PHONEBOOK to rotate DOWN to go back a screen through the options. If you don’t press any keys for about 30 seconds, the handset exits the menu. - Page 16 Handset Setup Menu You can change these settings separately for each handset. Menu Option What it does T-coil Turn on T-coil mode to reduce noise on hearing aids equipped with a telecoil (T-coil) feature. T-coil mode shortens talk time, so keep your battery fully charged. Ringer Tones Choose this handset’s ring tone.
- Page 17 Global Setup Menu The settings on this menu affect all handsets. Only one handset at a time can change these menu options. Set Line Mode Do not change this setting unless instructed to by customer service. VMWI Reset Reset the Voice Message Waiting Indicator (see page 32).
- Page 18 Entering Text on Your Phone Use the 12-key dial pad anytime you want to enter text into your phone (a name in the phonebook, the handset banner, etc.). If two letters in a row use the same key, enter the first letter; wait for the cursor to move to the next space and enter the second letter.
-
Page 19: Using Your Phone
USING YOUR PHONE This section explains the most common functions on the phone. To... From the Landline... From the Mobile... Press HOME/FLASH Press MOBILE. If two make a call, dial the or SPEAkER. number, then or more mobile phone is paired, the phone prompts you to choose one. -
Page 20: Using Your Bluetooth Connection
Using Your Bluetooth Connection After you have paired your mobile phone with the XDECT 8115 (see page 9), you can make and receive calls from your mobile phone through the XDECT 8115. To use the Bluetooth menu options, press MOBILE with the phone in standby, then select a mobile phone. -
Page 21: Changing The Volume
Changing the Volume To change the... When... Press... earpiece volume for you are listening to that to increase the each handset earpiece or speaker volume. (playing messages, to decrease it. DOWN etc.) speaker volume ringer volume (If you The phone is in turn the ringer all standby. -
Page 22: Using The Caller Id And Redial Lists
Using the Caller ID and Redial Lists Caller ID (CID) is a service available from your telephone provider that shows the phone number (and sometimes the caller’s name) of incoming calls. Contact your telephone provider for more information. Caller ID List Redial List • The phone saves the • Each handset remembers the... - Page 23 To.. Press... CID, then use the open the CID list keys DOWN to enter the list. Up to 5 entries display at a time. open the redial list REDIAL/PAUSE scroll through the lists to select the previous number. to select the next number. DOWN In CID list: to show details...
-
Page 24: Using Call Waiting
Using Call Waiting Call Waiting, a service available from your telephone provider, lets you receive calls while you are on another call. Caller ID on Call Waiting (CIDCW) service displays Caller ID information for a waiting call. If you get a Call Waiting call, the phone sounds a tone and displays any CID information received from the waiting call. - Page 25 3) Select the mobile phone you want to download from, then select Download PB. When downloading is complete, the cordless handset displays a confirmation screen. To cancel downloading, press END/ CLEAR • Each time you download a phonebook, the XDECT 8115 overwrites any previous copy of that phonebook.
- Page 26 For individual entry options, select a Mobile Link number and press MENU/ SELECT to display the following options: To.. Press... save this mobile phonebook MENU/SELECT twice to open the entry to the home phonebook menu, then select Store Into PB. edit the current entry MENU/SELECT twice to open the menu, then select Edit.
- Page 27 Chain Dialing If you often have to enter a series of digits or a code number during a call, you can save that code number to a phonebook entry and use the phonebook to send the code number. 1) Make your call normally. 2) When you hear the prompt that tells you to enter the number, open the phonebook and find the entry that contains your code number.
-
Page 28: Using Special Features
USING SPECIAL FEATURES Power Failure Back Up System When a power failure occurs, the charged handset temporarily supplies power to the base unit. You can then make and receive calls using a handset. However, none of the keys on the base unit are functional during the power failure mode. -
Page 29: Dnd (Do Not Disturb)
# Some of the functions are not available under the power failure back up system. Examples are: • You cannot edit the phonebook (For eg, store a number). • Redial/CID will not be stored. • You cannot operate the Bluetooth function. DND (Do Not Disturb) You can silence the ringers on the base and all handsets for a specific period of time. -
Page 30: Multihandset Features
Multihandset Features # To use the features in this section, you need at least 2 handsets. Your base supports a total of 12 cordless handsets: the one that came with the base and up to 9 accessory handsets. You must register accessory handsets to the base before using them. (Handsets that came packaged with the base are already registered.) Handsets that aren’t registered display a Not Registered message. -
Page 31: Privacy Mode
Privacy Mode To activate privacy mode on a land line call in progress, press MENU/ SELECT. As long as privacy mode is on, you’ll see a in the display, and no other handsets can join your call. Privacy mode turns off automatically when you hang up;... -
Page 32: Intercom
Intercom • Whenever the phone is in standby, you can make an intercom call between handsets without using the phone line. • You can make an intercom call from any handset, but only two handsets can be in an intercom call at any time. • If an outside call comes in during an intercom page, the phone cancels the page so you can answer the incoming call. -
Page 33: Important Information
IMPORTANT INFORMATION Solving Problems General Problems Possible Solutions No handsets can make or Check the telephone cord connection. receive calls. Disconnect the base AC adapter for a few minutes; then reconnect it. A handset can’t make or Move the handset closer to the base. receive calls. - Page 34 Caller ID displays briefly You may have to change the line mode. and then clears. Contact Customer Service for instructions. Multi-Handset Problems Possible Solutions I can’t transfer calls. Reset the handset (see page 36). Two handsets can’t talk to See if any handset is in Privacy Mode. a caller.
- Page 35 The XDECT 8115 doesn’t Making sure your phone has Bluetooth ring when my mobile turned on. phone does. Checking if the XDECT 8115 is on the paired device list on your mobile phone and is in connected status. If not, try pairing again. Making sure your phone doesn’t connect with other Bluetooth devices.
-
Page 36: Installing A Line Filter Or Dsl Filter
Installing a Line Filter or DSL Filter A telephone line filter or DSL filter prevents services that use the phone line from causing interference on your phone. To get a line filter, contact your service provider or look in an electronics store. Plug the filter into the telephone wall jack and plug the base into the filter. - Page 37 • Do not charge the batteries in any charger other than the one specified in the owner’s manual. Using another charger may damage the battery or cause it to explode. # Rechargeable batteries must be recycled or disposed of properly. # Uniden works to reduce lead content in our products and accessories.
-
Page 38: Index
INDEX Any Key Answer 16 Multihandset Feature 30 Auto Talk 16 Mute 19 Noise 33 Banner 16 Battery 37 Bluetooth 20 Power Failure Backup 28 Paging Handsets 11 Personal Ring 16 Phonebook 24 Caller ID 22 Privacy Mode 31 Call Transfer 31 Call Waiting 24 Chain Dialing 27 Clock 16... -
Page 39: One-Year Limited Warranty
Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below. Warrantor The warrantor is either Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”) or Uniden New Zealand Limited (“Uniden NZ”) as the case may be. - Page 40 Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the addresses shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 44 ©2013 Uniden Australia Pty Ltd/Uniden New Zealand Limited Printed in Vietnam U01UN571BZZ(0)
