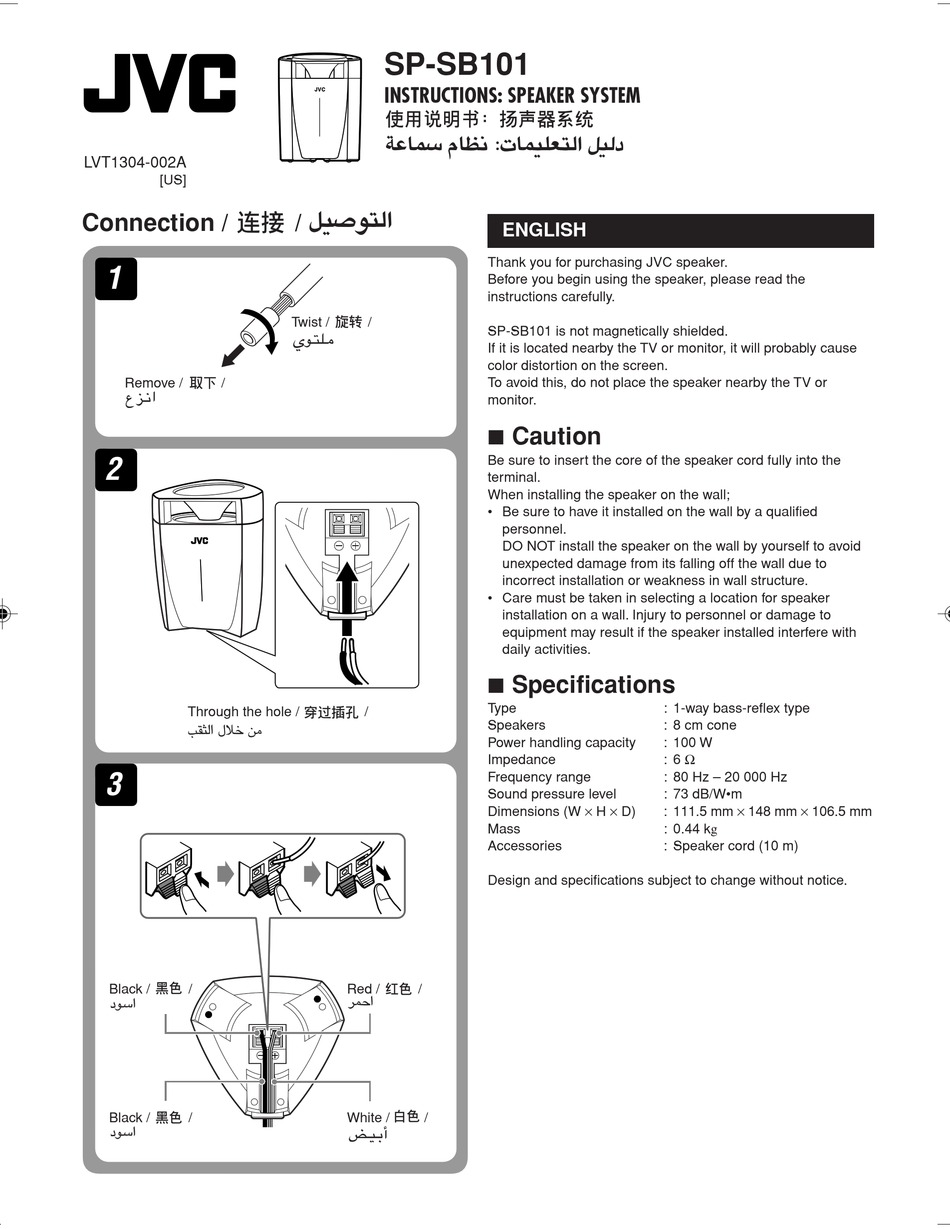

JVC SPEAKER SYSTEM SP-SB101 Instructions

LVT1304-002A
[US]
Connection /
1
Remove / /
2
Through the hole /
3
Black / /
Black / /
SP-SB101
INSTRUCTIONS: SPEAKER SYSTEM
/
Twist / /
/
Red / /
White / /
ENGLISH
Thank you for purchasing JVC speaker.
Before you begin using the speaker, please read the
instructions carefully.
SP-SB101 is not magnetically shielded.
If it is located nearby the TV or monitor, it will probably cause
color distortion on the screen.
To avoid this, do not place the speaker nearby the TV or
monitor.
7 Caution
Be sure to insert the core of the speaker cord fully into the
terminal.
When installing the speaker on the wall;
• Be sure to have it installed on the wall by a qualified
personnel.
DO NOT install the speaker on the wall by yourself to avoid
unexpected damage from its falling off the wall due to
incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker
installation on a wall. Injury to personnel or damage to
equipment may result if the speaker installed interfere with
daily activities.

7 Specifications

Type
Speakers
Power handling capacity
Impedance
Frequency range
Sound pressure level
Dimensions (W × H × D)
Mass
Accessories
Design and specifications subject to change without notice.
: 1-way bass-reflex type
: 8 cm cone
: 100 W
: 6 Ω
: 80 Hz – 20 000 Hz
: 73 dB/W•m
: 111.5 mm × 148 mm × 106.5 mm
: 0.44 kg
: Speaker cord (10 m)
