- Page 1 Operator’s manual (EPA II) Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.
-
Page 2: Key To Symbols
Symbols on the machine: WARNING! Chain saws can be dangerous! Careless or improper use can result in serious or fatal injury to the operator or others. Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. Always wear: •... -
Page 3: Table Of Contents
Contents KEY TO SYMBOLS Symbols on the machine: ... Symbols in the operator’s manual: ... CONTENTS Contents ... INTRODUCTION Dear customer! ... WHAT IS WHAT? What is what on the chain saw? ... GENERAL SAFETY PRECAUTIONS Before using a new chain saw ... Important ... -
Page 4: Introduction
Good luck on using your Jonsered machine! Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice. -
Page 5: What Is What

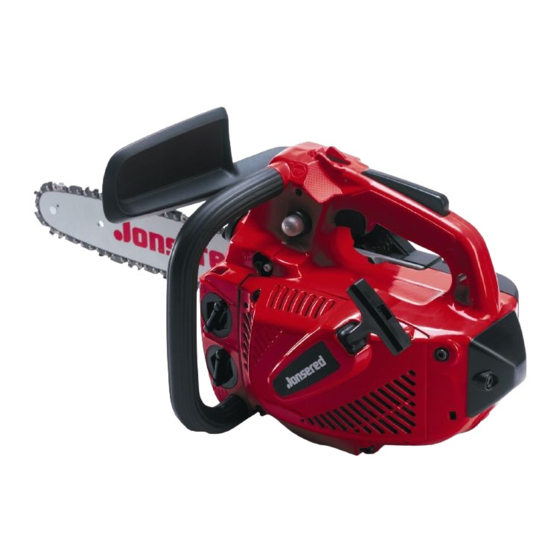

What is what on the chain saw? 1 Filter cover 2 Front handle 3 Front hand guard 4 Starter 5 Chain oil tank 6 Starter handle 7 Adjuster screws carburetor 8 Stop and choke control: Ignition on/off switch Choke control/Start throttle lock Working position 9 Rear handle 10 Spark plug cap 11 Fuel tank... -
Page 6: General Safety Precautions
GENERAL SAFETY PRECAUTIONS Before using a new chain saw • Please read this manual carefully. • Check that the cutting equipment is correctly fitted and adjusted. See instructions under the heading Assembly. • Refuel and start the chain saw. See the instructions under the headings Fuel Handling and Starting and Stopping. -
Page 7: Personal Protective Equipment
GENERAL SAFETY PRECAUTIONS chain saw usage if possible. Your dealer, forestry school or your library can provide information about which training materials and courses are available. Work is constantly in progress to improve the design and technology - improvements that increase your safety and efficiency. - Page 8 GENERAL SAFETY PRECAUTIONS • This movement activates a spring-loaded mechanism that tightens the brake band (C) around the engine drive system (D) (clutch drum). • The front hand guard is not designed solely to activate the chain brake. Another important feature is that it reduces the risk of your left hand hitting the chain if you lose grip of the front handle.
-
Page 9: Chain Catcher
GENERAL SAFETY PRECAUTIONS Will my inetria activated chain brake always activate during kickback in the event of a kickback? No. First your brake must be in working order. Second the kickback must be strong enough to activate the chain brake. If the chain brake is too sensitive it would activate all the time which would be a nuisance. -
Page 10: Cutting Equipment
To maintain the safety features of the cutting equipment, you should replace a worn or damaged bar or chain with a bar and chain combinations recommended by Jonsered. See instructions under the heading Technical Data for a list of replacement bar and chain combinations we recommend. -
Page 11: Sharpening Your Chain And Adjusting Depth Gauge Setting
GENERAL SAFETY PRECAUTIONS • Length (inches/cm) • Number of teeth on bar tip sprocket (T). • Chain pitch (inches). The spacing between the drive links of the chain must match the spacing of the teeth on the bar tip sprocket and drive sprocket. •... -
Page 12: Tensioning The Chain
GENERAL SAFETY PRECAUTIONS WARNING! Departure from the sharpening instructions considerably increases the risk of kickback. Sharpening cutting teeth To sharpen cutting teeth you will need a round file and a file gauge. See instructions under the heading Technical data for information on the size of file and gauge that are recommended for the chain fitted to your chain saw. -
Page 13: Lubricating Cutting Equipment
GENERAL SAFETY PRECAUTIONS • Raise the tip of the bar and stretch the chain by tightening the chain tensioning screw using the combination spanner. Tighten the chain until it does not sag from the underside of the bar. • Use the combination spanner to tighten the bar nuts while lifting the tip of the bar at the same time. - Page 14 GENERAL SAFETY PRECAUTIONS Chain drive sprocket The clutch drum is fitted with one of the following drive sprockets: A Spur sprocket (the chain sprocket is welded on the drum) B Rim sprocket (replaceable) Regularly check the degree of wear on the drive sprocket. Replace if wear is excessive.
-
Page 15: Assembly
Fitting the bar and chain WARNING! Always wear gloves, when working with the chain, in order to protect your hands from injury. Check that the chain brake is in disengaged position by moving the front hand guard towards the front handle. Remove the bar nuts and remove the clutch cover (chain brake). -
Page 16: Fuel Handling
When working with continuous high revs (e.g. limbing) a higher octane is recommended. Environment fuel JONSERED recommends the use of alkylate fuel or environment fuel for four-stroke engines blended with two- stroke oil as set out below. Note that carburetor adjustment may be necessary when changing the type of fuel (see instructions under the heading Carburetor). -
Page 17: Fueling
• In temperatures below 32°F (0°C) some oils become too viscous. This can overload the oil pump and result in damage to the oil pump components. • Contact your service agent when choosing chain oil. Fueling WARNING! Taking the following precautions, will lessen the risk of fire: Do not smoke and do not place any hot objects in the vicinity of fuel. -
Page 18: Starting And Stopping
STARTING AND STOPPING Starting and stopping WARNING! Note the following before starting: The chain brake must be engaged when the chain saw is started to reduce the chance of contact with the moving chain during starting. Never start a chain saw unless the bar, chain and all covers are fitted correctly. - Page 19 STARTING AND STOPPING • Never start a chain saw unless the bar, chain and all covers are fitted correctly. See instructions under the heading Assembly. Without a bar and chain attached to the chain saw the clutch can come loose and cause serious injury.
-
Page 20: Working Techniques
Before use: 1 Check that the chain brake works correctly and is not damaged. 2 Check that the throttle lockout works correctly and is not damaged. 3 Check that the stop switch works correctly and is not damaged. 4 Check that all handles are free from oil. 5 Check that the anti vibration system works and is not damaged. -
Page 21: General Rules
incorrectly or make the cut in the wrong place the tree may hit you or the machine and cause you to lose control. Both situations can cause serious personal injury. 8 Before moving your chain saw switch off the engine and lock the chain using the chain brake. -
Page 22: Basic Cutting Technique
Cutting with the bottom edge of the bar, i.e. from the top of the object downwards, is known as cutting with a pulling chain. In this case the chain saw pulls itself towards the tree and the front edge of the chain saw body rests naturally on the trunk when cutting. -
Page 23: Felling Technique For Tree Tops
The log is supported at one end. There is a high risk that it will split. Start by cutting from below (about 1/3 of the way through). - Finish by cutting from above so that the two cuts meet. The log is supported at both ends. There is a high risk that the chain will jam. - Page 24 Felling Felling is done using three cuts. First you make the directional cuts, which consist of the top cut and the bottom cut, then you finish with the felling cut. By placing these cuts correctly you can control the felling direction very accurately. Directional cuts To make the directional cuts you begin with the top cut.
-
Page 25: How To Avoid Kickback
WARNING! Unless you have special training we advise you not to fell trees with a diameter larger than the bar length of your saw! Limbing WARNING! Most kickback accidents happen during limbing! Pay close attention to the position of the kickback zone of the bar when you are limbing branches that are in tension! Make sure that you can stand and move about safely. -
Page 26: Maintenance
These limit the adjustment possibilities to a maximum of a 1/2 turn. Your Jonsered product has been designed and manufactured to specifications that reduce harmful exhaust fumes. Function •... -
Page 27: Checking, Maintaining And Servicing Chain Saw Safety Equipment
Correctly adjusted carburetor When the carburetor is correctly adjusted the machine accelerates without hesitation and the machine 4-cycles a little at max. speed. It is also important that the chain does not rotate at idle. If the L-jet is set too lean it may cause starting difficulties and poor acceleration. -
Page 28: Muffler
Chain catcher Check that the chain catcher is not damaged and is firmly attached to the body of the chain saw. Vibration damping system Regularly check the vibration damping units for cracks or deformation. Make sure the vibration damping units are securely attached to the engine unit and handle unit. -
Page 29: Air Filter
• Pull out the cord approx. 30 cm (12 inches) and hook it into the notch in the rim of the pulley. Release the recoil spring by letting the pulley rotate slowly backwards. • Undo the screw in the centre of the pulley and remove the pulley. -
Page 30: Spark Plug
The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced. A JONSERED chain saw can be equipped with different types of air filter according to working conditions, weather, season, etc. Contact your dealer for advice. -
Page 31: Maintenance Schedule
Maintenance schedule The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section. Daily maintenance Clean the outside of the machine. Check that the components of the throttle control work safely. -
Page 32: Technical Data
Usable cutting length, inches/cm Pitch, inch/mm Thickness of drive links, inch/mm Drive sprocket type/teeth Chain speed at max. power, m/sec 32 – English TECHNICAL DATA CS 2135T 2,38/39 1,57/40 1,22/31 2800 1,7/9600 NGK BPMR 7A/ Champion RCJ 7Y 0,02/0,5 Zama... -
Page 33: Bar And Chain Combinations
Recommended original and replacement bar and chain combinations Following is a list of recommended cutting equipment for the Jonsered chain saw model CS 2135T. The combinations of power head, bar and chain have been tested and found to be in accordance with the kickback and vibration requirements of ANSI B 175.1–2000. -
Page 34: Federal Emission Control Warranty Statement
