Toyota TNS 200 Installation Instructions Manual
Toyota navigation system tns 200/300 mr2
Hide thumbs
Also See for TNS 200:
- Installation instructions manual (38 pages) ,
- Installation instructions manual (27 pages) ,
- Installation instructions manual (25 pages)
Related Manuals for Toyota TNS 200
Summary of Contents for Toyota TNS 200

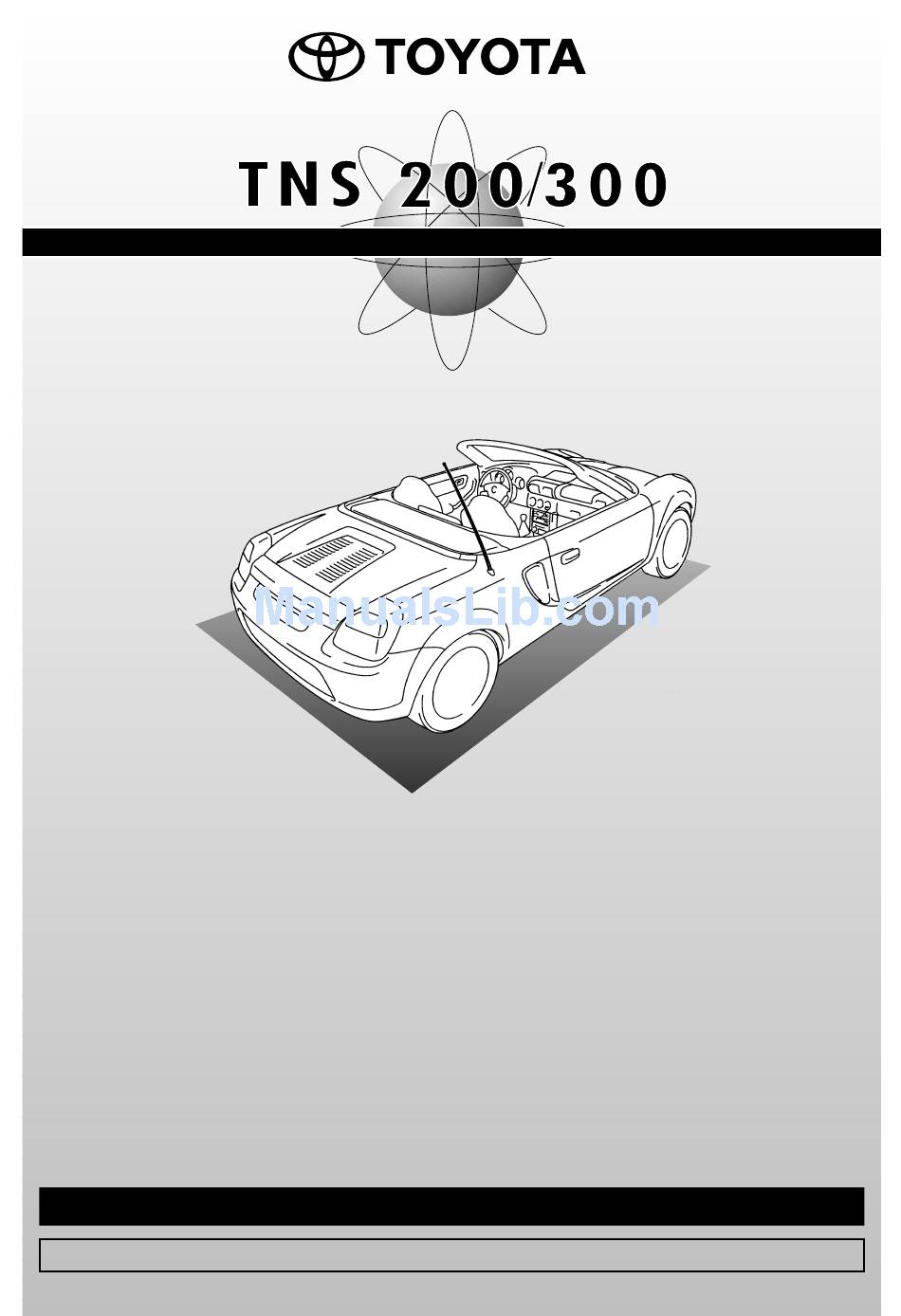

- Page 1 T O Y O T A N A V I G A T I O N S Y S T E M MR2 (RHD) INSTALLATION INSTRUCTIONS ** W3 * R PART NUMBER 08545-00802, -00806 NAVIGATION KIT Manual Ref. Nr. 2N2RW3/W-1-0 TOYOTA MOTOR CORPORATION...
-
Page 2: Precautions
MR2 (W3) TNS 200/300 PRECAUTIONS PLEASE READ THOROUGHLY THESE PRECAUTIONS BEFORE THE INSTALLATION • Be sure to disconnect the negative • Protect your car with fender covers, seat (-) lead from the battery terminals. and so on. • Do not pinch the rear wiring or har- •... -
Page 3: Table Of Contents
MR2 (W3) TNS 200/300 TABLE OF CONTENTS Precautions ................................... Application Chart ................................Component Parts ................................Required Parts ................................Wiring Connection ................................. Installation Overview ..............................Vehicle Disassembly ..............................Installation of the GPS Antenna ............................. Wire Harness Installation .............................. Installation of the Computer ............................ -
Page 4: Application Chart
p. 1/1... -
Page 5: Component Parts
MR2 (W3) TNS 200/300 COMPONENT PARTS 08545-00802, 00806 Part name Quantity COMPUTER WIRE HARNESS GPS ANTENNA COMPUTER BRACKET BOLT (M5x8) CORD CLAMP FOAM WIRE TIE EARTH PLATE BUTYL TAPE MR2 (RHD) - 5 08-02... -
Page 6: Required Parts
MR2 (W3) TNS 200/300 REQUIRED PARTS NAVIGATION DISC To be ordered separately. Please refer to the list of available disc for turn by turn Navigation Systems (Access to accessories). OWNER’S MANUAL To be ordered separately. AUDIO FITTING KIT 08695-17801 Only used for radioless vehicles. -
Page 7: Wiring Connection
MR2 (W3) TNS 200/300 WIRING CONNECTION Connection Method: CASSETTE TAPE PLAYER TYPE Cassette tuner with multi-display Splicing Connector (Reverse Sensor Wire) Vehicle Wire harness GPS Antenna Splicing Connector (Speed Sensor Wire) Splicing Connector Wire) Splicing Connector (TX Wire) CD PLAYER TYPE... -
Page 8: Installation Overview
MR2 (W3) TNS 200/300 INSTALLATION OVERVIEW Splicing connector Splicing connector (Speed sensor wire) (TX+ sensor wire) Splicing connector GPS antenna (Reverse sensor wire) Splicing connector (TX- sensor wire) WIRE HARNESS SUB-ASSEMBLY - SPEED LINE (VIOLET/WHITE) WIRE HARNESS ANTENNA WIRE WIRE HARNESS REVERSE SENSOR WIRE (RED/BLUE) -
Page 9: Vehicle Disassembly
MR2 (W3) TNS 200/300 VEHICLE DISASSEMBLY Remove the I/P brace inner covers and the I/P brace outer covers : Screw (2x) Fig. 1 Remove the heater control knobs (3x) and cluster panel : Control Knob (1x) : Screw (2x) : Clip (4x) Fig. - Page 10 MR2 (W3) TNS 200/300 Remove the meter cluster panel : Clip (4x) Fig. 4 Remove the combination meter : Screw (3x) Fig. 5 Remove the lower panel (RH) : Screw (1x) : Clip (4x) : Bolt (1x) Fig. 6 08-02...
- Page 11 MR2 (W3) TNS 200/300 Remove the glove compartment door assembly : Clip (2x) Fig. 7 Remove the front door scuff plate (LH) : Clip (4x) Fig. 8 Remove the passenger’s side kick panel (LH) : Clip (1x) : Nut (1x) Fig.
- Page 12 MR2 (W3) TNS 200/300 10. Remove the rear console box lid (LH) : Bolt (3x) Fig. 10 11. Remove the rear side inner trim (LH) : Clip (3x) : Clip (4x) : Bolt (1x) CAUTION Fasten the bolt with specified torque when reassembling.
-
Page 13: Installation Of The Gps Antenna
MR2 (W3) TNS 200/300 INSTALLATION OF THE GPS ANTENNA Cut the foam into 2 large pieces and 14 small pieces as shown in the illustra- tion. : Foam tape (2x) : Foam tape (14x) x 14 Fig. 13 Cut one butyl tape into 2 equal sized pieces. - Page 14 MR2 (W3) TNS 200/300 Affix the earth plate at the location shown in the diagram and mount the antenna and earth plate CAUTION When affixing the earth plate make sure to carefully wipe off any dirt, moisture or oil from the surface of the location where it is to be affixed.
-
Page 15: Wire Harness Installation
MR2 (W3) TNS 200/300 WIRE HARNESS INSTALLATION l l SPLICING CONNECTOR CONNEC- TION PROCEDURES a) Remove appropriate amount of tape wrapping the vehicle side harness to be connected. b) Insert the vehicle harness to be con- nected securely into the guide slit. - Page 16 MR2 (W3) TNS 200/300 l l SPEED SENSOR CONNECTION Route the speed sensor wire (vio- let/white) of the wire harness as shown in the illustration. Secure the speed sensor wire (vio- let/white) of the wire harness using foam (2x) and a wire tie (1x).
- Page 17 MR2 (W3) TNS 200/300 11. Fit the CD (cassette) tuner with multi- display : Screw (4x) NOTE are parts of the Audio Fit- ting Kit 08695-17801. Fig. 23 l l WIRE HARNESS ROUTING Excess reverse sensor wire 12. Route the antenna cord...
- Page 18 MR2 (W3) TNS 200/300 l l REVERSE SENSOR CONNECTION 14. Turn the connector so that the wires face you and the tab is on top. 15. Connect the reverse sensor wire (red/blue) of the wire harness to the wire of the second position from the WIRE SIDE VIEW right side of the bottom row.
-
Page 19: Installation Of The Computer
MR2 (W3) TNS 200/300 INSTALLATION OF THE COMPUTER Make a hole for routing the antenna cord in the rear console box (LH) Wiring hole as shown in the illustration. Fig. 28 Remove the release paper of the butyl tape and fold it as shown. - Page 20 MR2 (W3) TNS 200/300 Attach the computer to the rear TOP VIEW console box (LH) as shown. CAUTION Be sure the butyl tape has no con- nection with the RH rear console box. 40mm Fig. 31 Route the antenna cord...
-
Page 21: Installation Of Navigation Disc
MR2 (W3) TNS 200/300 INSTALLATION OF NAVIGATION DISC Connect the battery and turn the igni- tion switch to the ACC position. Slide the eject switch on the computer to the left to open the disc insertion slot. With the label side of the disc facing up, insert the Navigation Disc into the disc insertion slot. -
Page 22: Post-Installation Inspection
4. Perform the “auto-compensation” procedure by following the section on “When Tires are Replaced” in the TNS Owner’s Manual. When an abnormality is suspected, perform troubleshooting based on the “Toyota Genuine Navigation System Service Manual”. REASSEMBLING Return all vehicle parts that have been removed to their original locations. Especially make sure to attach trim and other interior materials properly so that they do not have a detrimental effect on the function of the vehicle. - Page 23 GENUINE PARTS...
