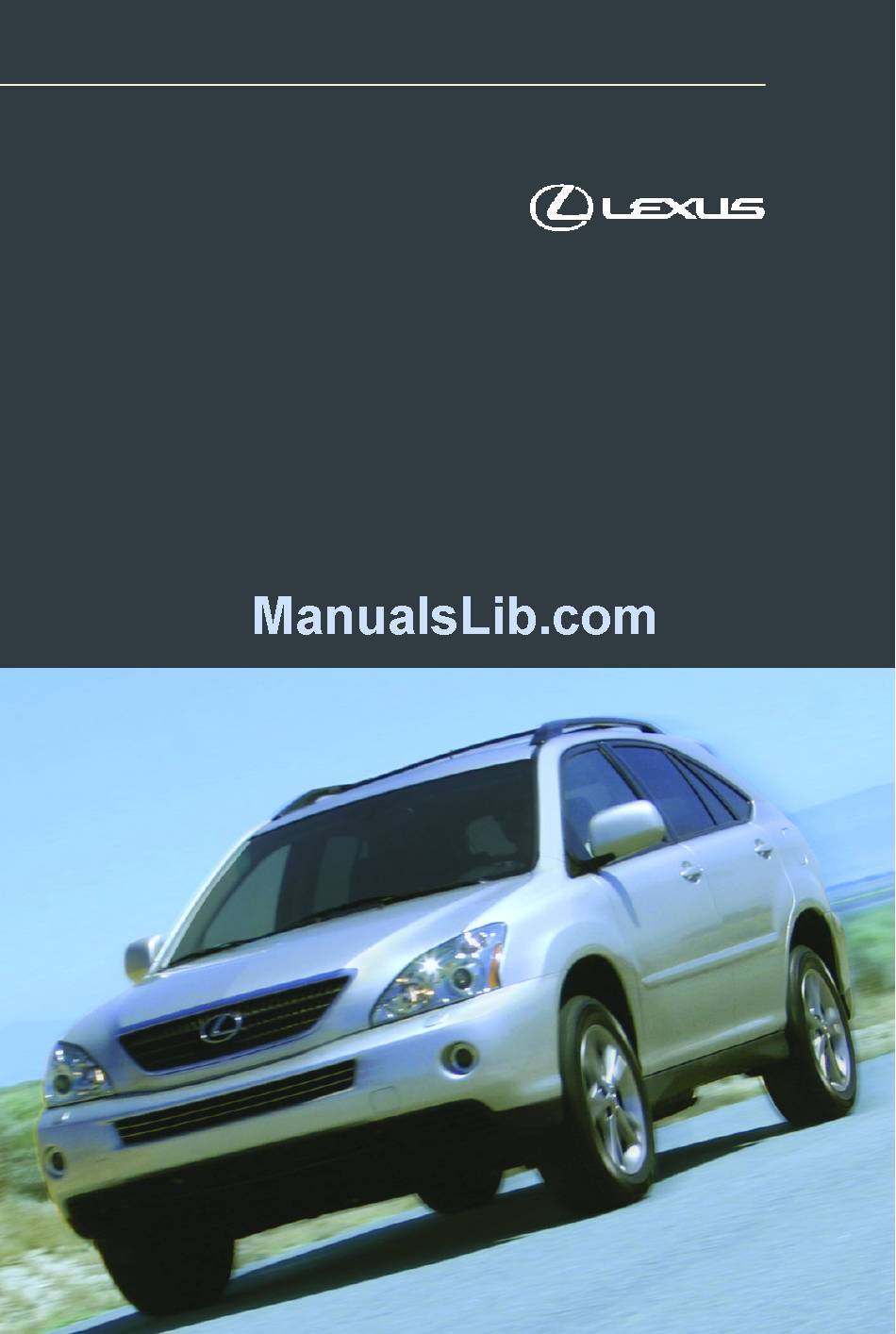

Page 1 RX 400h Hybrid Overview...
Page 2: Hybrid System
4.0-liter V8 engine. • The Lexus RX 400h does not need to be plugged in like an electric car. The HSD system automatically charges itself. • The Lexus RX 400h hybrid system provides the high level of performance associated with Lexus, along with improved gas mileage and reduced emissions.
Page 3: Table Of Contents
How the system works, the system’ s components and what they do. Frequently Asked Questions 21 - 22 A wide range of questions often asked about the RX 400h and hybrid technology. RX 400h Hybrid Specifications Specifications pertaining to the hybrid system.
Page 4: Driving The Rx400H
The RX 400h can drive up to 15 to 20 miles per hour on electric power alone, so the gasoline engine may not start for a while depending upon the need.
Page 5 Running out of fuel. • Do not run your RX 400h out of fuel. The RX 400h is not designed to be operated with the fuel tank empty. If you try to start the RX 400h with the fuel tank empty, the hybrid system will become disabled on the third attempt. If you continue to drive with the fuel tank empty, the hybrid battery will rapidly discharge and the hybrid system will shut down.
Page 6: Hybrid Luxury Driving Performance
V8 engine. In fact, the "400" in RX 400h stands for the power output of the 3.3 L engine and hybrid battery which, when combined, approximate the power of a 4.0 liter V8 engine.
Page 7 Traditional gasoline-powered vehicles may suffer from decreased performance at higher altitudes where there is less oxygen in the air. Because the power output of the hybrid battery is not directly affected by altitude, the RX 400h's acceleration performance can be less affected by altitude than a conventional vehicle.
Page 8: Epa Milieage Estimates & Fuel Economy
RX 400h EPA Mileage Estimates & Fuel Economy Quick Facts - EPA Mileage Estimates The EPA estimated fuel economy numbers are derived from vehicle testing conducted at the U.S. Environmental Protection Agency’ s (EPA’ s ) National Vehicle and Fuel Emissions Laboratory in Ann Arbor, Michigan. Vehicle manufacturers also submit test results based on strict EPA standardized drive patterns.
Page 9 There are many factors which may cause your actual mileage with the RX 400h, or other vehicles, to vary from the EPA estimates: • Quick acceleration and heavy braking may reduce mileage by as much as 33% in highway driving and as much as 5% in city driving.
Page 10 "D" for best fuel economy. Only use "B" gear position if needed to help maintain vehicle speed when going down steep grades. H Y B R I D O V E R V I E W RX 400h...
Page 11: Multi-Information Display & Monitors
RX 400h Multi-information Display & Monitors All RX 400hs are equipped with a Multi-information Display that shows a simplified representation of the approximate flow of energy within the hybrid system. The display does not show all of the components of the system.
Page 12 The optional Energy Monitor shows a simplified representation of the approximate flow of energy within the hybrid system. The display does not show all of the components of the system. The display is part of the RX 400h Navigation System and is located at the center console display.
Page 13 • The arrows point away from the hybrid battery to the front electric motor and then to the front wheels. (continued on next page) * Vehicles with optional All-Wheel Drive only. H Y B R I D O V E R V I E W RX 400h...
Page 14 • The arrows point away from the hybrid battery and the front and rear* electric motors and then to the front and rear wheels.* * Vehicles with optional All-Wheel Drive only. (continued on next page) H Y B R I D O V E R V I E W RX 400h...
Page 15 • The arrows point away from the wheels and electric motors and then to the battery. * Vehicles with optional All-Wheel Drive only. (continued on next page) H Y B R I D O V E R V I E W RX 400h...
Page 16 The top green bar may not appear except after driving down long mountain grades. * Vehicles with optional All-Wheel Drive only. H Y B R I D O V E R V I E W RX 400h...
Page 17 Press to clear the average Press to go to Distance economy in the Energy fuel economy and distance travelled Monitor screen travelled (continued on next page) H Y B R I D O V E R V I E W RX 400h...
Page 18 This information will clear when you turn off the vehicle. (continued on next page) H Y B R I D O V E R V I E W RX 400h...
Page 19 The needle will move up towards 200kW during acceleration and downward into the blue area when the hybrid system is regenerating power during coasting and braking conditions. H Y B R I D O V E R V I E W RX 400h...
Page 20 • The RX 400h can be driven on hybrid battery power alone, for short distances at lower speeds, then the engine will start when power is needed to recharge the 12-volt and hybrid batteries, or when driving conditions call for more power.
Page 21: Rx 400H Hybrid Technology
* Vehicles with optional All-Wheel Drive only. (continued on next page) The RX 400h is not designed to be driven off-road. H Y B R I D O V E R V I E W RX 400h...
Page 22 RX 400h Hybrid Technology ® Lexus Hybrid Synergy Drive main components (continued) Hybrid Battery – Composed of sealed nickel-metal hydride modules, the 288-volt hybrid battery is located under the rear seat. It supplies power to the electric motors during start-up, acceleration, uphill driving, and reverse.
Page 23 RX 400h Hybrid Technology ® How Lexus Hybrid Synergy Drive (HSD) works. Lexus Hybrid Synergy Drive(HSD) incorporates gas-engine power with electric motor efficiency in a seamless manner. Typically, the system works as follows: Starting from a stop The front electric motor/generator (MG2) and the rear electric motor/generator (MGR*) both drive the vehicle.
Page 24: Frequently Asked Questions
Q: Will the RX 400h qualify for a tax credit? A: Check with your tax preparer/consultant regarding any hybrid tax credit. Q: What is the warranty on the RX 400h? What is the warranty on the hybrid battery? A: In addition to the Basic Warranty of 48-month/50,000 miles and the powertrain and restraint system coverage of 72 months/70,000 miles, there is a hybrid warranty.
Page 25 Frequently Asked Questions Frequently Asked Questions (Continued) Q: Does the RX 400h qualify for the single-occupant vehicle in the high occupancy vehicle (HOV) lane? A: Pending federal government approval, it may qualify in certain states. We do not expect it to qualify in California, due to state HOV law.
Page 26: Rx 400H Hybrid Specifications
EPA estimated ratings. Actual mileage may vary. Vehicles with optional All-Wheel Drive only. Source: Manufacturer’s estimate The RX 400h is not designed to be driven off-road. Source: Car & Driver Magazine, (3/05) H Y B R I D O V E R V I E W...
Page 27: Glossary Of Hybrid Technology Terms
Electrical current that reverses its flow in a circuit at regular intervals. The RX 400h's electric motors operate on AC current. Electrical current that flows continuously in one direction. The RX 400h's hybrid battery and 12-volt battery provide DC current.
Page 28 In a hybrid vehicle, the word "motor" refers to an electric motor which works with the vehicle's engine to efficiently drive the vehicle. The RX 400h uses permanent magnet AC motors: a motor/generator (MG1), a front motor/generator (MG2), and a rear motor/generator (MGR*).
Page 29: Regenerative Braking
Watt A unit of electrical power. One watt equals 1/746th horsepower. Wh (Watt hours) Electrical power used, or in the case of the RX 400h, regenerated and measured in terms of time. * Vehicles with optional All-Wheel Drive only. H Y B R I D...
Page 30: Index
Hawaii, Puerto Rico, the US Virgin Islands and in other regions. Some vehicles may be shown with optional equipment. Optional equipment listed may not be available separately or in all regions. Technical photos and illustrations are from Lexus Technical Training and other photos are from CJE Automotive Marketing under contract with Lexus Product Coordination.
