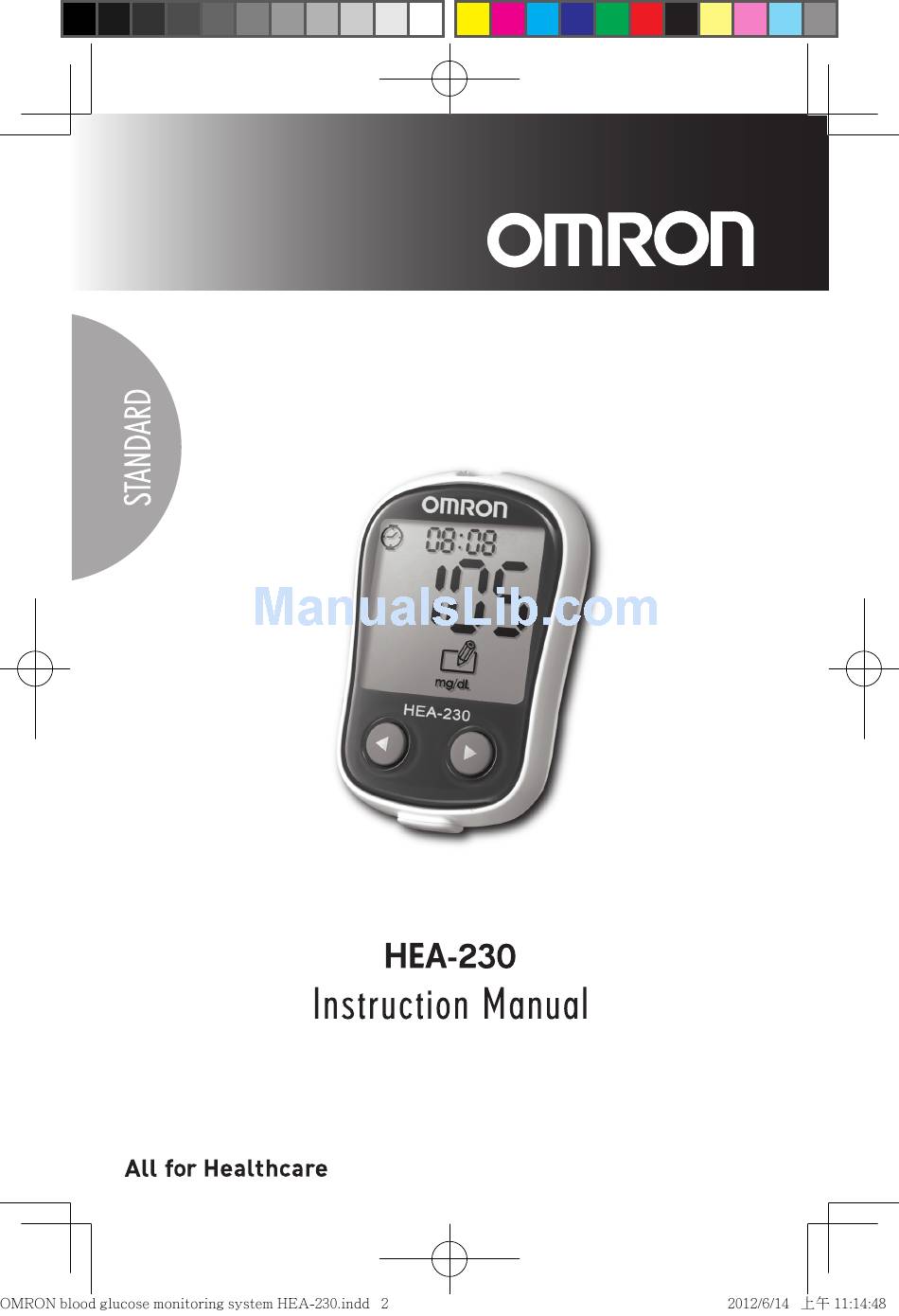

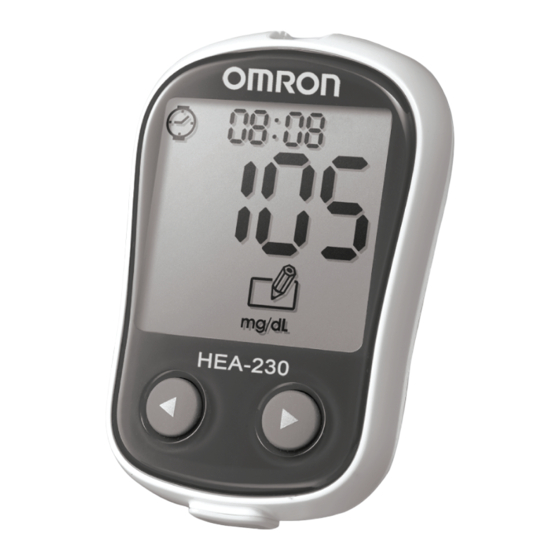

- Page 1 Blood Glucose Monitoring System...
-
Page 3: Table Of Contents
Chapter 5 Memory Function 5.1 Reviewing past results Chapter 6 Instructions on Caring and Storing for Your Strips and Meter 6.1.Caring for the strip 6.2.Caring for the meter Chapter 7 Troubleshooting Chapter 8 HEA-230 Performance Characteristics Chapter 9 Specification and Maintenance... -
Page 4: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS READ BEFORE USE 1. Use this device ONLY for the intended use described in this manual. 2 . D o N O T u s e a c c e s s o r i e s w h i c h a r e n o t s p e c i f i e d b y t h e manufacturer. -
Page 5: Chapter 1 Blood Glucose Monitoring System
Please read instruction manual carefully before using. HEA-230 is an in vitro diagnostic medical device for self-testing. By capillary action, test sample will automatically fill up the reaction zone by inhalation from the front channel. -
Page 6: List Of Kit Contents
1.2 List of kit contents 1. Blood Glucose Meter 2. Sterile Lancets 3. Lancing device 4. Instructions for the lancing device 5. Carrying Case 6. Instruction Manual 7. Log Book 8. 2 x AAA Batteries 1.3 Product and meter display A. - Page 7 B. Strip appearance Top Edge -Apply blood sample here. Inserting Bar - I n s e r t t h i s t e s t s t r i p i n t o t h e m e t e r s ’ s t r i p p o r t w i t h t h i s s i d e facing up.
-
Page 8: Chapter 2 Installing And Setting Up The Meter
Chapter 2 Installing and Setting up the Meter 2.1 Inserting / replacing batteries ◆ When to change the batteries When the battery sign appears on the display ,the battery power is low and replacing the batter as soon as possible is required for the meter. ◆... -
Page 9: Setting Up Your Meter
a. open battery cover b. place new batteries c. install battery cover back to the battery compartment 2.2 Setting up your meter 1. Setting the date ◆ How to enter the date setting mode Press right button to turn on. The display will show the most recent test result. - Page 10 Setting month Once you enter the month setting mode, the month field will flash. (1) Press the right button once to increase a month (2) Press the left button once to decrease a month (3) Then press and hold down the left button to save your month.
- Page 11 2. Setting the time ◆ How to enter the time setting mode Press right button to turn on. The display will show the most recent test result. Press and hold down the left button until data sign stop flashing. Then press right button four times to display the time.
-
Page 12: Performing A Blood Glucose Measurement
Setting Minute O n c e y o u e n t e r e d t h e m i n u t e s s e t t i n g m o d e , t h e m i n u t e field flashes (1) Press the right button once to increase a minute. - Page 13 2. Entering the code number The display will now show a locker sign and previous selected code number. Press the right or left buttons to increase or decrease the code number. Adjust the code number on display to match the code number on the test strip vial, then wait for 5 seconds to enter next screen display.
-
Page 14: Chapter 3 Glucose Testing
3.1 Preparation before glucose testing Please prepare materials you need as listed below, and read this manual carefully, to ensure the correct measuring process and results. ● blood glucose meter, model HEA-230 ● blood glucose test strip, model HEA-STP30 ● Lancing device... - Page 15 3.2 Fingertip blood measurement Appearance of the lancing device: Ejector Adjustable tip Carrier Trigger Barrel A. Install the lancet Check if you use a new lancet or not; unscrew the tip of lancing device; install the lancet into the lancet holder correctly and make sure it is fully seated, then remove the protective cap.
- Page 16 We suggest that you could puncture different area each time. Repeated punctures in the same area may cause soreness. The blood sample for OMRON blood glucose test strip , model HEA-STP30, is just need approximately 1μL. Do not squeeze...
- Page 17 E. Preparation of test strip To get a new blood glucose test strip from vial, then insert test strip into the meter. The strip code number will appear on meter display, check the code number on strip vial. If it does not match, please select the correct code number according to chapter 2.3.
- Page 18 Sample too small Sample filled The following items will cause inaccurate results: • The reaction zone does not fill completely • Apply blood over once. • Do not apply blood to test strip after a period of time. • Avoid violent variation of environment when you measure. •...
-
Page 19: Chapter 4 Glucose Control Solution Testing (Optional)
If you will like to perform control solution test or have any question, please contact your local authorized distributor for more information. Important: •Use only the OMRON glucose control solution HEA-CTR30 with HEA- 230 meter and HEA-STP30 strips. •Mark the newly opened bottle of control solution with the date opened;... - Page 20 ◆ The step of running control test: 1. Preparing a test strip Take a test strip from strip vial and insert the test strip into the meter correctly in the front direction of the meter, in the meantime, the meter will display the code number.
- Page 21 •Did you follow all of the testing instructions? •Are the test strips or control solution past the “expired” date or discard date? •Is HEA-230 meter defective in material or workmanship? •Does the code number on the meter display match the code number on the test strip vial? Repeat the control test with a new test strip.
-
Page 22: Chapter 5 Memory Function
* The code number will not show on the display when reviewing the past results. 1. Checking single result ◆ Press right button to turn on the HEA-230 System, then all icons will appear on the display for 1 seconds. After and the display will show second... - Page 23 2. Average the results ◆ How to enter the result averaging mode Press right button to turn on the HEA-230 system, then all segments will appear on the display for 1 second. sign will appear and the display will show the most recent test result.
- Page 24 Press and hold down left button to exit result averaging m o d e , t h e n t h e d i s p l a y w i l l r e t u r n t o t h e p a s t 7 d a y average screen.
-
Page 25: Chapter 6 Instructions On Caring And Storing
Chapter 6 Instructions on Caring and Storing for Your Strips and Meter 6.1 Caring for the strip □ Wash hands before testing. □ Do not use the expired strip. □ Check the expired date printed on the package. □ R e c o r d t h e o p e n e d d a y o n t h e t e s t s t r i p b o t t l e l a b e l when you first open it. -
Page 26: Chapter 7 Troubleshooting
Chapter 7 Troubleshooting When the meter is used incorrectly, in poor condition, or other unexpected events happen, the screen will show the error message to remind the user should notice the problems or how to resolve them. The following messages may mean you have obtained a result that requires immediate attention or there may be a problem with the meter. -
Page 27: Characteristics
NIST traceable glucose standard solution. Measurement range: The HEA-230 display results between 20 and 600 mg/dL (1.1 ~ 33.3 mmol/L). Accuracy: The accuracy of the HEA-230 was assessed by comparing blood glucose results obtained by patients with those obtained using clinical analyzer. -
Page 28: Chapter 9 Specification And Maintenance
◆ Please do not store in high temperature or high humidity. ◆ Please prevent the HEA-230 system against from impact. ◆ Please do not disassemble tthe HEA-230 system. warning: The measurement unit either mg/dL or mmol/L is fixed in the meter according to the country demand. - Page 29 MANUFACTURER CONSULT INSTRUCTIONS FOR USE CAUTION BATCH CODE AUTHORISED REPRESENTIVE IN THE TEMPERATURE LIMITATION EUROPEAN COMMUNITY Council Directive 98/79/EEC IN VITRO DI AGNOSTIC MEDICAL DEVICE on in vitro diagnostic medical devices DO NOT REUSE KEEP AWAY FROM SUNLIGHT STERILIZED USING IRRADIATION SERIAL NUMBER KEEP DRY...
- Page 32 5011554500 12-06 REV.00...
