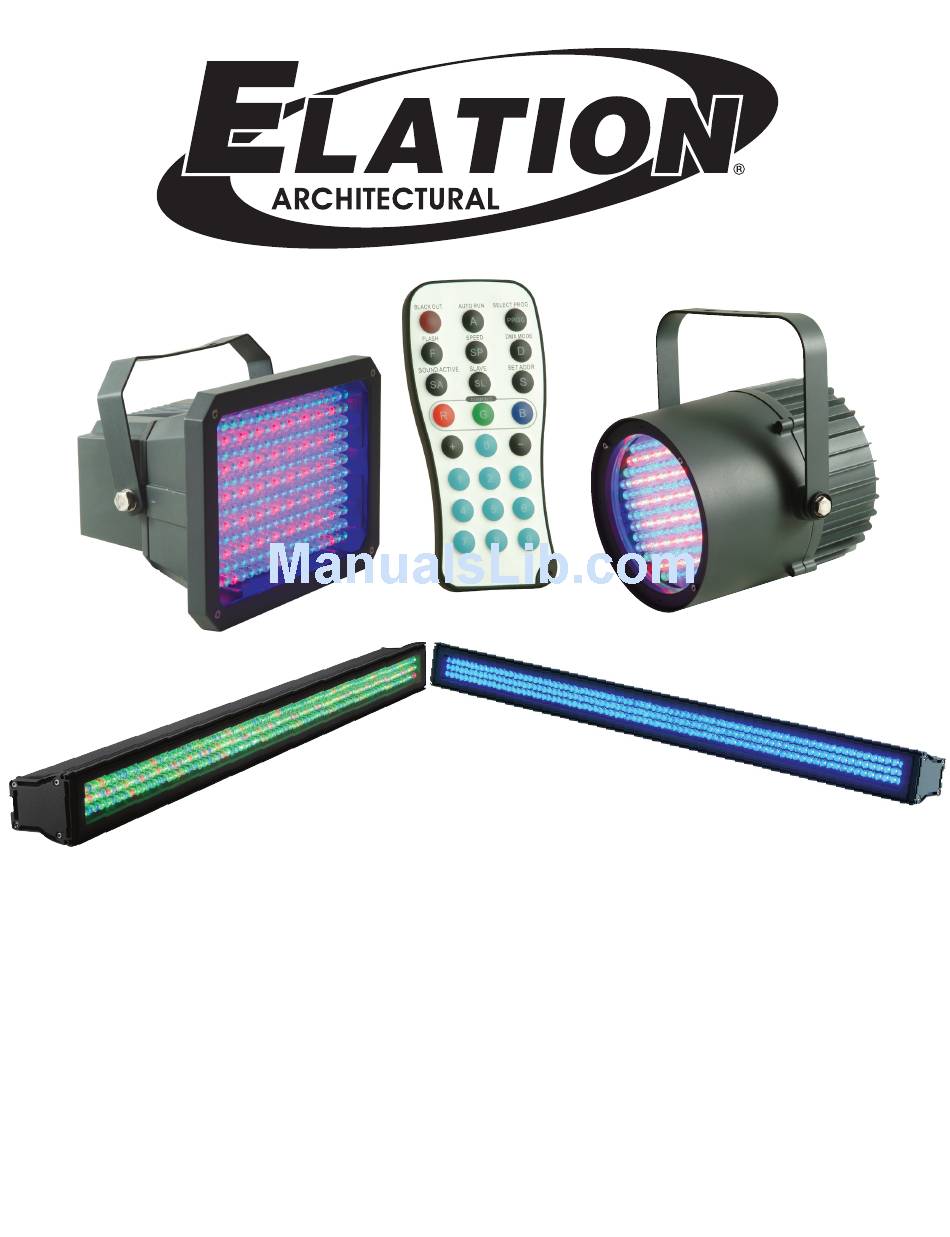

  • Page 1 Elation Architectural User Instructions ® Elation Architectural © ® 6122 S. Eastern Ave. Los Angeles CA. 90040 Rev. 4/08 www.elationlighting.com...
  • Page 2: Dmx Control

    To control the your desired fixture you must aim the controller at the front of the fixture and be no more the 30 feet away. Note: The IR Remote cannot be used when the fixtures are connected to a DMX controller.
  • Page 3 3 cHAnnEl MoDE channel Value Function 0 - 255 0% - 100% 0 - 255 GREEN 0% - 100% 0 - 255 BLUE 0% - 100% 5 cHAnnEl MoDE channel Value Function ELAR EXPAR SPECIFICATIONS: 0 - 255 Working Position: Any safe working position 0% - 100% Voltage: 120V/60Hz or 240/50Hz...
  • Page 4 www.elationlighting.com • www.elationlighting.eu 3 cHAnnEl MoDE channel Value Function 0 - 255 0% - 100% 0 - 255 GREEN 0% - 100% 0 - 255 BLUE 0% - 100% 5 cHAnnEl MoDE channel Value Function ELAR EXFLOOD SPECIFICATIONS: 0 - 255 Working Position: Any safe working position 0% - 100% Voltage:...
  • Page 5 ELAR EXBAR BL LED RGB BAR DMX CHANNEL MODES: There are seven DMX modes: a 2 Channel mode, 3 Channel mode, 4 Channel mode 6 Channel mode, 7 Channel Mode, ELAR EXBAR BL SPECIFICATIONS: 9 Channel mode, and 11 Channel mode. You must Working Position: Any safe working position set the DMX Channel mode before you address the Voltage:...
  • Page 6 DMX VAluES AnD TrAITS For THE ElAr EXBAr DMX Mode 2: 4 cHAnnEl MoDE DMX Mode 1: 3 cHAnnEl MoDE channel Value Function channel Value Function 1 - 255 1 - 255 0% - 100% 0% - 100% 1 - 255 GREEN 1 - 255 GREEN...
  • Page 7 DMX VAluES AnD TrAITS For THE ElAr EXBAr conT. DMX Mode 6: 6 cHAnnEl MoDE DMX Mode 5: 2 cHAnnEl MoDE channel Value Function channel Value Function 1 - 255 MACROS/PROGRAMS 0% - 100% 0 - 15 1 - 255 GREEN 16 - 30 0% - 100%...
  • Page 8 DMX VAluES AnD TrAITS For THE ElAr EXBAr conT. DMX Mode 7: 7 cHAnnEl MoDE channel Value Function 1 - 255 0% - 100% 1 - 255 GREEN 0% - 100% 1 - 255 BLUE 0% - 100% MACROS/PROGRAMS 0 - 15 16 - 30 31 - 45 YELLOW...
  • Page 9 ELAR EXBAR UV LED UV BAR ELAR EXBAR UV SPECIFICATIONS: Working Position: Any safe working position Voltage: 120V/60Hz or 240/50Hz channel Value Function Power Consumption: Weight: 9.2lbs./ 4.2Kgs. DIMMER Dimensions: 39.3” (L) x 3.14” (W) x 2.95” (H) 0 - 255 0% - 100% 998 x 79 x 74mm STROBING...
  • Page 10: Year Limited Warranty

    Caution! no user serviceable parts inside do not attempt repairs. In the event your Elation ® Architectural fixture should fail, contact Elation support. ® Customer Support: Elation provides a customer support line, to provide set up help and to answer any ®...
  • Page 11 ©Elation Architectural® A Division of the AmericanDJ® Group of Companies World Headquarters: 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-3322 Fax: 323-832-9142 Web: www.elationlighting.com E-mail: info@elationlighting.com...
