SERVICE
The
10HP
is
a

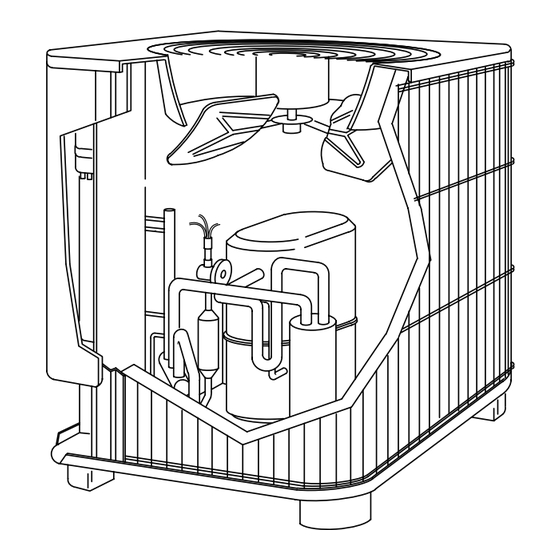

split-system heat pump. Extra large outdoor coil,
coil circuiting and high outdoor coil air volume
result in a high SEER rating (minimum of 10.0).
10HP12 through 10HP48 units are designed for use
with an expansion valve or RFCIII system in the
indoor unit. 10HP60 units are designed for use with
an expansion valve only in the indoor unit.
All
compressors
are
trouble-free
operation
Compressor components are spring mounted within
the sealed housing. The compressor is installed in the
unit on resilient rubber mounts to assure quiet,
vibration-free operation. A built-in limit protects the
compressor from excessive current and temperatures.
10HP18 through 10HP60 models are furnished with
crankcase heaters as standard equipment. The heater
prevents liquid from accumulating in the compressor.
The heater is temperature-actuated and operates only
when required. A crankcase heater for 10HP12 units is
optional, but suction accumulator is factory installed.
Several models are available in sizes ranging from 1
through 5 tons.
Model No.
Net face a ea (sq ft )
Net face area (sq. ft.)
Outdoor
Outdoor
Tube diameter (in.) & no. of rows
Coil
Coil
Fins per inch
Diameter (in.) & no. of blades
Motor hp
Outdoor
Cfm
F
Fan
Rpm
Watts
Full load amps
Refrigerant — 22 charge furnished
Liquid line (o.d. in.) connection (sweat)
Vapor line (o.d. in.) connection (sweat)
Line voltage data – 60hz
Compressor rated load amps
Rec. max. fuse or circuit breaker size (amps)
*Minimum circuit ampacity
*Refer to National Electric Code manual to determine wire, fuse and disconnect size requirements.
NOTE – Extremes of operating range are plus 10% and minus 5% of line voltage.
{ 3/8 in. x 1/4 in. reducer furnished to adapt to 1/4 in. field fabricated line set.
{{ 3/8 in. x 5/16 in. reducer furnished to adapt unit to 5/16 in. line set.
INFORMATION
Replaces Corp. 9329–L4
10HP SERIES UNITS
high-efficiency
residential
hermetically
sealed
and
long
service
SPECIFICATIONS
10HP12
12 6
12.6
3/8 — 1
20 — 3
1/6
2630
840
210
5 lbs. 3 oz.
{
1/2
5.0
7.4
UNIT
Corp. 9427–L10
This manual is divided into sections which discuss the
major components, refrigerant system, charging
procedure, maintenance, and operation sequence.
Canadian specifications are marked (CAN).
All specifications in this manual are subject to change.
for
life.
10HP18
12 6
12.6
3/8 — 1
20
20
20 — 3
1/6
2630
840
210
5 lbs. 6 oz.
{{
3/8
3/8
5/8
208-230v—1ph
8.1
15
15
11.3
Page 1
Litho U.S.A.
10HP24
10HP30-1
12.6
12 6
14 7
14.7
3/8 — 1
3/8 — 1
20
20 — 3
20 — 3
1/6
1/6
2630
2665
840
850
210
210
1.1
6 lbs. 2 oz.
7 lbs. 3 oz
{
3/8
3/8
5/8
3/4
10.9
12.2
25
25
14.8
16.4
1994 Lennox Industries Inc.
10HP
10HP30-2
20
13.7
30
18.2
