Summary of Contents for BenQ DLP
- Page 1 ABOUT PROJECTOR.COM Projector.com (http://www.projector.com) is your review and buying guide resource for DLP and LCD video projectors. Visit the site to read the latest projector news and reviews, read and comment on projector specifications, download user...
- Page 2 User’s Manual Thank you very much for purchasing this DLP™ Technology Projector. Please read this operating guide to ensure correct use of the device. After reading this manual, keep it for future reference. Outline This DLP™ Technology Projector can display various computer signals and NTSC/PAL/SECAM video signals.
-
Page 3: Monitor Information
User’s Manual Copyright Copyright © 2002. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company. -
Page 4: Table Of Contents
User’s Manual Table of Contents Introduction ................................1 Projector Features ..................................1 Description ......................................2 FRONT ..................................2 REAR ...................................2 BOTTOM ...................................2 Installation......................................3 Positioning..................................3 Adjustable Feet................................3 Moving the Projector ..................................4 Accessories......................................5 Connection................................6 Connecting the Projector to Computer/Notebook..................6 Connecting the Projector to Macintosh/Power Book..................7 Operation ................................8 Turn On/Off Procedure................................8 Power on..................................8 Standby..................................8... -
Page 6: Introduction
User’s Manual Introduction Projector Features A. Image Resolution Fully compatible with true SVGA/ XGA, and supports SXGA using advanced intelligent compression technology. The advanced intelligent compression technology enables it to present clear compression SVGA/XGA images without line omission. B. Brightness Provides superior brightness using TI’s Digital Micromirror Device (DMD) and our own optical design, with a geometric effect that increases light usage efficiency. -
Page 7: Description

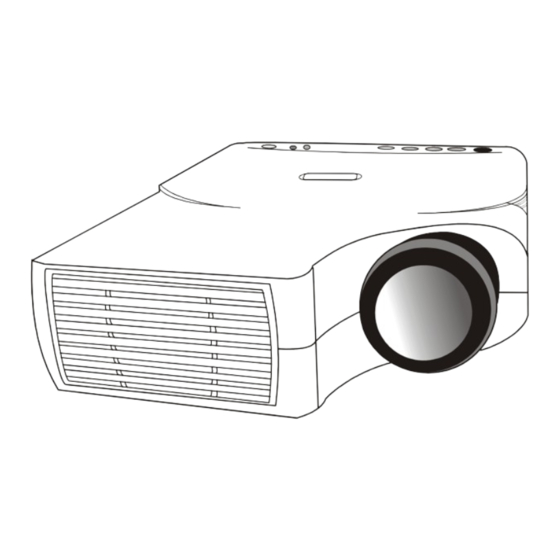

User’s Manual SECAM France and Eastern Europe standard NTSC4.43 Middle East standard If users want to watch CATV, AV box will serve the need. Description A. FRONT Figure 1 Front view B. REAR Figure 2 Rear view C. BOTTOM Figure 3 Bottom view Introduction... -
Page 8: Installation
User’s Manual Installation A. Positioning This projector is basically designed to project on a flat projection surface. It can focus from 1m– 10m and adjust the screen size like figure below. 300" 203" 145" 145" 131" 225" 116" 102" 154" 88"... -
Page 9: Moving The Projector
User’s Manual Moving the Projector Use the carrying handle when moving the projector. Replace the lens cover and rotate the feet fully clockwise (to shorten the feet) when moving the projector to prevent damage to the projector. Caution The carry bag (supplied) is intended to protect the projector from dust and scratches on the surface of the cabinet. -
Page 10: Accessories
User’s Manual Accessories Please check and make sure your box contains everything listed below. If any pieces are missing, contact your dealer. Please save the original box and packing materials in case you ever need to ship the unit. Projector Remote Control User's Guide Ma c Adapter... -
Page 11: Connection
User’s Manual Connection A. Connecting the Projector to Computer/Notebook Figure 8 Connection to PC Figure 9 Connection to notebook Connection... -
Page 12: Connecting The Projector To Macintosh/Power Book
User’s Manual B. Connecting the Projector to Macintosh/Power Book Figure 10 Connection to Macintosh Figure 11 Connection to Power Book Connection... -
Page 13: Operation
User’s Manual Operation Turn On/Off Procedure A. Power on Press the Standby/On key to turn on the lamp. The LED will blink green during warm up and then light solid green. "INPUT SIGNAL DETECTED, ACTIVATING AUTO IMAGE" will be displayed on the screen after the projector has identified the input signal;... - Page 14 User’s Manual MAIN UNIT FUNCTION To correct the size and phase of the projected image AUTO automatically. KEYSTONE + To correct the upper distortion of the projected image when keystone occurs. KEYSTONE - To correct the lower distortion of the projected image when keystone occurs.
-
Page 15: Remote Control
User’s Manual B. Remote Control (LED) Stand by /on Laser Source Menu Exit -Keystone+ Blank Freeze R-Click L-Click Drag Volume Magnify Return Mute Reverse Channel down Channel up Add/Erase scan Scan Figure 14 Remote control Operation... - Page 16 User’s Manual Main Unit Function Standby/On To turn the projection lamp on and off. Freeze Pressing this button displays a still (frozen) picture. Magnify Pressing this button partially magnifies a displayed picture. (Move the picture with the Disk Pad after pressing the Magnify button.) When the OSD menu is active, Disk Pad acts as 56selecting device.
-
Page 17: Usage And Replacement Of Lamp
User’s Manual Remote Control Range The remote sensors are located on the back of the unit. It can function in a range 50 degrees horizontal and 30 degrees vertical relative to a line that is a right angle to the remote sensor. The distance between the remote control and remote sensor must be shorter than four meters (13 feet). -
Page 18: Replacing The Lamp
User’s Manual 2. Lamp is not well attached If the LED blinks rapidly, it indicates that the lamp is not attached properly. 3. Temperature is too high If the projector’s internal temperature is too hot to operate safely, the LED will blink slowly for one minute and then the lamp will turn off automatically. - Page 19 User’s Manual • Do not turn on power with lamp cover removed. • Whenever the lamp is replaced, reset the total operation time of the lamp. Do not reset if the lamp has not been replaced. Do not reset the timer without changing the lamp, as this can cause the lamp to break. •...
-
Page 20: Osd
User’s Manual Resetting Lamp Timer If replacing the lamp after 1500 hours of operation, please carry out the following operation within 10 minutes of powering on. FUNCTION Press the MENU button into OSD menu, and “4” (KEYSTONE+) “3” (KEYSTONE-) to select the Control page. Then press the Menu button again to highlight the Lamp item. -
Page 21: Display Page
User’s Manual A. Display Page When a PC is the input source, there will be only four items on this page: Keystone, Brightness, Contrast, and Color Balance (Fig. 22). On the other hand, when the input source are video, S-video, TV or CATV, there will be other 4 items on this page: Keystone, Brightness, Contrast, and Sharpness (Fig.23). -
Page 22: Control Page
User’s Manual Setting effects Resize When Resize is 4:3 or 16:9, the projector determines the best fit of the image to the screen. If flicker occurs on a projected image, users may try to adjust the H. Phase H. Phase manually. -
Page 23: Source Page
User’s Manual Setting effects Auto To reset display, image and control settings to factory settings. To select the OSD menu language. Eight languages are supported: English, French, Language German, Italian, Spanish, Korean, Simplified Chinese and Traditional Chinese. (See Figure 27). Mirror To select Normal projection, H-Invert projection, V-Invert projection, or H/V Invert projection. -
Page 24: Other Correspondent Remote Functions And Messages
User’s Manual Other Correspondent Remote Functions and Messages FUNCTION The selected source will be displayed at the bottom right of the screen for 3 seconds after selecting the source. (PC, VIDEO, S-VIDEO). Source The image will be frozen when the “Freeze” button is pressed. -
Page 25: Maintenance And Troubleshooting
User’s Manual Maintenance and Troubleshooting A. Lamp Replacement Refer to Page 13. B. Cleaning the Lens Follow these steps to clean the projection lens: 1. Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth (abrasive cleaners, solvents or other harsh chemicals might scratch the lens). 2. -
Page 26: Specifications
User’s Manual Specifications A. Optical 1-chip 0.7” DMD (Digital Micromirror Device) Manual zoom, manual focus (F/#= 2.8) Lens mercury lamp 150W Lamp Image size 23” to 300” Projection Distance 1 to 10 M Contrast Ratio 450:1 B. Electrical RGB (H:31.47 to 68.70 kHz V:56.25 to 85.00 Hz) Inputs Video (NTSC/PAL/SECAM/NTSC 4.43) -
Page 27: Appendix
User’s Manual Appendix Guideline to AV box Features and Connection AV Connection Port This box is compatible with RCA input, S-Video input and audio output. Figure 29 Connection of AV box Speaker For Video and Audio Input from VHS or V8 RCA Jack For S-Video Input S Video Port... -
Page 28: Connecting The Box
User’s Manual Connecting the Box Please follow the instructions here to place the AV box: Figure 31 Side View of AV box Figure 30 Bottom View of AV box To attach the AV box to the unit： 1. Precisely place the two chocks at the lower surface of the AV box into the lower slots in the correspondent position in the projector. - Page 29 ABOUT PROJECTOR.COM Projector.com (http://www.projector.com) is your review and buying guide resource for DLP and LCD video projectors. Visit the site to read the latest projector news and reviews, read and comment on projector specifications, download user...
