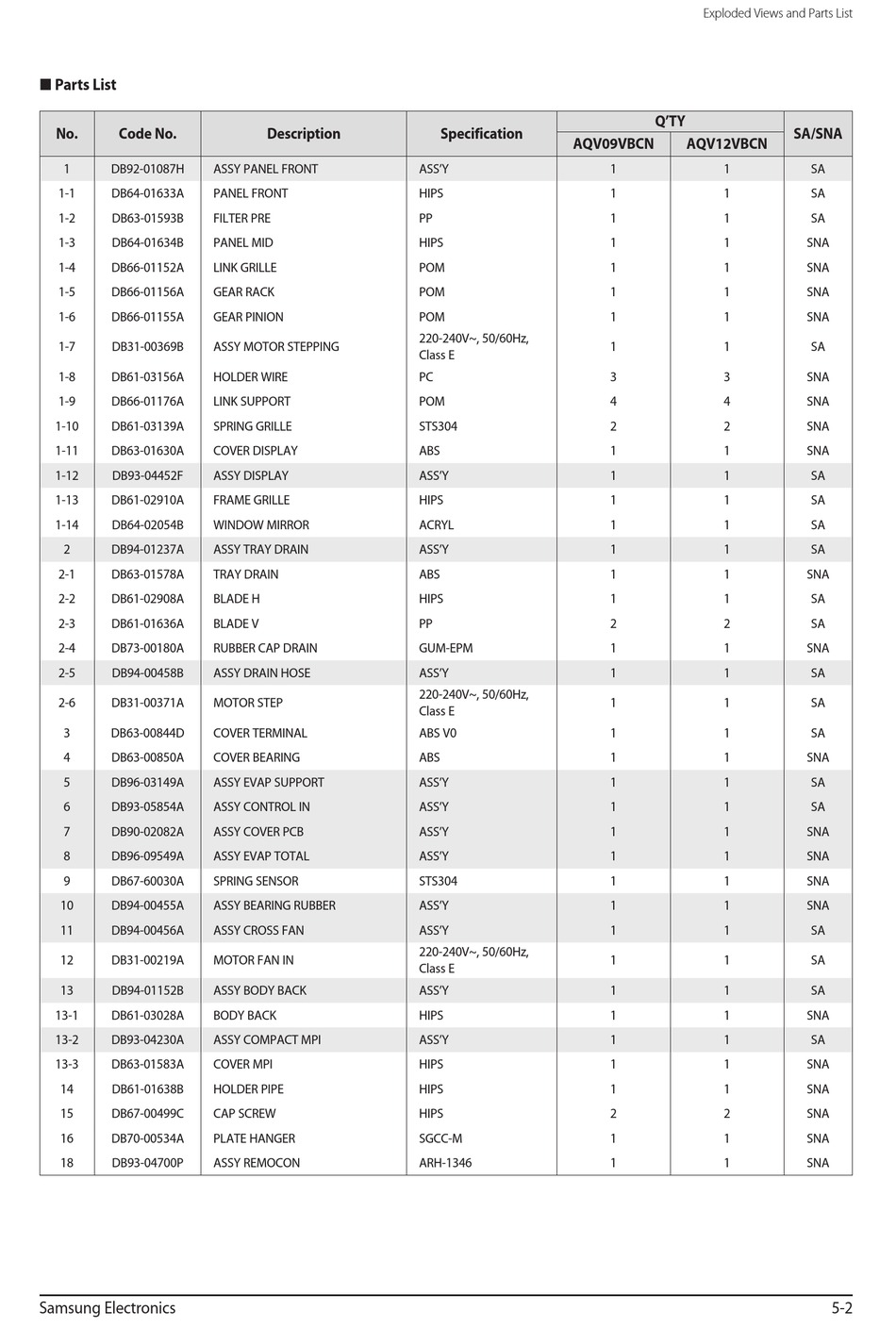

Samsung AQV09VBA Service Manual page 30

 Parts List
No. Code No.
1 DB92-01087H
1-1 DB64-01633A
1-2 DB63-01593B
1-3 DB64-01634B
1-4 DB66-01152A
1-5 DB66-01156A
1-6 DB66-01155A
1-7 DB31-00369B
1-8 DB61-03156A
1-9 DB66-01176A
1-10 DB61-03139A
1-11 DB63-01630A
1-12 DB93-04452F
1-13 DB61-02910A
1-14 DB64-02054B
2 DB94-01237A
2-1 DB63-01578A
2-2 DB61-02908A
2-3 DB61-01636A
2-4 DB73-00180A
2-5 DB94-00458B
2-6 DB31-00371A
3 DB63-00844D
4 DB63-00850A
5 DB96-03149A
6 DB93-05854A
7 DB90-02082A
8 DB96-09549A
9 DB67-60030A
10 DB94-00455A
11 DB94-00456A
12 DB31-00219A
13 DB94-01152B
13-1 DB61-03028A
13-2 DB93-04230A
13-3 DB63-01583A
14 DB61-01638B
15 DB67-00499C
16 DB70-00534A
18 DB93-04700P
Samsung Electronics
Description
ASSY PANEL FRONT
PANEL FRONT
FILTER PRE
PANEL MID
LINK GRILLE
GEAR RACK
GEAR PINION
ASSY MOTOR STEPPING
HOLDER WIRE
LINK SUPPORT
SPRING GRILLE
COVER DISPLAY
ASSY DISPLAY
FRAME GRILLE
WINDOW MIRROR
ASSY TRAY DRAIN
TRAY DRAIN
BLADE H
BLADE V
RUBBER CAP DRAIN
ASSY DRAIN HOSE
MOTOR STEP
COVER TERMINAL
COVER BEARING
ASSY EVAP SUPPORT
ASSY CONTROL IN
ASSY COVER PCB
ASSY EVAP TOTAL
SPRING SENSOR
ASSY BEARING RUBBER
ASSY CROSS FAN
MOTOR FAN IN
ASSY BODY BACK
BODY BACK
ASSY COMPACT MPI
COVER MPI
HOLDER PIPE
CAP SCREW
PLATE HANGER
ASSY REMOCON
Specification
AQV09VBCN
ASS'Y
HIPS
PP
HIPS
POM
POM
POM
220-240V~, 50/60Hz,
Class E
PC
POM
STS304
ABS
ASS'Y
HIPS
ACRYL
ASS'Y
ABS
HIPS
PP
GUM-EPM
ASS'Y
220-240V~, 50/60Hz,
Class E
ABS V0
ABS
ASS'Y
ASS'Y
ASS'Y
ASS'Y
STS304
ASS'Y
ASS'Y
220-240V~, 50/60Hz,
Class E
ASS'Y
HIPS
ASS'Y
HIPS
HIPS
HIPS
SGCC-M
ARH-1346
Exploded Views and Parts List
Q'TY
AQV12VBCN
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
3 3
4 4
2 2
1 1
1 1
1 1
1 1
1 1
1 1
1 1
2 2
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
2 2
1 1
1 1
SA/SNA
SA
SA
SA
SNA
SNA
SNA
SNA
SA
SNA
SNA
SNA
SNA
SA
SA
SA
SA
SNA
SA
SA
SNA
SA
SA
SA
SNA
SA
SA
SNA
SNA
SNA
SNA
SA
SA
SA
SNA
SA
SNA
SNA
SNA
SNA
SNA
5-2
