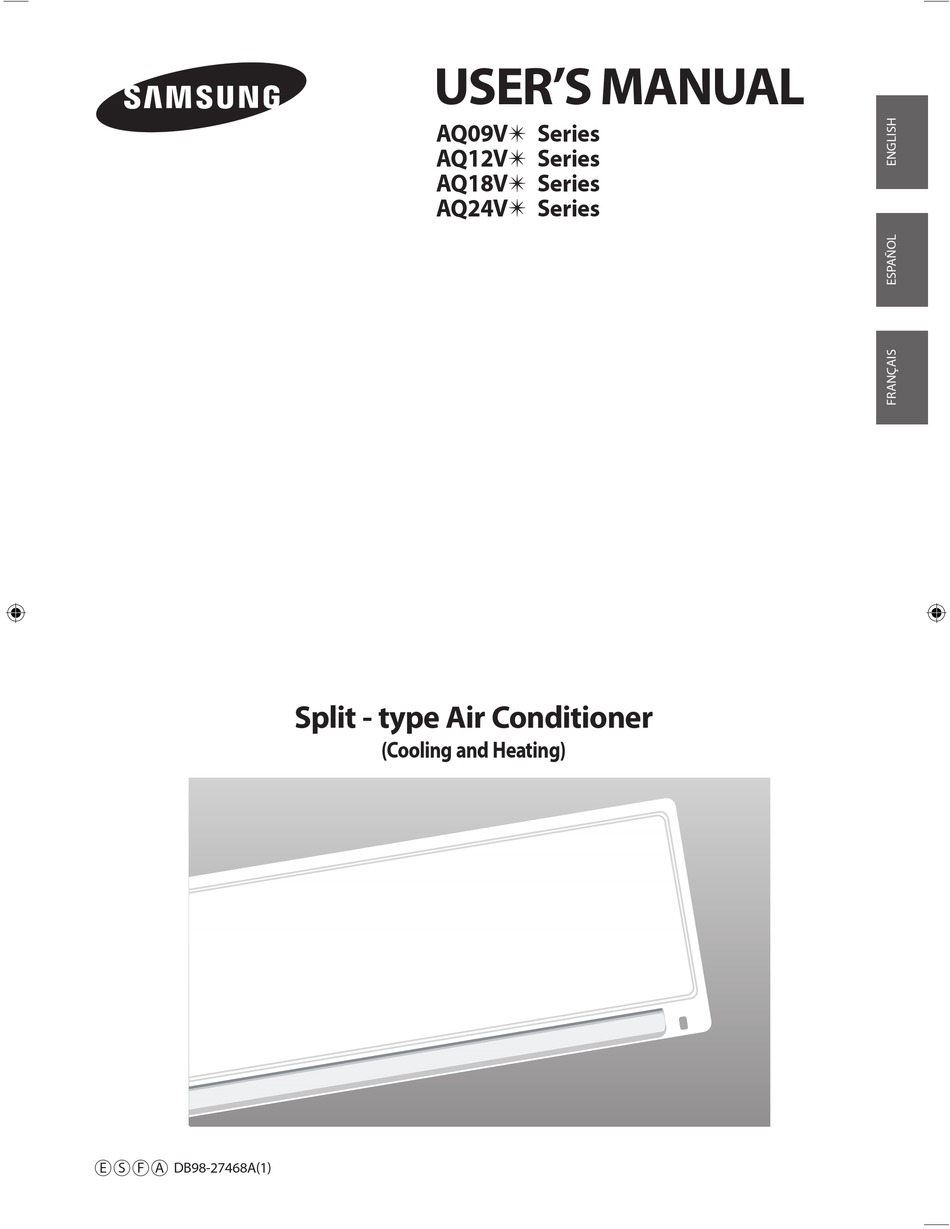

- Page 1 USER’S MANUAL AQ09V Series AQ12V Series AQ18V Series AQ24V Series Split - type Air Conditioner (Cooling and Heating) DB98-27468A(1)
-
Page 2: Table Of Contents
Contents REPARATION Safety Precautions ......................3 Name of Each Part ......................8 Remote Control – Buttons and Display ............... 10 Inserting the Remote Control Batteries ............... 10 Getting Started ....................... 11 PERATION Selecting Auto Mode ....................12 ... -
Page 3: Safety Precautions
Register your product at www.samsung.com/global/register Safety Precautions The following safety precautions are provided to protect the users’ safety and prevent property damage. Make sure to read the followings and use the air conditioner properly. Keep this user’s manual together with the installation manual in a handy place so that you can find it whenever you need to see it after reading this manual thoroughly. - Page 4 WARNING URING PERATION Do not attempt to repair, When using a wireless Never spill any kind of liquid move, modify or reinstall remote control, the distance into the unit. Should this the unit on your own. Make should not be more than happen, unplug or main sure that these installations...
- Page 5 WARNING ISPOSING THE Before throwing out the When you need to dispose of Please recycle or dispose device, it is necessary to pull the unit, consult your dealer. of the packaging material for back the battery cells and get If pipes are removed this product in an rid of them safely for recycling...
- Page 6 CAUTION EGARDING OWER OURCE Disconnect the circuit breaker Contact the service center or Contact the service center when you don’t use the manufacturer if you want to after turning off the air air conditioner for a long time repair the air conditioner.
- Page 7 CAUTION URING PERATION Do not touch the pipes Do not use the air conditioner Do not give excessive shock connected to the air to maintain the machine, food, to the air conditioner. conditioner. pet, plant or cosmetics. THERS ...
-
Page 8: Name Of Each Part
Name of Each Part The design and shape can be changed according to the model. Indoor Unit Air Inlet Room Temperature sensor Power(On/Off) button Air filter Airflow blade (under the panel) (outlet) mode indicator Timer/ Auto cleaning indicator mode indicator Set temperature &... -
Page 9: Outdoor Unit
Outdoor Unit AQ09VSeries Air Inlet (Rear) Air Outlet Connection Valve (Inside) Outdoor Unit AQ12VSeries Air Inlet (Rear) Air Outlet Connection Valve (Inside) Outdoor Unit AQ18VSeries Air Inlet (Rear) Air Outlet Connection Valve (Inside) Outdoor Unit AQ24VSeries Air Inlet (Rear) Air Outlet Connection Valve (Inside) -
Page 10: Remote Control-Buttons And Display
Remote Control-Buttons and Display Airflow direction indicator Temperature setting Operating mode indicator (Auto, Cool, Dry, Fan, Heat) mode Turbo function indicator indicator Fan speed indicator Energy saving indicator Remote control Battery life indicator transmission indicator mode indicator Off Timer indicator On Timer indicator Power (On/Off) button Temperature adjustment... -
Page 12: Selecting Auto Mode
Selecting Auto Mode You can select Auto mode if you want to cool or heat your room automatically. You can adjust the temperature in this mode. Press the (On/Off) button. The operation indicator on the indoor unit lights up. Result: ... -
Page 13: Selecting Cool Mode
Selecting Cool Mode You can select Cool mode if you want to cool your room. You can adjust the temperature and the fan speed when cooling. Press the (On/Off) button. The operation indicator on the indoor unit lights up. Result: ... -
Page 14: Selecting Heat Mode
Selecting Heat Mode You can select Heat mode if you want to heat your room. You can adjust the temperature and the fan speed when heating. Press the (On/Off) button. The operation indicator on the indoor unit lights up. Result: ... -
Page 15: Selecting Dry Mode
Selecting Dry Mode Select Dry mode if you want to dehumidify your room. You can adjust the temperature in this mode. Press the (On/Off) button. The operation indicator on the indoor unit lights up. Result: The air conditioner starts up in the mode you selected last. ... -
Page 16: Selecting Fan Mode
Selecting Fan Mode Select Fan mode if you want to ventilate your room. It helps to refresh the air in your room. You can adjust the fan speed in this mode. Press the (On/Off) button. The operation indicator on the indoor unit lights up. Result: ... -
Page 17: Selecting The Energy Saving Function
Selecting the Energy Saving Function You can select the Energy Saving Function to save energy when cooling. The temperature range decreases in order to perform this function. Press the (On/Off) button. The operation indicator on the indoor unit lights up. Result: ... -
Page 18: Selecting Mode
Selecting Mode mode helps users to fall asleep well after going to bed whether being too hot to sleep or being awakened by coldness. The mode can be selected only when the air conditioner is switched on or off in cool/heat mode. Press the (On/Off) button. - Page 19 In cool mode mode keeps the skin temperature at the best during the 3 stages such as, Falling Asleep Stage Sound Sleep Stage Wake Up Stage in order. F alling Asleep Stage : This stage supports the environment to quickly cool down. Together with comfortable intermittent air, you will be able to fall asleep quickly.
-
Page 20: Adjusting The Airflow Direction
Adjusting the Airfl ow Direction Adjust the airflow direction to circulate the air according to various needs. By adjusting the airflow direction, the efficiency of the air conditioner can be increased. Adjusting the Airfl ow Direction Vertically You can adjust the airflow direction vertically. The outer airflow blade moves up and down to increase the efficiency of the cooling or heating operation. -
Page 21: Selecting The Auto Cleaning Function
Selecting the Auto Cleaning Function Auto cleaning function offers inside air conditioner dry to prevent mold growth. Remote Control This feature allows you to use the air conditioner more clean and fresh air. Press the button. When the air conditioner is turned off, indicator on the indoor unit display appears and the Auto cleaning function runs. -
Page 22: Setting The On Timer
Setting the On Timer You can set the On Timer to turn on the air conditioner automatically at the appointed time within a range of 30 minutes to 24 hours. Press the button . Press the buttons until the desired time is displayed to set the On Timer. -
Page 23: Setting The Off Timer
Setting the Off Timer You can set the Off Timer to turn off the air conditioner automatically at the appointed time within a range of 30 minutes to 24 hours. Press the button . Press the buttons until the desired time is displayed to set the Off Timer. -
Page 24: Operating Your Air Conditioner Without The Remote Control
Operating Your Air Conditioner Without the Remote Control You can operate your air conditioner directly without the remote control. To turn the air conditioner on, press the ON/OFF switch on the right side of the indoor unit. Result: The Operation indicator on the indoor unit lights up. ... -
Page 25: Cleaning Air Filter On Your Air Conditioner
Cleaning Air Filter on Your Air Conditioner For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter. CAUTION Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit. -
Page 26: Keeping Filters Clean
Keeping Filters clean Cleaning Anti-allergy Filter Anti-allergy filter protects you from allergy-causing particles, even if you raise pets at home. Open the upper front panel by pulling the lower right and left tabs of the panel. Detach the anti-allergy filter(sky blue) by pulling it forwards. Deodorizing Filter Wash the filter with clean water. -
Page 27: Replacing Deodorizing Filter
Replacing Deodorizing Filter Activated carbon is incorporated in the Deodorizing filter, efficiently absorbing cigarette smoke, pet odors and other unpleasant smells. Open the upper front panel by pulling the lower right and left tabs of the panel. Detach the deodorizing filter(black) by pulling it forwards. Replace the deodorizing filter with a new one into the slot. -
Page 28: Temperature And Humidity Ranges
Temperature and Humidity Ranges If you check the following tables, you can use your air conditioner more efficiently. If the air conditioner is used at... Then... Heating capacity The air conditioner may stop operating for the reason of protection. Low temperatures Water may leak and some malfunction may occur if the heat exchanger freezes. -
Page 29: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution The air conditioner does not Check if power is on and operate the air conditioner again. operate at all. - Page 30 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung product, contact the SAMSUNG customer care center. Country Customer Care Center Web Site SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za U.A.E 800SAMSUNG (7267864) www.samsung.com/mea...
