Connection Options

Connection Options
DIGITAL AUDIO OPTICAL
OUTPUT
Used to connect either an external
amplifier, or add a sub-woofer to
your surround sound system if it has
a digital
audio optical input.
(Refer to )
1
DIGITAL AUDIO OPTI-
CAL INPUT1(COMPO-
NENT2)
Connect digital audio
from the equipment
connected to COMPO-
NENT 2.
DIGITAL AUDIO OPTI-
CAL INPUT2(DVI)
Connect digital audio
from the equipment
connected to
HDMI/DVI(VIDEO).
(Refer to )
2
HDMI1/DVI, HDMI 2
Connect a HDMI signal
to HDMI1/DVI or
HDMI2. Or connect a
DVI(Video) signal to
HDMI1/DVI.
COMPONENT INPUT 1-2
Connect a component
video/audio
these jacks. Refer to your
DVD manual for further
information.
Notes: In standby mode, these port will not work.
1
If the video is connected through HDMI-TO-HDMI cable, you don't need to connect digital audio. This port
2
is used only when the video connected through DVI-TO-HDMI cable.
DESCRIPTION OF CONTROLS

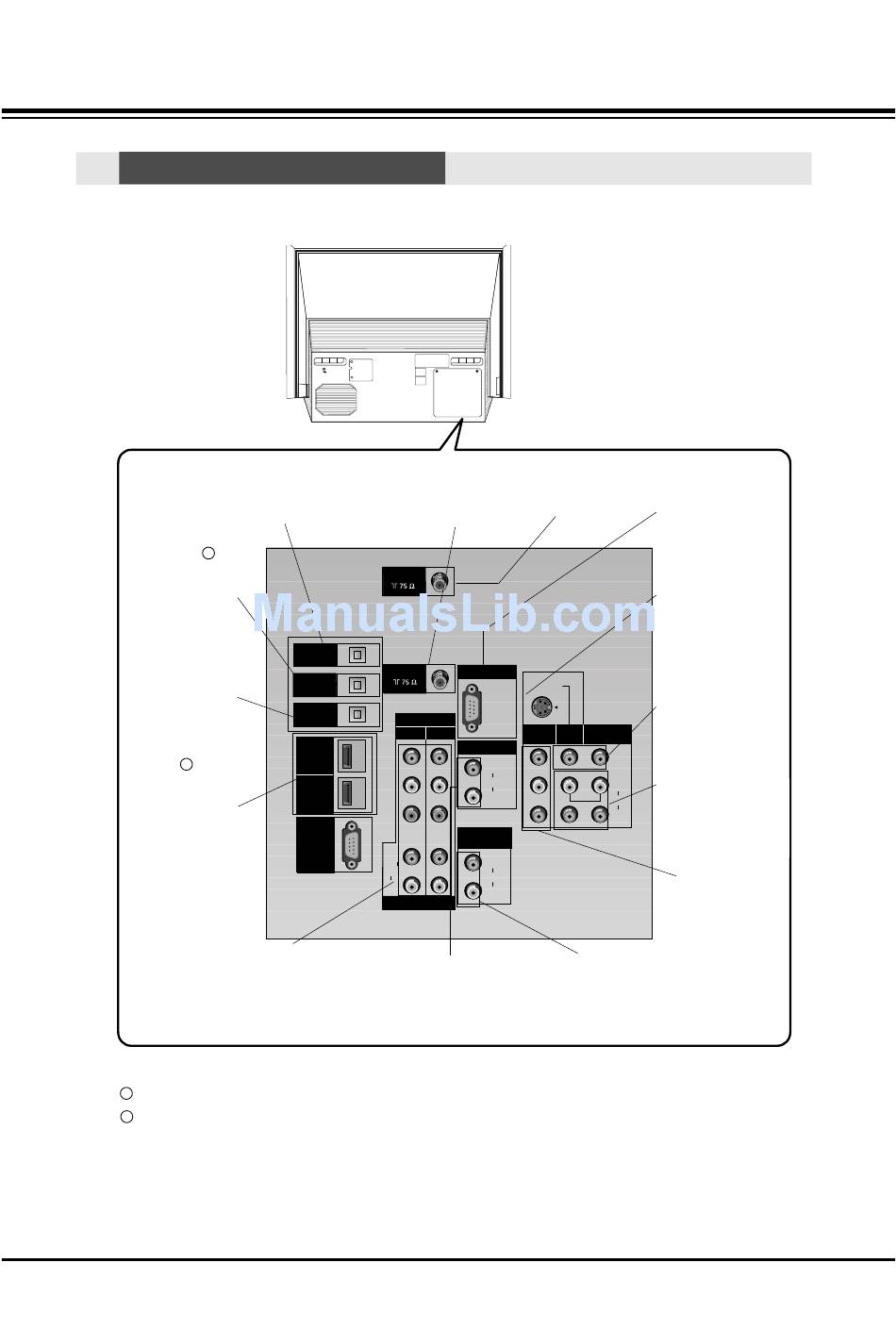

Back Connection Panel
Back Connection Panel
CABLE Inputs
Connect cable signals to
the TV, either directly or
through your cable box.
ANTENNA
DIGITAL AUDIO
OPTICAL OUTPUT
CABLE
DIGITAL AUDIO
OPTICAL INPUT1
(COMPONENT2)
DIGITAL AUDIO
OPTICAL INPUT2
(DVI)
COMPONENT
INPUT2 INPUT1
HDMI1
/DVI
Y
HDMI2 P
B
P
R
UPGRADE
PORT
(L)
AUDIO
(R)
DTV/DVD INPUT
RGB/DVI INPUT
Connect the monitor
device to
output connector from
a PC to the appropri-
ate input port.
ANTENNA Inputs
Connect antenna sig-
nals to the TV directly.
RGB INPUT
S-VIDEO
PC/DTV
(XGA
/480p
/720p
/1080i)
MONITOR
INPUT2 INPUT1
OUT
RGB/DVI INPUT
(L)
AUDIO
(R)
MONO
VARIABLE
AUDIO OUT
(L)
AUDIO
(R)
VARIABLE AUDIO OUT
Used to connect either an
external amplifier, or add a
sub-woofer to your surround
sound system.
- 5 -
RGB Input
Connect the TV output
connector from a
PC/DTV to the appro-
priate input port.
S-VIDEO In
A connection avail-
able with some high-
end equipment that
provides even better
picture quality for
Video 2.
VIDEO 1 or 2
Connects the video
signals from various
VIDEO
types of equipment.
Left/Right AUDIO
(L)
Used for stereo sound
AUDIO
(R)
from various types of
equipment.
MONITOR OUT
Connect a second TV or
Monitor.
