3-10. Connecting the cords

< Main P. C. board >
4413Q
Connectors
X pulse motor encoder [5-pin] White
Y pulse motor encoder [5-pin] Blue
Work clamp encoder [5-pin] Black
Foot switch [10-pin]
Operation panel [8-pin]
Machine head switch [3-pin]
Thread clamp sensor [6-pin]
4412Q
P2 (X-ENC)
P3 (Y-ENC)
P4 (P-ENC)
P5 (FOOT)
P6 (PANEL)
P8 (HEAD-SW)
P12 (TPK-SEN)
KE-430D, BE-438D

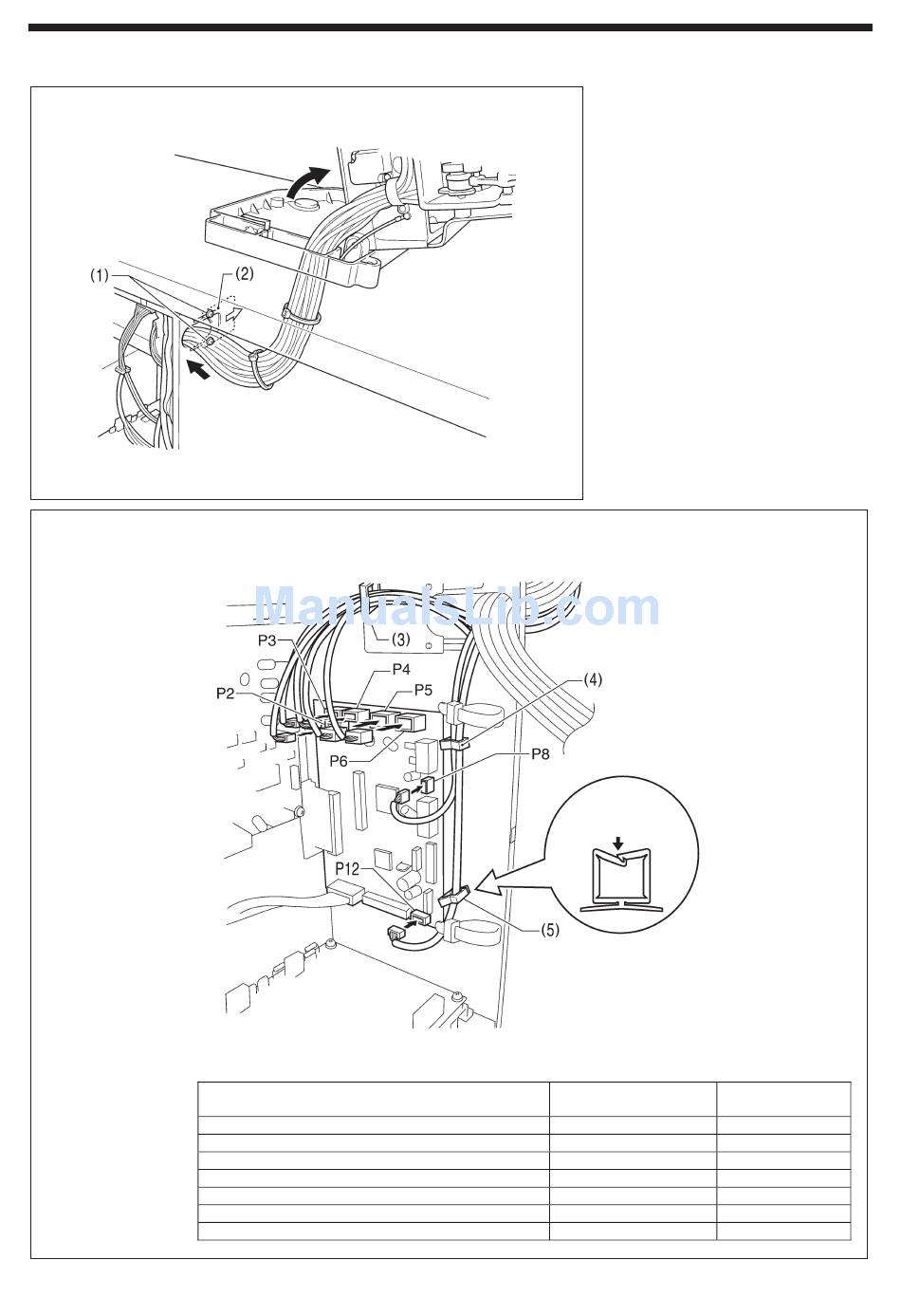

1. Gently tilt back the machine head.
2. Pass the cord bundle through the hole
in the work table.
3. Loosen the two screws (1), and then
open the cord presser plate (2) in the
direction of the white arrow and pass
the cord bundle through the opening.
4. Securely connect the connectors as
indicated in the table below.
Note:
• Check that the connector is facing
the correct way, and then insert it
firmly until it locks into place.
• Secure the cables with cable ties
and cord clamps, while being careful
not to pull on the connector.
Lock the cord
clamp securely.
Connection location on
main P. C. board
3. INSTALLATION
Cord clamps
(3)
(3)
(3)
(3)
(3)
(4)
(4), (5)
16
