User Manual
© 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Cisco Model EPC2203 EuroDOCSIS 2.0 Cable Modem
with Embedded MTA
®
The Cisco
Model EPC2203 Cable Modem (EPC2203) is a high-speed cable modem
with an embedded media terminal adapter (EMTA). The EPC2203 features single line or
two RJ-11 telephone ports for Voice over Internet Protocol (VoIP) service along with a
10/100BASE-T Ethernet port and a USB 1.1 port for high-speed data connectivity.
The EPC2203 also features Dual Mode. This feature allows the service provider to
deploy the EPC2203 in networks that use DOCSIS
The EPC2203 is designed to meet EuroPacketCable™ 1.0 and EuroDOCSIS™ 2.0
specifications and is backward compatible with EuroDOCSIS 1.1 and EuroDOCSIS 1.0
networks. The EPC2203 uses advanced line interface technology to provide multi-country
toll-quality telephone service using existing in-home wiring. The EPC2203 supports 10
REN total, 5 REN loading on each phone line.

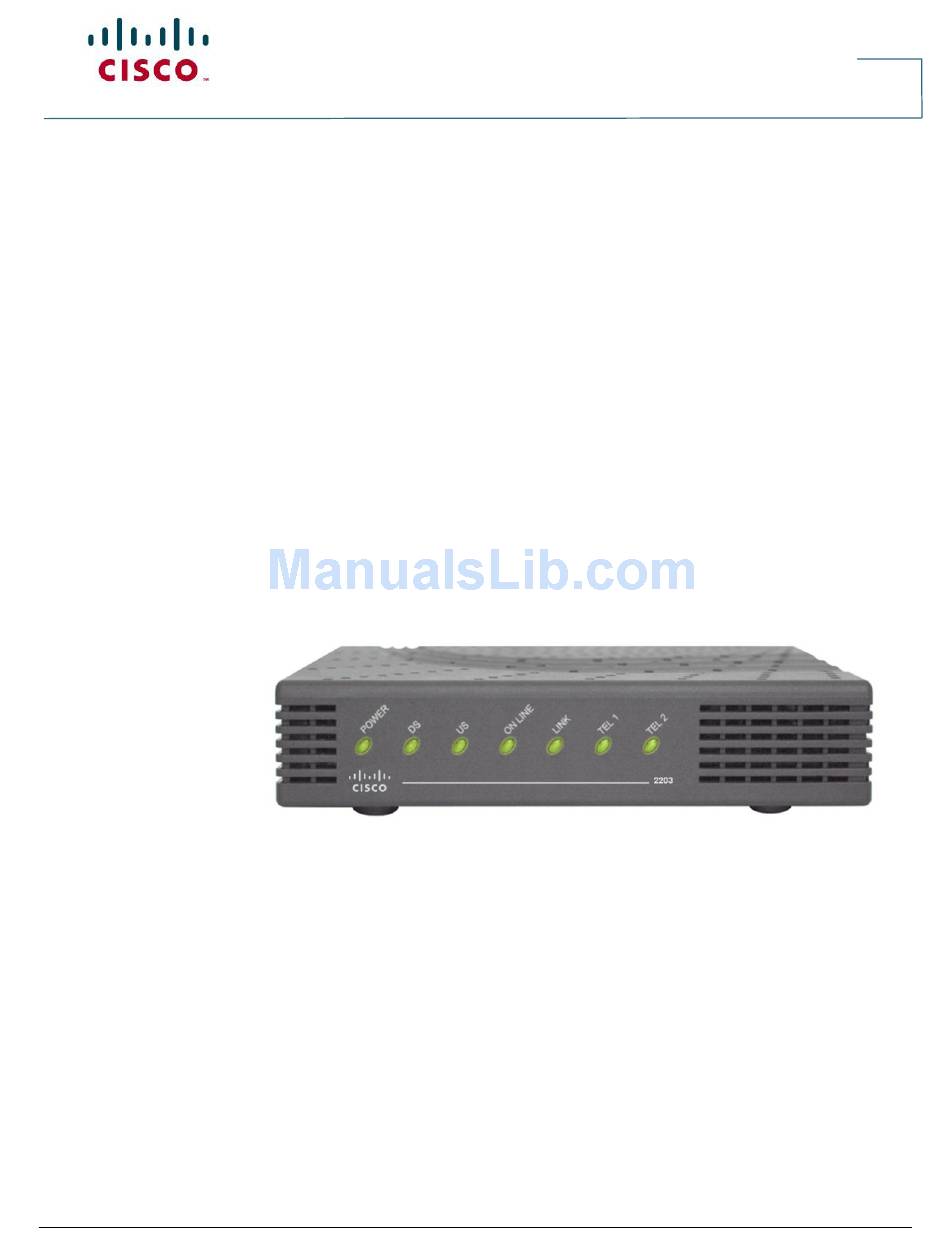

Figure 1.
Cisco Model EPC2203 EuroDOCSIS 2.0 Cable Modem with EMTA (image may vary from actual
product and specification)
The EPC2203 fully supports the CODECs specified in EuroPacketCable 1.5. Additional CODECs
are available through a software upgrade that includes a high fidelity CODEC option for toll-quality
plus service. Standard VoIP call signaling is compliant with EuroPacketCable's (MGCP/NCS)
specifications. Software upgrades are available to support Session Initiation Protocol (SIP) call
signaling.
®
6 MHz downstream modulation.
Data Sheet
Page 1 of 10
Advertisement
Related Manuals for Cisco EPC2203
Summary of Contents for Cisco EPC2203
- Page 1 REN total, 5 REN loading on each phone line. Figure 1. Cisco Model EPC2203 EuroDOCSIS 2.0 Cable Modem with EMTA (image may vary from actual product and specification) The EPC2203 fully supports the CODECs specified in EuroPacketCable 1.5. Additional CODECs are available through a software upgrade that includes a high fidelity CODEC option for toll-quality plus service.
- Page 2 Software upgradeable by network download ● Remote manageability using SNMP V1/V2 and V3 Software and Documentation ● CD-ROM containing user guide © 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 10...
- Page 3 Data Sheet Figure 2. Cisco Model EPC2203 Front Panel shown with non-battery enclosure (image may vary from actual product and specification) Table 1. Front Panel Features Feature Description Indicators POWER, DS, US, ONLINE, LINK, TEL 1, TEL2 Color Black textured, dark gray housing, white text, green LEDs Figure 3.
-
Page 4: Product Specifications
Adaptive dynamically controlled Latency Control Configurable min / max jitter buffer size Audio Gain Levels Independently Configurable transmit and receive audio gains © 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 10... - Page 5 Maximum Data Rate 41.4 Mbps for 64 QAM and 55.2 Mbps for 256 QAM, 8 MHz channel Bandwidth 8 or 6 MHz © 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 10...
- Page 6 -4˚ to 140˚F (-20˚ to 60˚C) Storage Temperature Standards and Approvals Designed to meet with the EuroPacketCable 1.0 following standards EuroDOCSIS 2.0, EuroDOCSIS 1.1 © 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 6 of 10...
-
Page 7: Ordering Information
● (2) TEA, RJ-11 to 3-port ISDN adapter ● USB port plug ● Customer specific branding label ● CD-ROM containing user guide and USB drivers Customer-specific configuration © 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 7 of 10... - Page 8 ● Bulk Pack ● No USB port ● No USB or Ethernet cable ● CD-ROM containing user guide and USB drivers © 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 8 of 10...
-
Page 9: Replacement Components
740580 Ethernet cable, 2m 4018790 USB cable 740579 User Guide and USB Drivers CD-ROM with user guide and USB drivers 4029640 © 2010 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 9 of 10... - Page 10 Data Sheet Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. EuroDOCSIS, EuroPacketCable, and PacketCable are trademarks of Cable Television Laboratories, Inc. DOCSIS is a registered trademark of Cable Television Laboratories, Inc.
