INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTION AGENCY (E.P.A.) JULY 1990 40 C.F. R. PART 60 AND THE OREGON DEPARTMENT OF ENVIRON-
MENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C THESE STOVES HAVE BEEN TESTED AND LISTED BY INTERTEK TESTING
SERVICES TO STANDARDS: CSA B366.2, ULC S627, UL 1482. MODEL 1100 HAS BEEN TESTED AND LISTED FOR INSTALLATION IN MOBILE HOMES.
EPA 1100PL,
1100C, 1400PL,
LEG MODELS
SAFETY INFORMATION
WARNING
!
If the information in these instructions is not followed exactly, a
fi re or explosion may result causing property damage, personal
injury or death. Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage,
bodily injury or even death. Please read entire manual before
you install and use your appliance.
This appliance has not been tested with an unvented gas log
set. To reduce risk of fi re or injury, do not install an unvented
gas log set into the appliance.
- This appliance can be very hot when burning.
- Combustible materials such as fi rewood, wet clothing, etc. placed too
close can catch fi re.
- Children and pets must be kept from touching the appliance when it is hot.
- The chimney must be sound and free of cracks. Before installing this unit,
contact the local building or fi re authority and follow their guidelines.
- Operate only with the door tightly closed.
- Burn wood behind the log retainer directly on the fi rebricks.
- Do not use an elevated grate or otherwise raise the fi re.
- At least 14 square inches of outside air must be admitted to the room or
directly to the unit through a 4" diameter pipe.
- This appliance is designed to burn natural wood only. Higher effi ciencies
and lower emissions generally result when burning air dried seasoned
hardwoods, as compared to softwoods or to green or freshly cut
hardwoods.
- Do not start a fi re with chemicals or fl uids such as gasoline, engine oil,
etc.
- Do not burn treated wood, coal, charcoal, colored paper, cardboard,
solvents or garbage.
- Do not let the appliance become hot enough for any part to glow red.
- KEEP THE STOVE TOP TEMPERATURE BELOW 700°F (371°C). Attempts to
achieve heat output rates that exceed design specifi cations can result in
steel distortion and damage.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com
$10.00
OPERATING INSTRUCTIONS
1400C
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
a t e
s t r

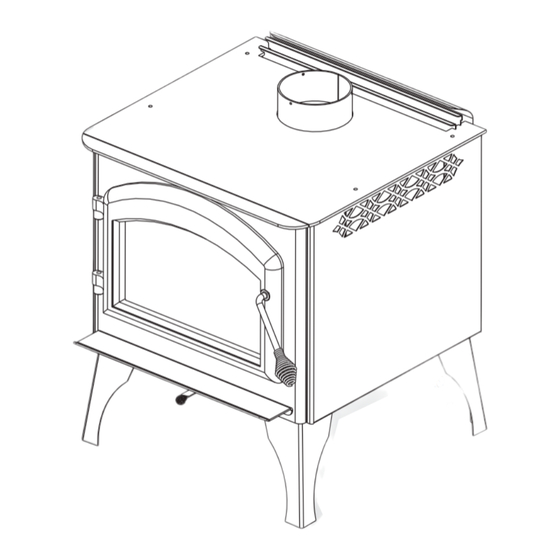

I l l u
P L
0 0
1 4
1.27
W415-0762 / B / 11.12.10
1
d
Advertisement
Table of Contents
Related Manuals for Napoleon EPA 1100PL
Summary of Contents for Napoleon EPA 1100PL
-
Page 1: Safety Information
MENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C THESE STOVES HAVE BEEN TESTED AND LISTED BY INTERTEK TESTING SERVICES TO STANDARDS: CSA B366.2, ULC S627, UL 1482. MODEL 1100 HAS BEEN TESTED AND LISTED FOR INSTALLATION IN MOBILE HOMES. EPA 1100PL, 1100C, 1400PL,... -
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION OVERVIEW INTRODUCTION DIMENSIONS SPECIFICATIONS GENERAL INSTRUCTIONS GENERAL INFORMATION RATING PLATE LOCATION PRE-INSTALLATION PREPARATION APPLIANCE PLACEMENT CLEARANCE TO COMBUSTIBLES ALCOVE INSTALLATION FLOOR PROTECTION OUTSIDE AIR MOBILE HOME INSTALLATION CHIMNEY 4.1.1 CHIMNEY CONNECTION 4.1.2 ADDING SECTIONS 4.1.3 TYPICAL THROUGH THE CEILING 4.1.4 TYPICAL THROUGH THE WALL 4.1.5... -
Page 3: Installation Overview
1.0 INSTALLATION OVERVIEW Rating Plate, see “RATING PLATE 1400PL ILLUSTRATED INFORMATION” section. Door, see “DOOR AND HANDLE INSTALLATION” Blower, see “OPTIONAL section. BLOWER KIT INSTALLATION” section. Legs, see “LEG INSTALLATION” section. Draft, see “AIR CONTROL” Ash drawer, see “OPTIONAL section. ASH DRAWER KIT”... -
Page 4: Introduction
2.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi... -
Page 5: Dimensions
DIMENSIONS 1400PL ILLUSTRATED SPECIFICATIONS Specifi cations 1100PL 1100C 1400PL 1400C WIDTH 25 1/2” 28” 25 1/2” 28” DEPTH 22 1/2” 22 1/2” 27” 27” FLUE CENTER LINE TO REAR 6 1/2” 6 3/4” 7 1/2” 6 3/4” FLUE CENTER LINE TO SIDE 12 3/4”... -
Page 6: General Instructions
GENERAL INSTRUCTIONS WARNING ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN THE UNITED STATES. -
Page 7: General Information
GENERAL INFORMATION WARNING DO NOT OPERATE THIS APPLIANCE WITHOUT THE LEGS INSTALLED. Your appliance has been specifi cally designed over many months of research to meet the 1990 U.S.A. EPA particulate emission standards and have been extensively tested in Canadian and American laboratories. This system is the most effi... -
Page 8: Rating Plate Location
RATING PLATE LOCATION LISTED SOLID FUEL BURNING SPACE HEATER / POÊLE À COMBUSTIBLE SOLIDE HOMOLOGUÉ For rating plate location, TESTED TO: / TESTÉ SELON : UL1482 / ULC S627 / CSA B366.2 (DEC 92) see “INSTALLATION MODEL / MODÈLE - EPA 1400 OVERVIEW”... -
Page 9: Pre-Installation Preparation
3.0 PRE-INSTALLATION PREPARATION APPLIANCE PLACEMENT Have an authorized dealer install the appliance. If you install the appliance yourself, have your dealer review your installation plans and/or installation. Draw out a detailed plan of the installation including dimensions and verify the dimensions with the require- ments listed in this manual. -
Page 10: Floor Protection
FLOOR PROTECTION If the appliance is to be installed on top of a combustible fl oor, it must be placed on an approved non-combusti- ble hearth pad, that extends 8” beyond the appliance sides and back and 18” to the front. The reduced clear- ance from the back of the appliance may result in the appliance pad terminating shorter than 8”... -
Page 11: Mobile Home
MOBILE HOME WARNING DO NOT INSTALL IN SLEEPING ROOM. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED. THE APPLIANCE MUST BE PROVIDED WITH OUTSIDE COMBUSTION AIR. THE APPLIANCE MUST BE BOLTED TO THE FLOOR. INSTALL ACCORDING TO 24 CFR, PART 3280 (HUD). -
Page 12: Installation
4.0 INSTALLATION WARNING WEAR GLOVES AND SAFETY GLASSES FOR PROTECTION. CAREFULLY FOLLOW THE INSTRUCTIONS FOR ASSEMBLY OF THE PIPE AND OTHER PARTS NEEDED TO INSTALL THE APPLIANCE. FAILURE TO DO SO MAY RESULT IN A FIRE, ESPECIALLY IF COMBUSTIBLES ARE TOO CLOSE TO THE APPLIANCE OR CHIMNEY AND AIR SPACES ARE BLOCKED, PREVENTING THE FREE MOVEMENT OF COOLING AIR. -
Page 13: Chimney
CHIMNEY WARNING NEVER INSTALL A SINGLE WALL SLIP SECTION OR SMOKE PIPE IN A CHASE STRUCTURE. THE HIGHER TEMPERATURE OF THIS SINGLE WALL PIPE MAY RADIATE SUFFICIENT HEAT TO COMBUSTIBLE CHASE MATERIALS TO CAUSE A FIRE. DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY SYSTEM SERVING ANOTHER APPLIANCE. TO AVOID DANGER OF FIRE, ALL INSTRUCTIONS MUST BE STRICTLY FOLLOWED, INCLUDING THE PROVISION OF AIR SPACE CLEARANCE BETWEEN CHIMNEY SYSTEM AND ENCLOSURE. -
Page 14: Chimney Connection
4.1.1 CHIMNEY CONNECTION Your chimney connector and chimney must have the same diameter as the appliance’s exhaust fl ue outlet. The appliance pipe must be made of aluminized or cold roll steel with a minimum 24 gauge thickness. It is strictly forbidden to use galvanized steel. -
Page 15: Adding Sections
4.1.2 ADDING SECTIONS Add chimney sections, according to the manufacturers installation instructions. The chimney must extend at least, 3 feet above its point of contact with the roof and at least 2 feet higher than any wall, roof, building or obstacle within 10 feet horizontally. -
Page 16: Typical Through The Ceiling
4.1.3 TYPICAL THROUGH THE CEILING Move the stove into position with the fl ue centered, midpoint between two joists to prevent having to cut them. Use a plumb bob to line up the center. Cut and frame an opening in the ceiling to provide a 2” clearance between the outside of the chimney and any combustible material. -
Page 17: Typical Through The Wall
4.1.4 TYPICAL THROUGH THE WALL If possible, design the installation so that the connector does not pass through a combustible wall. If during your installation you must pass through a combustible wall, check with your building inspector before you be- gin. -
Page 18: Typical Existing Masonry
4.1.5 TYPICAL EXISTING MASONRY You can also install your appliance using your existing masonry chimney. To do so, follow the guidelines below. You may want to use a factory- built thimble, or construct your own brick thimble. If you are using a masonry chimney, it is important that it be built in compliance with the specifi... -
Page 19: Finishing
5.0 FINISHING LEG INSTALLATION (1100PL / 1400PL) To avoid being damaged during shipping, the appliance has been bolted to the pallet and must be unbolted before the appliance can be installed. Remove the 4 nuts and washers from the underside of the pallet. Lift the appliance up and away from the pallet to clear the threaded studs sticking through the pallet. -
Page 20: 1400C Cast Lid Levelling
1400C CAST LID LEVELLING Loosen the clinching nut. (4 places) LEVELLING Tighten or loosen the levelling screw SCREW in the adjusting nut. Tighten the clinching nut. ADJUSTING HINGE BRACKET CAST TOP CLINCHING DOOR HANDLE INSTALLATION WARNING BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE. -
Page 21: Bricks And Baffles Installation
BRICKS AND BAFFLES INSTALLATION WARNING OPERATION OF THE APPLIANCE WITHOUT THE BAFFLES CAN RESULT IN EXCESSIVE TEMPERA- TURES THAT COULD DAMAGE THE APPLIANCE, CHIMNEY AND THE SURROUNDING ENCLOSURE. With appliance and chimney installation completed, move the bricks into place for your appliance as previously illustrated. -
Page 22: Optional Kit Installations
6.0 OPTIONAL KIT INSTALLATIONS OPTIONAL BLOWER INSTALLATION WARNING RISK OF FIRE AND ELECTRICAL SHOCK. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE. USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION. -
Page 23: Operation
7.0 OPERATION WARNING ALWAYS OPERATE THIS APPLIANCE WITH THE DOOR CLOSED AND LATCHED EXCEPT DURING START UP AND RE-FUELING OR WHEN USING THE SPARK SCREEN. ALWAYS WEAR GLOVES TO PREVENT INJURY. DO NOT LEAVE THE FIRE UNATTENDED WHEN THE DOOR IS UNLATCHED OR WHEN USING A SPARK SCREEN AS UNSTABLE WOOD COULD FALL OUT OF THE FIRE CHAMBER CREATING A FIRE HAZARD TO YOUR HOME. -
Page 24: Air Control
You can now add larger pieces of wood and operate the appliance normally. Once the appliance is entirely hot, it will burn very effi ciently with little smoke from the chimney. There will be a bed of orange coals in the fi rebox and secondary fl... -
Page 25: Lighting A Fire
LIGHTING A FIRE 7.3.1 FLASH FIRE A fl ash fi re is a small fi re burned quickly when you don't need much heat. After your kindling has "caught", load at least 3 pieces of wood, stacked loosely. Burn with the draft control fully open or closed only slightly. -
Page 26: Maintenance
8.0 MAINTENANCE WARNING TURN OFF THE POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS. Check your chimney and chimney connector for creosote and soot buildup weekly until a safe frequency for cleaning is established. -
Page 27: Runaway Or Chimney Fire
RUNAWAY OR CHIMNEY FIRE A CHIMNEY FIRE CAN PERMANENTLY DAMAGE YOUR CHIMNEY SYSTEM. THIS DAMAGE CAN ONLY BE REPAIRED BY REPLACING THE DAMAGED COMPONENT PARTS. CHIMNEY FIRES ARE NOT COVERED BY THE LIFETIME LIMITED WARRANTY. Runaway fi res can be the result of three major factors: •... -
Page 28: Glass Replacement
GLASS REPLACEMENT WARNING DO NOT USE SUBSTITUTE MATERIALS. GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE APPLIANCE BEFORE OPERATION. -
Page 29: Care Of Glass
CARE OF GLASS If the glass is not kept clean permanent discolouration and / or WARNING blemishes may result. Normally a hot fi re will clean the glass. The most common reasons for dirty glass include: not using HOT GLASS WILL suffi... -
Page 30: Wood
WOOD THIS APPLIANCE IS DESIGNED TO BURN NATURAL WOOD ONLY. DO NOT BURN TREATED WOOD, COAL, CHARCOAL, COLOURED PAPER, CARDBOARD, SOLVENTS OR GARBAGE. THIS APPLIANCE HAS NOT BEEN TESTED WITH AN UNVENTED GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL AN UNVENTED GAS LOG SET INTO THE APPLIANCE. -
Page 31: Replacements
9.0 REPLACEMENTS Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally all parts can be ordered through your Authorized dealer / distributor. FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM. - Page 32 ACCESSORIES REF NO. 1100PL 1100C 1400PL 1400C DESCRIPTION H222-G H222-G GOLD PLATED DOOR H222 H222 BLACK DOOR H222SS H222SS BRUSHED STAINLESS STEEL DOOR - STANDARD ARCH H222W H222W BLACK DOOR - EARLY AMERICAN H222GW H222GW GOLD DOOR - EARLY AMERICAN H222SSW H222SSW BRUSHED STAINLESS STEEL DOOR - EARLY AMERICAN...
-
Page 33: Trouble Shooting
10.0 TROUBLE SHOOTING WARNING TURN OFF THE ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS. WHEN CHECKING CONNECTIONS, INSTALLING JUMPER WIRES (FOR TEST PURPOSES ONLY) OR REPLACING COMPONENTS, UNPLUG HEATER FROM THE RECEPTACLE TO PREVENT ELECTRICAL SHOCK OR DAMAGE TO THE COMPONENT. -
Page 34: Warranty
11.0 WARRANTY NAPOLEON® products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certifi cate. NAPOLEON® products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON®. -
Page 35: Service History
12.0 SERVICE HISTORY 43.1 W415-0762 / B / 11.12.10... - Page 36 13.0 NOTES 44.1 W415-0762 / B / 11.12.10...
