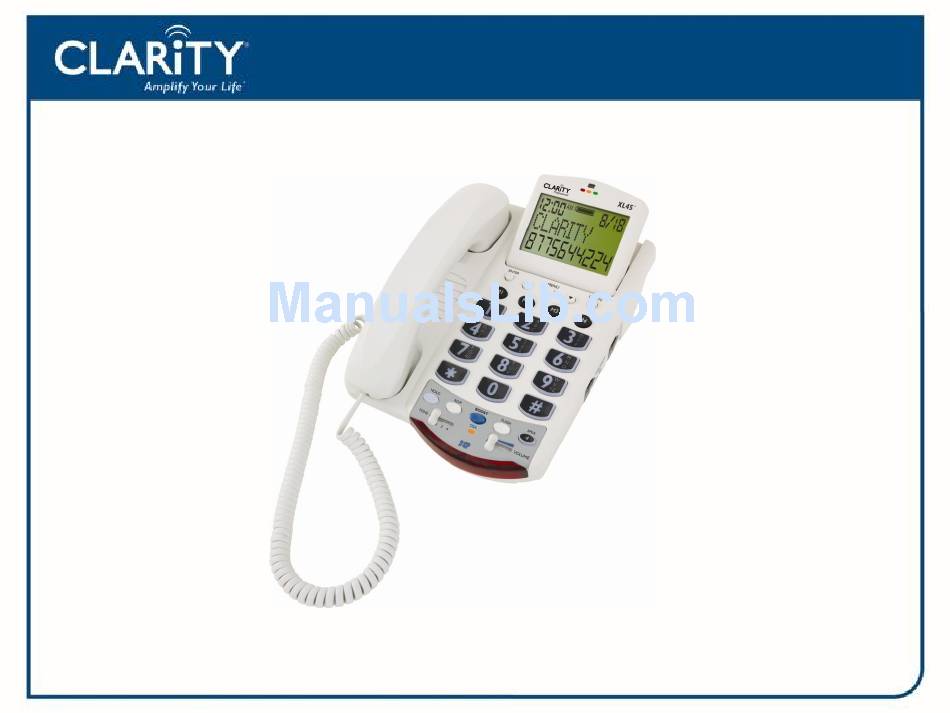

- Page 1 XL45...
- Page 2 The Clarity Professional XL45 offers our patented Digital Clarity Power that uses digital technology to enhance the volume and clarity of your phone conversations. Up to 50 decibels of amplification, the XL45 is ideal for those with severe hearing loss or low vision.
- Page 3 XL45 Features Features • Up to 50 decibels of amplification • Digital Clarity Power™ • Four Tone Settings: Low Frequency, Flat Amplification, Clarity Power and MBC Low • ClarityLogic™ • Talking Keypad • Speakerphone • Outgoing Speech Amplification up to 15 decibels •...
-
Page 4: Parts Checklist
Parts Checklist XL45 XL45 Handset Base Coiled Handset Cord Telephone Cords AC Adapter Mounting Bracket User Guide... - Page 5 Product Layout XL45 Large LCD Menu Screen Menu Button Memory Buttons Volume Slider Boost Button Tone Selector Speaker Button...
-
Page 6: Product Layout
Product Layout XL45 Voice Mail/Missed Call Indicator The light will illuminate Green a new Voice Mail and Orange when the voice mail feature is active. The light will display when the Ringer is OFF (when there is not a voice mail message). - Page 7 Product Layout XL45 1. Ringer Tone 2. Ring Volume 3. Ringer On/Off 4. Headset Port (2.5 mm) 5. Outgoing Speech Amplification (15 decibels) 6. Neckloop Port (3.5 mm)
- Page 8 Product Layout XL45 7. Bedshaker Port 8. Phone Line 9. AC Adapter...
- Page 9 Product Layout XL45 Bottom View 1. Talk Keypad Switch 2. Boost Override Switch 3. Missed Call Switch 4. Voice Mail Switch 5. Tone/Pulse Switch...
-
Page 10: Installation
Installation XL45 1. Connect telephone line to “Line” jack of phone and to the wall jack 2. Connect handset cord to telephone 3. Connect AC Adapter to telephone, and then to wall outlet... - Page 11 Volume Control. BOOST also activates the Tone Settings On the bottom of the XL45, there is a Volume Reset Override switch. When this is set to “On” the Boost function is automatically enabled every time the phone is picked up.
- Page 12 DCP: Tone Settings XL45 The XL45 offers four different tone settings to provide an experience that may be customized to fit a specific users need. The illustration above shows how the four settings relate to each other and the amount of amplification they give to the different frequencies of sound.
- Page 13 DCP: Tone Settings XL45 The first tone setting is one that emphasizes the low frequency sounds. This is for those who have a hard time hearing lower pitched sounds. This type of hearing need is common with those who have noise-induced hearing loss.
- Page 14 DCP: Tone Settings XL45 The second tone is a flat amplification of all sounds. For the user who wants full volume amplification for every type of sound. Suggested if the user wears a digital hearing aid while using the phone.
- Page 15 DCP: Tone Settings XL45 The third tone setting is our set Clarity Power that begins to focus more on the higher frequency sounds and add speech intelligibility. It is a medium between tone setting two (2) and four (4).
- Page 16 DCP: Tone Settings XL45 The fourth tone setting provides full emphasis on speech intelligibility using Clarity’s Multi-Band Compression. This setting intelligently amplifies the human voice and reduces noise and sharp sudden sounds during the telephone conversation.
-
Page 17: Program Memory
Program Memory XL45 Phone numbers can be stored into the phone’s memory to enable one button dialing. The phone directory allows space for four (4) different phone numbers. 1. Pick the MENU button, then press the down arrow to the “View Mem Dial”... - Page 18 XL45 Caller ID When there is a new incoming call the CID information will display on the second ring. The first row will have the caller’s ID name. (If there is no information, this will be blank.) The second row displays the telephone number of the incoming call.
- Page 19 XL45 Caller ID View Caller ID 1. Press the Menu button. “View CID?” will display with the options of “1 Yes” or “2 No”. Select “Yes” by pressing the (1) one button and the most recent incoming call will be displayed. You can also access the CID records by pressing the up or down arrow keys.
- Page 20 XL45 Caller ID Formatting CID and Call CID 1. Select your desired CID from your entry and press the Enter button. 2. “Pick Format” will appear on the screen first, then “Press UP/DN” will appear. Use the arrow keys to choose the desired format for the CID number and press the Enter button.
- Page 21 XL45 Caller ID Store Number from CID 1. Choose your correct dialing format. 2. Press the Enter Button. 3. Choose “2” No when asked if you want to dial the number, the record with the correct dialing format will be displayed on the screen.
- Page 22 Notification Accessory XL45 The Bed Shaker is an optional accessory that can be connected to the phone and will begin to vibrate when the phone rings.
- Page 23 While talking to a Clarity representative, the telephone sends information such as it model name and settings to Clarity. The representative is immediately aware of the type and current setting of the phone. This will allow for any troubleshooting call to be quick and simple.
- Page 24 ClarityLogic A simplified and easy to use customer support service. 1. While talking to a Clarity representative, the telephone sends information such as its model name and settings to Clarity. 2. The representative is immediately aware of the type and current settings of the phone.
- Page 25 ClarityLogic System Process 1. You call 1-877-LOGIC24 from your XL45 2. The call travels a standard telephone line to our server 3. The server then answers the call and evaluates the status of the phone and then sends the voice and gathered data to a representative.
-
Page 26: Technical Specifications
Technical Specifications XL45 Amplified dB Level Up to 50/124dBSPL decibels Tone control range Full range: 300 to 3000Hz using one slide control. Dimensions Size: 9 3/4” x 7” x 3 1/2” (24.765cm x 17.78cm x 8.89m) Weight: 2.52 lbs. (1.14 kg)
