CS3000 Series
Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Motorola CS3000 Series

Summary of Contents for Motorola CS3000 Series

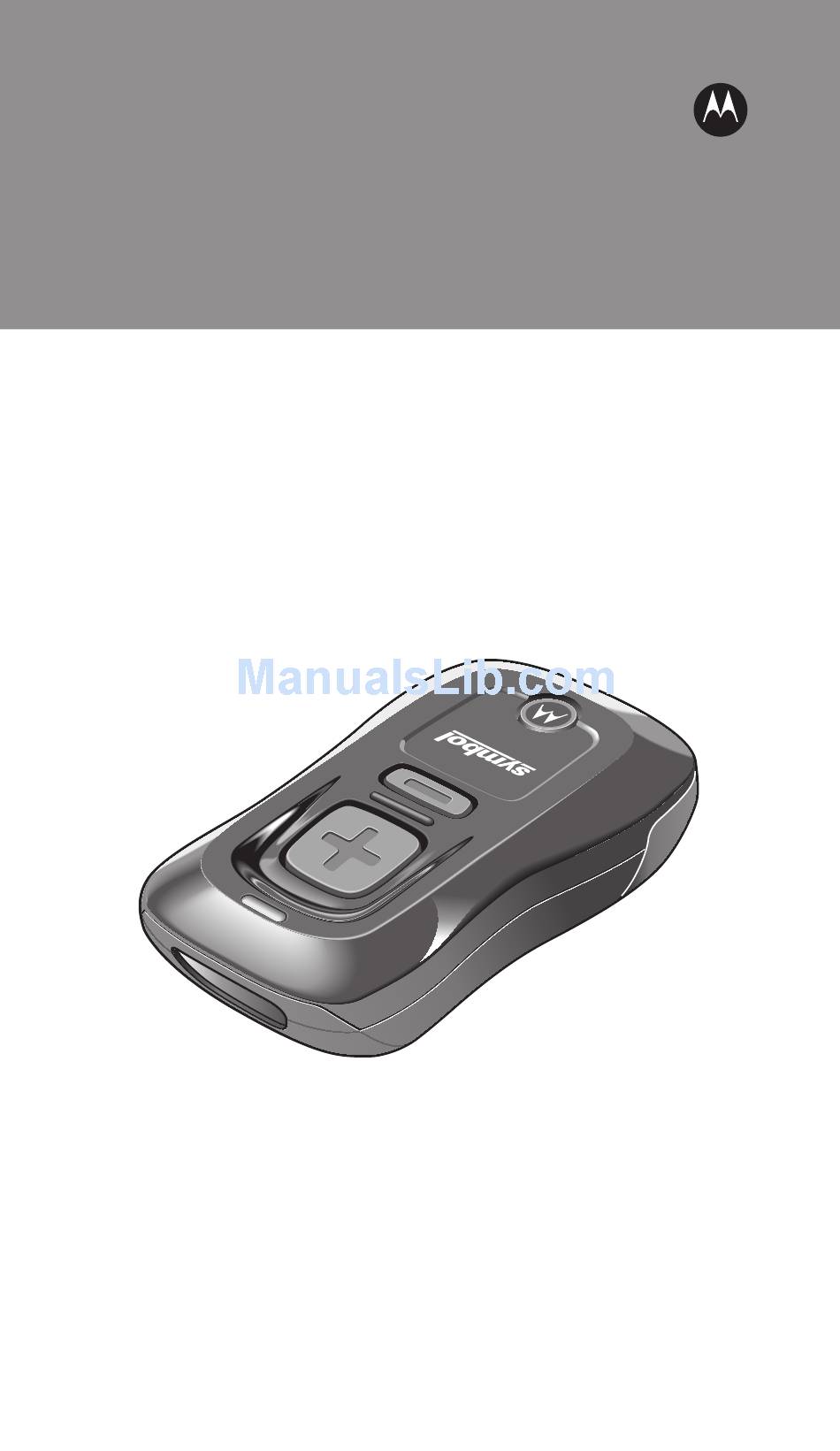

  • Page 1 CS3000 Series Quick Reference Guide...

  • Page 2: Warranty

    Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall...
  • Page 3 Quick Reference Guide Introduction The CS3000 Series scanner captures and stores bar codes for a variety of uses, and transmits bar code data to a host via USB connection or Bluetooth. This document provides basic instructions for setting up, programming, and using the CS3000 series scanners.

  • Page 4: Charging Via Usb Host Cable

    CS3000 Series Charging To charge the CS3000 series scanner, connect it to a host PC via the USB host cable or charging cradle. No power supply is necessary. Charge time is approximately three hours for a fully discharged battery. Charging via USB Host Cable 1.

  • Page 5: Charging Via Charging Cradle

    Quick Reference Guide Charging via Charging Cradle 1. Insert the cradle’s USB connector into a USB port on the host PC. 2. Remove the protective cover from the scanner. 3. Place the scanner in the cradle, ensuring the mini-USB connector in the cradle inserts into the interface port on the scanner.

  • Page 6: Batch Connection

    1. Press the scan button (+) to wake the scanner. 2. Press and hold the Bluetooth button (round button with Motorola logo) for five seconds. The scanner beeps and the Bluetooth button starts blinking quickly to indicate that the scanner is discoverable by the host.
  • Page 7 Quick Reference Guide 5. Scan Numeric Bar Codes on page 8 corresponding to the passkey, then scan Enter on page The Bluetooth button blinks slowly to indicate that the scanner paired with the host. Note Bluetooth pairing suspends temporarily while charging via a USB cable.

  • Page 8: Numeric Bar Codes

    CS3000 Series Numeric Bar Codes...
  • Page 9 Quick Reference Guide Enter...
  • Page 10 CS3000 Series Bluetooth Communication Options To set up the scanner for communication with a host using standard Bluetooth profiles, scan one of the following bar codes. • Serial Port Profile (SPP) - The scanner connects to the host via Bluetooth and emulates a serial connection.
  • Page 11 Quick Reference Guide Scanning To scan bar codes: 1. Aim the scanner at the bar code. 2. Press the scan (+) button. 3. Ensure the scan line crosses every bar and space of the symbol. RIGHT 012345 WRONG 012345 The scanner beeps and the LED turns green to indicate a successful decode.

  • Page 12: Deleting Bar Codes

    CS3000 Series Note The scanner cannot scan bar codes when it is connected to the host via the USB host cable. Deleting Bar Codes In batch mode, to delete a bar code aim the scanner at the bar code and press the delete ( - ) button.
  • Page 13 Quick Reference Guide User Function Beeper Action Clear All Hold delete Flashing 2 long (-) button (if amber -> medium enabled) 3 solid amber tones seconds past scan time Clear All Hold delete None None (with Delete (-) button and Clear All disabled) Connect Flashing...

  • Page 14: Transferring Data From An Rf Scanner

    CS3000 Series Transmitting Bar Code Data to Host Transferring Data from a Batch Scanner The BarcodeFile.txt file within the \Scanned Barcodes directory on the scanner stores scanned (batch) bar code data. Connect the scanner to the host PC via USB host cable or the charging cradle and use Windows Explorer to navigate to the scanner.

  • Page 15: Troubleshooting

    Quick Reference Guide Troubleshooting Problem Possible Solutions Laser comes on, but Ensure the scanner is scanner does not programmed to read the decode the bar code. type of bar code being scanned. Ensure the symbol is not defaced. Scan other bar codes of the same bar code type.

  • Page 16: Regulatory Information

    This guide applies to the following Model Numbers: CS3070, CS3000. Wireless information applies to CS3070 only. All Motorola/Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Local language translations are available at the following website: http://supportcentral.motorola.com...

  • Page 17: Vehicle Installation

    Quick Reference Guide • Perform tasks at correct heights • Reduce or eliminate vibration • Reduce or eliminate direct pressure • Provide adjustable workstations • Provide adequate clearance • Provide a suitable working environment • Improve work procedures. Note: The following section is only applicable for mobile computers. Vehicle Installation RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles (including safety systems).

  • Page 18: Rf Exposure Guidelines

    The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. For information on "International" human exposure to electromagnetic fields refer to the Motorola/Symbol Declaration of Conformity (DoC) at http://www.motorola.com/doc. Handheld Devices To comply with EU RF exposure requirements, this device must be operated in the hand with a minimum separation distance of 20cm or more from a person's body.

  • Page 19: Scanner Labeling

    Quick Reference Guide US and Canada Co-located statement To comply with FCC RF exposure compliance requirement, the antenna used for this transmitter must not be co-located or operating in conjunction with any other transmitter/antenna except those already approved in this filling. Handheld Devices To comply with FCC RF exposure requirements, this device must be operated in the hand with a minimum separation distance of 20 cm or...

  • Page 20: Power Supply

    (S)S/N:XXXXXXXXXXXXXXXXX MFD: 23SEP09 CM-2 Power Supply Use ONLY a LISTED Motorola, Type no. 50-14000, or PWRS-14000, Direct Plug-In Power supply, marked Class 2 or LPS, or SELV, Rated 5 Vdc, 0.85 A Min. (IEC60950-1). Use of Alternative Power Supply will invalidate any approvals given to this unit and may be dangerous.

  • Page 21: Battery Safety Guidelines

    If you have any questions about the compatibility of a battery or a charger, contact Motorola Enterprise Mobility support. • For devices that utilize a USB port as a charging source, the...

  • Page 22: Radio Frequency Interference Requirements- Fcc

    • If you suspect damage to your equipment or battery, contact Motorola Enterprise Mobility support to arrange for inspection. Radio Frequency Interference Requirements- FCC Note: This equipment has been tested...

  • Page 23: Marking And European Economic Area (Eea)

    Italy requires a user license for outside usage. Statement of Compliance for CS3070 Wireless Devices Motorola/Symbol hereby, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A Declaration of Conformity may be obtained from http://www.motorola.com/doc.

  • Page 24: Japan (Vcci) - Voluntary Control Council For Interference

    CS3000 Series Japan (VCCI) - Voluntary Control Council for Interference Class B ITE This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference.
  • Page 25 Quick Reference Guide CHILE "Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de telecomunicaciones, relativa a radiaciones electromagnéticas.". "This device complies with the Resolution Not 403 of 2008, of the Undersecretary of telecommunications, relating to electromagnetic radiation."...

  • Page 26: Waste Electrical And Electronic Equipment (Weee)

    Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi: http://www.motorola.com/recycling/weee. Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Motorola al final de su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto, visite: http://www.motorola.com/recycling/weee.
  • Page 27 Motorola för återvinning. Information om hur du returnerar produkten finns på http://www.motorola.com/recycling/weee. Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Motorola'ya iade lütfen şu adresi ziyaret edin: edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için...

  • Page 28: Service Information

    MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2011 Motorola Solutions, Inc. All rights reserved.
