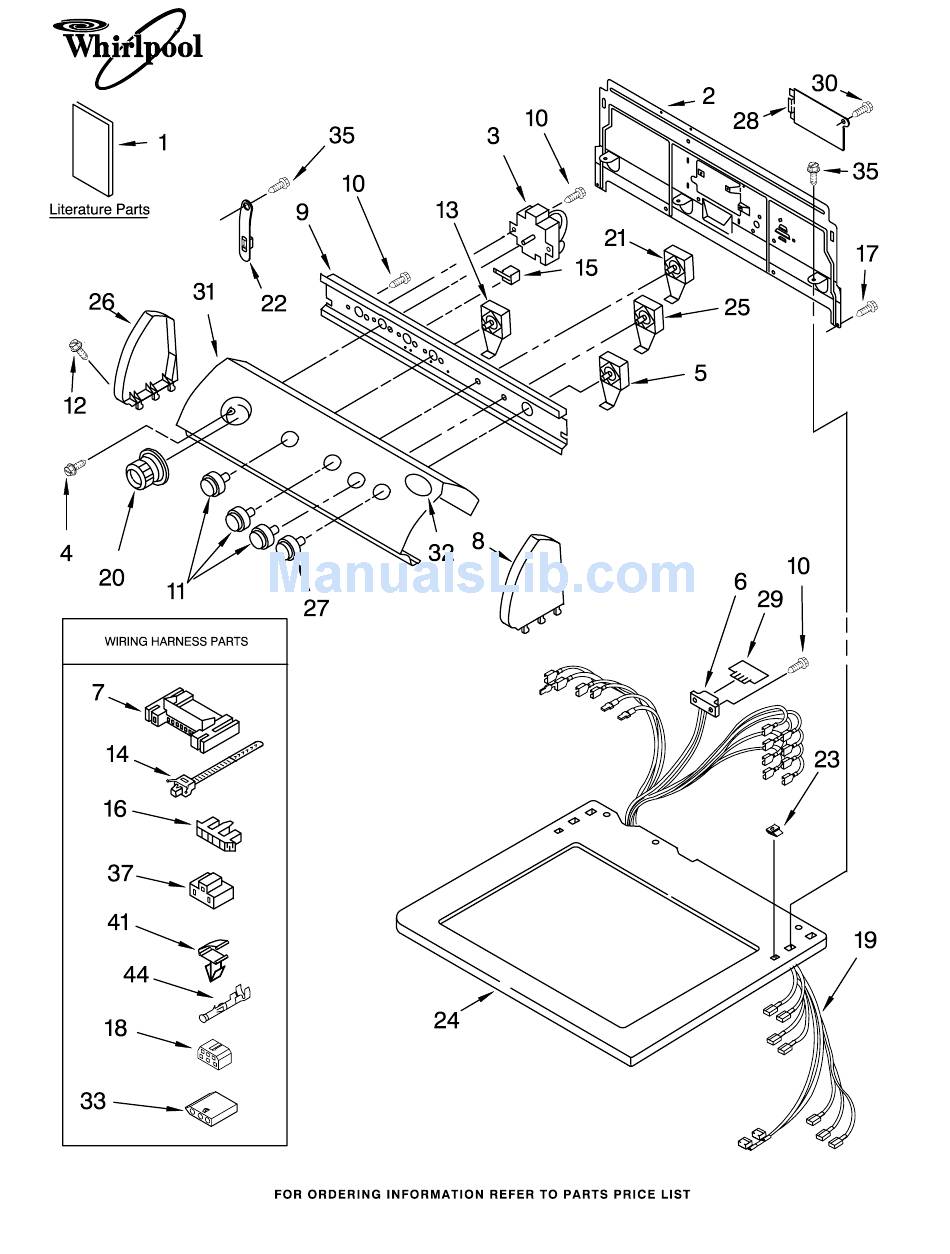

- Page 1 TOP AND CONSOLE PARTS 27"ELECTRIC DRYER For Models: GEQ9800LW0, GEQ9800LG0 (White/Grey) (Biscuit/Gold) 7−02 Litho in U.S.A. (djc) Part No. 8179891...
- Page 2 TOP AND CONSOLE PARTS For Models: GEQ9800LW0, GEQ9800LG0 (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cap, End (R.H.) 3405152 Switch, Literature Parts 8271359 White End Of Cycle LIT8299800 Label, Wiring 8271362 Biscuit Cap, End (L.H.) Diagram 8271316 Bracket, Control LIT8535837 Guide, Use &...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: GEQ9800LW0, GEQ9800LG0 (White/Grey) (Biscuit/Gold) 8179891... - Page 4 CABINET PARTS For Models: GEQ9800LW0, GEQ9800LG0 (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3388229 Retainer 3387565 Spring, Door (2) 697773 Screw, 6−20 x 7/8 697655 Door, Rear 697776 Screw, 10−32 x 5/8 3391408 Lever, Snap 694091 Screw, 8−18 x 3/8...
- Page 5 BULKHEAD PARTS For Models: GEQ9800LW0, GEQ9800LG0 (White/Grey) (Biscuit/Gold) 8179891...
- Page 6 BULKHEAD PARTS For Models: GEQ9800LW0, GEQ9800LG0 (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8318268 Thermostat, 3399508 Shaft, R.H. Thread 3387459 Washer, Support 3399509 Shaft, L.H. Thread Internal−Bias 90767 Screw, 8−18 x 3/8 690997 Ring, Tri 8530038 Housing, Blower 3390647 Screw, 8−18 x 1/2...
