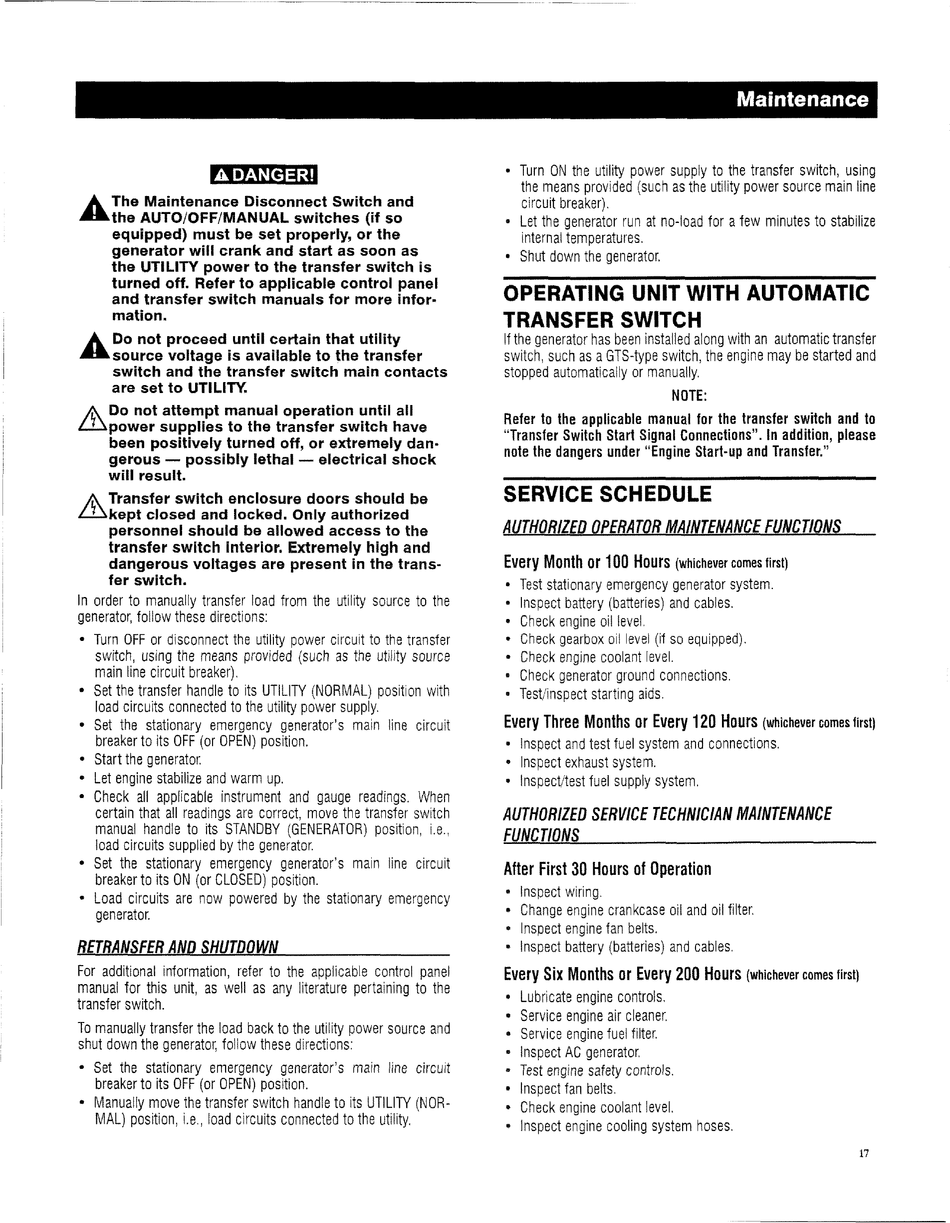

A
The Maintenance Disconnect Switch and
.... the AUTO/OFF/MANUAL switches (if so
equipped) must be set properly, or the
generator will crank and start as soon as
the UTILITY power to the transfer switch is
turned off. Refer to applicable control panel
and transfer switch manuals for more infor-
mation.
A
Do not proceed until certain that utility
.... source voltage is available to the transfer
switch and the transfer switch main contacts
are set to UTILITY.
/r\
Do not attempt manual operation until all
illpower supplies to the transfer switch have
been positively turned off, or extremely dan-
gerous - possibly lethal - electrical shock
will result.
/i). Transfer switch enclosure doors should be
~kept
closed and locked. Only authorized
personnel should be allowed access to the
transfer switch Interior. Extremely high and
dangerous voltages are present in the trans-
fer switch.
In order to manually transfer load from the utility source to the
generator, follow these directions:
• Turn OFF or disconnect the utility power circuit to the transfer
switch, using the means provided (such as the utility source
main line circuit breaker).
• Set the transfer handle to its UTILITY (NORMAL) position with
load circuits connected to the utility power supply.
• Set the stationary emergency generator's main line circuit
breaker to its OFF (or OPEN) position.
• Start the generator.
• Let engine stabilize and warm up.
• Check all applicable instrument and gauge readings. When
certain that all readings are correct, move the transfer switch
manual handle to its STANDBY (GENERATOR) position, i.e,
load circuits supplied by the generator.
• Set the stationary emergency generator's main line circuit
breaker to its ON (or CLOSED) position.
• Load circuits are now powered by the stationary emergency
generator.
RETRANSFER AND SHUTDOWN
For additional information, refer to the applicable control panel
manual for this unit, as well as any literature pertaining to the
transfer switch.
To manually transfer the load back to the utility power source and
shut down the generator, follow these directions:
• Set the stationary emergency generator's main line circuit
breaker to its OFF (or OPEN) position.
• Manually move the transfer switch handle to its UTILITY (NOR-
MAL) position, i.e., load cirCUits connected to the utility.
Maintenance
• Turn ON the utility power supply to the transfer switch, using
the means provided (such as the utility power source main line
circuit breaker) .
• Let the generator run at no-load for a few minutes to stabilize
internal temperatures.
• Shut down the generator.
OPERATING UNIT WITH AUTOMATIC
TRANSFER SWITCH
If the generator has been installed along with an automatic transfer
switch, such as a GTS-type switch, the engine may be started and
stopped automatically or manually.
NOTE:
Refer to the applicable manual for the transfer switch and to
"Transfer Switch Start Signal Connections". In addition, please
note the dangers under "Engine Start-up and Transfer."
SERVICE SCHEDULE
AUTHORIZED OPERATOR MAINTENANCE FUNCTIONS
Every Month or 100 Hours
(whichever comes first)
• Test stationary emergency generator system.
• Inspect battery (batteries) and cables.
• Check engine oil level.
• Check gearbox oil level (if so equipped).
• Check engine coolant level.
• Check generator ground connections.
• Test/inspect starting aids.
Every Three Months or Every 120 Hours
(whichever comes first)
• Inspect and test fuel system and connections.
• Inspect exhaust system.
• Inspect/test fuel supply system.
AUTHORIZED SERVICE TECHNICIAN MAINTENANCE
FUNCTIONS
After First 30 Hours of Operation
• Inspect Wiring.
• Change engine crankcase oil and oil filter.
• Inspect engine fan belts.
• Inspect battery (batteries) and cables.
Every Six Months or Every 200 Hours
(whichever comes first)
• Lubricate engine controls.
• Service engine air cleaner.
• Service engine fuel filter.
• Inspect AC generator.
• Test engine safety controls.
• Inspect fan belts.
• Check engine coolant level.
• Inspect engine cooling system hoses.
17
