DTR94 HD freesat

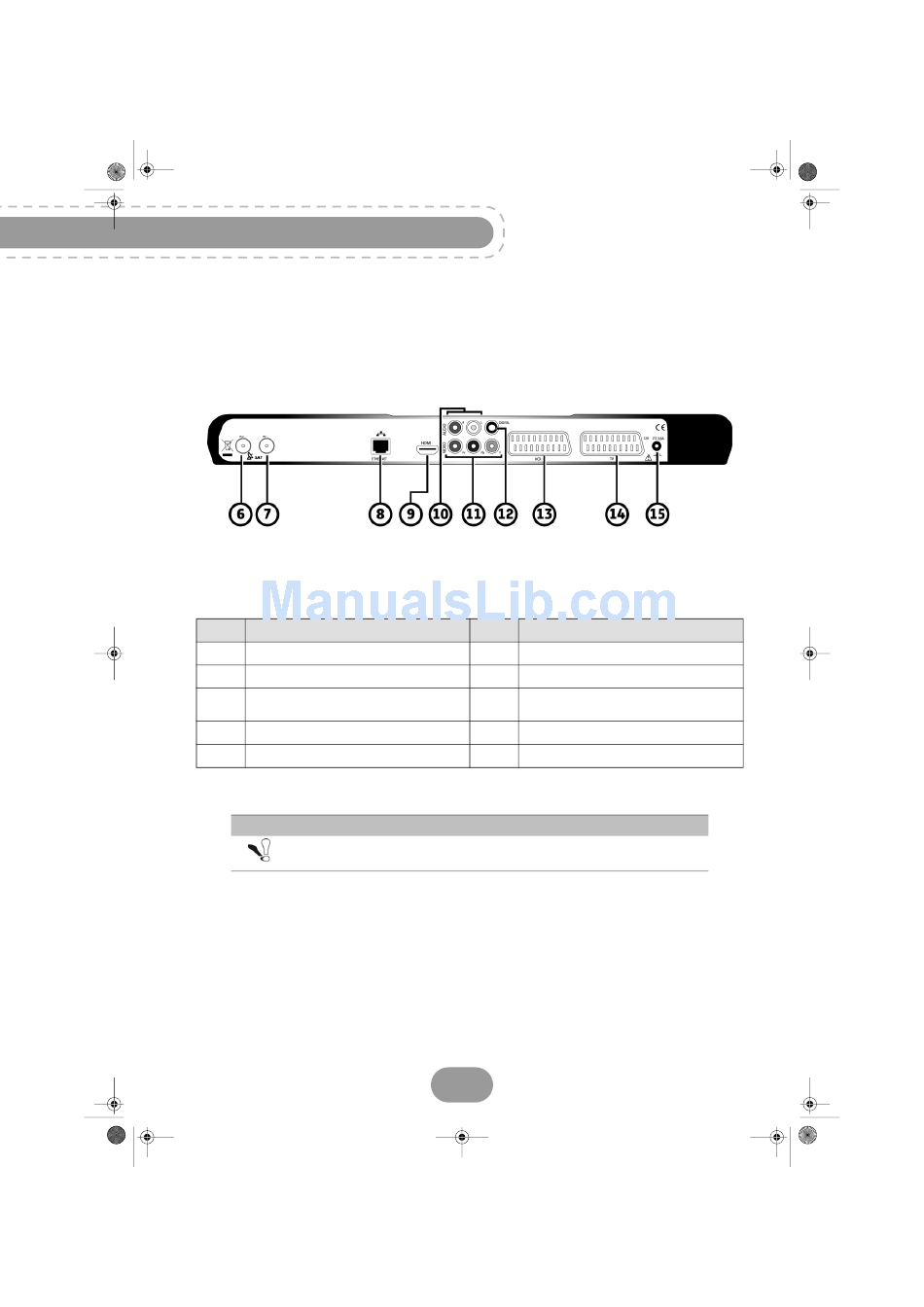

Rear panel of the recorder

Item Description
6 Satellite dish input 2
7 Satellite dish input 1
Ethernet port (for the use of BBC
8
iPlayer)
9 HDMI Digital video audio connector
10 Analogue audio connectors
Important
To fully enjoy the features of your recorder, make sure that you connect
the 2 satellite tuners (see Connection to the satellite dish, page 13).
Item Description
11 Analogue component video (Y Pb Pr)
12 Digital audio connector (S/PDIF)
Scart connector (to VCR or DVD
13
recorder)
14 Scart connector (to TV)
15 Power supply unit connector
