Connection to a Standard-Definition television
1. You must connect the television set to your recorder using a Scart connector (not supplied). For
optimal quality, preferably connect the Scart lead to the TV Scart socket with 3 dots (RGB).
2. To connect other devices to the recorder (VCR, home cinema...), refer to the following sections.
3. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the recorder.
4. Plug the power cord into the wall socket.

Connection to the VCR/DVD recorder

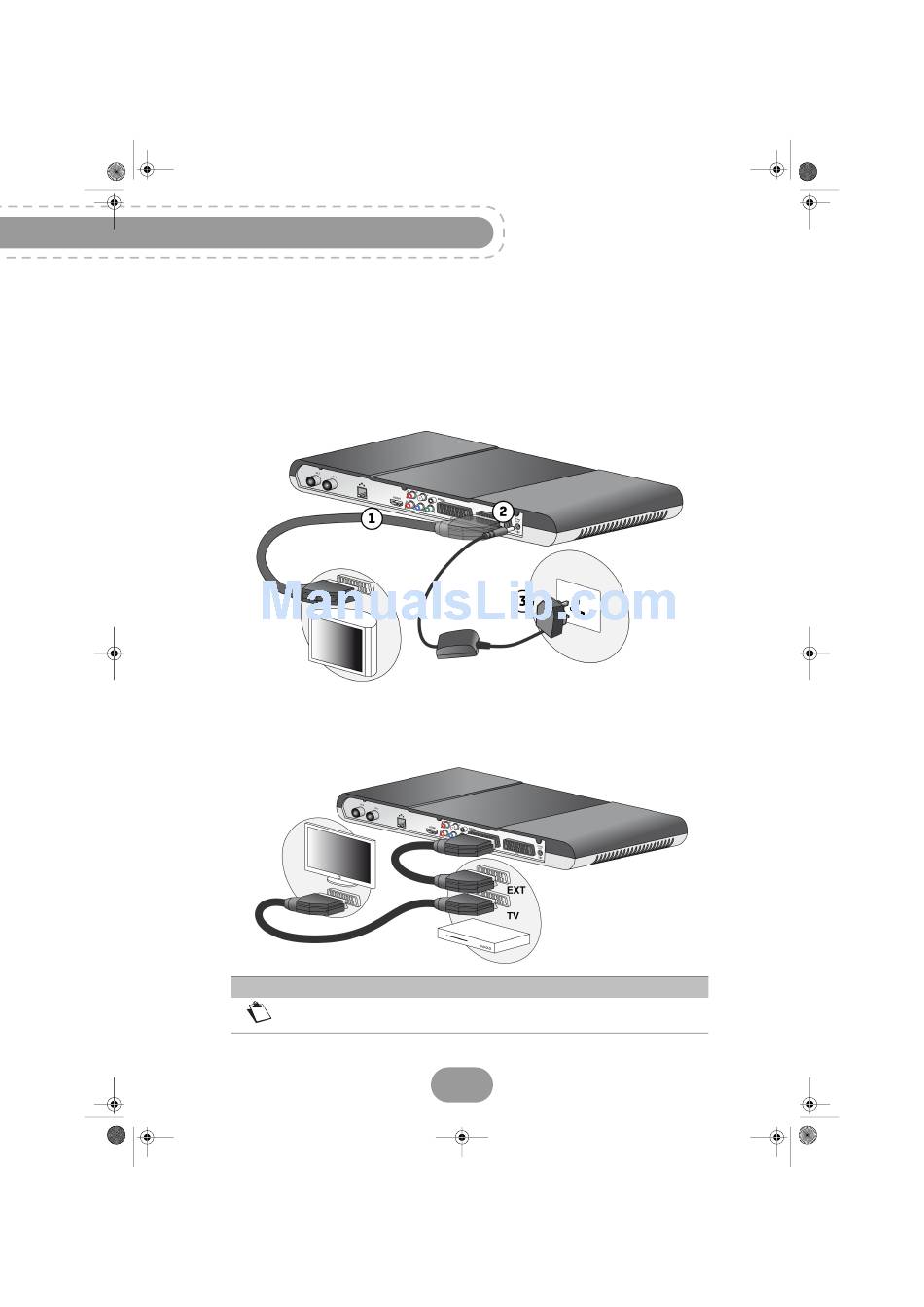

See the diagram below to connect your recorder to a VCR/DVD recorder.
Note
If your VCR/DVD recorder has more than one Scart connector, choose the TV
or EXT1 socket.
