Summary of Contents for Epson EMP-713
-

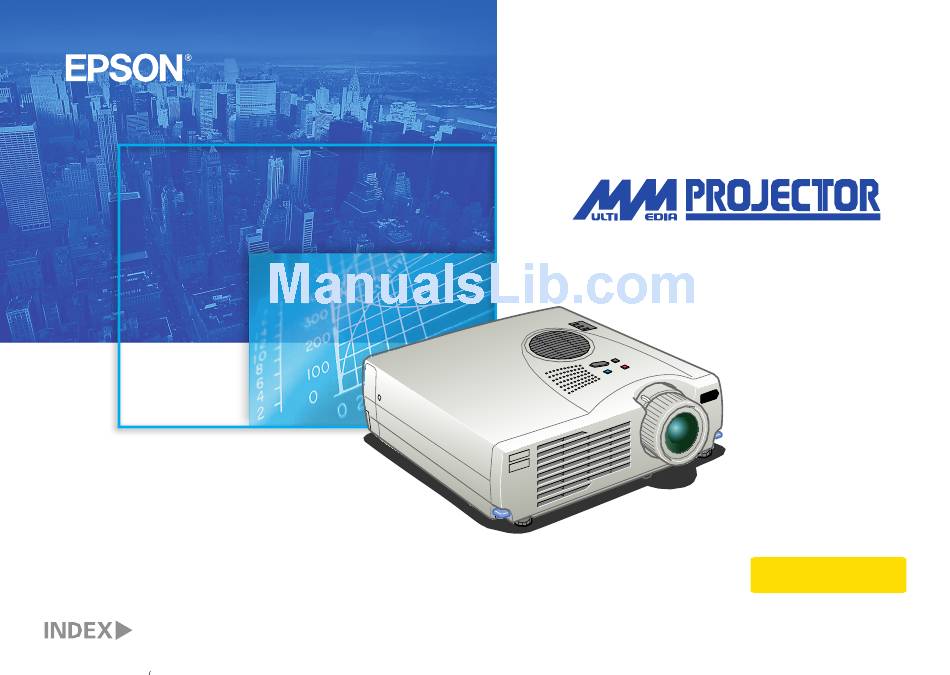

Page 1: Quick Reference Guide
QUICK REFERENCE GUIDE EMP-713/703/503 WARNING Never look into the lens while the projector's power is turned on. Be sure to read the Owner's Manual thoroughly before using this projector. - Page 2 Setting Up Adjust the distance between the projector and the screen until the desired image size is obtained. screen size Page 4 of Owner's Manual 300" 6 1 0 X 4 6 0 ( c m 200" 150" 4 1 0 X 3 0 100"...
-
Page 3: Connecting To A Computer
* Turn off the power for both the projector and the other equipment before connecting them. Connecting to a Computer Connections Computer connector Computer Audio S-Video Pages 6, 22 of Owner's Manual Audio To computer's Video monitor port Depending on the shape of the (video port) computer monitor terminal, it may not be possible to make connections with... - Page 4 Projecting Connect the power cord to the projector. Connect the power cord to an electrical outlet. The indicator will light orange. Pages 29,30 of Owner's Manual Turn on the power for the input source. In the case of a VCR, press the PLAY button. Rotate the zoom lever to the central position to extend the lens.
- Page 5 If images do not appear ... If a laptop computer or a computer with a LCD screen has been connected to the projector, you may need to change the output destination for video signals Change the input depending on the computer keys ( ) or the computer's settings.
-
Page 6: Adjusting The Projection Angle
Adjustment Adjusting the projection angle Lift the front of the projector while pressing on the foot lever, adjust the amount extension or retraction of the front foot, then adjust the projector’s projection angle. Pages 31,32 of Owner's Manual To make fine adjustments: If you change the projection angle, you may get keystone distortion in the Becomes... -
Page 7: Other Adjustments
Automatically adjusting computer images to the optimum settings Press on the remote control to automatically adjust the tracking and the display position and synchronization. Remote Control Other adjustments Press on the remote control to display the setting menu on the projection screen. Then adjust the required settings, such as brightness, contrast and sharpness. - Page 8 Adjustment If the images have keystone distortion ... Press on the projector's control panel to correct the keystone distortion. Correcting keystone distortion Pages 38 of Owner's Manual Power Help When keystone correction is carried out, the projected image will become smaller.
-
Page 9: Turning Off The Projector
Turning Off Turn off the power for the equipment connected to the projector. the Projector Power Press the twice to turn off the Pages 29,30 of Owner's projector's power. Manual will start flashing orange. (Cool-down in progress) Check that is lit steadily with an orange color, and then disconnect the power cord. - Page 10 Functions for This projector is equipped with a variety of useful functions Enhancing Projection for enhancing projection. Refer to the corresponding pages of the Owner's Manual for details on each function. Using the remote control for one-person presentations When using the remote control as The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse buttons a wireless mouse, you need to on a computer.
- Page 11 Enhancing presentation materials Effect function Page 51 of Owner's Manual Press Press Press to erase the stamps, squares, markers and free lines set for decorative purposes. Displays the pointer icon. Tilt the Displays the square icon. Tilt the to move the icon to the to move the icon, and then press to stamp the pointer...
- Page 12 Functions for Enlarging part of projected images Enhancing Projection Press to enlarge the image being projected. Tilt the on the remote control to scroll to the area that is to be viewed. E-Zoom function Page 36 of Owner's Manual Press After enlarging part of the image, you can tilt the to scroll around...
- Page 13 Momentarily turning off images and sound A/V Mute function Pages 36,52 of Owner's Manual The A/V Mute function momentarily pauses the image and sound, and displays either a blank blue or black screen or the user's logo screen. It can be used when you do not want to show viewers details of operations such as selecting different files when computer images are being projected.
-
Page 14: Troubleshooting
Troubleshooting Viewing the Online Help This projector is provided with an online help function which can be used when you have a problem using the projector. Help Power Help Press Help Help Select the item to view. Press the Projector Remote Control the projector's control panel. -
Page 15: Checking The Indicators
Checking the Indicators The projector is equipped with indicators that alert you to problems with projector operation. Page 39 of Owner's Manual The following tables show what the indicators mean and how to remedy problems that they indicate. Lamp Indicator Indicator status Problem and remedy Operation indicator... - Page 16 Printed in Japan 90018701 Printed on 100% recycled paper. 01.09 -.2B(C01)
