O P E R A T I O N
Power
When the unit is plugged in
and (for the PB12 only) the
power switch is on and no
signal is received, the LEDs on
the front of the unit will turn
red. When a signal is present,
the LEDs will turn green.
Note: It will take several
minutes for the LEDs to turn
Level Control
The subwoofer Level Control
adjusts the volume of the
subwoofer relative to the rest
of the system. Proper level
adjustment depends on
several variables such as
Crossover Adjustments
The Crossover Frequency
Control determines the highest
frequency at which the
subwoofer reproduces sounds.
If your main speakers can
comfortably reproduce some
low-frequency sounds, set this
control to a lower frequency
setting, between 50Hz – 100Hz.
This will concentrate the
subwoofer's efforts on the
ultradeep bass sounds
required by today's films and
music. If you are using smaller
bookshelf speakers that do not
extend to the lower bass
frequencies, set the low-pass
crossover control to a higher
setting, between 120Hz –
150Hz. This control is not used
when the LFE switch is in the
"LFE" position.
from green to red after the
input signal to the subwoofer
is removed. Due to JBL's
unique, high-output, high-
efficiency amplifier design,
power consumption is minimal
when the subwoofer is not
receiving a signal. Of course,
the PB12 subwoofer can be
room size, subwoofer
placement, type of main
speakers and listener position.
Adjust the subwoofer level so
that the volume of the bass
information is pleasing to you.

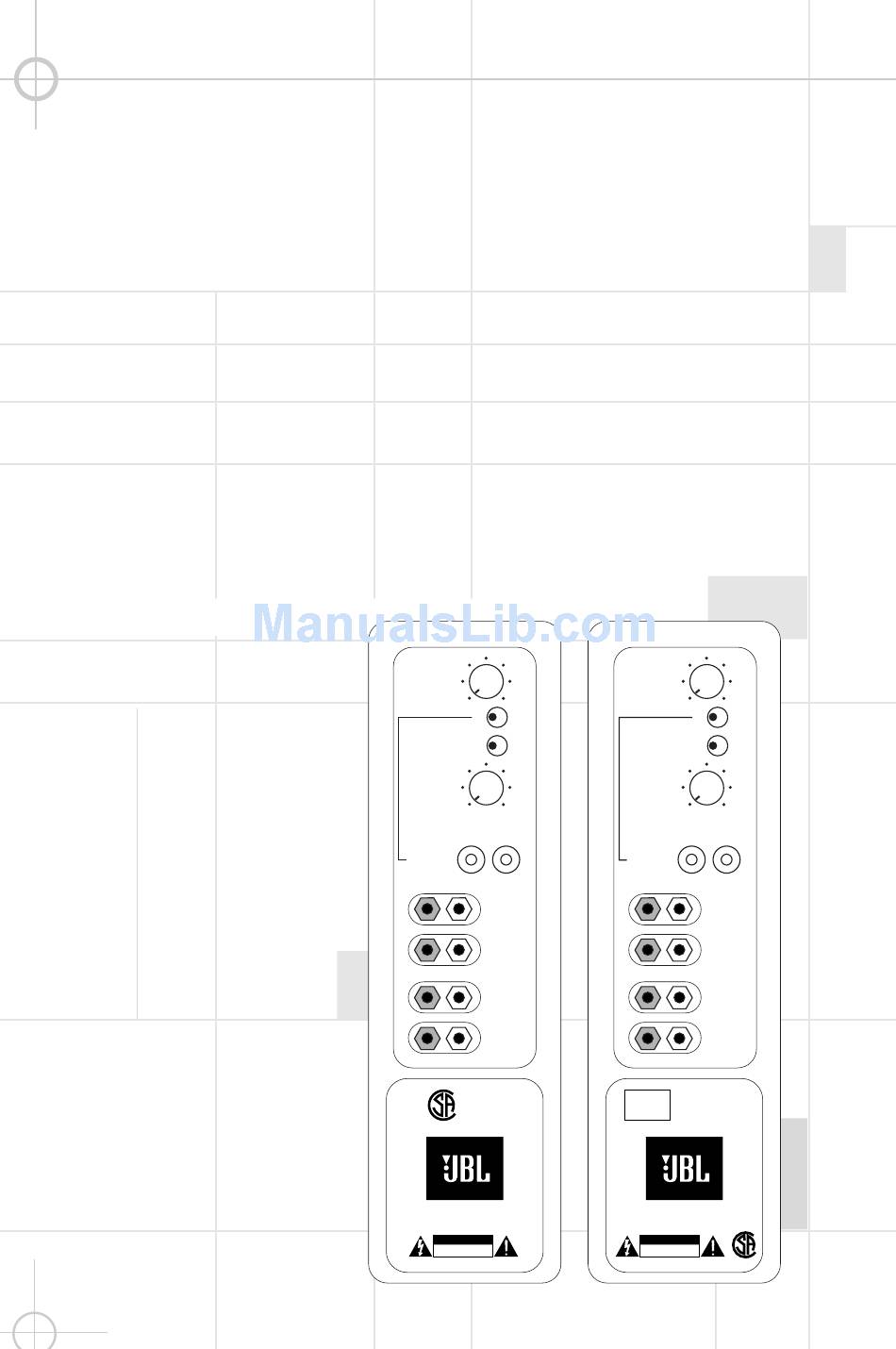

LEVEL
