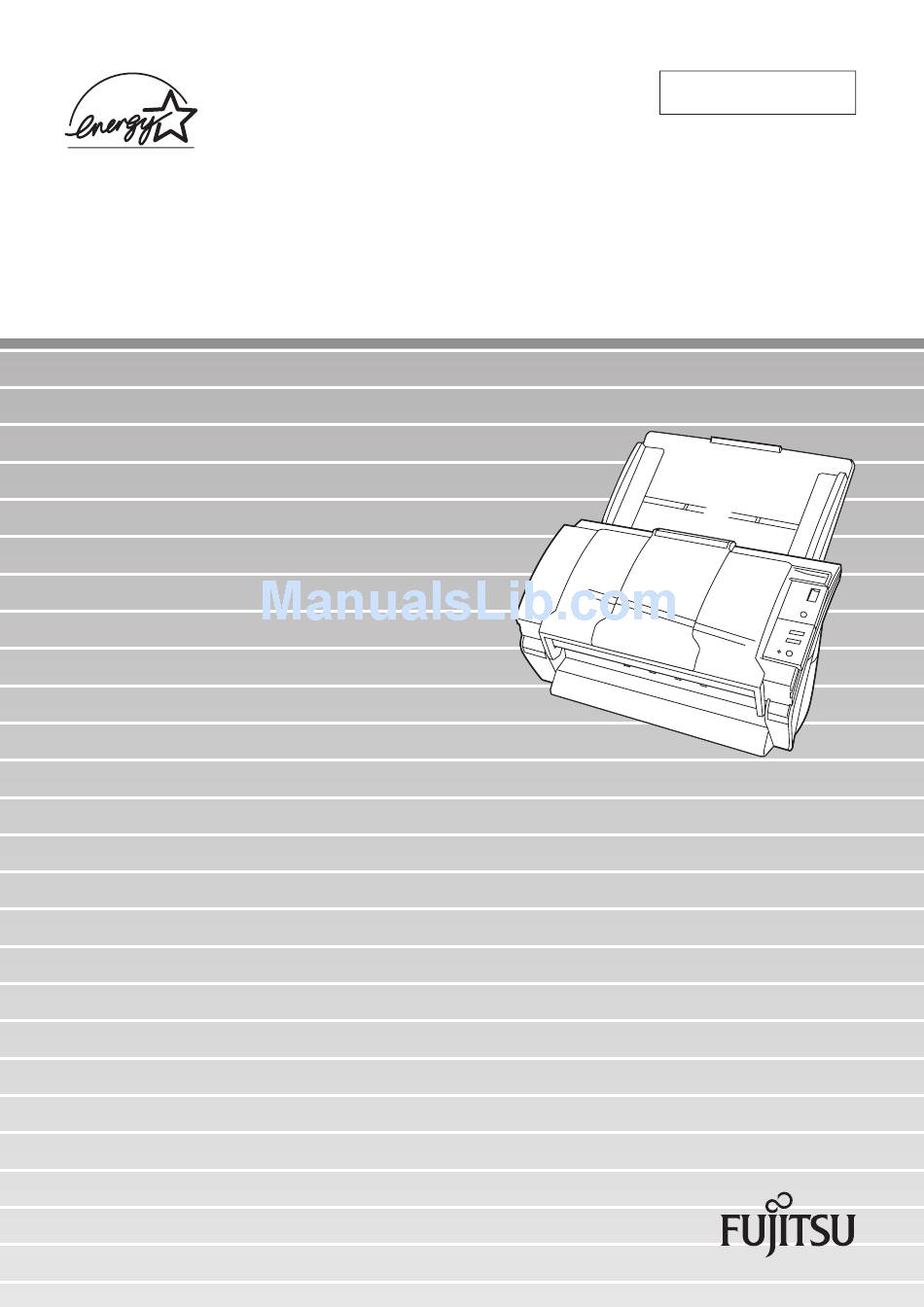

Page 1 P3PC-E577-01EN fi-4530C Image Scanner Operator's Guide...
Page 2: Table Of Contents
2.4 Scanning Documents longer than A3 size ..... 32 2.5 Saving scanned Images in PDF Format ......35 2.6 Excluding a Color from the Image (dropout color)..43 2.7 Skipping blank Pages............45 2.8 Detecting Double-Feeds........... 47 2.9 Correcting skewed Documents ........49 fi-4530C Image Scanner Operator’s Guide...
Page 3 Chapter 3 DAILY CARE ............51 3.1 Cleaning Materials and Locations requiring Cleaning.. 52 3.2 Cleaning the ADF.............. 54 Chapter 4 REPLACING CONSUMABLES ......61 4.1 Consumable and Replacement Cycle......62 4.2 Replacing the Pad ASSY..........67 4.3 Replacing the Pick Roller..........72 Chapter 5 TROUBLESHOOTING ...........
Page 4 7.1 Basic Specifications............112 7.2 Installation Specifications ..........114 7.3 External Dimensions ............115 APPENDIX A Before using the [Scan] or the [Send to] button ..AP-1 APPENDIX B GLOSSARY OF TERMS..........AP-5 INDEX ...................... IN-1 fi-4530C Image Scanner Operator’s Guide...
Page 6: Regulatory Information
Thank you for purchasing the fi-4530C Duplex Color Scanner product. This document describes how to handle fi-4530C Duplex Color and basic operation methods. Before you start using fi4530C Duplex Color be sure to thoroughly read this manual to ensure correct use.
Page 7 Communications du Canada. Cet appareil numérique de la classe B est conformme à la norme NMB-003 du Canada. Bescheimigung des Herstellers / Importeurs Hiermit wird bescheinigt, daß der/die/das fi-4530C • In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört ist. •...
Page 8 XP Professional operating system, Windows XP ® ® Microsoft Windows XP Home Edition operating system. Where there is no distinction between the different versions of the above operating system, the general term "Windows " is used. fi-4530C Image Scanner Operator’s Guide...
Page 9 Manufacturer PFU LIMITED Image Products Sales Dept., Imaging Products Division, Products Group Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki-shi Kanagawa 212-8563, Japan Phone : (81-44) 540-4538 All Rights Reserved, Copyright© PFU LIMITED 2003 viii...
Page 10: Note, Liability
The drawing inside the triangle shows the specific caution. A CIRCLE with a diagonal line inside shows action which users may not perform. The drawing inside or under the circle shows the specific action that is not allowed. fi-4530C Image Scanner Operator’s Guide...
Page 11: Screen Examples In This Manual
User's Manual of the scanner application you are using. Furthermore, the screenshots in this manual are for the FUJITSU TWAIN32 scanner driver, ScandAll 21 Image Capturing Utility Software, FUJITSU ISIS scanner driver, ®...
Page 12: Safety Precautions
Do not install the device in locations subject to oil smoke, steam, humidity, and dust. Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust. Doing so might cause a fire or electric shock. fi-4530C Image Scanner Operator’s Guide...
Page 13 Make sure that the smoking has stopped, and then contact the store where you bought the scanner or an authorized FUJITSU scanner service provider. AUTION Do not install the scanner on unstable surfaces.
Page 14: Power Outlet
Protect the scanner from static electricity. Install the scanner away from strong magnetic fields and other sources of electronic noise. Also, protect the scanner from static electricity as this might cause the scanner to malfunction xiii fi-4530C Image Scanner Operator’s Guide...
Page 15 Do not use aerosol sprays near the scanner. Do not use aerosol sprays to clean the scanner. Aerosol sprays cause dirt and dust to enter the scanner, resulting scanner failure and malfunction. Disconnect the power plug from the power outlet when the scanner is not used for a long period of time.
Page 16: Basic Scanner Operations
In this chapter Windows XP screenshots are illustrated. The screens and operations may differ slightly if the OS you are using is not Windows XP. Also, when FUJITSU TWAIN32 is updated the screens and operations noted in this chapter will differ slightly.
Page 17: Turning The Scanner On
Turning the Scanner ON 1. Press the power button on the operator panel. The scanner is turned ON, and the green LED on the operator panel lights. During the initialization, the indication of the Function No. display changes as follows: “8”->"P"...
Page 18: Loading Documents On The Adf For Scanning
3) Repeat steps 1) to 3) a couple of times. 4) Rotate documents 90 degrees, and fan again. 3. Align the top of the documents. fi-4530C Image Scanner Operator’s Guide...
Page 19 4. Load the documents on the ADF paper chute. Set the documents face-down in the ADF paper chute (so that the side to be scanned faces towards the ADF paper chute). Load the documents facing the ADF paper chute.(face down) Set the documents so that the stack will be lower than the line mark.
Page 20 Move the side guides so that they touch both sides of the documents. If there is any clearance between the side guides and the edges of documents, the scanned image may be skewed. Side guides fi-4530C Image Scanner Operator’s Guide...
Page 21 The stacker prevents document sheets from dropping after they were scanned. HINT Use the stacker as follows: 1. Lift up the stacker towards you by inserting your fingertips into the handle on the scanner. handle 2. Lift the paper stop and swing forward by inserting your fingertips into the indentations on the stacker.
Page 22: Scanning Documents
Select [Select Source] from the [Scan] menu. ⇒ The [Select Source] dialog box appears. Select "FUJITSU fi-4530Cdj" (for Windows 95 and WindowsNT 4.0, select “FUJITSU TWAIN 32”) and click the [Select] button. 4. Click the [Scan To View] button on the tool bar.
Page 23 5. Set the scan resolution, paper size, etc., and click the [Scan] button. For details on settings in the [TWAIN Driver] dialog box, refer to "How to use the Scanner Driver" on page 9. ⇒ The images of scanned documents are displayed on the [ScandAll 21] window. For details on different types of scanning, refer to "2 SCANNING VARIOUS TYPES OF DOCUMENTS"...
Page 24: How To Use The Scanner Driver
How to use the Scanner Driver ■ FUJITSU TWAIN32 Scanner Driver FUJITSU TWAIN32 Scanner Driver is designed for scanning documents with FUJITSU image scanner fi series by using application software that complies with the TWAIN standard. The following describes the procedure with examples of ScandAll 21 for ordinary scanning by using this driver software.
Page 25 For details, refer to "ScandAll 21 Help". 6) Configure settings for scanning and click the [Scan] button. For details about the settings on this window, refer to "Setting Window for FUJITSU TWAIN32 Scanner Driver" on page 12. ⇒ The images of scanned documents are displayed on the [ScandAll 21] window.
Page 26 7) Save the scanned images. Select [Save As...] from the [File] menu to save the scanned images. If you wish to start another scanning, return to procedure 4. 8) End the application. Select [Exit] from the [File] menu. fi-4530C Image Scanner Operator’s Guide...
Page 27 2. Setting Window for FUJITSU TWAIN32 Scanner Driver You can perform settings for the FUJITSU TWAIN32 Scanner Driver on this window. The following describes the main setting items. • For details on each functions, refer to "FUJITSU TWAIN32 Scanner Driver Help"...
Page 28 [Reset] button Used to undo changes of settings. [Help] button Opens the "FUJITSU TWAIN32 Scanner Driver Help" window. The window also opens by pushing the [F1] key. [About...] button Opens an information window about the FUJITSU TWAIN32 Scanner Driver's ver- sion.
Page 29 Click this button for configuring the Setting Files. You can save the changed settings as a Setting File. From next scanning, the settings are quickly changed by using these Setting Files. For details of each function, refer to the "FUJITSU TWAIN32 Scsnner Driver Help".
Page 30 1.4 How to use the Scanner Driver ■ FUJITSU ISIS Scanner Driver FUJITSU ISIS Scanner Driver is designed for scanning documents with FUJITSU image scanner fi series by using application software that complies with The ISIS standard. The following describes the procedure with examples of QuickScan for ordinary scanning by using this driver software.
Page 31 5) Select the profile for scanning. • When creating a new profile Select one from already existing profiles and click [Add Profile...] button. ⇒ A new profile will be created based on the profile you select. • When changing the settings of already existing profiles Select one from already existing profiles and click [Edit Profile...] button.
Page 32 ⇒ The configuration window of ISIS driver appears. 7) Configure settings for scanning and click the [OK] button. For details on this dialog box, refer to "Configuration Window of FUJITSU ISIS Scan- ner Driver" on page 18. 8) The [Profile Editor] window appears. Click the [OK] button to return to [New batch] dialog.
Page 33 ⇒ Scanned images are displayed on the window. Refer to the "QuickScan Overview" or the "QuickScan Help" for further information on functions and operations of QuickScan. After the installation of QuickScan, it is reg- istered in the [Start] menu. 2. Configuration Window of FUJITSU ISIS Scanner Driver...
Page 34 Sets the brightness of the entire image. Specify the brightness as a number within the range of 1 (dark) to 255 (bright). To brighten the entire image, decrease the value of the setting. To darken the entire image, increase the value. fi-4530C Image Scanner Operator’s Guide...
Page 35 Contrast Sets the contrast between light and shadow of the scanned image. Specify the contrast as a number within the range of 1 (low [soft]) to 255 (high [sharp]). Increasing this value makes the contrast sharper. Scan Type Selects the scanning method. ADF (Front Side) Scans only the front sides of documents.
Page 36 This button displays the Image Processing dialog. This button is enabled when Image Processing Software Option (separately sold) is installed and "Image Processing" is selected in the "Image Mode". Refer to the documentation provided with Image Pro- cessing Software Option. fi-4530C Image Scanner Operator’s Guide...
Page 37 End of Page Detection Scans the edge (bottom) of the documents and outputs data adjusted to the document length. When any page shorter than specified "Paper Size" is included, the output size is adjusted to the detected short size. Overscan This option specifies the overscan function.
Page 38 Detects Double-feeds (phenomena that two or more sheets are accidentally fed). You can set conditions for detecting Double-feeds so that the scanner should stop and dis- play error messages. Double feeds are scanned by the differences in document lengths or thicknesses. fi-4530C Image Scanner Operator’s Guide...
Page 40: Scanning Various Types Of Documents
In this chapter Windows XP screenshots are illustrated. The screens and operations may differ slightly if the OS that you are using is not Windows XP. Also, when FUJITSU TWAIN32 is updated the screens and operations noted in this chapter will differ slightly.
Page 41: Scanning Double Sided Documents
2. Adjust the side guides to the width of the documents. Side guides 3. Start up ScandAll 21 From [Start] menu, select [Program] - [Scanner Utility for Microsoft Windows] - [ScandAll 21]. This starts up ScandAll 21. 4. Select fi-4530C.
Page 42 For settings in the [TWAIN Driver] dialogbox, refer to "1.4 How to use the Scanner Driver" on page 9. ⇒ The images of scanned documents are displayed on the [ScandAll 21] window. For details on functions and operations of ScandAll 21, refer to "ScandAll 21 Help". fi-4530C Image Scanner Operator’s Guide...
Page 43: Scanning Documents With Different Widths
Scanning Documents with different Widths When you scan a batch of documents with different widths by using the ADF, you may get skewed images from smaller sized documents. Be sure to scan only documents of the same width together. The following shows the procedure for scanning a batch of mixed size documents. 1.
Page 44: Scanning Thin Documents
1. Confirm that the thin documents fulfill the requirements of "6.2 Document Quality" on page 103. 2. Shift the position of the paper thickness switch to the "Thin" position (the factory default is "Normal" position). Paper Thickness Switch fi-4530C Image Scanner Operator’s Guide...
Page 45 3. Load the documents on the ADF paper chute. For details on loading documents, refer to"1.2 Loading Documents on the ADF for Scan- ning" on page 3. Load the documents facing the ADF paper chute.(face down) 4. Adjust the side guides to the document width. Side guides...
Page 46 For settings in the [TWAIN Driver] dialogbox, refer to "1.4 How to use the Scanner Driver" on page 9. ⇒ Images of scanned documents are displayed on the window of ScandAll 21. For details on functions and operations of ScandAll 21, refer to "ScandAll 21 Help". fi-4530C Image Scanner Operator’s Guide...
Page 47: Scanning Documents Longer Than A3 Size
3. Start up ScandAll 21. For starting up ScandAll 21, select [Programs] - [Scanner Utility for Microsoft Windows] - [ScandAll 21] from [Start]. 4. Select fi-4530C. 5. Click [Scan To View] on the tool bar. ⇒ The [TWAIN Driver] dialogbox appears.
Page 48 2.4 Scanning Documents longer than A3 size 6. Select [Long page (Front Side)] or [Long page (Duplex)] from [Scan Type]. 7. Specify the length of documents. fi-4530C Image Scanner Operator’s Guide...
Page 49 8. Click the [Scan] button. For settings in the [TWAIN Driver] dialogbox, refer to "1.4 How to use the Scanner Driver" on page 9. ⇒ Images of scanned documents are displayed on the window of ScandAll 21. For details on functions and operations of ScandAll 21, refer to "ScandAll 21 Help".
Page 50: Saving Scanned Images In Pdf Format
The file size increases when scanning color documents by an ordinary method. However, you can drastically reduce the size by using the Acrobat Distiller before saving the file. For details, please refer to the hints on page 41. fi-4530C Image Scanner Operator’s Guide...
Page 51: Using Scandall
■ Using ScandAll 21 1. Load the documents on the ADF paper chute. 2. Start up ScandAll 21. Select [Program] - [ScannerUtility for Microsoft Windows] - [ScandAll21] from the [Start] menu. This will start up the application. 3. From the [Scan] menu select [To Adobe PDF]. ⇒...
Page 52 5. To end scanning, click the [Close] button. ⇒ The scanned image is displayed. 6. Enter the file name and select the destination to save the scanned image. For details, refer to "ScandAll 21 Help". fi-4530C Image Scanner Operator’s Guide...
Page 53: Using Adobe Acrobat
Select [Program] - [Adobe Acrobat 5.0] from the [Start] menu. This starts up Adobe Acrobat 5.0. 3. From the [File] menu select [Import] - [Scan...]. ⇒ The [Acrobat Scan Plug-in] dialogbox appears. 4. Select [FUJITSU fi-4530Cdj] ([FUJITSU TWAIN 32] for WindowsNT 4.0) at [Device] and click the [Scan] button. ⇒ [TWAIN driver] dialogbox appears.
Page 54 Select [Simplex] even if you intend to do duplex scanning. ATTENTION 5. Select the scan resolution, document size, etc., and click the [Scan] button. 6. To end scanning, click the [Done] button. ⇒ The scanned image is displayed. fi-4530C Image Scanner Operator’s Guide...
Page 55 7. Select [Save as...] or [Save] from the [File] menu to save the scanned image. For the details on Adobe Acrobat 5.0 operations, refer to the Adobe Acrobat 5.0 manual and Help.
Page 56 2. On the following dialog specify [Acrobat Distiller] for [Name] 3. Click the [Properties] button. 4. Click the [Adobe PDF Settings] tab. 5. Select [Conversion Settings] to [Print]. The following shows an example of [Screen]. fi-4530C Image Scanner Operator’s Guide...
Page 57 6. Click [OK]. 7. Enter a file name and click the [Save] button on the [Save PDF File As] dialogbox.
Page 58: Excluding A Color From The Image (Dropout Color)
To set the scanner to drop out a color, change the settings in the [TWAIN Driver] dialogbox before scanning. The following shows the procedure for changing the settings in this dialogbox. 1. Click the [Advance...] button in the [TWAIN Driver] dialogbox. ⇒ The [Advance] dialogbox appears. fi-4530C Image Scanner Operator’s Guide...
Page 59 2. Select the color to be dropped out from [Dropout Color] under [More]. For example, if the document contains black text in green frame, select [Green] so that the scanner only reads the text and eliminates the frames. 3. Click the [OK] button. The [TWAIN Driver] dialogbox will be redisplayed.
Page 60: Skipping Blank
Change settings in the [TWAIN Driver] dialogbox for skipping blank pages at scanning documents. 1. Click the [Option ...] button in the [TWAIN Driver] dialogbox. ⇒ The [Option] dialogbox appears. 2. Click the [Job/Cache] tab 3. Select [Ram Cache] from the [Cache Mode] menu under [Caching]. fi-4530C Image Scanner Operator’s Guide...
Page 61 4. By using the slider control under [Blank Page Skip], specify the [Black Dots Ratio] or [White Dots Ratio] (ratio of black or white parts on the documents) for judging if the scanned documents are recognized as blank pages by the scanner. The [TWAIN Driver] dialogbox will be redisplayed.
Page 62: Detecting Double-Feeds
To set conditions for the double-feed detection, change the settings in the [TWAIN Driver] dialogbox. The following shows the procedure for changing the settings in the dialogbox. 1. Click the [Option...] button in the [TWAIN Driver] dialogbox. ⇒ The [Option] dialogbox appears. 2. Click the [Job/Cache] tab. fi-4530C Image Scanner Operator’s Guide...
Page 63 3. Select the detection conditions from [Double Feed Detection] under [ADF Option]. The following are the detection conditions None Double-feed detection is not performed Check overlapping The scanner monitors the overlapping of documents. It detects a double-feed by differences in document thickness when two or more document sheets are fed overlapping.
Page 64: Correcting Skewed Documents
Change the setting in the [TWAIN Driver] dialogbox to enable this function. The following shows the procedure for changing the setting in the dialogbox. 1. Click the [Option...] button in the [TWAIN Driver] dialogbox. ⇒ The dialogbox appears. 2. Click the [Rotation] tab. fi-4530C Image Scanner Operator’s Guide...
Page 65 3. Select the [Automatic Page Size Detection] from the [Automatic Size and Skew Detection] menu. 4. Click the [OK] button. The display returns to the scanninig operation [TWAIN Driver] dialogbox. Then, perform the scanning operation on the dialogbox. When using either of the following documents, the automatic page size ATTENTION detection may not function correctly.
Page 66: Chapter 3 Daily Care
ARNI N G unplug the AC cable from the outlet, except for replac- ing the feed rollers or the eject rollers. 3.1 Cleaning Materials and Locations requiring Cleaning ........52 3.2 Cleaning the ADF ....................54 fi-4530C Image Scanner Operator’s Guide...
Page 67: Cleaning Materials And Locations Requiring Cleaning
Lint-free dry cloth - Commercially available one For details about the cleaning materials, contact the FUJITSU scanner dealer where you pur- chased the scanner. ■ Locations and Cycle for Cleaning The following table shows the standard cleaning cycle for each location.
Page 68 Documents of coated paper • Documents that are almost completely covered with printed text or graph- • Chemically treated documents such as carbonless paper • Documents containing a large amount of calcium carbonate • Handwritten documents fi-4530C Image Scanner Operator’s Guide...
Page 69: Cleaning The Adf
Cleaning the ADF As a guideline, clean the ADF after every 5,000 scans. Note that this guideline varies according to the type of documents you are scanning. For example, it may be necessary to clean the ADF more frequently if documents are scanned when the toner is not sufficiently fixed on the printout. AUTION The glass surface inside the ADF becomes hot during the operation of the scanner.
Page 70 2. Clean the following locations with a lint-free cloth moistened with the Cleaner F1. Feed rollers (2) Sheet guide Pad ASSY Pick roller Ultra sonic sensors (2) Plastic rollers (4) Glasses (2) Eject rollers (2) fi-4530C Image Scanner Operator’s Guide...
Page 71 • Pad ASSY. Clean the Pad ASSY (rubber surface) downward (in the direction of the arrow). The portion to be cleaned • Pick rollers Clean the Pick rollers lightly, not to roughen the roller’s surface. Take particular care in cleaning this roller as black debris on it advesely affects the pickup performance. Pick roller...
Page 72 2) Simultaneously hold down the "Send to" and "Scan" buttons on the operator panel. The Feed rollers rotate a little. For details on locations of the "Send to" and "Scan" buttons, refer to "1.3 Operator panel" in fi-4530C Getting Started on the Setup CD- ROM.
Page 73 2) Simultaneously hold down the "Send to" and "Scan" buttons on the operator panel. The Eject rollers start to rotate a little. For details on locations of the "Send to" and "Scan" buttons, refer to "1.3 Operator panel" in fi-4530C Getting Started on the Setup CD-ROM.
Page 74 Press the center of the ADF When the ADF has returned to its original position, make sure that it is completely closed. Paper jams or feeding errors may occur if the ADF is ATTENTION not closed completely. fi-4530C Image Scanner Operator’s Guide...
Page 76: Chapter 4 Replacing Consumables
In this chapter Windows XP screenshots are illustrated. The screens and operations may differ slightly if the OS that you are using is not Windows XP. Also, when FUJITSU TWAIN32 is updated the screens and operations noted in this chapter will differ slightly.
Page 77: Consumable And Replacement Cycle
Consumable and Replacement Cycle The following table shows the specifications of consumables and guidelines for the replacement cycle. Description Parts No. Standard Replacement Cycle Pad ASSY PA03334-0002 After 100,000 scans or one year Pick roller PA03334-0001 After 200,000 sheets or one year The replacement cycles above are rough guidelines for the case of using A4/Letter woodfree or wood containing paper 64 g/m (17 lb).
Page 78 1. When turning on the power, check that the scanner is connected to your PC. Refer to "2.2 Connecting the Scanner to a PC" in fi-4530C Getting Started on the CD-ROM for information about connecting the scanner to your personal computer.
Page 79 [Scanners and Cameras] icon. ⇒ The [Scanners and Cameras] window is displayed. 4. Right click the "fi-4530Cdj", and select [Properties] from the menu. (For Windows 95 and WindowsNT 4.0, select the [FUJITSU TWAIN 32] icon and click the [Properties] button.)
Page 80 You can confirm the following information on this panel: • Total number of scans • Pad counter (approximate number of scans after resetting the pad counter) • Pick roller counter (approximate number of scans after resetting the Pick roller counter) fi-4530C Image Scanner Operator’s Guide...
Page 81 The following message may appear while you use the scanner: Replace consumables when this message is displayed. ■ When Replacing Consumables Immediately 1. To replace consumables after completing the scanning of all the document sheets in the ADF, click the [Ignore] button. To abort scanning and replace the consumables immedi- ately, click the [Cancel] button.
Page 82: Replacing The Pad Assy
1. Remove all documents from the ADF paper chute. 2. Open the ADF cover by pushing down the ADF button. The front portion ADF button Be careful, the ADF cover may close and pinch your AUTION fingers. fi-4530C Image Scanner Operator’s Guide...
Page 83 3. Remove the Pad ASSY. Press down on the upside of the Pad ASSY, slide it to the left and remove it. 4. Attach the new Pad ASSY. Insert the claws of the Pad ASSY into the holes on the ADF. Claws Pressing down the Pad ASSY and slide it to the right to fix.
Page 84 ATTENTION not correctly attached, document jams or other feeding errors may occur. 5. Push in the center of the ADF to close it until the ADF button is locked. Press the center of the ADF fi-4530C Image Scanner Operator’s Guide...
Page 85 6. Reset the pad counter. • For Windows 98 / Windows Me / Windows 2000 /Windows XP 1) When turning on the power, check that the scanner is connected to your PC. 2) Open the [Scanners and Cameras] from the control panel of your PC. 3) Open the [Properties] of [fi-4530Cdj] from the [Scanners and Cameras].
Page 86 For Windows 95 / Windows NT 4.0 1) When turning on the power, check that the scanner is connected to your PC. 2) Right click the [FUJITSU Scanner Control Center] icon in the task tray, then select [Option]. 3) Select the [Scanner Information] tab. The following screen is displayed.
Page 87: Replacing The Pick Roller
Replacing the Pick Roller 1. Remove all documents from the ADF paper chute. 2. Remove the ADF paper chute. ADF paper chute 3. Open the ADF by pushing down the ADF button. The front portion ADF button...
Page 88 Be careful, the ADF cover may close and pinch your AUTION fingers. 4. Remove the Pick roller from the scanner. 1) Pinch the knobs on the sheet guide and lift up the sheet guide to remove it. fi-4530C Image Scanner Operator’s Guide...
Page 89 2) Rotate the Pick roller bushing in the direction of the arrow. Pick roller bushing 3) Remove the Pick rollers while lifting it up in the direction of the arrow. As the Pick roller bushing is firmly fixed, do not turn it AUTION with your fingernails.
Page 90 Pull shaft to remove Lift up. Shaft 6. Attach the new Pick roller. Insert the new Pick roller aligning the screw on the shaft with the slot for the screw in the Pick roller. Screw Slot fi-4530C Image Scanner Operator’s Guide...
Page 91 Be sure to insert the Pick roller until it makes a clicking sound. ATTENTION "Click" 7. Attach the Pick roller to the scanner. Attatch the Pick roller to the scanner in reverse order of the procedure for removing. 1) Set the Pick roller fixing the end of shaft into the shaft hole. Shaft hole Shaft...
Page 92 2) Turn the Pick roller bushing in the direction of the arrow. Pick roller bushing 3) Attach the sheet guide. 8. Push in the center of the ADF to close it until the ADF button is locked. Press the center of the ADF fi-4530C Image Scanner Operator’s Guide...
Page 93 9. Attach the ADF paper chute to the scanner. ADF Paper Chute 10. Reset the pick counter. • For Windows 98 / Windows Me / Windows 2000 / Windows XP 1) When turning on the power, check that the scanner is connected to your PC. 2) Open the [Scanners and Cameras] from the control panel of your PC.
Page 94 For Windows 95 / Windows NT 4.0 1) When turning on the power, check that the scanner is connected to your PC. 2) Right click the [FUJITSU Scanner Control Center] icon in the task tray, then select [Option] 3) Double click [Scanner Information]. The following screen is displayed.
Page 95 4) Click the [Pick Counter Reset] button. ⇒ The following message is displayed. Click [Yes]. The Pick counter returns to “0”.
Page 96: Troubleshooting
About troubles that are not described here, and the details of the errors, ATTENTION refer to the FUJITSU TWAIN32 Scanner Driver Help on the Setup CD- ROM. 5.1 Removing Jammed Documents ................82 5.2 Remedying Common Troubles................
Page 97: Removing Jammed Documents
Removing Jammed Documents If a document jam occured because of double-feeding, etc., follow the procedure below to remove the jammed documents. • Take care not to get injured when removing the AUTION jammed documents. • Be careful not to get neckties, necklaces, etc. entan- gled in the scanner when removing the jammed docu- ments.
Page 98 1. Remove all documents from the ADF paper chute. 2. Open the ADF by pushing down the ADF button. 3. Remove the remaining documents. 4. Push in the center of teh ADF to close it until the ADF button is locked. fi-4530C Image Scanner Operator’s Guide...
Page 99: Remedying Common Troubles
Remedying Common Troubles This section describes troubles that may occur during scanning and how to remedy them. Before you ask for repair service, check the following flowcharts. If you cannot solve the problem after checking the remedies in the flowcharts, check the items in "5.3 Items to check before contacting the agent where you bought the scanner"...
Page 100 The scanner operation is Does the display remain blank normal. even after you have turned on the power again? Contact the manufacturer’s authorized service center. fi-4530C Image Scanner Operator’s Guide...
Page 101 Symptom 3 The scanning does not start. Are the documents loaded correctly Load the documents correctly on the ADF paper chute? on the ADF paper chute. Is the ADF closed completely? Remove all documents from the ADF paper chute. Then open and close the ADF.
Page 102 Is halftoning or dithering selected? on your PC. Is the glass clean? Clean dirty locations.(*) Contact the manufacturer’s authorized service center. *) For details on how to clean dirty locations, refer to "3 DAILY CARE" on page 51. fi-4530C Image Scanner Operator’s Guide...
Page 103 Symptom 5 Quality of scanned text or lines is not satisfactory. Clean dirty locations.(*) Is the glass clean? Contact the manufacturer’s authorized service center. *) For details on how to clean dirty locations, refer to "3 DAILY CARE" on page 51.
Page 104 Contact the manufacturer’s authorized service center. *) For details on how to clean dirty locations, refer to "3 DAILY CARE" on page 51. fi-4530C Image Scanner Operator’s Guide...
Page 105 Symptom 7 Vertical lines appear in the scanned image. Are the lines black? Clean the glass.(*) Contact the manufacturer’s authorized service center. *) The ADF glass, refer to "3.2 Cleaning the ADF" on page 54.
Page 106 Symptom 8 after the scanner is turned ON. Turn the scanner OFF and then The scanner operation is ON again. normal. Does the Function No. display still indicates the alarm? Contact the manufacturer’s authorized service center. fi-4530C Image Scanner Operator’s Guide...
Page 107 Do paper jams (double-feed, etc.) Symptom 9 occur frequently? Do the documents satisfy the Use documents that satisfy conditions described under the the requirements. (*1) "Precautions" in "6.2 Document Paper Quality"? Fulfill the double-feed When the double-feed detection is detection conditions. (*2) ON, are the double-feed detection conditions fulfilled?(*2) Fan the documents before...
Page 108 *4) For details on how to replace the Pad ASSY, refer to "4.2 Replacing the Pad ASSY" on page 67. *5) For details on how to clean the Ultra sonic sensor, refer to the "3.2 Cleaning the ADF" on page 54. fi-4530C Image Scanner Operator’s Guide...
Page 109 Symptom10 Do pickup errors occur frequently? Do the documents satisfy the Use documents that satisfy conditions described under the the requirements. (*1) "Precautions" in "6.2 Document Paper Quality"? Fan the documents before Were the documents fanned loading, or reduce the before loading into the ADF paper number of sheets of the chute?
Page 110 *) For details on how to clean the rollers, refer to "3.2 Cleaning the ADF" on page 54. fi-4530C Image Scanner Operator’s Guide...
Page 111 Continued from the previous page Windows 95/ Windows NT 4.0 Is the Scanner Control Center icon displayed in the task tray? Select [FUJITSU Scanner Control Center] from the Start menu and run it. Right click the Scanner Control Center icon and select [Options] then adjust the scan scale.
Page 112 [Sub-scan Setting]. Select [FUJITSU Scanner Control Center] from the Start menu and run it. Right click the Scanner Control Center icon and select [Options] then adjust the [Sub-scan Setting]. fi-4530C Image Scanner Operator’s Guide...
Page 113: Items To Check Before Contacting The Agent Where You Bought The Scanner
Check the following items before you contact the agent where you bought the scanner. ■ General Details Item Findings Model (Example) fi-4530C For details on the model, refer to "5.4 Checking Labels on the Scanner" on page 100. Serial No. (Example) 000001 For details on the serial No., refer to "5.4 Checking...
Page 114 (Example) made by Adaptec SCSI Card 2940AU ® OS (Windows Application software (Example) ScandAll 21, Acrobat • Others Item Findings Can both the original document and the scanned image be sent to us by e-mail or Fax? fi-4530C Image Scanner Operator’s Guide...
Page 115: Checking Labels On The Scanner
Checking Labels on the Scanner ■ Positions of Labels on the Scanner Label B Label A Label A (example): Indicates scanner information. ****** Label B (example): Indicates various standards that the scanner conforms with.
Page 116: Document Specifications For The Adf
ADF. 6.1 Document Size ....................102 6.2 Document Quality ....................103 6.3 Maximum ADF Capacity ..................106 6.4 Area not to be perforated ................... 107 6.5 Double-feed Detection Conditions ..............108 fi-4530C Image Scanner Operator’s Guide...
Page 117: Document Size
Document Size The following shows the size of documents that can be scanned. Feeding Direction Maximum Minimum 297 (11.7 in.) 609.6 (24 in.) 51 (2.0 in.) 74 (2.9 in.) (Unit : mm)
Page 118: Document Quality
Paper thickness is expressed by "paper weight." The following shows the paper weights that can be used on this scanner: • 52 g/m to 127 g/m (13.9 lb to 34.0 lb) Only a paper weight of 127 g/m (34.0 lb) is allowed for A8-size documents. fi-4530C Image Scanner Operator’s Guide...
Page 119 ■ Precautions The following documents may not be scanned successfully. • Documents of non-uniform thickness (e.g. envelopes) • Wrinkled or curled documents (Refer to HINT on page 105.) • Folded or torn documents • Tracing paper • Coated paper • Carbon paper •...
Page 120 Make sure that curling at the leading edge is within the fol- HINT lowing tolerances: More than 30mm Feed direction Less than Top of the paper Read surface Feed direction Less than Top of the paper Read surface fi-4530C Image Scanner Operator’s Guide...
Page 121: Maximum Adf Capacity
Maximum ADF Capacity The maximum number of sheets that can be loaded on the ADF paper chute is determined by the size and weight of the documents. The following graph shows the maximum document loading capacity of ADF according to paper weight. A4/Letter or smaller A3/11 in.
Page 122: Area Not To Be Perforated
When using the ADF, document trouble might occur if there is any punched hole in the shaded area in the following figure. Read reference position Top of paper Front side Feeding direction Bottom of paper Center of paper (Unit : mm) fi-4530C Image Scanner Operator’s Guide...
Page 123: Double-Feed Detection Conditions
Double-feed Detection Conditions Select one of the following: • Check overlapping • Check length • Check overlapping and length The following condition is required when any of the above options is selected: ■ Check overlapping Paper weight 52 g/m - 127 g/m (13.9 lb to 34.0 lb) Punched holes are not allowed within 35 mm (1.4 in.) of the vertical centerline of the doc- ument.
Page 124 6.5 Double-feed Detection Conditions When the overlapping check is specified, the papers which contact closely each other, such as glued paper or electro-statically charged paper, can HINT result in the miss-detection of double-feed. fi-4530C Image Scanner Operator’s Guide...
Page 126: Chapter 7 Scanner Specifications
Chapter 7 SCANNER SPECIFICATIONS This chapter lists the scanner specifications. 7.1 Basic Specifications ................... 112 7.2 Installation Specifications.................. 114 7.3 External Dimensions ..................115 fi-4530C Image Scanner Operator’s Guide...
Page 127: Basic Specifications
Basic Specifications Item Specification Scanner Type (Automatic Document Feeder) Image sensor CCD x 2 Front / Back Light source Incandescent cold cath- Front / Back ode fluorescent lamp x 2 Scanning area Minimum A8 portrait 127 g/m paper Maximum A3 / 11 in. x 17 in. US Ledger Paper Weight (Note(*1))
Page 128 *3) The maximum stacking capacity varies according to the document thickness. For details, refer to "6 DOCUMENT SPECIFICATIONS FOR THE ADF" on page 101 *4) The Ultra SCSI and USB2.0/1.1 interfaces cannot be used at the same time. fi-4530C Image Scanner Operator’s Guide...
Page 129: Installation Specifications
Installation Specifications Item Specification Dimensions Depth Width Height (Without ADF paper chute and Stacker) 225 mm 399 mm 193 mm (8.9 in.) (15.7 in.) (7.6 in.) Installation Space 800 mm (31.5 in.) x 500 mm (19.7 in.) x 500 mm (D x W x H) (19.7 in.) Weight...
Page 130: External Dimensions
7.3 External Dimensions External Dimensions The following shows the external dimensions of the fi-4530C. 399 (15.7") 225 (8.8") 457 (17.9") (Unit : mm) fi-4530C Image Scanner Operator’s Guide...
Page 132: Appendix A Before Using The [Scan] Or The [Send To] Button
The events available for this function are: - Scan button (When pushing the [Scan] button) - Feeder loaded with paper (When setting the documents in the ADF) - Send to 1-9 (When pushing the [Send] to button) AP-1 fi-4530C Image Scanner Operator’s Guide...
Page 133 5. Select the application with its process, excuted by the event. For Windows XP, click [Start this program] under [Actions] and select the application and process from the menu. 6. Click [OK] button. A window may appear when documents are set on the ADF. If you wish not to display this window, select [Feeder loaded with paper] HINT from [Select an event] and click [Take no action], then click [OK].
Page 134 ■ For Windows 95, WindowsNT 4.0 1. Right click the [FUJITSU Scanner Control Center] in the task tray and select [Option]. 2. Select the event for starting up the application from the [Event] menu. The events available for this function are:...
Page 135: Appendix B Glossary Of Terms
APPENDIX B GLOSSARY OF TERMS A4 size A standard paper size. Paper size is 210 x 297 mm. A5 size A standard paper size. Paper size is 148 x 210 mm. A6 size A standard paper size. Paper size is 105 x 148 mm. A7 size A standard paper size.
Page 136 Image emphasis Density is decreased for lighter but not completely white areas adjacent to black areas. Weakening this emphasis eliminates spot noise or produces softened images. Image processing An image is read with specified parameters. AP-5 fi-4530C Image Scanner Operator’s Guide...
Page 137: Mirror Image
Interface The connection that allows communication from one part of a system to another. For example, electrical signals are transferred between the computer and scanner over an interface cable. Inversion (Reverse-image reading) In reverse-image reading, data is changed from black to white and vice versa. IRAS Initialization of the hardware.
Page 138 An error correctable by the operator. Time-out limit This is the time the scanner waits for next document insertion after the last document feeding. The scanner returns Paper Empty when no document is set after time-out limit. AP-7 fi-4530C Image Scanner Operator’s Guide...
Page 139 AP-8...
Page 140: Index
INDEX FUJITSU ISIS Scanner Driver ....15 FUJITSU TWAIN32 Scanner Driver ..9 Before using the (Scan) or the (Send to) button ..............1 Glass ............58 Checking Labels on the Scanner ..100 Cleaning Materials ........52 How to use the Scanner Driver ....
Page 141 Scanning Documents longer than A3 size 32 Scanning Documents with different Widths Scanning double sided Documents ..26 Scanning thin Documents ....... 29 Setting Window for FUJITSU TWAIN32 Scan- ner Driver ..........12 Sheet guide ..........58 Side guide ..........5 IN-2...
Page 142 Image Scanner Operator's Guide P3PC-E577-01EN Date of issuance: May, 2003 Issuance responsibility: PFU LIMITED The contents of this manual are subject to change without notice. PFU LIMITED assumes no liability for incidental or consequential damages arising from the use of this manual, and any claims by a third party.

Fujitsu fi-4530C Operator's Manual

Chapter 1 BASIC SCANNER OPERATIONS

Chapter 2 SCANNING VARIOUS TYPES of DOCUMENTS

Chapter 3 DAILY CARE

Chapter 4 REPLACING CONSUMABLES

Chapter 5 TROUBLESHOOTING

Chapter 6 DOCUMENT SPECIFICATIONS for the ADF

Chapter 7 SCANNER SPECIFICATIONS

APPENDIX A before Using the [Scan] or the [Send To] Button

Appendix B Glossary of Terms

Quick Links

Related Manuals for Fujitsu fi-4530C

Summary of Contents for Fujitsu fi-4530C

Table of Contents
