M3093GX\DG\M3096G\GX\M3097G+\DG
Fi-4340C\Fi-4530C\Fi-4640S\M4097D\Fi-4750C\L\Fi-5750 SCSI
Step A: Required hardware.
To install these models you will need a Narrow SCSI 50-pin controller and six foot (maximum)
Narrow SCSI cable.
Step B: Removing the shipping bracket.
It is recommended that before you connect the scanner to your computer that you inspect the
scanner and remove the shipping bracket first.

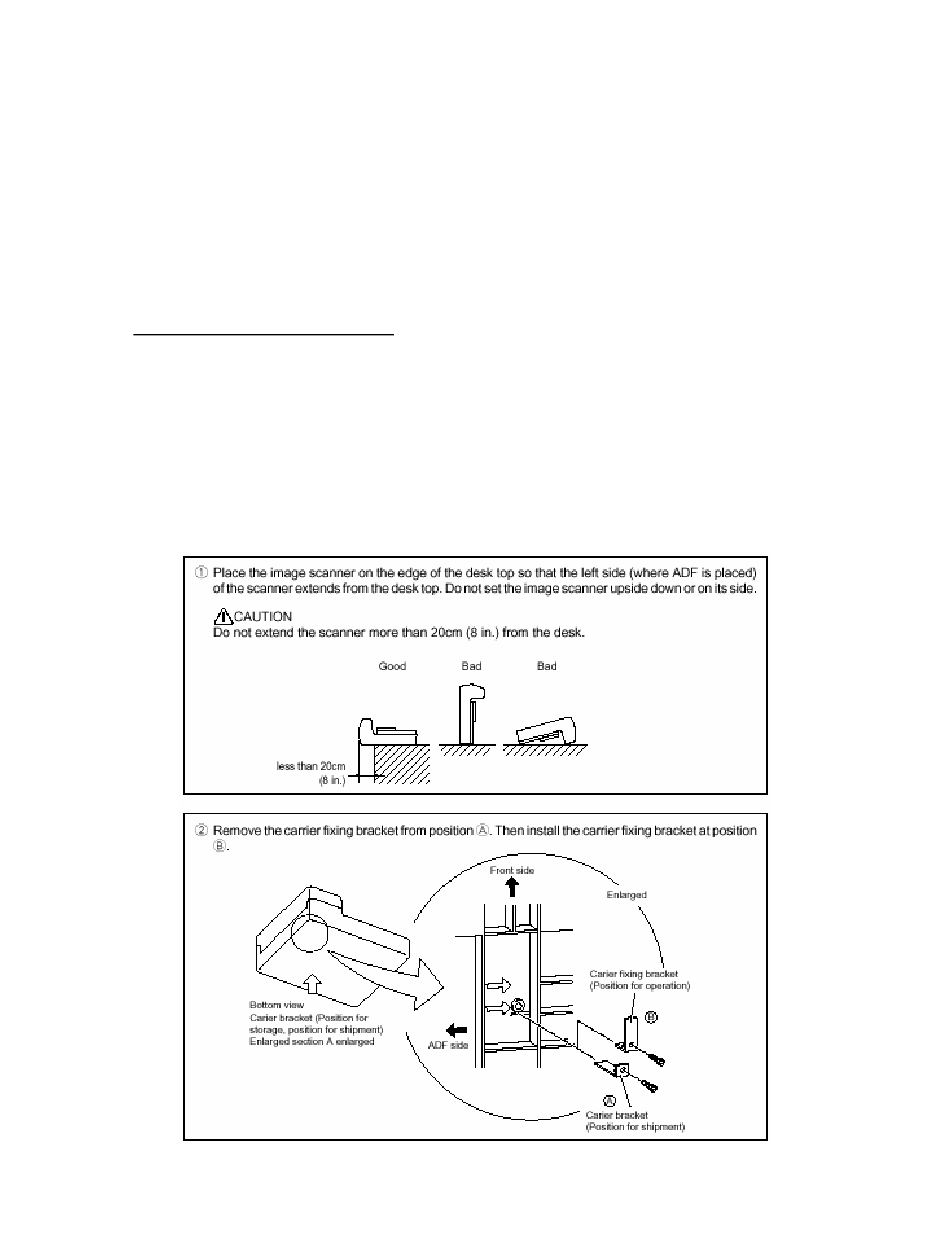

Removing the shipping bracket: The flatbed scanner models typically come with a
factory installed shipping lock designed to protect the scanner during shipment. Before
the scanner can be used the shipping lock must be unlocked. Follow these instructions
to unlock the shipping bracket:
1. Slide the scanner to its side as shown in figure below.
2. Unscrew the retainer screw and remove the shipping bracket.
3. Place the shipping bracket in the "use position" slot and secure it with the retainer
screw (see figure below)
Place scanner back in its normal position
4.
Win95\98\ME Installation Procedure
Rev052104A
Advertisement
Related Manuals for Fujitsu M3093GX
Summary of Contents for Fujitsu M3093GX
- Page 1 M3093GX\DG\M3096G\GX\M3097G+\DG Fi-4340C\Fi-4530C\Fi-4640S\M4097D\Fi-4750C\L\Fi-5750 SCSI Win95\98\ME Installation Procedure Step A: Required hardware. To install these models you will need a Narrow SCSI 50-pin controller and six foot (maximum) Narrow SCSI cable. Step B: Removing the shipping bracket. It is recommended that before you connect the scanner to your computer that you inspect the scanner and remove the shipping bracket first.
- Page 2 (see figure 2-3). Setting the SCSI ID to 0, 1, or 7 is NOT recommended as these settings are typically reserved for hard drives and the SCSI host adapter. Setting Termination: The Fujitsu M3093GX\M3096G\GX\M3097G+\DG scanners come with a plug in SCSI terminator (see figure below). The Fi-4340C\Fi-4640S\M4097D\Fi- 4750C\L scanners come with built in termination that is turned on or off through the scanner panel.
- Page 3 M3093GX\DG\M3096G\GX\M3097G+\DG Fi-4340C\Fi-4530C\Fi-4640S\M4097D\Fi-4750C\L\Fi-5750 SCSI Win95\98\ME Installation Procedure Connecting SCSI cable: Located on the back of the scanner are the SCSI ports. Depending on the model the ports may be either a High Density 50-pin (HD-50) or a 50- pin Centronics. Use the appropriate cable to connect the scanner to the SCSI controller in your PC.
- Page 4 Step G: Installing the STI-Twain driver for the Fi-4340C\Fi-4530C\Fi-4640S\M4097D\ Fi-4750C\L\Fi-5750. Special note: Use the ASPI-Twain driver for the M3093GX\DG\M3096G\GX\M3097G+\DG. 1. Create a new folder and name it Twain Download. 2. Next go to our Web page - www.fcpa.com...
- Page 5 2. After the Untitled Screen has open, click on Scan and choose Select Source. 3. Select the Fujitsu Twain source for your scanner by highlighting it and clicking OK. You will only need to do this once unless you are scanning with multiple sources.
