Invacare 1048085 Assembly, Installation And Operating Instructions

Quad Cane Camlock Replacement Kit
Assembly, Installation and Operating Instructions
Model Nos. 1055948
NOTE: Check ALL parts for shipping damage. In case of shipping damage, DO NOT use. Contact
Carrier/Dealer for further instructions.
To ensure the safe and proper installation of the Quad Cane Camlock, these instructions
Must be followed:
DO NOT use this equipment without first reading and understanding this instruction
sheet. If you are unable to understand the warnings, cautions and instructions, contact
a healthcare professional, dealer or technical personnel if applicable, before
attempting to install this equipment - otherwise, injury or damage may occur.
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.
Camlock MUST be properly engaged (locked) during use.
Double-button MUST be fully engaged and protruding through height adjustment
hole on cane handle to ensure a positive lock.
ALWAYS test to see that the cane handle is properly and securely locked in place
before using. This will ensure that camlock is secure.

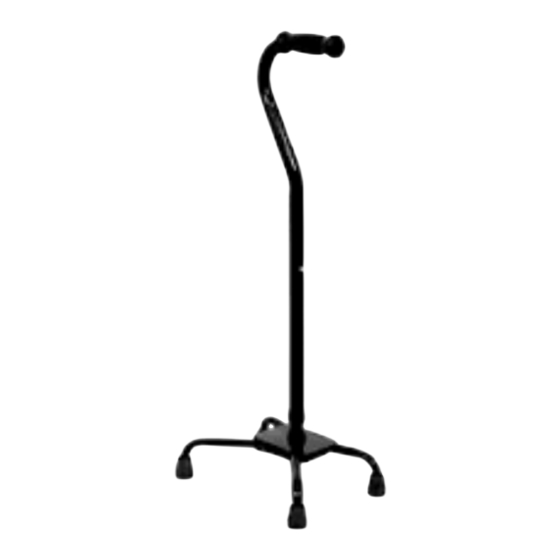

Quad Canes are designed to provide ambulatory assistance to an individual weigh-
ing up to 250 lbs. (113.6 kg.). The replacement camlock does not in any way change
the weight limitation of your quad cane.
Description of Kit
ITEM
1048085
1048086
Assembling the Camlock
NOTE: For this procedure, refer to Detail "A" of FIGURE 1 on page 2.
1. Soak camlock housing in warm water for approximately 10 minutes.
NOTE: Soaking will allow the housing to soften adequately to aid in installation.
2. Remove housing from water.
3. Insert cam lever into camlock housing, handle first, through cutout in camlock housing.
4. Rotate cam lever 90° until the rear (round) portion of the cam lever is positioned into
the recess of the cam housing with large tab on rear of cam lever facing down.
For more information regarding Invacare products, parts, and services,
Part No 1055947
SAVE THESE INSTRUCTIONS

Safety Summary

WARNING
DESCRIPTION
Cam Lever
Cam Housing
please visit www.invacare.com
1
QTY
1
1
Quad Cane Camlock Replacement Kit
