Sony MDX-C5960R Service Manual

Fm/am (mw/lw) minidisc player
Hide thumbs Also See for MDX-C5960R:
Table of Contents

Advertisement

Quick Links

MDX-C5960R/C5970/C5970R
SERVICE MANUAL
MICROFILM

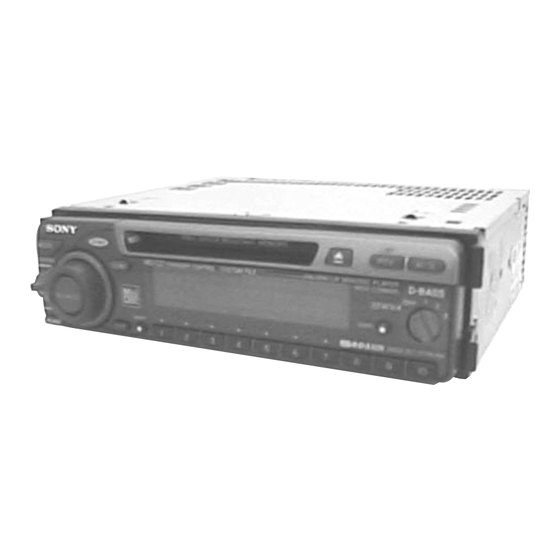

Photo: MDX-C5960R
Model Name Using Similar Mechanism
Base Mechanism Type
Optical Pick-Up Name
SPECIFICATIONS
FM/AM (MW/LW) MINIDISC PLAYER
German Model
MDX-C5960R
US Model
Canadian Model
E Model
MDX-C5970
AEP Model
UK Model
MDX-C5970R
MDX-C7900/C7900R
MG-164N-138
KMS-241B/J1NP
– Continued on next page –
