In Focus Corporation: 27700B SW Parkway Avenue • Wilsonville , Oregon 97070-9215
Phone: 503-685-8888 • 1-800-294-6400 • Fax: 503-685-8887
In Europe: Olympia l • NL-1213 NS Hilversum, The Netherlands
Phone: (31) 35 6474000 • Fax: (31) 35 6423999
Freephone: 008000 4636287 (008000 INFOCUS)
In Asia: 238A Thomson Road • #18-01/04 Novena Square
Singapore 307684 • Telephone: (65) 334-9005 • Fax: (65) 334-4525
User's Guide 010-0298-00
010-0298-00
QR50271
Part No.010-0298-00
DP6860 User's Manual.qxd
Printed in Japan
Advertisement
Table of Contents
Related Manuals for Proxima liquid crystal
Summary of Contents for Proxima liquid crystal
- Page 1 In Europe: Olympia l • NL-1213 NS Hilversum, The Netherlands Phone: (31) 35 6474000 • Fax: (31) 35 6423999 Freephone: 008000 4636287 (008000 INFOCUS) In Asia: 238A Thomson Road • #18-01/04 Novena Square Singapore 307684 • Telephone: (65) 334-9005 • Fax: (65) 334-4525...
-
Page 3: Table Of Contents

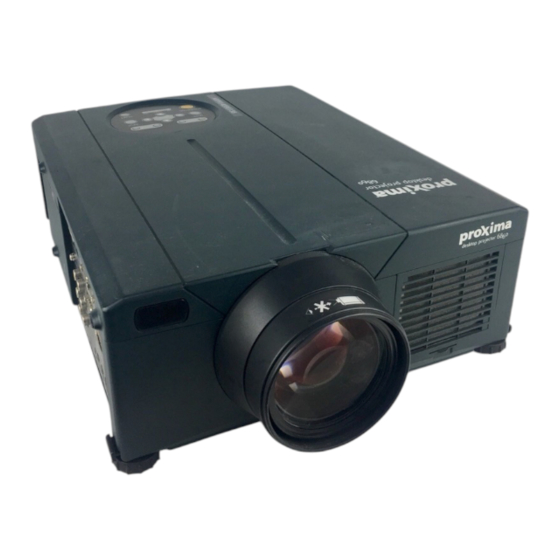

Liquid Crystal Projector USER'S GUIDE USER'S GUIDE WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S GUIDE” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. -
Page 4: Features
FEATURES FEATURES Outstanding Brightness Partial Magnification Function Distortion Correction Function BEFORE USE BEFORE USE Contents of package • NOTE Projector Digital RGB Cable User's Guide (this manual) Safety Instruction Quick Start Guide Registration Card ENGLISH-2 Power Cord Power Cord (Europe Type) -
Page 5: Part Names
Part Names ZOOM Button MUTE Button STANDBY/ON Button LAMP Indicator POWER Indicator Remote Control Sensor Lens Foot Adjuster Lens Cap Remote Control Sensor Speaker Power Switch AC Inlet (to Power Cord) DIGITAL Terminal S-VIDEO Terminal VIDEO Terminal AUDIO(MONO)/L Terminal AUDIO R Terminal USB Terminal ZOOM FOCUS... - Page 6 Part Names (continued) STANDBY/ON Button BLANK Button Disk Pad Used to operate the mouse shift function and left click function. AUTO Button MENU Button MENU SELECT Button Used to click the left mouse button. Button Used to operate the mouse shift function. PinP Button MAGNIFY Button REMOTE CONTROL TRANSMITTER...
-
Page 7: Loading The Batteries
Loading the Batteries CAUTION • Use only the specified batteries with this remote control transmitter. Also, do not mix new and old batteries. This could cause battery cracking or leakage, which could result in fire or personal injury. • When loading the batteries, make sure the plus and minus terminals are correctly oriented as indicated in the remote control transmitter. -
Page 8: Installation
• Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and become the cause of damage. -
Page 9: Cabling
• Before connecting, turn off to all devices to be connected, except for the USB cable. • The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified. -
Page 10: Power Connection
Power Connection CAUTION • Be carful in handling the power cord according to instructions of the accompanying manual "SAFETY INSTRUCTIONS" and this manual. • Connect the power cord firmly. Avoid using a loose, unsound outlet or contact failure. Example of system setup Computer (desktop type) S-Video Tape... -
Page 11: Operations
OPERATIONS OPERATIONS POWER Indicator FOCUS button Power Switch Power ON Power OFF WARNING • Please read this manual, and the separate “SAFETY INSTRUCTIONS” thoroughly before using the equipment. Always ensure that the equipment is used safely. NOTE STANDBY/ON Button ZOOM button FOCUS button Lens cap ZOOM button... -
Page 12: Basic Operation
Basic Operation Table 3 . Basic Operation Item Select Input Signal ( RGB IN 1 → RGB IN 2 → DIGITAL → VIDEO → S-VIDEO → COMPONENT VIDEO (→ RGB IN 1) Select RGB Input : Press the RGB button. VIDEO/S-VIDEO/COMPONENT VIDEO →... - Page 13 Table 3. Basic Operation (continued) Item VOLUME Volume Adjustment : Press the VOLUME Set/Clear Mute Mode : Press the MUTE button. No sound is heard in the MUTE ( MUTE mode. Automatic Adjustment at RGB Input : Press the AUTO button. Horizontal position(H.POSIT), vertical position (V.POSIT),clock phase (H.PHASE), and horizontal size(H.SIZE) are automatically adjusted.
-
Page 14: Setup Menu
Setup Menu Table 4. Setup Menu Item Adjustment: Dark BRIGHT Adjustment: Weak CONTRAST Adjustment: Down V POSIT Adjustment: Left H POSIT Adjustment: Left H PHASE • Adjust to eliminate flicker. Adjustment: Small • The image may not be displayed correctly if the horizontal H SIZE size is excessive. -
Page 15: Input Menu
Input Menu Table 5. Input Menu Item Automatic Adjustment at RGB Input: Select the EXECUTE with the button. Horizontal position (H.POSIT), vertical position (V.POSIT), clock phase (H.PHASE), and horizontal size (H.SIZE) are automatically adjusted. Use with the window at maximum size in the application display. Automatic Adjustment at Video Input: Select the EXECUTE with the AUTO button. -
Page 16: Image Menu
Image Menu Table 6. Image Menu Item Keystone Adjustment: Reduce size of bottom of image KEYSTONE • When this function is activated, the image may not be displayed correctly with some input signals. Select Blank Screen Color: Select color with the BLANK •... -
Page 17: Options Menu
Options Menu Table 7. Options Menu Item VOLUME Volume Adjustment: Reduce VOLUME MENU COLOR Select Menu Background Color: Select with the Operation Start/Stop: Press the LANGUAGE Select Menu Display Language: Select with the Operation Start/Stop: Press the Set AUTO OFF: Set 1~99 minutes with the system automatically enters the standby mode when a signal is not AUTO OFF received for the set time. -
Page 18: No Signal Menu
No Signal Menu Table 8. No Signal Menu Item Volume Adjustment: Reduce VOLUME • When this function is used, audio input is automatically switched to video. The VOLUME audio input can be switched by moving the DISK PAD left and right during the display of the volume adjustment bar. -
Page 19: Maintenance
• Do not use the projector with the lamp cover removed. Lamp Life • NOTE... - Page 20 Replacing the Lamp CAUTION • Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents. • Do not use the projector with the lamp cover removed. Resetting the Lamp Timer • NOTE ENGLISH-18 ENGLISH-18...
-
Page 21: Air Filter
• Do not use the equipment with the air filter removed. • When the air filter is clogged with dust etc. the power supply is switched OFF automatically to prevent the temperature rising inside the projector. Other Maintenance Maintenance Inside the Equipment... -
Page 22: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING OSD Message Table 9. OSD Messages Message CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. THE POWER WILL TURN OFF AFTER CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. -
Page 23: Indicators Message
Indicators Message Table 10. Indicators Message POWER LAMP TEMP indicator indicator indicator Lights Turns off Turns off The Standby mode has been set. orange Blinks Turns off Turns off Warming up. Please wait. green Lights Turns off Turns off ON. Normal operation possible. green Blinks Turns off Turns off Cooling. -
Page 24: Symptom
ENGLISH-22 ENGLISH-22 Possible cause Turn on the main power switch. Plug the power cord into an AC power outlet. Use the projector or remote control transmitter to set. Connect correctly. Connect correctly. Press VOLUME control or display the menu screen and adjust the volume. -
Page 25: Specifications
Control functions Optional Parts • NOTE Specification Liquid crystal projector 3.3 cm (1.3 type) TFT active matrix 786,432 pixels (1024 horizontal x 768 vertical) Zoom lens F=1.7 ~ 2.3 f=49.0 ~ 64.0 mm 250 W UHB 1.2 W + 1.2W (Stereo) AC100 ~ 120V, 4.5A / AC220 ~ 240V, 2.2A... -
Page 26: Warranty And After-Service
WARRANTY AND AFTER-SERVICE WARRANTY AND AFTER-SERVICE ENGLISH-24 ENGLISH-24...
