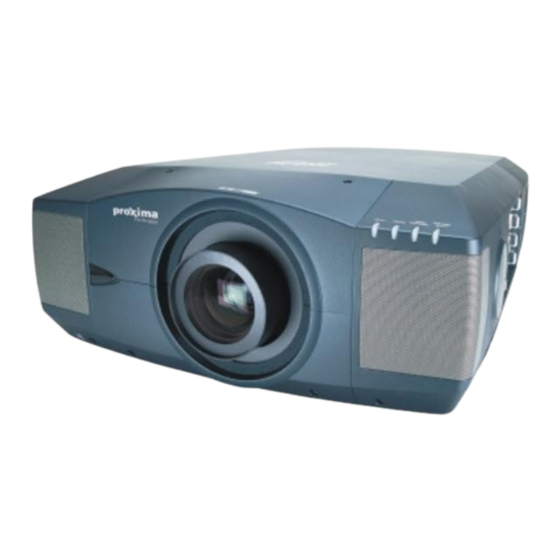

- Page 1 Pro AV 9350 THIS IS TENTATIVE SAMPLE. ® Projection lens is optional. English Deutsch Français Italiano Español PRESENTATIONS WORKING SESSIONS TRAINING MULTIMEDIA ANIMATION VIDEO...
-
Page 2: To The Owner
Heat build-up can reduce the service life of your projector, and can also be dangerous. Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes. The Remote Control Unit, supplied to this projector, emits the laser beam as the Laser Pointer function from the Laser Light Window while pressing the LASER button (for 1 minute). - Page 3 Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector.
-
Page 4: Federal Communication Commission Notice
AC POWER CORD REQUIREMENT The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada : AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). -
Page 5: Table Of Contents
TABLE OF CONTENTS FEATURES AND DESIGN PREPARATION NAME OF EACH PART OF THE PROJECTOR SETTING-UP THE PROJECTOR CONNECTING THE AC POWER CORD LENS INSTALLATION POSITIONING THE PROJECTOR LENS SHIFT ADJUSTMENT PICTURE LEVEL AND TILT ADJUSTMENT MOVING THE PROJECTOR CONNECTING THE PROJECTOR... -
Page 6: Features And Design
FEATURES AND DESIGN This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Compatibility This projector widely accepts various video and computer input signals including;... -
Page 7: Preparation
PREPARATION NAME OF EACH PART OF THE PROJECTOR FRONT OF THE CABINET INFRARED REMOTE RECEIVER PROJECTION LENS LENS COVER BACK OF THE CABINET EXHAUST VENT HOT AIR EXHAUSTED ! Air blown from the exhaust vent is hot. When using or installing the projector, the following precautions should be taken. -
Page 8: Setting-Up The Projector
NOTE ON THE POWER CORD The AC Power Cord must meet the requirement of the country where you use the projector. Confirm the AC plug type with the chart below and the proper AC power cord must be used. -
Page 9: Lens Installation
2. For installation, refer to the installation manual supplied to the Projector. When moving or setting up the projector, be sure to replace the Lens Cover to protect the surface. And be careful not to hold or subject the lens to strong forces. It may damage the lens, cabinet, or mechanical parts. -
Page 10: Picture Level And Tilt Adjustment
When carrying the projector, use a suitable carrying case. Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, consult your dealer and best case should be applied. -
Page 11: Connecting The Projector
TERMINALS OF THE PROJECTOR This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment. 4-built-in Terminal Slots enable you to arrange desired combinations of input sources just by changing Terminal Boards. - Page 12 (Refer to P14, 15.) INPUT 1/2/4 CONTROL PORT CONNECTORS When controlling the computer with the Remote Control of this projector, connect the mouse port of your personal computer to these connectors. (Refer to P14.) INPUT 3 S-VIDEO INPUT JACK...
- Page 13 OUT analog RGB reset (mono) This projector uses a micro processor to control the unit. Occasionally, the micro processor may malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit.
-
Page 14: Connecting To The Computer
MAC/VGA Adapter 2 3 4 5 6 Set the switches as shown in the table below depending on the RESOLUTION MODE that you want to use before your turn on the projector and computer SWITCHES MODE 13"MODE (640 x 480) OFF OFF OFF OFF 16"MODE (832 x 624) -
Page 15: Connecting To The Video Equipment
Cables used for connection • Video Cable (BNC x 1, BNC x 2 or BNC x 3) • S-VIDEO Cable • Audio Cable (RCA x 2) ( = Cables are not supplied with this projector.) Video Source (example) Video Cassette Recorder Composite... -
Page 16: Before Operation
MENU. It is also used to pan the image in DIGITAL ZOOM mode. (P34) REAR INDICATORS SIDE CONTROLS POWER ON–OFF BUTTON Used to turn the projector on or off. (P23) power LENS SHIFT BUTTONS Used to select LENS SHIFT function. (P24) input 1/2... - Page 17 WARNING TEMP. INDICATOR READY INDICATOR This indicator lights green when the projector is ready to be turned on. And it flashes green in Power Management mode. (P39) REAR INDICATORS LAMP INDICATOR This indicator is dim when the projector is turned on.
-
Page 18: Operation Of The Remote Control
1 minute, release the button and press it again. LASER POINTER FUNCTION These caution labels are put on the remote control. POWER ON-OFF BUTTON Used to turn the projector on power or off. (P23) INPUT 3/4 BUTTON focus... -
Page 19: Operating Range
BEFORE OPERATION Operating Range Point the remote control toward the projector (Receiver Window) whenever pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front and rear of the projector. -
Page 20: Operating On-Screen Menu
BEFORE OPERATION OPERATING ON-SCREEN MENU HOW TO OPERATE THE ON-SCREEN MENU You can control and adjust this projector through the ON-SCREEN MENU. Refer to the following pages to operate each adjustment in the ON-SCREEN MENU. 1 MOVING THE POINTER Move the pointer (see the NOTE below) by pressing POINT button(s) on the SIDE CONTROL or the REMOTE CONTROL. -
Page 21: Menu Bar
MENU BAR IN COMPUTER MODE WHEN SELECT THE DVI TERMINAL INPUT MENU IMAGE MENU Used to adjust the Used to select computer image. the Input [Fine sync / Total dots / source. (Refer White Balance / Contrast / to P26) Brightness / Sharpness/ Gamma/Progressive] (Refer to P32) - Page 22 BEFORE OPERATION MENU BAR IN VIDEO MODE WHEN SELECT THE AV TERMINAL INPUT MENU Used to adjust the picture image. Used to select [Color / Tint / White Balance / Contrast the Input / Brightness/ Sharpness/Gamma / source. (Refer Noise Reduction / Progressive] to P26) (Refer to P37) INPUT SOURCE MENU...
-
Page 23: Basic Operation
TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF. When the Power Management function is ON, the Projector detects the signal interruption and turns the Projection Lamp off automatically. Refer to “Power Management” on page 39. -
Page 24: Adjusting The Image
BASIC OPERATION Press the ZOOM button(s) on the Side Control or on the Remote Control Unit. The message “Zoom” is displayed. Press the ZOOM button to make the image larger, and press the ZOOM button to make the image smaller. Press the FOCUS button(s) on the Side Control or on the Remote Control Unit. -
Page 25: Blank Function
Press the BLANK button on the Remote Control Unit to black out the image. This function is cancelled when the BLANK button is pressed again or any other function button is pressed. PICTURE FREEZE FUNCTION Press the FREEZE button on the Remote Control Unit to freeze the picture on-screen. This function is cancelled when the FREEZE button is pressed again or any other function button is pressed. -
Page 26: Menu Operation
BASIC OPERATION MENU OPERATION Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SOUND and press the SELECT button. Another dialog box SOUND ADJUST Menu will appear. Press the POINT DOWN button and a red-arrow icon will appear. -
Page 27: Computer Mode
COMPUTER MODE SELECTING COMPUTER SYSTEM WHEN SELECT THE INPUT 1 (DVI SLOT ) When connecting to the computer, select a computer signal type (Digital or Analog) in INPUT SOURCE Menu. Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select INPUT SOURCE and press the SELECT button. -
Page 28: Select Computer System Manually
(Setting of the Computer System may be required when connecting some computers.) Note : The projector may display one of the following messages. The projector cannot discriminate or detect the input Go to PC adj. -
Page 29: Compatible Computer Specifications
COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept the signal from all computers with the V, H-Frequency mentioned below and less than 202 MHz of Dot Clock. ON-SCREEN H-Freq. RESOLUTION DISPLAY VGA 1 640 x 480 31.47 VGA 2 720 x 400 31.47... -
Page 30: Pc Adjustment
However, some computers employ special signal formats which are different from the standard ones and may not be tuned by the Multi-Scan system of this projector. If this happens, the projector cannot reproduce a proper image and the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. - Page 31 Adjust the picture as necessary to eliminate flicker from the display. Display area Adjustment of the area displayed with this projector. Select the resolution at the Display area dialog box, or adjust the number at the column of “H” or “V” to match the resolution of the image.
-
Page 32: Picture Image Adjustment
Move the arrow to the function that you want to select and then press SELECT button. Standard Normal picture level preset on this projector. This picture level can be set by pressing the NORMAL button. Real Picture level adjusted for the picture with fine tone. -
Page 33: Normal Function
The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Side Control or on the Remote Control Unit). The “Standard” display will be displayed on the screen for a few seconds. -
Page 34: Picture Screen Adjustment
COMPUTER MODE PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN Menu will appear. -
Page 35: Video Mode
VIDEO MODE SELECTING VIDEO SOURCE WHEN SELECT THE INPUT 2 (5 BNC TERMINAL ) When connecting to those equipment, select the type of Input source in INPUT SOURCE Menu. Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select INPUT SOURCE and press the SELECT button. -
Page 36: Selecting Color System
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If the projector cannot reproduce the proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N. -
Page 37: Picture Image Adjustment
Move the arrow to the function that you want to select and then press SELECT button. Standard Normal picture level preset on this projector. This picture level can be set by pressing the NORMAL button. Cinema Picture level adjusted for the picture with fine tone. -
Page 38: Normal Function
PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SCREEN and press the SELECT button. -
Page 39: Setting
This function turns the Projection Lamp off when the projector detects signal interruption and the projector is not used for a certain period in order to reduce power consumption and maintain the Lamp-life. (This projector is shipped with this function ON.) Power Management function operates to turn the Projection Lamp off when the input signal is interrupted and the projector is not operated over 5 minutes. - Page 40 On Start function does not operate properly. Lamp Mode This Projector is equipped with 4 Projection Lamps and the number of using lamps can be switched to 4 lamps or 2 lamps. Using 2 lamps maintains the life of the Projection Lamps.
-
Page 41: Setting Language
Be sure to reset the Lamp Replacement Monitor Timer when the Lamp Assembly is replaced. When the Lamp Replacement Monitor Timer is reset, the LAMP REPLACEMENT indicator stops lighting. Turn the projector on, and press the MENU button and the ON- SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT button. -
Page 42: Appendix
OPERATING WIRELESS MOUSE The Wireless Remote Control Unit is not only able to operate the projector but also usable as a wireless mouse for most Personal Computers. The POINT buttons and the two CLICK buttons are used for the wireless mouse operation. -
Page 43: Maintenance
The Indicator stops flashing when the temperature of the projector returns to normal. When the TEMPERATURE WARNING Indicator continues to flash, check the items listed below. The Ventilation slots of the projector may be blocked. In such an event, reposition the appliance so that the ventilation slots are not obstructed. -
Page 44: Lamp Management
When any of 4 lamps becomes out, the Lamp Mode is changed over from 4 lamps to 2 lamps. And when any of 2 lamps are out, the projector operates with 1 lamp. Lamp Mode can be switched to 4 lamps or 2 lamps manually. Refer to... -
Page 45: Lamp Replacement
CAUTION For continued safety, replace with a lamp assembly of the same type. Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector can become very hot. Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury. -
Page 46: Troubleshooting
4. If the projector still does not display an image, re-start the computer. 5. If the image still does not display, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before you power up the projector. - Page 47 Make sure nothing is blocking between the remote control sensor and remote control unit. Make sure you are not too far from the projector when using the remote control unit. Maximum operate range 16.4 ' (5 m). Check the ALL-OFF switch on the Remote Control Unit is set to "ON".
-
Page 48: Technical Specifications
APPENDIX TECHNICAL SPECIFICATIONS Projector Type Dimensions (W x H x D) Net Weight LCD Panel System Number of Pixels Color System TV Signal Scanning Frequency Motorized Lens Shift Projection Lamp Input 1 Jack Input 2 Jack Input 3 Jack Input 4 Jack... - Page 49 CONFIGURATIONS OF THE TERMINALS DVI-I TERMINAL (DIGITAL/ANALOG) This terminal accepts only Digital (TMDS) or Analog (RGB) output signal. Connect the display output terminal of the computer to this terminal with the DVI cable (supplied). Pin Configuration C1 C2 HDB 15-PIN TERMINAL (ANALOG) Connect the display output terminal of the computer to this terminal with the VGA Cable (supplied).
- Page 50 APPENDIX SERIAL PORT IN/OUT TERMINAL Pin Configuration Connect the serial port output terminal of the computer to this terminal with the Serial Cable (not supplied). USB PORT TERMINAL Pin Configuration Connect the USB port output terminal of the computer or peripheral equipment to this terminal with the USB port Cable (not supplied).
- Page 51 Proxima warrants that the Proxima® Model Pro AV 9350 product manufactured by Proxima is free from defects in materials and workmanship under normal use during the Warranty Period. The Warranty Period commences on the day of purchase by the end-user. The Warranty Period is two years. The projector lamp is not covered by this Warranty.
- Page 52 Fax. (858) 457-9647 www.proxima.com <http://www.proxima.com> Part No. 710-XXXXX 10/2000 610 287 0558 (1AA6P1P2361-- ML6F) For Europe, Asia, Africa, Australasia: ASK Proxima ASA K. G. Meldahlsvei 9 Postboks 1403 N-1602 Fredrikstad tel. +47-69 34 01 55 fax. +47-69 34 06 32 Technical Support &...
