DISASSEMBLY INSTRUCTIONS

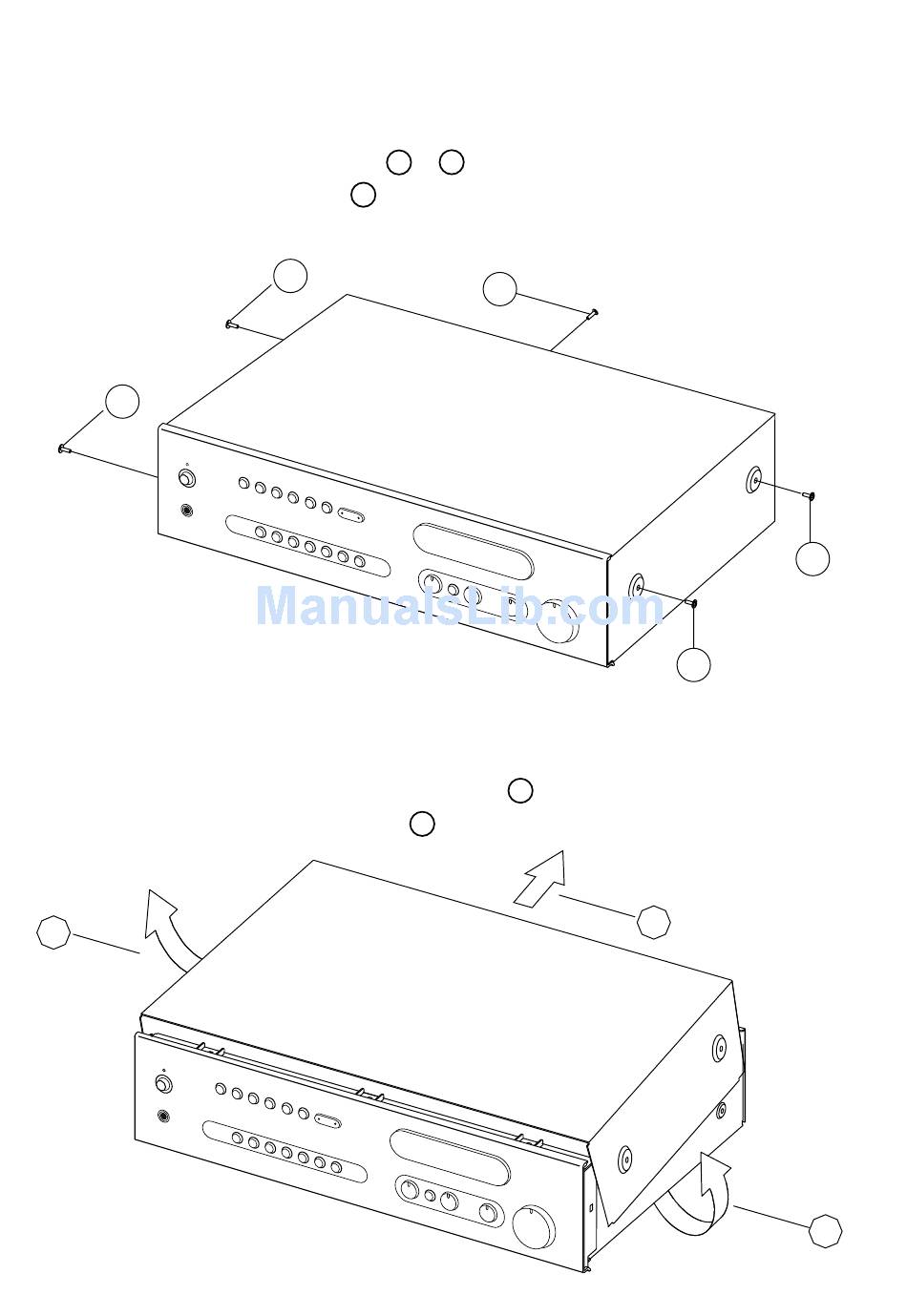

1. Remove machine screws M 4.0 x 6.0 ( 1 to 4 ) from the side panels.
Remove tapping screw 3.0 x 8.5 ( 5 ) from the back panel.
Refer to Figure No.1.
3
Figure No.1
2. Pull both sides of the TOP COVER slightly outwards 6 and tilt approx. 35˚ and then remove
in the direction as indicated by the arrow 7 . Refer to Figure No.2.
6
Figure No.2.
4
6
5
7
2
1
6
