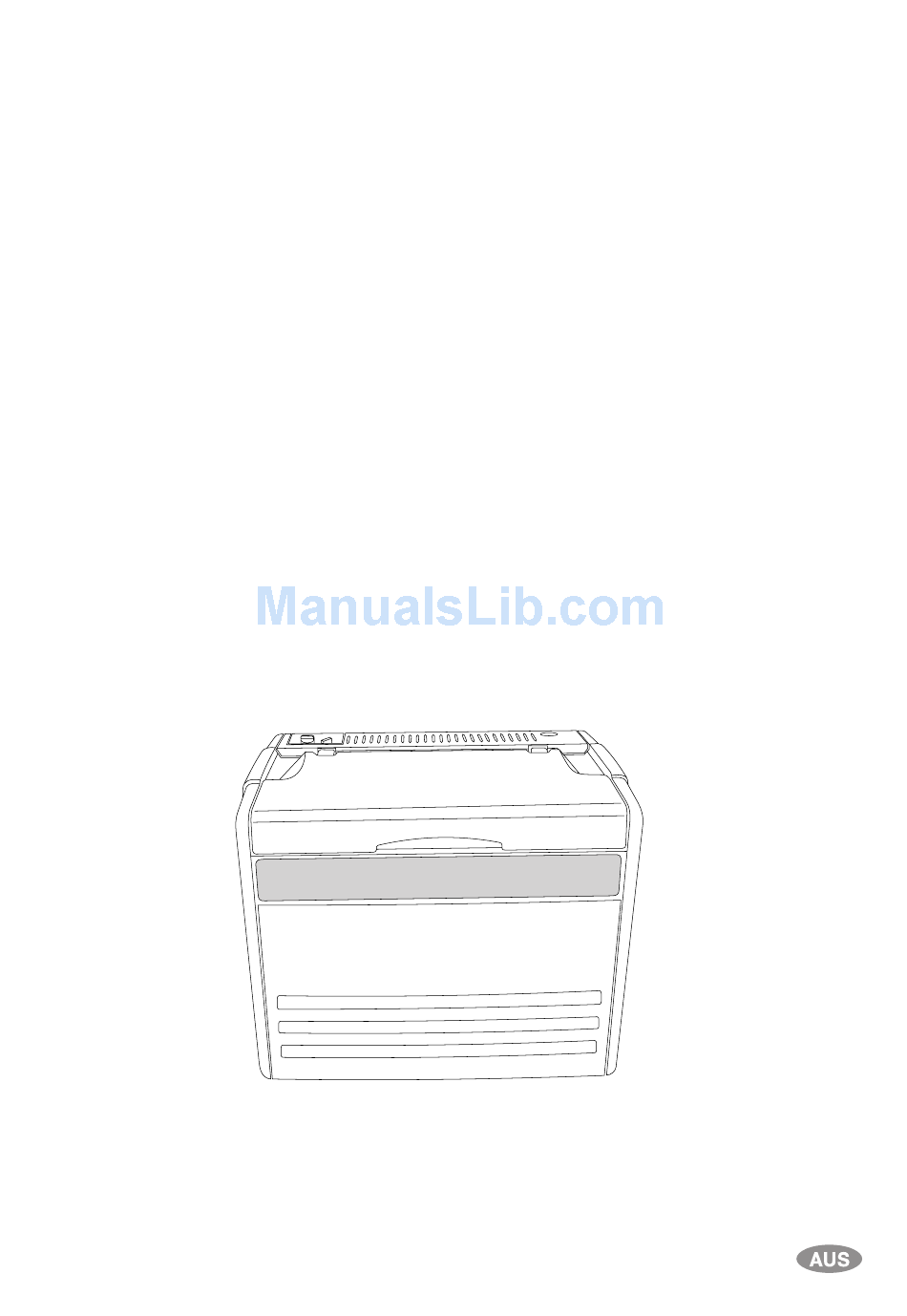

- Page 1 D D O O M M E E T T I I C C P P T T Y Y . . L L T T D D . . Explorer 3 Way Fridge Freezer F400 Operating Instructions 207.5055.02...
- Page 2 Please read these operating instructions carefully before putting the refrigeration unit into operation. If you later sell or dispose of it, please ensure that the new owner receives these operating instructions. Thank you for choosing our appliance. We are sure it will provide you with trouble-free use. In the following, we would like to familiarise you with some symbols, which we bring to your attention to ensure the safe and efficient operation of the appliance: source of danger, in event of improper operation...
-
Page 3: Table Of Contents
CONTENT CONTENT 1. Unpacking 2. View of the appliance 3. Cleaning 4. Positioning the appliance 5. Using the appliance 5.1. From 240 Volt electrical mains 5.2. From 12 Volt vehicle battery 5.3. From LP bottled gas 6. Useful suggestions 7. Defrosting, cleaning and maintenance 8. -
Page 4: Unpacking
1. Unpacking After removal from the cardboard packaging, make sure the appliance is not damaged. If you find damage to the appliance resulting from transport, report it immediately to the transportation firm. 2. View of the appliance Figure 1. 3. control panel 1. -
Page 5: Cleaning
3. Cleaning Clean both the inside and outside of the appliance before putting it into use. To do so, use a soft towel, lukewarm water and a non-abrasive detergent. Ensure water does not enter the rear cover grill or the control panel. Afterwards, wipe the appliance with a clean towel and cleanwater, and then wipe it dry. -
Page 6: From 12 Volt Vehicle Battery
5.2. Operating from 12 Volt vehicle battery Make sure the voltage shown on the data plate of the appliance matches the voltage of the vehicle battery (12V). In 12V operation, the appliance runs continuously without temperature control. The appliance is supplied with a matching pair of 12 Volt MALE + FEMALE plugs (see 9,2 connection to vehicle power source). -
Page 7: Useful Suggestions
Movements and shaking of the unit may cause these items to break. Once the F400 is in its permanent position, make sure foods do not come into contact with the evaporator panel, as this can cause freezer- burn to the foods. -
Page 8: Trouble Shooting
You must, in all instances, operate the appliance from a single energy source only. Connecting several energy sources at the same time will cause failure of the appliance. Technical data: Model F400 Type JCB-3 Gross volume 39 litre Mains operation... -
Page 9: Connecting To 12 Volt Vehicle Battery
The unit must not be connected to town or natural gas pipelines. It is only suitable for use with propane gas. The F400 is equipped for a specific gas-pressure, 2.75kPa (11” w. g.) . The rating-plate states the pressure that is correct. It is important that a non-... -
Page 10: Connection Of Gas Supply
Connection of gas supply The gas bottle (Propane) may only be used in an upright position and particular care must be taken Always connect in the following sequence: every time the appliance is connected to the gas GAS BOTTLE → PRESSURE-REGULATOR → bottle to ensure that there are no leaks, that the →... -
Page 11: Environmental Protection Information
10. Environmental protection information The appliance does not contain any CFCs. Ammonia (natural hydrogen and nitrogen compound) is used as a refrigerating agent in the refrigeration unit. The ozone-friendly cyclopentane is activated as a motive agent for the PU foam insulation. Sodium chromate is used for corrosion protection (less than 2 weight % of the coolant).
