GREEN TEA
Spread Lavatory Faucet with
Speed Connect™ Drain
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.
Speed Connect™ Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain. Heplful tips for
removing your current drain can be found in the Troubleshooting section of these instructions.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Recommended tools
Screwdriver
1

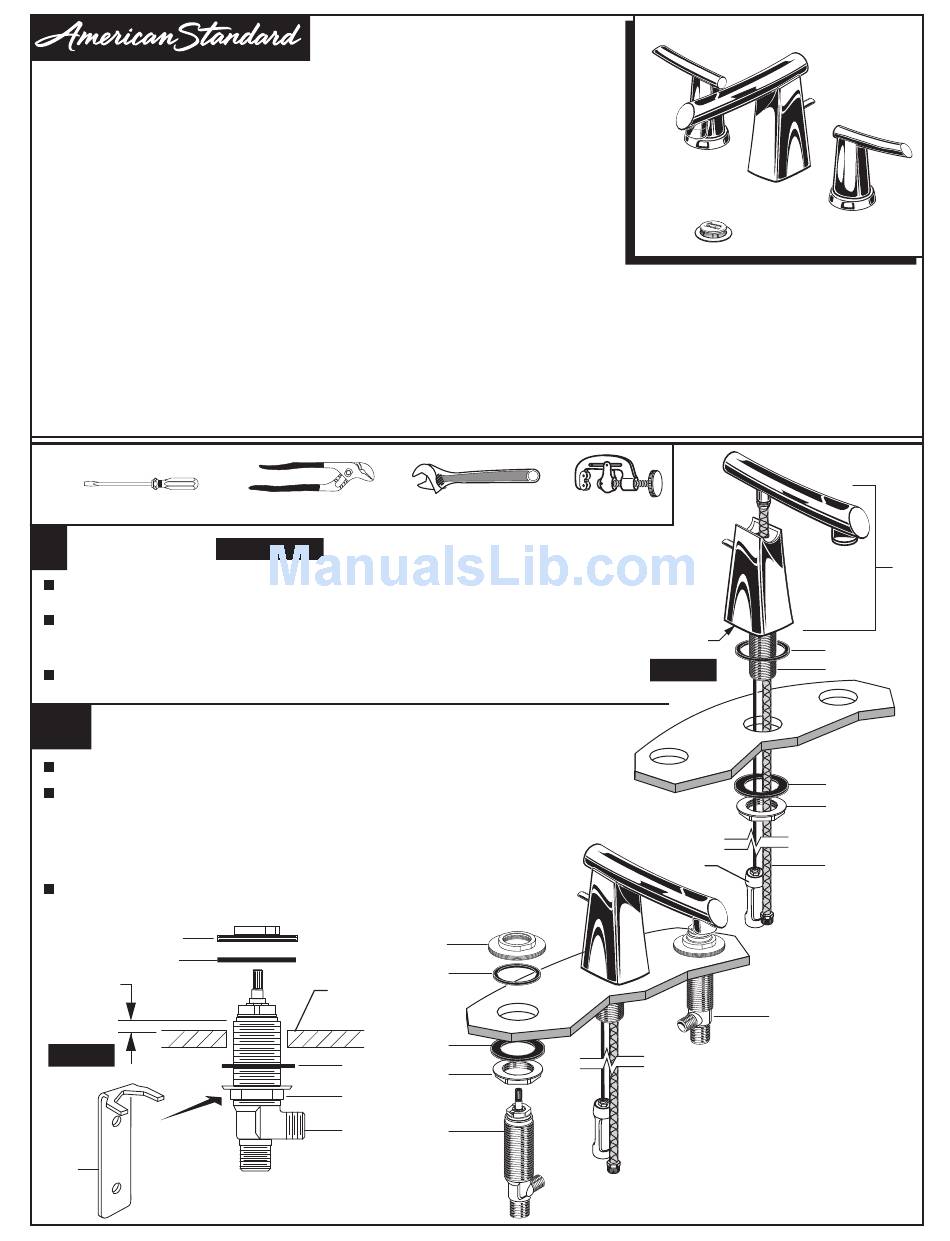

INSTALL SPOUT
Insert SPOUT (1), CABLE CONNECTOR (2) and SPOUT HOSE (3) through center hole,
making sure the SEAL WASHER (4) is properly seated in spout base.
Assemble RUBBER WASHER (5), LOCKNUT (6) onto SPOUT
SHANK (7) from under side of sink . Make sure SPOUT (1) is centered in the
mounting hole.
Tighten LOCKNUT (6) firmly. Fig. A.
1A
INSTALL VALVE BODIES
Place RUBBER RING (7) into DECK ADAPTER (8).
Install LOCKNUT (9) and RUBBER WASHER (10) onto VALVE BODY (11).
From under side of mounting surface, install VALVE BODY (11) through valve
mounting hole. Threads of VALVE BODY (11) should extent at least 5/16
of a inch above mounting surface top. Fig. B. Thread DECK ADAPTER (8)
onto VALVE BODY (11) until snug against internal stop. If necessary,
adjust LOCKNUT (9). Align as shown.
Tighten LOCKNUT (9) with WRENCH (12) (supplied) to secure VALVE
BODY (11). Repeat above steps for opposite VALVE BODY (11a).
8
7
5/16'' MIN.
Fig. B.
12
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
MOUNTING
SURFACE
10
9
11
Installation
Instructions
7010.801
Tubing Cutter
Adjustable Wrench
8
7
10
9
11
1
Certified to comply with ANSI A112.18.1
SPOUT BASE
Fig. A.
2
11a
M 9 6 8 5 9 8 R ev. 1. 4
1
4
7
5
6
3
