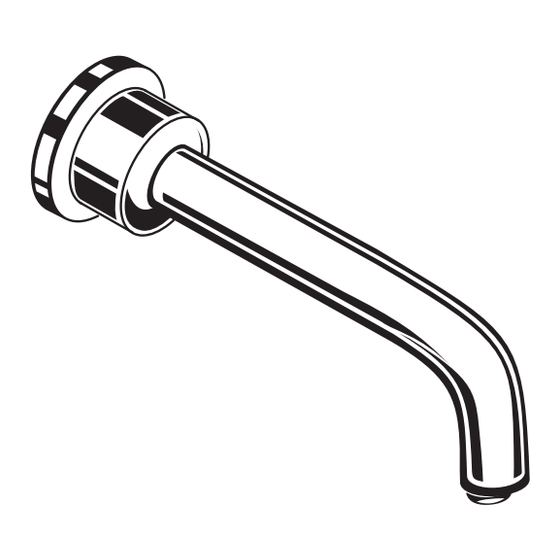

SERIN
Wall Mount Electronic
Proximity Lavatory Faucet
NOTE: Please refer to R350 Mounting Kit
installation instructions #M965614 prior to
faucet installation.
Certified to comply with ASME A112.18.1
© 2017 American Standard
NOTE TO INSTALLER: Please give this manual to the customer after installation.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Selectronic
or e-mail us at: CRTTEAM@lixilamericas.com
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / (844) 278-8326
™
®
(In Toronto Area only: 1-905-306-1093)
T064.34X T064.35X T06B.30X
CAUTION: Use only American Standard supplied
transformers and cable sets. Using non-AS
supplied cables, or cutting, splicing or modifying
any components will void the warranty.
Product No.'s & Options
Specifications
Faucet Installation
Electrical Installation
Start-up / Maintenance
FAQ's / Troubleshooting
Replacement Parts
Products visit our website at: www.americanstandard-us.com
(In Canada: 1-800-387-0369)
MODEL NUMBERS
M965613 REV. 1.9 (12/17)
1
2
2-5
6-8
9-10
10-11
12
Advertisement
Related Manuals for American Standard SERIN T064.34 Series
Summary of Contents for American Standard SERIN T064.34 Series
- Page 1 NOTE TO INSTALLER: Please give this manual to the customer after installation. NOTE TO INSTALLER: Please give this manual to the customer after installation. ® To learn more about American Standard Selectronic Products visit our website at: www.americanstandard-us.com or e-mail us at: CRTTEAM@lixilamericas.com...
- Page 2 Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. All American Standard Faucets Are Water Tested At Our Factory. UNPACKING Some Residual Water May Remain In The Faucet During Shipping.
-
Page 3: Faucet Installation
29-1/2" MAX. (750mm) 81mm (3-3/16) CAUTION: Use only American Standard supplied transformers and cable sets. Using non-AS supplied cables, or cutting, splicing or modifying any components will void the warranty. RECOMENDED CONTROL BOX OR EQUIVALENT BY OTHERS... - Page 4 INSTALL SPOUT MOUNTING KIT; Fig. 2 Fig. 2 1. Make sure that SEAL (7) is installed into the groove on the back of the MOUNTING FLANGE (8). Feed the CORD HOLDER (3a) and the EXTENSION CABLES (5a) through the MOUNTING FLANGE (8). 2.
- Page 5 ALIGN SPOUT ASSEMBLY; Fig. 5 Fig. 5 SPOUT LENGTH 150mm - 225mm MIN. (5-7/8) - MAX. 8-7/8 1. Align and push SPOUT (12) through hole, loosely installed MOUNTING FLANGE (8) and MOUNTING PLATE (10). 2. Once MOUNTING FLANGE (8) is aligned with MOUNTING PLATE (10) opening, tighten the three MOUNTING FLANGE SCREWS (9).
- Page 6 INSTALL SUPPLY ELBOW Fig. 7 ASSEMBLY & CONTROL BOX; Fig. 7 and Fig. 7a 1. Install HOSE CLAMP (22) onto SPOUT HOSE (15). Install SPOUT HOSE (15) onto ELBOW NIPPLE (23). Fully tighten HOSE CLAMP (22) to secure SPOUT HOSE (15) to ELBOW ASSEMBLY (24). Fig. 7. 2.
-
Page 7: Electrical Installation
6. Replace CONTROL BOX COVER (1). Tighten cover screws firmly. Fig. 1d STANDARD BATTERY PWRX CAUTION: Use only American Standard supplied transformers and cable sets. Using non-AS supplied cables, or cutting, splicing or modifying any components will void the warranty. M965613 REV. 1.9 (12/17) - Page 8 7b. Connect the 10' EXTENSION (10b) to the POWER SUPPLY CABLE (15). Fig. 2c. Fig. 2c 10' EXTENSION CAUTION: Use only American Standard supplied cable sets. Using non-AS supplied cables, or cutting, splicing or modifying any components will void the warranty.
- Page 9 AC POWER screws firmly. YOU CAN USE EITHER THE PLUG-IN OR HARD-WIRED TRANSFORMER. CAUTION: Use only American Standard supplied transformers and cable sets. Using non-AS supplied cables, or cutting, splicing or modifying any components will void the warranty. M965613 REV. 1.9 (12/17)
-
Page 10: Start-Up / Maintenance
START-UP / MAINTENANCE Fig. 1 HAND WASH SENSOR OPERATION; Fig. 1 Prior to making power connection, make sure detection zone is not obstructed. Sensor is self adjusting. Keep detection zone clear for 15 seconds after power is connected. When the Sensor detects a user, the water immediately starts to flow. - Page 11 Fig. 4 HOW TO CLEAN AND REMOVE THE AERATOR OR SPRAY; Fig. 4 1. Remove AERATOR or SPRAY HOUSING (7) with KEY supplied with faucet. 2. Remove AERATOR or SPRAY (8) from HOUSING (7). 3. Clean the AERATOR or SPRAY SCREEN (9). 4.
-
Page 12: Troubleshooting Flowcharts
P ro d u c t n a m e s l i s t e d h e re in a re t r ad em ar ks of A S Am eri ca, I nc. ©20 17 ® To learn more about American Standard Selectronic Products visit our website at: www.americanstandard-us.com or e-mail us at: CRTTEAM@lixilamericas.com...
