UNDER THE COUNTER 9" TV,
AM/FM RADIO, TELEPHONE &
OWNER'S and INSTALL
•
Slot-in DVD Player & 9" TFT LCD Monitor
•
Multi-function Remote Control
•
Built-in Hands Free Speaker Phone
•
Cable Ready 125 Channel TV Tuner
•
AM/FM Radio
•
2 A/V Inputs
•
Intercom Ready
•
Internal Stereo Speakers
•
Under Cabinet / Table Top Mounting
VE920

DVD PLAYER

0

Advertisement

Table of Contents
loading

Related Manuals for Audiovox VE920

Summary of Contents for Audiovox VE920

  • Page 1: Dvd Player

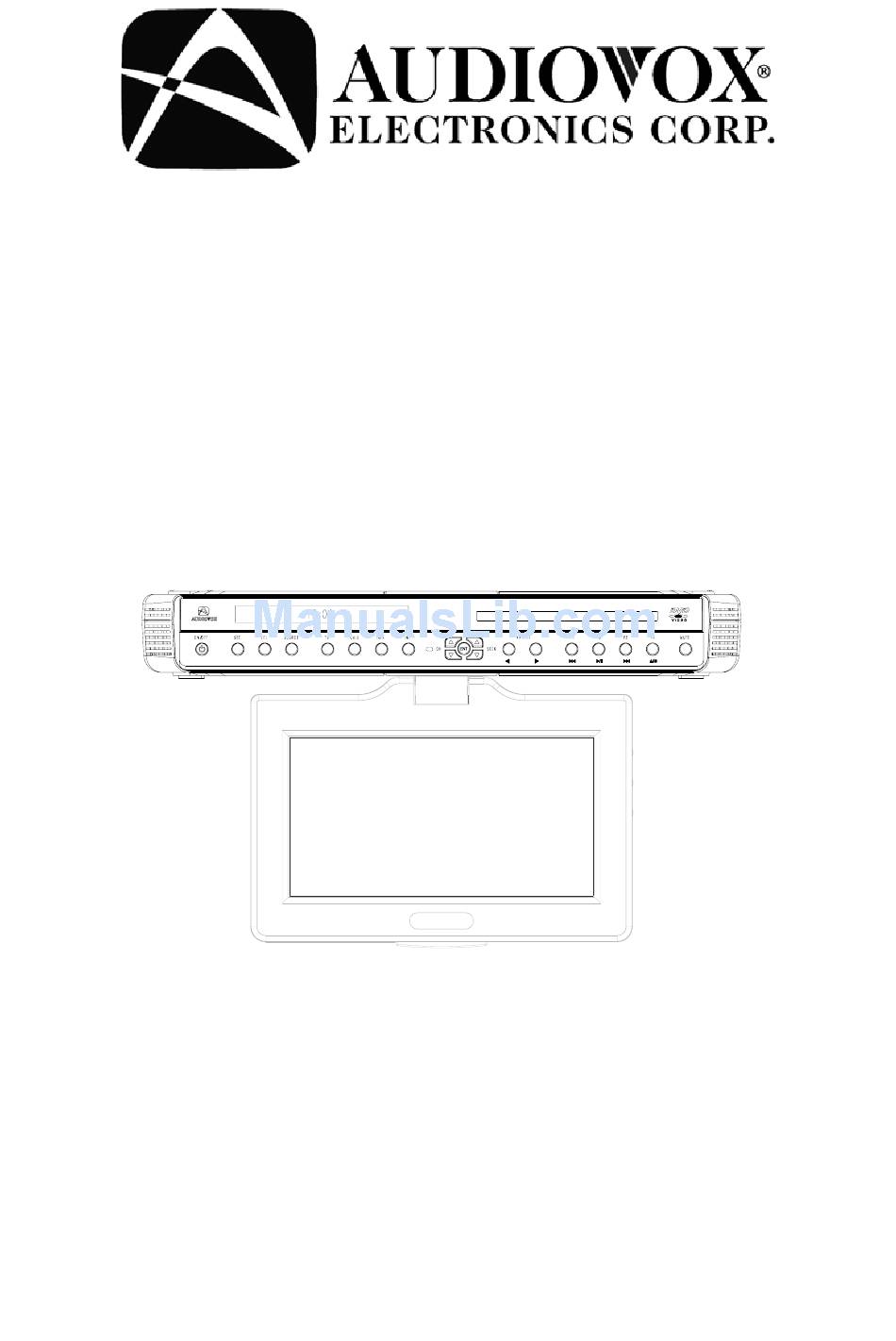

    VE920 UNDER THE COUNTER 9” TV, AM/FM RADIO, TELEPHONE & DVD PLAYER OWNER’S and INSTALL • Slot-in DVD Player & 9” TFT LCD Monitor • Multi-function Remote Control • Built-in Hands Free Speaker Phone • Cable Ready 125 Channel TV Tuner •...

  • Page 2: Introduction

    INTRODUCTION WARNING – To prevent fire or shock hazard, do not expose this unit to moisture. CAUTION: TO REDUCE THE RISK OF ELECTRIC CAUTION SHOCK, DO NOT REMOVE COVER (OR BACK). USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT PERSONNEL.
  • Page 3 - Consult with the dealer or an experienced radio/TV technician for help NOTE: Record your unit’s Model Number and Serial Number in the space provided below. Refer to these numbers if you need to call your AUDIOVOX dealer regarding this product. MODEL No. SERIAL No.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read Instructions – All the safety and operating instructions should be read before the product is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
  • Page 5 13. Power-Cord Protection – Route the power supply cord in a manner that protects it from being stepped on or pinched by items placed on it. Pay particular attention to the power cord’s plug, and the point where the power cord exits from the product. 14.
  • Page 6 21. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 22.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Before You Begin Introduction Important Safety Information Table of Contents Contents of package Installation Under Cabinet Installation Countertop/Desktop Installation Front Panel Controls Rear Panel Controls Battery Installation Remote Control Functions Remote Control Functions Modes of Operation Operation Initial Set up Channel Tuning Set up Positioning the Screen...

  • Page 8: Contents Of Package

    CONTENTS OF PACKAGE 1. VE920 5. Battery (AAA) 2. Hardwa re bag 6. FM Dipole Ante A. 2” Mountin g screws (4) 7. Right Angle Coaxial Adaptor B. 2-1/2” Mounting screws 8. FM Antenna Balun C. 3”Mounting screws (4) 9. AM Antenna D.

  • Page 9: Under Cabinet Installation

    TV antenna or cable connection and telephone jack will facilitate a neat, easy installation. Do not mount the VE920 above a range or oven. Be sure that the location chosen will provide adequate access to the electrical connections on the rear of the unit before continuing.

  • Page 10: Countertop/Desktop Installation

    COUNTERTOP/DESKTOP INSTALLATION NOTE: Use caution to avoid damaging the LCD screen and the main unit when converting this unit from an under-counter unit to a countertop unit. Leave the protective plastic on the screen until this procedure is completed. Place the unit (with the screen facing up) on a soft padded surface. Pivot the screen so that it is perpendicular to the front of the unit and then turn it sideways.

  • Page 11: Front Panel Controls

    FRONT PANEL CONTROLS ON/OFF BUTTON – Power ON/OFF and Standby Condition(Time Display). SET BUTTON – Press this button to set the TIME, ALARM, TV Mode or Speaker Mode. TEL BUTTON – Selects the Hands-free speakerphone function. SOURCE BUTTON – Selects the TV, FM, AM, AV1, AV2 and DVD functional modes. T/F BUTTON –...

  • Page 12: Rear Panel Connections

    FM ANTENNA – Allows the VE920 to be connected to a 75-Ohm external antenna for the reception of FM broadcast signals. AM ANTENNA - Allows the VE920 to be connected to an external antenna for the reception of AM broadcast signals.

  • Page 13: Battery Installation

    BATTERY INSTALLATION (Rear View, Battery Size AAA)

  • Page 14: Remote Control Functions

    REMOTE CONTROL FUNCTIONS (1) EJECT (2) DVD (3) TV (4) SETUP (5) SEEK DN, SEEKUP (6) MENU (7) FR( ■ (8) STOP( (9) PREV (I (10) Digit 0-9 Select (11) TITLE (12) DISPLAY (13) SUB TITLE (14) AUDIO (15) SCREEN (16) ANGLE (AP) (17) ON/OFF (18) A/V...
  • Page 15 DVD REMOTE FUNCTION (1) EJECT: Press this button to Eject and Load the disc tray. (2) DVD: Press this button to select DVD mode of operation. (4) SETUP: Displays setup menu for initial user settings. (5) SEEK DN/UP (21) CH+/-: For selecting item on menu. (6) MENU: For displaying the menu contained in the disc.
  • Page 16 RADIO REMOTE FUNCTION (5) SEEK DN/UP: Use these buttons to advance to the next higher or lower station. (19) AM/FM: Each time this button is pressed, the VE920 will alternate between AM and FM radio bands. (21) CH +/-: Use these buttons to advance to the next higher or lower channel.

  • Page 17: Operation

    SETTING THE TIME NOTE: All settings (except setting the presets) are performed with the VE920 turned OFF. 1) Press the SET button and the minutes will flash. 2) Use the CH up/down button to set the minutes.

  • Page 18: Setting The Alarm Volume

    SETTING and ACTIVATING the ALARM NOTE: The VE920 must be turned “OFF” when performing the following procedure. 1) Press the SET button twice to enter the alarm mode, press the P3 button to toggle between the active and deactivated mode.

  • Page 19: Setting The Cable Tv Mode

    SETTING THE CABLE TV MODE 1) Press the SET button three times to enter the TV/Cable configuration mode. 2) CABLE or AIR will appear on the display. 3) Press the SEEK button to select Cable mode. 4) Press the CH UP/DOWN button(s) to select the desired cable mode (STD/IRC/HRC). 5) When the desired mode is reached, press the ON/OFF button to confirm.

  • Page 20: Inserting And Ejecting The Disc

    USING THE DVD PLAYER Inserting and Ejecting the Disc 1. Set the unit to DVD mode (press source button until (-----------) appears on the display. 2. Insert the disc with the label facing up. 3. The disc will begin playing automatically. If this is a DVD it will go to the DVD menu. Press the PLAY button to begin watching the movie.

  • Page 21: Repetitive Playback

    Repetitive Playback –To Repeat a Specific Section 1. Press the REPEAT button once to enable the REPEAT selection screen, follow by pressing the REPEAT button till REPEAT CHAPTER is displayed, the current chapter or track will be replayed repetitively (CHPTER REPEAT ON). 2.

  • Page 22: Viewing Different Angles

    Viewing Different Angles Angle indicator appears on the upper part of the LCD display. When the Angle indicator appears, press the ANGLE button to view the screen from various angles. * This function may not be incorporated in some titles. Viewing the Main Disc Menu A DVD is divided into sections called titles and chapters.
  • Page 23 During playback press DISPLAY to display the current disc playback information. Press display again to remove the display. 1. The type of disc. 12. The number of current subtitle language. 2. The number of current title. 13. The speed at which the disc is being read. 3.

  • Page 24: Playing Audio Cds

    PLAYING AUDIO CDS When playing an audio CD the display will automatically display the disc playback information. The options below show you what information is displayed. Press the ‘DISPLAY’ button to remove the display. 1. The current track. 2. The number of total tracks. 3.
  • Page 25 1. Press the button to choose a folder from the folder list on the left side of the screen. 2. Press ENTER to select the highlighted folder. All songs available under the selected folder will be listed. button to choose a song from the list, then press ENTER to play the selected song.

  • Page 26: Playing A Jpeg File

    YING A JPEG FILE 1. Insert the JPEG Disc into tray. 2. Select JPEG file by pressing the “UP/DOWN” button. 3. You can preview the JPEG file by pressing “Play” or “ENTER”. 4. Pressing the left or right button will rotate the JPEG in that direction. 5.
  • Page 27 2. Press ENTER, the following screen will appear. 3. Use the buttons to highlight the desired menu item. 4. Press ENTER button to display the sub-menu. 5. Each sub-menu item provides a number of option items to its right. Use the buttons to highlight the desired option item for selection.
  • Page 28 VIDEO Menu 1. Press the SETUP button to display the main me nu (see sample screen under LANGUAGE Menu) 2. Press the button to highlight Video and press ENTER one time. Use the following screen to select screen aspect ratio. * 4:3 PS : When the player is connected to a normal TV, and a wide picture is shown on the full screen.
  • Page 29 Rating Men Press the SETUP button to display the main menu (see sample screen under LANGUAGE enu). Use to select parental Rating: Kid Safe. PG-13. PG-R. NC-17. Adult. CHAN GE PASSWORD & RATING 1. Selec t Rating by buttons and press ENTER to enter the Rating se tup page 2.
  • Page 30 settings.

  • Page 31: Technical Specifications

    TECHNICAL SPECIFICATIONS GENERAL Power Supply : AC100-240V ~50/60Hz 40watts Operating Temperature : 0°~40°C / 32°~104°F Operating Humidity : 10% ~ 75% Body Size : 400 X 280 X 56mm / 15.8” x 11.0” x 2.20”Inches Weight : 3.5 Kg / 7.72Lbs DISPLAY LCD Illumination : CCFL Edge Lit Tube...

  • Page 32: Troubleshooting Check List

    TROUBLESHOOTING CHECK LIST Problem Solution • Powe r does not turn on Check if the power cord is securely plugge d into the wall • Check if the batteries of the remote control unit are not deplete • Disc f ails to play Check i f the disc is inserted properly into tray (Label Side U...
  • Page 33 © 2003 Audiovox Electronics Corp., Hauppauge, NY 11788 128-7342...
