NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
PREMIER
Retain This
Manual for
Reference
09-23-02
OWNER'S
MANUAL

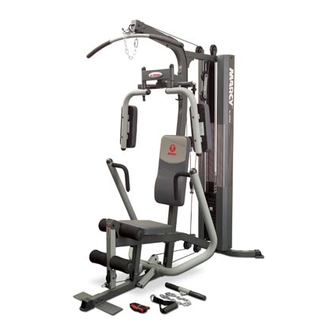

MARCY PREMIER
HOME GYM
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
Advertisement
Table of Contents
Related Manuals for Impex PREMIER
Summary of Contents for Impex PREMIER
- Page 1 Parts List Resistance Chart Warranty Ordering Parts Model PREMIER Retain This Manual for Reference 09-23-02 OWNER'S MANUAL MARCY PREMIER HOME GYM IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...
-
Page 2: Table Of Contents
ORDERING PARTS...…………18 BEFORE YOU BEGIN Thank you for selecting the MARCY PREMIER HOME GYM by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. -
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended this machine to be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Slide two Round Rubber Bumpers (#55) onto the Guide Rods (#14). Align the holes and push two Guide Rods (#14) into the Rear Stabilizer (#2). - Page 6 STEP 2 (See Diagram 2) A.) Attach the Main Base Frame (#1) to the Rear Stabilizer (#2). Secure it with one Bracket (#41), two M10 x 2 ¾” Carriage Bolts (#79), (#84). Do not tighten the Nuts and Bolts yet. B.) Attach the bottom of the Vertical Beam (#3) to the Main Base Frame (#1).
- Page 7 STEP 3 (See Diagram 3) A.) Attach the Left and Right Front Presses (#6 & 7) to the pivot on the Main Base Frame (#1). Secure them together with a M10 x 8 1/8” Axle (#38), two Aircraft Nuts (#84). B.) Attach the Front Press Bracket (#15) to the Front Presses.
- Page 8 STEP 4 (See Diagram 4) A.) Slide one Butterfly Support Bracket (#10) onto the Right Butterfly (#9). Insert the Right Butterfly into the pivot on the Butterfly Support Frame (#13) from the bottom. Secure it with 1 ½” Washer (#21), Aircraft Nut (#85).
- Page 9 STEP 5 (See Diagram 5) A.) Attach two 1” x ¼” Bushings (#60) to the pivot on the Leg Developer (#11). Attach the Leg Developer (#11) to the Bracket in front of the Seat. Secure it with one M12 x 3 1/8” Allen Bolt (#67), two 1”...
- Page 10 CABLE LOOP DIAGRAM...
- Page 11 STEP 6 (See Diagram 6 & Cable Loop Diagram) A.) Attach the Lat Bar Holder (#16) to the top of Vertical Beam (#3). Secure it with one M10 x 2 ¾” Carriage Bolt (#79), B.) Attach the 109” Upper Cable (#26) to the top opening on the Vertical Beam. Attach a Pulley (#64) to the opening.
- Page 12 STEP 7 (See Diagram 7 & Cable Loop Diagram) A.) Attach one end of the 77” Butterfly Cable (#28) to the slot on the Right Butterfly Support Bracket (#10). Draw the Cable towards the right open bracket on the Upper Frame (#4). B.) Attach a Pulley (#64) to the bracket.
- Page 13 STEP 8 (See Diagram 8 & Cable Loop Diagram) A.) Attach the 161” Lower Cable (#27) to the opening on the bottom of the Leg Developer (#11). B.) Attach a Pulley (#64) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#68), two 7/8”...
- Page 14 DIAGRAM 8...
- Page 15 STEP 9 (See Diagram 9 & Cable Loop Diagram) A.) Attach the 46” Front Press Cable (#29) to the bracket on the Main Base Frame (#1). Secure the Cable to the bracket with one M10 x 1 1/8” Allen Bolt (#71), two Washers (#81), and one M10 Aircraft Nut (#84).
- Page 16 STEP 10 (See Diagram 10) A.) Cover the Weight stack by two Weight Stack Covers (#19). Secure each Weight Stack Cover with two M10 x ¾” Allen Bolts (#72) and B.) Connect the Lat Bar (#17) to the Upper Cable (#26) with two C-clips (#45) and one Short Chain (#40).
-
Page 17: Parts List
Arm Curl Handle Grip 7/8” Pulley Bushing C-clip 2” Square End Cap 2” Rubber Stopper 2” Square End Cap (Impex Logo) 2 3/8” Con-shaped End Cap 2” Con-shaped End Cap Q’ty 1” x 2” End Cap 1” Con-shaped End Cap 2 5/8”... -
Page 18: Resistance Chart
MWM Premier Weight Resistant Chart No. of Plates Bench Press *Each plate weights 10 lbs. *Numbers are approximate. Actual weight may vary. *Value for butterfly is for each arm. Butterfly Lat Pull 13.5 16.5 23.5 26.5 33.5 36.5 46.5 Leg Developer... -
Page 19: Impex Inc
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes.
