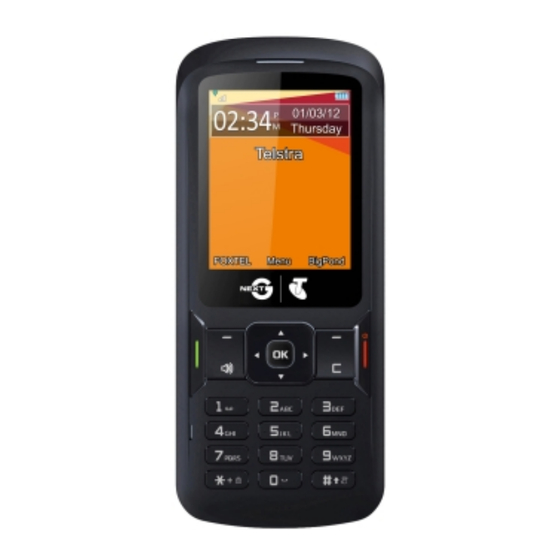

TELSTRA ROAMER
3G MOBILE PHONE

USER MANUAL

Copyright © 2012. All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on
print errors or update specifications without prior notice.
Version 1.0 April 2012
1

Advertisement

Table of Contents
loading

Related Manuals for Zte TELSTRA ROAMER

Summary of Contents for Zte TELSTRA ROAMER

  • Page 1: User Manual

    ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
  • Page 2 This guide will help you get started as easily and as quickly as possible. It will also help you get to know your new Telstra Roamer and take you through some of the basics step by step.

  • Page 3: Table Of Contents

    WHAT’S INSIDE Let’s get started Getting connected Getting to know your mobile phone What the symbols mean Basic Functions Managing your Contacts Messaging Updating your handset software Extra Features Join Me PC and MAC connection suite Troubleshooting, Technical and Warranty Extra bits you should know...
  • Page 4 LET’S GET STARTED YOUR PACKAGE CONTAINS THE FOLLOWING Handset Charger USB Cable Battery Headset...

  • Page 5: Getting Connected

    GETTING CONNECTED 1. REMOVE THE BACK COVER • Use the thumb catch on the bottom left corner of the handset to open the battery cover.
  • Page 6 2. REMOVE / INSERT THE BATTERY • Insert the battery as shown by lining up the gold bit on the battery with the gold spikes on the handset. • Press the battery down flush into the case. • Line the battery cover up correctly from bottom to top and press gently to close the case.
  • Page 7 3. IF YOU NEED TO INSERT THE SIM CARD Remove the battery and insert the SIM card with the gold contacts • facing down and the slanted edge on the bottom left as shown: Optional: Insert a microSD(HC) memory card into the side slot as shown if required to add additional memory storage capacity.
  • Page 8 4. RECHARGING YOUR BATTERY • Your battery comes partially charged. When you need to recharge it: 1. Plug the MicroUSB cable in to the handset 2. Plug the other end of the cable into the: • AC adapter and plug the adapter into an electrical outlet •...
  • Page 9 Important Notes: Only use the AC charger and USB lead supplied. Insert the charger lead carefully. Check the plug and socket are aligned correctly. Do NOT use excessive force which may damage the USB port. Be careful to avoid tripping on the lead whilst it is plugged in. Physical damage to the USB port is NOT covered by warranty.

  • Page 10: Getting To Know

    GETTING TO KNOW YOUR MOBILE PHONE Earpiece Display Arrow Keys, OK Key Use the Arrow Keys Left & Right Soft to navigate & access Keys Performs the shortcuts. OK key to function shown on confirm. the display Call Key Power / End Key Dial a number, Hold down to answer a call, show...
  • Page 11 GETTING TO KNOW YOUR MOBILE PHONE Camera USB & Charging Port Battery Cover Thumb catch to open the battery cover...
  • Page 12 HOW TO LOCK/UNLOCK THE KEYPAD By default your handset is set to lock the keypad after 60 seconds, this keyguard is designed to prevent you making unwanted calls when the handset is in your handbag or pocket. See the Handy Hint below to change this setting if required.
  • Page 13 NAVIGATING THE MENU The Main Menu is a grid of icons to access key features on the phone. • From the Home Screen press the centre button to access the Main Menu. • Use the Arrow Keys to move up, down, right or left and press the centre button to select.
  • Page 14 SHORTCUTS • From the Home screen press the arrow keys to launch the default shortcuts: My Place Browser Messages Contacts Handy Tip: To change default shortcuts: Menu > Settings > Phone > Shortcut keys.
  • Page 15 MENU QUICK REFERENCE GUIDE When navigating through the phone the menus are set out in tabs across the top of the screen.
  • Page 16 MENU QUICK REFERENCE GUIDE...
  • Page 17 MENU QUICK REFERENCE GUIDE Handy Hint: To scroll through the top tabs use right and left arrow keys.
  • Page 18 WHAT THE SYMBOLS MEAN Indicator Description Power Key - Hold down to power your phone on and off. Press to End a Call. Press to Exit a menu and return to the idle screen Press OK to access the Main Menu and confirm menu selections When the device is locked press the OK key then * to unlock Press to remove the last entered text Back...
  • Page 19 WHAT THE SYMBOLS MEAN Indicator Description 3G Signal Strength GSM Signal Strength EDGE Signal Strength Flight mode is active. Network features are turned off. Battery Level Indicator New SMS Message Message Memory is Full New MMS Message New WAP Push Message TTY mode for connection to Cellular Teletype Machines (CTM) New E-mail...
  • Page 20 WHAT THE SYMBOLS MEAN Indicator Description Headset Mode Alarm is set Missed Call Silent Mode Meeting mode (Silent with vibrate enabled) Vibrate mode enabled Call Forward is Active Data channel available (GPRS) Data channel active (PDP) Roaming, different rates apply, please check with your service provider High Speed data access microSD™...

  • Page 21: Basic Functions

    BASIC FUNCTIONS HOW TO SET THE TIME AND DATE When you first turn on your mobile the time and date is set automatically from the network. It takes a few seconds to update when the phone is first switched on. Handy Hint: Select Menu >...

  • Page 22: To Change The Ringtone

    HOW TO CHANGE THE RINGTONE When you first turn on your mobile, the ringtone is set to a default ringtone, with default settings. To personalise the ringtone to suit you follow these few simple steps: • Select Menu > Sound profiles •...
  • Page 23 HOW TO SET FLIGHT MODE Flight mode is a feature that allows you to have your phone on but not have any radio coverage. The use of this feature allows you to listen to music on your external memory card that you have loaded when you are on an aeroplane. To activate this feature: •...
  • Page 24 HOW TO ADJUST RINGTONE VOLUME As part of the ringtone functionality you have the ability to change the default volume for any of the profiles • Select Menu > Sound profiles • Press left soft key to Edit highlighted profile •...
  • Page 25 HOW TO MAKE A VOICE CALL There are 4 key ways you can make a call on your phone: 1. Enter the number on the keypad, if you know the number 2. Select the downward facing arrow key to access the shortcut to contacts.
  • Page 26 HOW TO ANSWER AN INCOMING CALL There are two ways to answer an incoming call: • Press the green key answer the call • Press OK for Speaker or the loudspeaker button for hands free mode. • Press the red key or Reject to end the call.
  • Page 27 HOW TO CHANGE THE SCREEN BRIGHTNESS The default screen brightness is set to the middle setting. This will allow you to get the maximum possible out of your battery • To change this setting Select Menu> Settings > Display> Brightness Important Note: Increasing the brightness of the screen will have an effect on the battery power consumption...
  • Page 28 CALL FEATURE SUMMARY The table below is a quick summary of call features Function Description Menu Selection Call Barring Restrict various categories Menu > Settings > of incoming or outgoing Calls> Call barring calls. Call Divert Forward incoming calls to Menu >...
  • Page 29 Missed Calls Hear an alert tone at your Menu > Settings > Alert specified interval to remind Phone> Missed calls you of a missed call. alert Send my Show or hide your number Menu > Settings > number when making calls. Calls>...
  • Page 30 Volume Use the Up and Down arrow During a call press keys to adjust the volume the Up arrow / Down during a call arrows. Software Manually check if there are Menu> Settings> Update software updates available Software Update Insert a Pause ‘P’...

  • Page 31: Managing Your Contacts

    MANAGING YOUR CONTACTS There are some numbers that you may want to call again and again so it makes sense to add these to your Contacts. You can then access these numbers quickly and easily and add special features such as Speed Dialling, a dedicated Ringtone or a Photo. Function Description Menu Selection...
  • Page 32 Copy Copy Contacts from the SIM Menu > Contacts > Contacts from into the handset. Options > Advanced> a SIM card (U)SIM Management> Copy contacts from (U)SIM > Mark Copy all > Done Delete a Select the Contact then Menu > Contacts > Contact press Options Options >...
  • Page 33 MESSAGING You can stay connected by using your mobile to send messages, multimedia messages and emails to your family and friends. Important Note: If your text message exceeds 160 characters you will be charged for multiple text messages. Letters, symbols and spaces count as characters. HOW TO CREATE A TEXT MESSAGE (SMS) •...
  • Page 34 HOW TO ADD A CONTACT TO A TEXT MESSAGE (SMS) • Press the Right Arrow Key to access shortcut for Messages or select Menu > Messages > Create Message • Enter the phone number directly or press OK key to select a contact manually from your Contacts or Call History list •...
  • Page 35 Handy Hint: Use the # key to change between predictive text and standard typing modes. In Multi-tap modes (abc/ABC) if the next letter is on the same key, wait until the cursor appears or press the Right arrow. Important Note: By default the input text is set to Abc To change this press # to select your desired input method...
  • Page 36 HOW TO TYPE USING THE KEYPAD (abc, Abc & ABC modes) • The letters of the alphabet are arranged on the keys from 2-9 • Whenever you are in text entry mode, to enter a name, send a message or write a note, the handset will automatically change to letter mode •...
  • Page 37 HOW TO USE PREDICTIVE TEXT (En mode) Predictive text allows words to be entered more efficiently using a single key press for each letter, as opposed to multiple key presses in abc text mode. To change from multi-tap to predictive text press # to change your desired input method to En, this will activate English predictive text Predictive text uses a built-in dictionary to match possible words.
  • Page 38 HOW TO ADD WORDS TO THE BUILT IN DICTIONARY (MY WORDS) You can also add your own words to the predictive text dictionary to do this: • Start typing your word • A box with Spell word? will appear, choose Spell Word by selecting •...
  • Page 39 HOW TO VIEW A RECEIVED TEXT MESSAGE The envelope icon on the information bar indicates a new SMS message has been received • Along with this, depending on the current profile setting, a message alert tone and vibrate activate will be heard •...
  • Page 40 HOW TO SEND A MULTIMEDIA MESSAGE (MMS) Sending a MMS is similar to a text message. The main difference is adding media. This can be done by selecting Options > Insert > Choose Media > OK. Use a Multimedia Messages to send pictures, music or video files. You can also send an MMS directly to an email address.
  • Page 41 HOW TO RECEIVE A MULTIMEDIA MESSAGE (MMS) When a new MMS has arrived you will see an envelope on the information bar • When receiving an MMS you get a standard message alert. Press OK key to View • Press Retrieve to download the message attachment •...
  • Page 42 WAP PUSH MESSAGES A WAP (wireless application protocol) push message is a formatted SMS that displays a message to the user, giving the option of connecting directly to a website using the browser. WAP Push Messages are indicated by the icon on the main display.
  • Page 43 HOW TO CREATE A NEW EMAIL MAILBOX Sending an email is similar to a text message. The main difference is you are able to send a longer message. Your handset has been set up with some common service providers details, you just need to add your email account to be up and running in no time.
  • Page 44 HOW TO SEND AN EMAIL • Menu > Messages > Scroll across to Email > New Email • Enter the email address e.g. username@domain.com. Press centre key to input address from contacts • Press the down arrow to access the Copy To Field •...
  • Page 45 HOW TO RECEIVE AN EMAIL • Menu > Messages > arrow right to Email > Inbox > Retrieve • New Email messages are delivered to the handset HOW TO SET UP AUTOMATIC RETRIEVAL • Menu > Messages > Email > Settings > Automatic Retrieval Set your required time interval to check the server for new Email •...

  • Page 46: Updating Your Handset Software

    UPDATING YOUR HANDSET SOFTWARE Your handset can check and receive automatic software updates. THERE ARE TWO WAYS THIS CAN HAPPEN: Automatically – the handset will notify you an update is available. Follow the steps to complete the upgrade. Manually by you – go to Menu > Settings > Software Update to check if any updates are available.

  • Page 47: Extra Features

    EXTRA FEATURES Function Description Menu Selection Alarms Set and edit Alarms Menu > Tools > Alarm > Edit When the function is Back Function Go back one screen available to go back one screen, it will appear at the right soft key Set the backlighting Menu >...
  • Page 48 Camera Use the Camera Menu > Media&Entertainment > Camera Conversion Access the Currency Menu > Tools > Converter Converter function Delete Text Press the C key to C key for delete, in any text clear text mode. View and manage File Manager Menu >...
  • Page 49 Lock Code Switch on the Menu > Settings > Security > Handset Lock code Change security codes > to protect the Handset code Handset. The default code is 0000 Meeting Mode Quickly engage Long Press the # Key Meeting mode (Default setting silences the ringtone and enables vibrate) Message Tone...
  • Page 50 PIN Code Set your start up PIN Menu > Settings > Security > code (This protects Activate security codes > PIN the SIM card only) code Profiles Group handset Menu >Sound profiles > Edit behaviours for ringing, vibrate etc. Restore Restore your phone Menu >...
  • Page 51 Cellular Text Modem Menu > Settings > Phone > used to connect to a TTY setting TTY device. Vibrate Mode Switch on vibrate Menu > Sound profiles > mode Edit > Ringing type Video Camera Use the Video Menu > Camera Media&Entertainment >...

  • Page 52: Join Me Pc And Mac Connection Suite

    It is also used to connect to the internet and transfer music / picture Important Note: files. Please download and install the Join Me client from zte.com.au before connecting your phone. • The software is only compatible with Windows 7, Vista, XP and MAC OS 10.5,10.6, 10.7...
  • Page 53 • Please read the Join Me Help file from within the application, or see our web site FAQ’s at zte.com.au for more support. • Records that contain multiple day repeated events are not supported by the handset or by Join Me when importing from Outlook.
  • Page 54 TROUBLESHOOTING, TECHNICAL AND WARRANTY INFORMATION TROUBLESHOOTING AND FAQ’S Please check the manual thoroughly before contacting Telstra. Symptom Solution Check the ring tone and ring volume settings No incoming ring under Sound Profiles. or alarm tone Check the handset is not muted (Long press the # key) (No) keytones Check the key tone settings in the current...
  • Page 55 I cannot connect to Menu > Settings > Connections > USB Mode. Join Me Uninstall and re-install the CD software. See FAQ’s at zte.com.au for more assistance. My phone is slow Power cycle your phone to refresh the memory. to respond, Delete old SMS messages and other content.
  • Page 56 Possible network coverage issue. Check the signal level. With only 1 or 2 bars, the battery has The battery to work harder to maintain network contact. Limit discharges quickly multi-media to save power. The battery may be worn out. Confirm the charger is properly inserted. Remove the battery, clean the contacts and I cannot charge the check it is inserted correctly.
  • Page 57 ERROR MESSAGES Message Solution Check a valid (U)SIM card is inserted No (U)SIM detected See Getting Started Enter the correct PIN code supplied by your Enter PIN code service provider Enter PUK code Contact Telstra to get the PUK code Enter handset lock The default handset lock code is 0000 code...
  • Page 58 TECHNICAL SPECIFICATIONS Network 3G UMTS 850 MHz Compatibility 2G GSM 900, 1800 MHz Dimensions L×W×H Approx 110mm x 47.5mm x 11.8mm Weight Approx 70g (Including standard battery) Features MP4 video, MP3 audio, 0.3MPixel rear camera, USB, MIDP 2.0 JAVA, 2.0” 262K colour TFT display with 176 x 220 pixels, MMS, Email, Calendar, Speakerphone, Voice Recorder, 3.5mm audio jack, CTM, approx 20MB user memory.
  • Page 59 Important Note: Talk and idle times are based on ideal network conditions. The use of applications and local network conditions can reduce battery life. SUPPORT INFORMATION • For Warranty Service directions please consult Telstra. • All calls for PIN number enquiries, Network problems, Web Access, Account and Billing Information, (U)SIM card registration and other general enquiries should be directed to your Service Provider.
  • Page 60 WARRANTY INFORMATION The warranty does not apply to defects or errors in the product caused 1. Normal wear and tear 2. Misuse including mishandling, physical damage, improper installation – including battery, and unauthorized disassembly of the product 3. Water, exposure to solvents or any other liquid damage 4.

  • Page 61: Extra Bits You Should Know

    EXTRA BITS YOU SHOULD KNOW SAFETY AND GENERAL INFORMATION The handset contains delicate electronic circuitry, magnets and battery systems. Treat it with care and pay attention to the following points: • Handle the handset with care. battery in direct sunlight or Do not drop or throw the near other heat sources where handset.
  • Page 62 • • The operation of some medical Do not disassemble or modify electronic devices, such as the battery. • hearing aids and pacemakers, Stop using the battery if may be affected by the abnormal heat, odour, handset. discolouration, deformation, or •...
  • Page 63 • • Don’t use the handset At high volume, prolonged immediately after a sudden listening to audio devices can temperature change eg. from cause hearing loss. • an air conditioned environment Do not leave the handset to high temperature and discharged or disconnected for humidity outside.
  • Page 64 Join Me synchronisation software is available to download from our website. Join Me supports Microsoft Windows 7, Vista (32 and 64 bit), XP with Service Pack 2 & 3 and MAC OS 10.5, 10.6, 10.7 ZTE cannot guarantee that third party software is compatible with this product.
  • Page 65 No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation operates a policy of continuous development. We reserve the right to make changes and improvements to any products without prior notice.
  • Page 66 LIMITATION OF LIABILITY ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using this product, whether or not ZTE had been advised, knew or should have known the possibility of such damages.
  • Page 67 RADIO FREQUENCY ENERGY The handset is a low-power radio transmitter and receiver. When switched on it intermittently transmits radio frequency (RF) energy (radio waves). The transmit power level is optimized for best performance and automatically reduces when there is good quality reception.
