    CAUTION: In case of hotplate glass breakage: - shut immediately off all burners and any Warnings electrical heating element and isolate the appliance from the power supply WARNING: The appliance and its - do not touch the appliance surface. accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  • Page 3: Assistance

    Assistance Communicating: • The type of problem encountered. • appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging. PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24...
  • Page 4: Description Of The Appliance

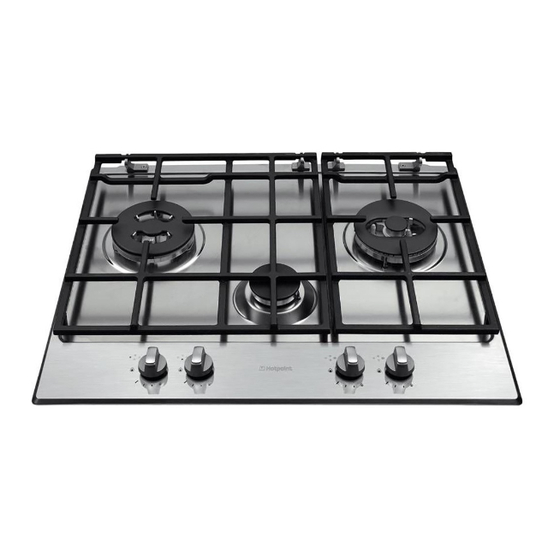

    Description of the appliance Overall view 1 Support Grid for COOKWARE 2 GAS BURNERS 3 Control Knobs for GAS BURNERS 4 Ignition for GAS BURNERS* 5 SAFETY DEVICES* • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
  • Page 5: Installation

    Installation • Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob (see figure). ! Before operating your new appliance please read this • Place the wall cabinets adjacent to the hood at a minimum instruction booklet carefully.
  • Page 6: Gas Connection

    Front suitable for the load indicated on the rating plate, onto a cable and connect to a suitable socket. To connect direct to the mains supply, a double pole switch with a contact separation of at least 3mm suitable for the load and complying with current standards and regulations must be fitted between the appliance and the mains supply outlet.
  • Page 7 appliance while maintaining efficient energy consumption. Replacing the Triple ring burner nozzles 1. Remove the pan supports and lift the burners out of their Connection with a rigid pipe (copper or steel) housing. The burner consists of two separate parts (see ! Connection to the gas system must be carried out in such a pictures).
  • Page 8 • To adjust the minimum power setting of the inner ring, DATA PLATE turn the knob clockwise to the minimum power position. • Remove the knob and intervene on the adjustment Electrical see data plate screw located near the tap pin. connections This appliance conforms to the following ! If the appliance is connected to liquid gas, the regulation...
  • Page 9 GA 640.1 R X GB 630 R T X GB 641 X GX 641 R X GB 640.1 R X GA 750 X GA 761 R F X GX 751 R T X GA 750 T X GB 750 X...
  • Page 10: Start-Up And Use

    Start-up and use Dual control: Each ring comprising the burner has its own control knob: The knob marked with the symbol controls the outer ring. ! The position of the corresponding gas burner or electric The knob marked with the symbol controls the inner ring.
  • Page 11: Precautions And Tips

    • NEVER use the double burner in the configuration Burner Ø Cookware Diameter (cm) represented in figure D. Rapid (R) 24 - 26 Semi-Rapid (S) 16 - 20 Auxiliary (A) 10 - 14 Triple Crown (TC) 24 - 26 Double Flame (DCDR internal) 10 - 14 Fig.
  • Page 12: Maintenance And Care

    Maintenance and care • When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. • Never carry out any cleaning or maintenance work Switching the appliance off without having detached the plug from the mains. •...
  • Page 13: Troubleshooting

    Troubleshooting It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.
  • Page 14 PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24...
  • Page 15: After Sales Service

    After Sales Service No one is better placed to care for your Hotpoint appliance during the course of its working life than us – the manufacturer. Essential Contact Information Hotpoint Service We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service.
  • Page 16: Guarantee

    5 Year Parts Guarantee Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time.
