Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00
HDE 500-A18
Operating instructions
Mode d'emploi
Manual de instrucciones
en
fr
es

Advertisement

Table of Contents
loading

Related Manuals for Hilti HDE 500-A18

Summary of Contents for Hilti HDE 500-A18

  • Page 1 HDE 500-A18 Operating instructions Mode d’emploi Manual de instrucciones Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00...
  • Page 2 Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00...
  • Page 3 HIT CB 500 HIT CB 500 HIT CR 500 HIT CR 500 Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00...
  • Page 4 Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00...
  • Page 5 Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00...
  • Page 6 Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00...
  • Page 7 Printed: 07.07.2013 | Doc-Nr: PUB / 5142533 / 000 / 00...

  • Page 8: Table Of Contents

    Red Hilti 2-component foil pack, contents: 330 ml In these operating instructions, the designation “the tool” (11.1 fl.oz.) or 500 ml (16.9 fl.oz.) always refers to the HDE 500-A18 cordless dispenser. 1 General information 1.1 Safety notices and their meaning 1.2 Explanation of the pictograms and other...

  • Page 9: Description

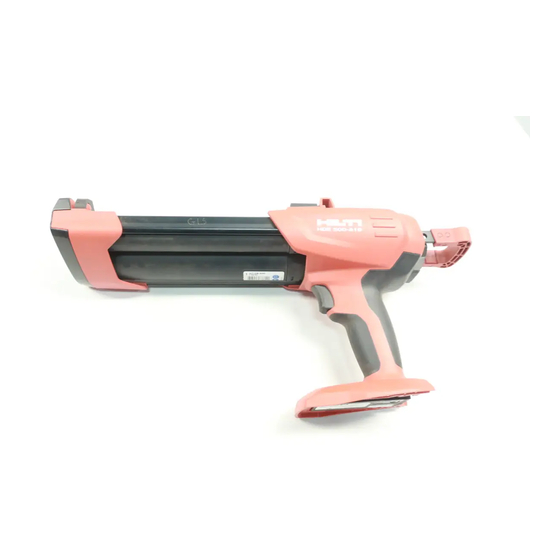

    The tool is designed to dispense the contents of Hilti foil packs in a controlled operation. The HDE 500‑A18 cordless dispenser is designed to be used exclusively to dispense the contents of Hilti 330 ml (11.1 fl.oz.) or 500 ml (16.9 fl.oz.) foil packs.

  • Page 10: Accessories

    LEDs light constantly LEDs blink Charge status C LED 1,2 25 % ≦ C < 50 % LED 1 10 % ≦ C < 25 % LED 1 C < 10 % LED 1 Battery overheated 3 Accessories Designation Short designation Description Battery B 18/2.6 Li‑ion...

  • Page 11: Safety Instructions

    5 Safety instructions The safety rules in section 5.1 contain all general safety the influence of drugs, alcohol or medication. A rules for power tools which, in accordance with the moment of inattention while operating power tools applicable standards, require to be listed in the operating may result in serious personal injury.
  • Page 12 Contact Hilti Service after the battery has been that can make a connection from one terminal to allowed to cool.

  • Page 13: Before Use

    Use a battery only when it has been fully charged. This en- output selector switch is in the “off” position. Use only sures that maximum battery capacity is available. Change the Hilti batteries approved for use with this power to the second battery as soon as a drop in performance tool.
  • Page 14 “off” position Red foil pack holder: RED foil pack during transport or storage. Use of genuine Hilti parts ensures maximum safety. The 7.4 Inserting the foil pack in the foil pack dispenser, the foil pack holder and the foil packs are holder 5 6 7 8 9 perfectly matched to each other.
  • Page 15 Set the mode selector switch to “continuous opera- NOTE tion”. For information about disposing of full, partly-used and Press the trigger until the mixing nozzle is completely completely empty foil packs, please refer to the instruc- full. tions for use of the product or the applicable safety data Set the dispensing selector switch to the mortar sheets.

  • Page 16: Care And Maintenance

    8 Care and maintenance CAUTION Charge the battery with the Hilti charger approved for use Before beginning cleaning, remove the battery from with Li-ion batteries. the power tool or appliance in order to prevent unin- NOTE tentional starting. - A conditioning charge (as is required with NiCd or NiMH batteries) is not necessary.

  • Page 17: Disposal

    Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back old tools and appliances for recycling.

  • Page 18: Manufacturer's Warranty

    11 Manufacturer’s warranty Hilti warrants that the tool supplied is free of defects in Additional claims are excluded, unless stringent na- material and workmanship. This warranty is valid so long tional rules prohibit such exclusion. In particular, Hilti as the tool is operated and handled correctly, cleaned...
  • Page 19 Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 4065 | 0613 | 00-Pos. 3 | 1 Printed in Liechtenstein © 2013 Right of technical and programme changes reserved S. E. & O.
