AMX NXC-REL10 Installation Manual
Relay card, 10 channels
Hide thumbs
Also See for NXC-REL10:
- Quick start manual (2 pages) ,
- Operation/reference manual (54 pages) ,
- Specifications (2 pages)
Advertisement
Quick Links
NetLinx Control Cards and NetModules
NetLinx Control Cards can be installed in either the NXF CardFrame, NI-4000, or
NetModules. This document provides basic specifications and wiring information
for the NetLinx Control cards.
For detailed information on the cards, refer to the NetLinx CardFrame, Control
Cards, and NetModules Instruction Manual. available on-line via www.amx.com.
FIG. 1

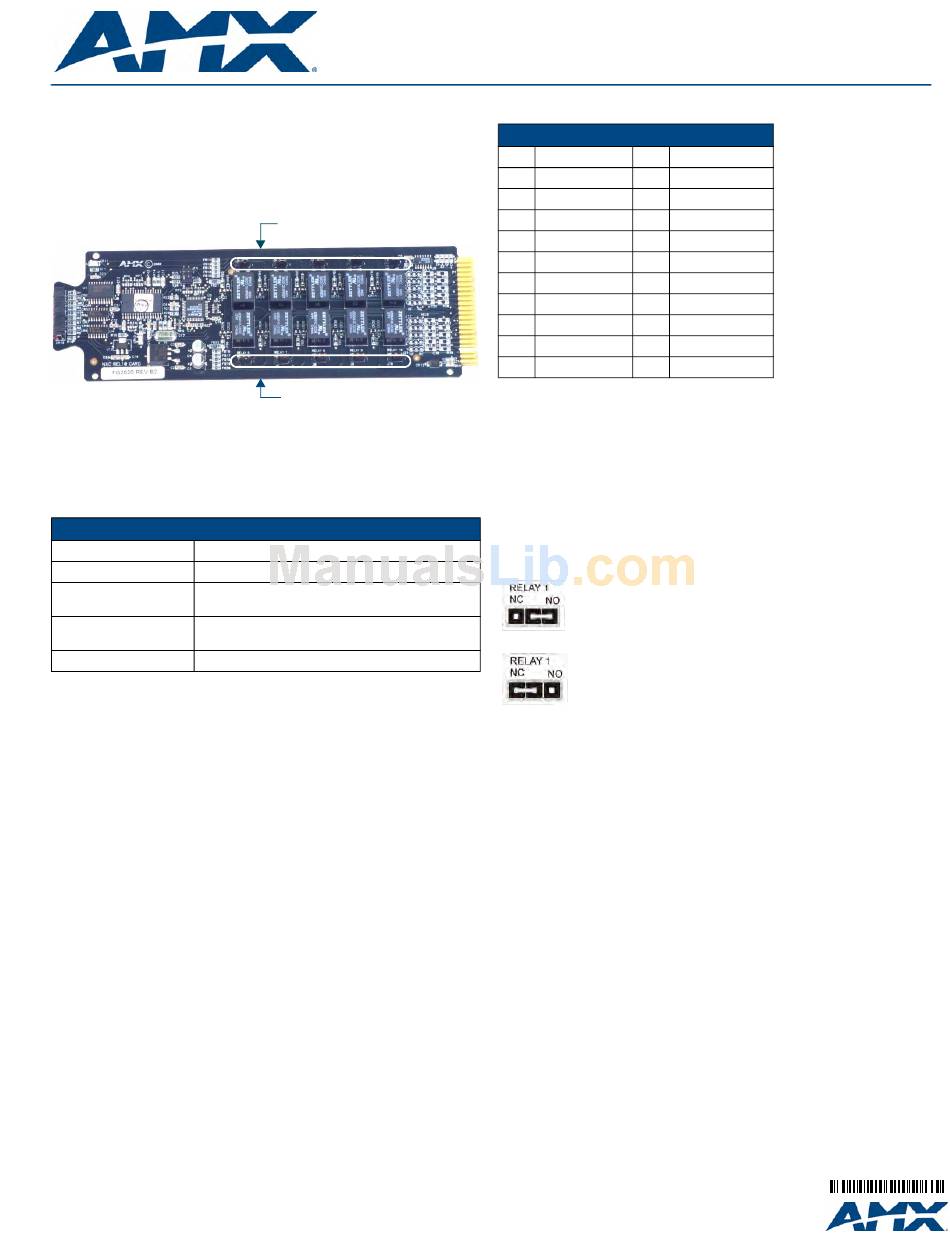

NXC-REL10 Relay 10 Control Card
NXC-REL10 Specifications
The NXC-REL10 Relay Control Card provides ten relays supporting devices that
employ simple momentary or latching contact-closure control, with LED
feedback.
NXC-REL10 (FG2020) Specifications
Power Requirements:
260 mA @ 12 VDC (maximum)
Operation:
Relays 1-10: ten relays, 1A @, 24VAC / 28VDC
LEDs:
10 red LEDs light to show ON status activity for each
relay.
Wiring:
• Two 10-pin 3.5 mm captive-screw terminals
• Commoning strip (metal)
DEVICE_ID:
$010a
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
©2007 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
NO and NC 3-pin jumpers J1 - J5
NO and NC 3-pin jumpers J6 - J10
12/07
AMX reserves the right to alter specifications without notice at any time.
NXC-REL10
Pinouts and Functions:
NXC-REL10 Pinouts and Functions
Pin
Function
Pin
Function
1
Relay 1A
11
Relay 6A
2
Relay 1B
12
Relay 6B
3
Relay 2A
13
Relay 7A
4
Relay 2B
14
Relay 7B
5
Relay 3A
15
Relay 8A
6
Relay 3B
16
Relay 8B
7
Relay 4A
17
Relay 9A
8
Relay 4B
18
Relay 9B
9
Relay 5A
19
Relay 10A
10
Relay 5B
20
Relay 10B
NXC-REL10 Channel Assignments:
Channels 1-10 represent relays 1-10.
NXC-REL10 Connections/Wiring:
The NXC-REL10 Control Card has 10 relays that are independently controlled
and electrically isolated.
The relay contacts are rated for a maximum of 1A @ 0-24VAC or 0-28VDC
(resistive).
Jumpers located on the Card allow you to select Normally Open (NO) or
Normally Closed (NC) contact settings:
Normally open (NO) mode setting on jumper pins 1 and 2 (default).
Normally closed (NC) mode setting on jumper pins 2 and 3.
Installation Guide
Relay Card, 10 Channels
93-2020
REV: C
