Summary of Contents for JVC BlackCrystal JLC-32BC3000

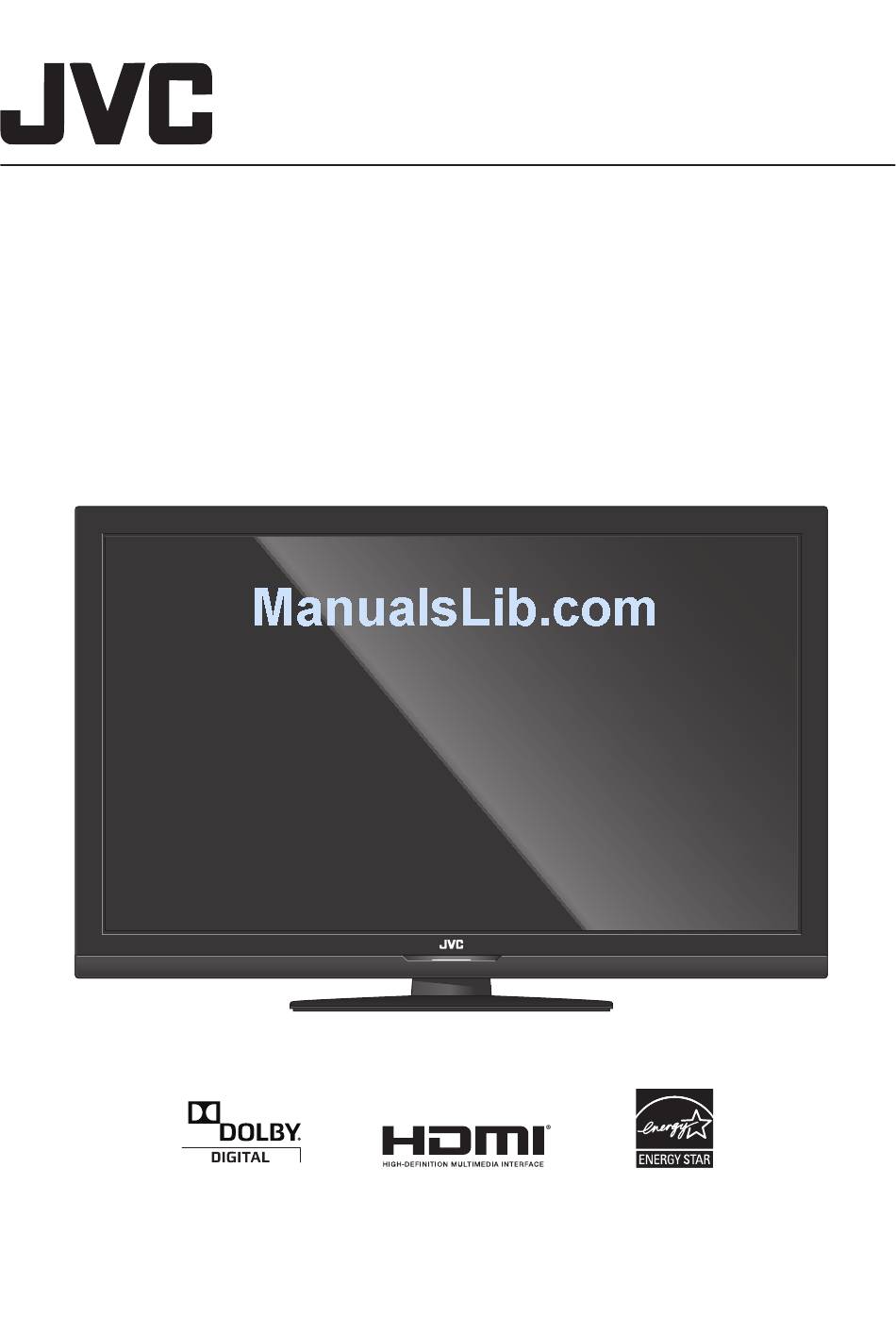

- Page 1 ® User’s Manual Black Crystal 3000 Series LCD TV JLC-32BC3000 JLC-37BC3000 JLC-42BC3000 JLC-47BC3000 Copyright © All Rights Reserved...
-
Page 2: Important Note
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, The exclamation point within an equilateral within an equilateral triangle is intended to triangle is intended to alert the user to alert the user to the presence of uninsulated... -
Page 3: Important Safety Instructions
Important Safety Instructions Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 Important Safety Instructions 22) When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner’s manual of the other equipment carefully and follow the instructions when making any connections.
- Page 5 Important Safety Instructions CONDENSATION Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, unit’s performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.
-
Page 6: Table Of Contents
Contents Parental Control ........25 Important Safety Instructions ....4 Access Parental Control Menu ..25 Contents ............7 Restrict By Channel ......25 Restrict By TV/Movie Rating ....25 Package Contents ........8 Change Password ......25 Remote Control Batteries ......8 Picture-in-Picture (PIP) ......26 Parts and Functions ........9 PIP (Picture-In-Picture) ...... -
Page 7: Package Contents
Package Contents Check if the following items are included in your package. LCD TV Remote Control Batteries SLEEP MEDIA MUTE HDMI VIDEO COMP MUSIC Quick Start Guide Power Cord Remote Control Batteries Push the tab, then lift to open the cover. Close the battery cover. -
Page 8: Parts And Functions
Parts and Functions Front and Side Views POWER button MENU button MENU Channel Up / Down button VOL + Volume Up / Down button VOL _ INPUT button INPUT Remote control sensor LED indicator • Standby / Power OFF: Red USB port • Power ON: White HDMI Side... -
Page 9: Remote Control
Parts and Functions Remote Control Transmitter: Sends remote control signal to the LCD TV. SLEEP button: Press to select a sleep mode option (Off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes). Playback controls: Use in Photo Slide show SLEEP mode. -
Page 10: Making Connections
Making Connections Connecting Antenna / Cable Connect the 75 ohm coaxial cable directly to the DTV/TV Cable/Antenna jack of the LCD TV. 75 ohm coaxial cable DTV / TV CABLE / ANTENNA Connecting Video Players / Camcorders / Game Consoles You can connect different devices to the LCD TV using HDMI, DVI, Composite, or Component connections. -
Page 11: Via Composite Connection
Making Connections Via Composite Connection LCD TV Video Player / Camcorder / Game Console Audio OUT Audio IN VIDEO AUDIO AUDIO VIDEO Video IN Video OUT AV cable (not supplied) Note: The AV cable is not supplied with the LCD TV. Check your device package contents or contact your retailer to purchase one. -
Page 12: Connecting External Speakers / Amplifiers
Making Connections Connecting External Speakers / Amplifiers You can enjoy various audio systems including Dolby Digital Surround audio on the LCD TV. Connect Digital Audio System Connect one end of a coaxial digital cable to the Optical Digital Audio OUT port of the LCD TV and the other end to the AV amplifier. -
Page 13: Connecting Computers
Making Connections Connecting Computers The LCD TV can be used as a computer monitor. Connect one end of a VGA cable to the RGB PC port of the LCD TV. Connect the other end to the VGA port of the computer. For multimedia functions, connect one end of a PC audio cable to the PC Audio IN port of the LCD TV and the other end to the Audio OUT port of the computer. -
Page 14: Basic Operations
Basic Operations Guided Setup Press to select the Time Zone, then press OK. When the LCD TV is turned on for the first time, the Guided Setup appears to assist you in setting up your LCD TV. Time Zone Note: Make sure that the antenna or cable TV system Select the Time Zone is connected before proceeding. -
Page 15: Operating The Tv
Basic Operations Operating the TV Scanning Select Channel Channel scan in process, if you want to stop scanning, please press "Stop Scan". Press the number buttons to directly select Scan Status: channels. Analog Channel: Digital Channel: Stop Scan Note: After pressing the number buttons, there is a few seconds delay before the TV changes channel. -
Page 16: Mute Volume
Basic Operations Selecting Input Source Mute Volume Press MUTE to turn the sound off. To turn the The TV provides various ways to select the sound back on, press MUTE again or any of input source: the VOL buttons. MUTE On the TV Panel Set Sleep Timer Press INPUT repeatedly... -
Page 17: Multimedia Mode
Basic Operations Multimedia Mode USB Mode: Video The TV allows you to play videos, slide shows, Video and music from a USB memory stick. PATH:/MMP/Video/ File Duration Insert the USB memory stick into the USB Mother Goose 01:03:15 Fish story 02:03:15 slot of the TV. -
Page 18: Audio Only Mode
Basic Operations Audio Only Mode The TV supports music playback from external music players, such as an MP4 or iPod. While playing music, you can set the TV to Audio Only mode to turn off the TV display and save power. Connect one end of an audio cable to the Music/PC Audio IN port of the TV, then connect the other end to the Audio OUT... -
Page 19: Adjusting The Menu Settings
Adjusting the Menu Settings Quick Menu Operation Input Picture Video Component Audio HDMI-1 HDMI-2 Options or submenu Setup HDMI-3 Main Menu HDMI Side Music Closed Caption Wide Channel Remote Control TV Panel Press MENU. Display the menu. Press MENU 1. Press to select a 1. - Page 20 Adjusting the Menu Settings Menu Submenu Description To watch analog or digital TV channels. To use VCRs, camcorders, or game consoles Video connected via composite connection. To use VCRs, camcorders, or game consoles Component connected via component connection. HDMI - 1 / 2 To use devices connected via HDMI connection.
- Page 21 Adjusting the Menu Settings Menu Submenu Description Reduce noise level of digital signals. Digital NR (Off / Low / Medium / High) Crystal Motion™ produces sharper motion Crystal Motion™ pictures. (Off / Clear / Standard / Smooth) Advanced Picture Crystal Motion™ Picture Show a demo of the Crystal Motion™...
-
Page 22: Managing Channels
Adjusting the Menu Settings Menu Submenu Description TV Mode Antenna / Cable Select the TV mode. See page 23. Automatically scans for channels based on the Auto Channel Scan Start Scan selected tuner mode. See page 23. Partial Channel Scan See page 23. -
Page 23: Add Channel
Adjusting the Menu Settings Add Channel To select a custom label: 1. Press to select “Input Label”, Press MENU. then press or OK. ] Press to select “Channel”, then 2. Press to select a custom name press or OK. and press OK. Press to select “Find Channel”, To enter desired label:... -
Page 24: Parental Control
Adjusting the Menu Settings Parental Control Restrict By TV/Movie Rating You can select which TV/Movie rating to lock for The Parental Control feature allows you to viewing. control and restrict children from viewing or In the “Parental Control” menu, press hearing violent scenes by Channel Lock, TV to select a rating submenu, then press Rating, or Movie Rating. -
Page 25: Picture-In-Picture (Pip)
Adjusting the Menu Settings Picture-in-Picture (PIP) Press OK. Press to return to the previous screen or The PIP feature allows you to view 2 input press RETURN to close the menu screen. sources simultaneously. This feature is available only when the selected input source is POP (Picture-Over-Picture) HDMI. -
Page 26: Appendix
Appendix Supported Input Source for PIP/POP Main\PIP Composite Component HDMI 1 HDMI 2 HDMI 3 HDM1 Side Music √ √ √ √ √ √ √ √ Composite √ √ √ √ Component √ √ √ √ √ √ √ √ HDMI 1 √... -
Page 27: Limited Warranty
Type of Service Defective Products must be sent to a JVC service center to obtain warranty service. JVC is not responsible for the transportation costs to the service center, but will cover the costs for return shipping to the customer. -
Page 28: Limitations And Exclusions
CHECK WWW.JVC.COM FOR THE MOST CURRENT VERSION. Personal Data If your JVC product is capable of storing personal data and other information, ALL CONTENTS AND INFORMATION WILL BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARANTY SERVICE. If this occurs, your product will be restored to you configured as originally purchased. - Page 29 Please do not send products or other PLACE correspondence to this address. STAMP HERE Attn: Product Registration P.O. BOX 50427 IRVINE, CA 92619 PRODUCT REGISTRATION CARD / QUESTIONAIRE USA CUSTOMERS ONLY Registering your product will allow us to contact you in the unlikely event a product safety notification is required. This form is for Product Registration purposes only. Failure to return this form does not diminish your rights during the warranty period. THANK YOU FOR PURCHASING THIS JVC PRODUCT REGISTER ONLINE AT: REGISTER.JVC.COM ...
- Page 30 THANK YOU FOR PURCHASING THIS JVC PRODUCT REGISTER ONLINE AT: REGISTER.JVC.COM Register online at REGISTER.JVC.COM and receive a special offer! PRODUCT REGISTRATION First Name: Last Name: Address Apt. # City State: Zip Code: Phone Number: E‐Mail Address: ...
- Page 31 ®...
